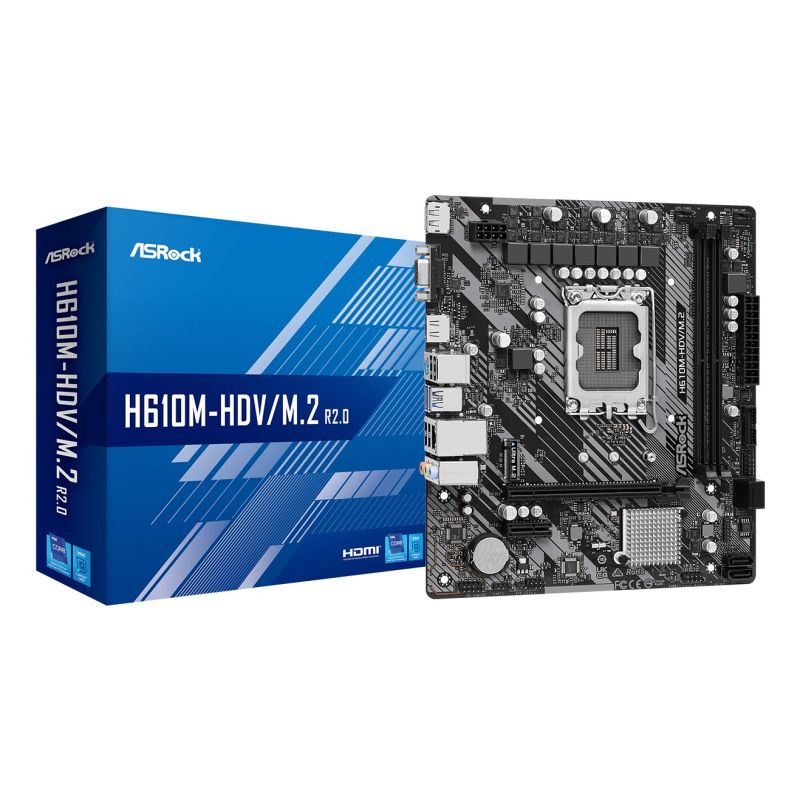

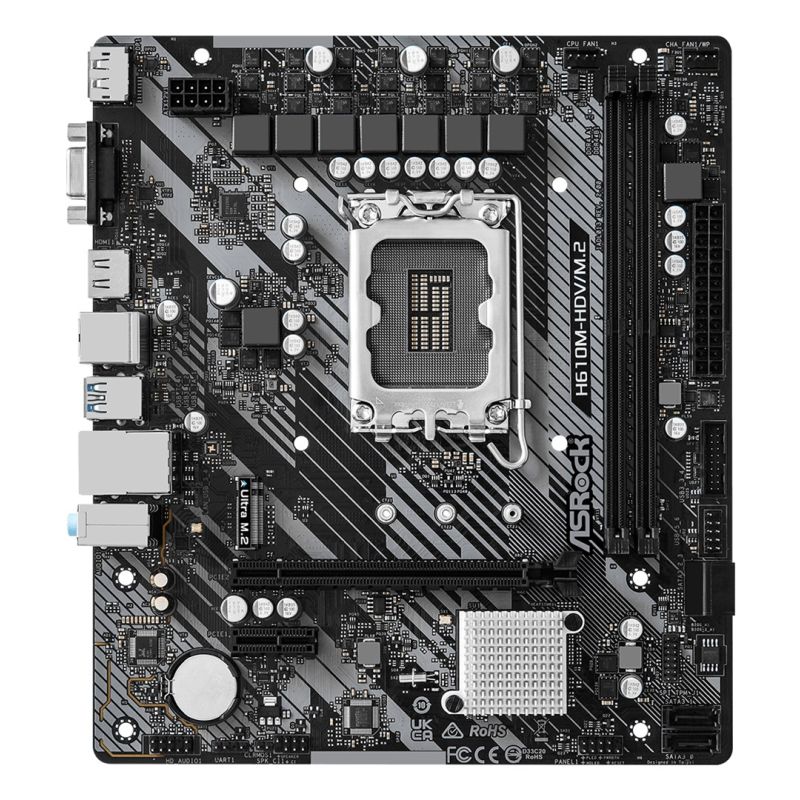

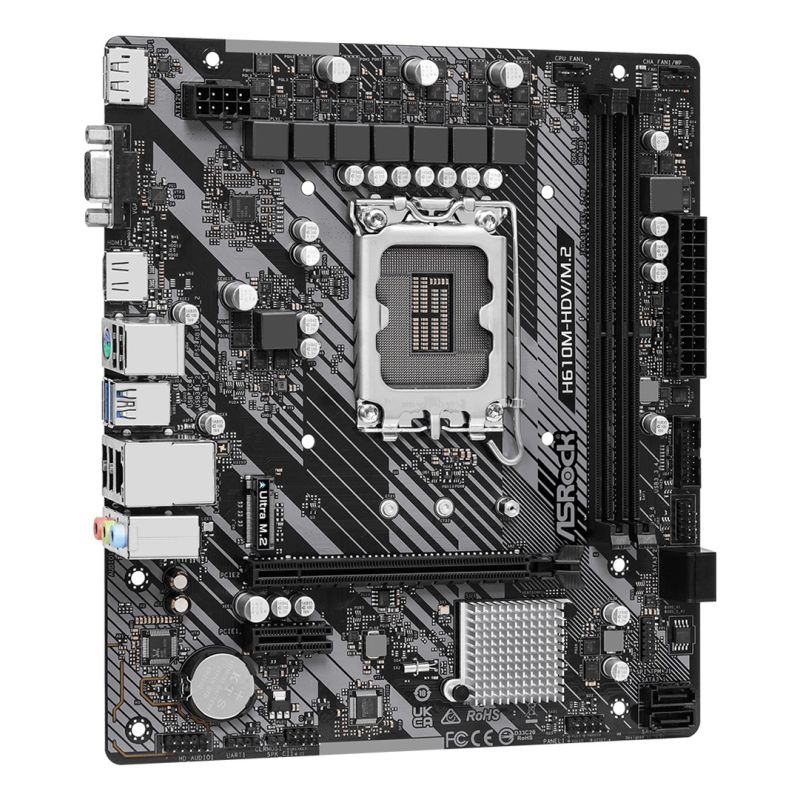

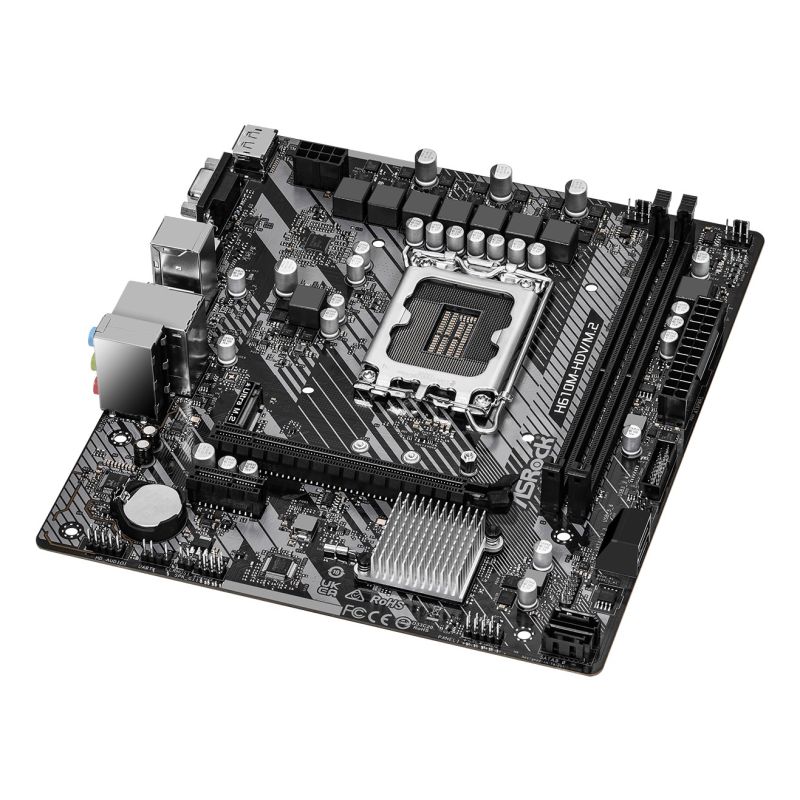

ASRock H610M-HDV/M.2 R2.0 Motherboard
ASRock H610M-HDV/M.2 R2.0 Motherboard
ASRock H610M-HDV/M.2 R2.0 Motherboard
PRICE:
98,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- EuP
- Sustainability: Yes
- Environmental (sustainability) certification: ErP
- Certificates of conformity
- Processor
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Core™ i9
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Pentium® Gold
- Intel® Celeron® G
- Intel® Core™ i3
- Processor socket: LGA 1700
- Processor manufacturer: Intel
- Graphics
- Discrete graphics support: Yes
- HDCP: Yes
- Graphics Adapter Family: Intel
- Graphics card: Intel Iris Xe Graphics
- Maximum resolution: 7680 x 4320 px
- Memory
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 3200 MHz
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 64 GB
- Supported memory types: DDR4-SDRAM
- Unbuffered memory: Yes
- Number of memory slots: 2
- Memory slot type: DIMM
- Characteristics
- Audio chip: Realtek ALC897
- Monitoring computer status
- Processor
- Water cooling
- Tension
- Fan
- Audio output channels: 7.1 ch.
- Product color
- Black
- Gray
- Silver
- Intended use: PC
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Motherboard Layout: Intel H610
- Weight and dimensions
- Product depth: 193 mm
- Product width: 220 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- Number of case fan connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 1
- 12V power connector: Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- LAN Controller: Realtek RTL8111H
- Wake-On-LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 6.0
- System BIOS (SMBIOS) version: 2.7
- Package contents
- Cables: SATA
- Drivers included: Yes
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2

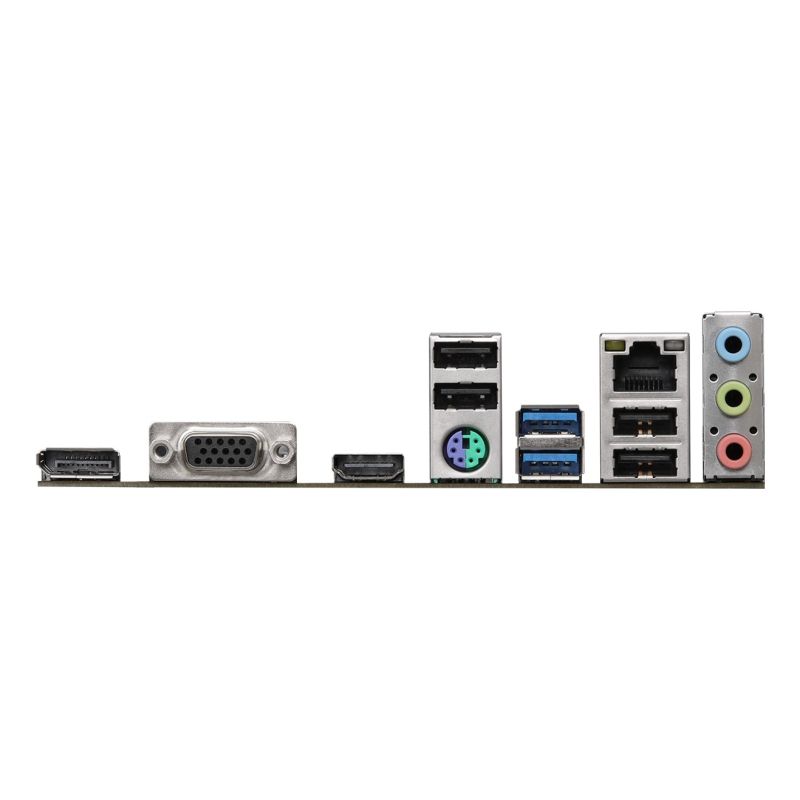

- Rear Panel I/O Ports
- Supported USB type: USB Type-A
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of HDMI ports: 1
- DisplayPort version: 1.4
- Number of PS/2 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Line Input: Yes
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- Number of VGA (D-Sub) ports: 1
- Headphone outputs: 1
- HDMI version: 2.1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
| Name | Details |
|---|---|
| Producer | Asrock |
