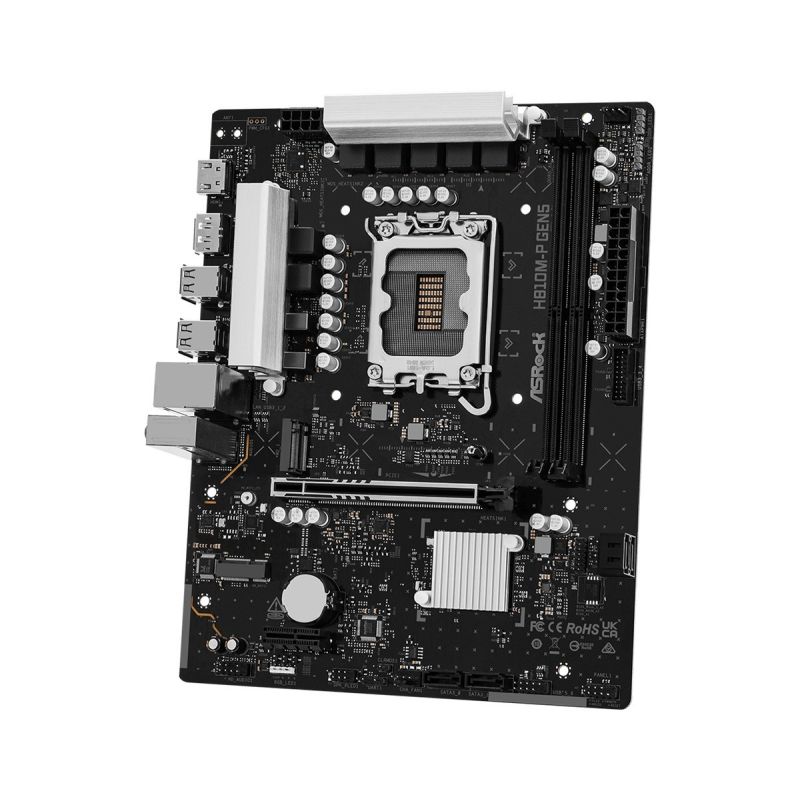

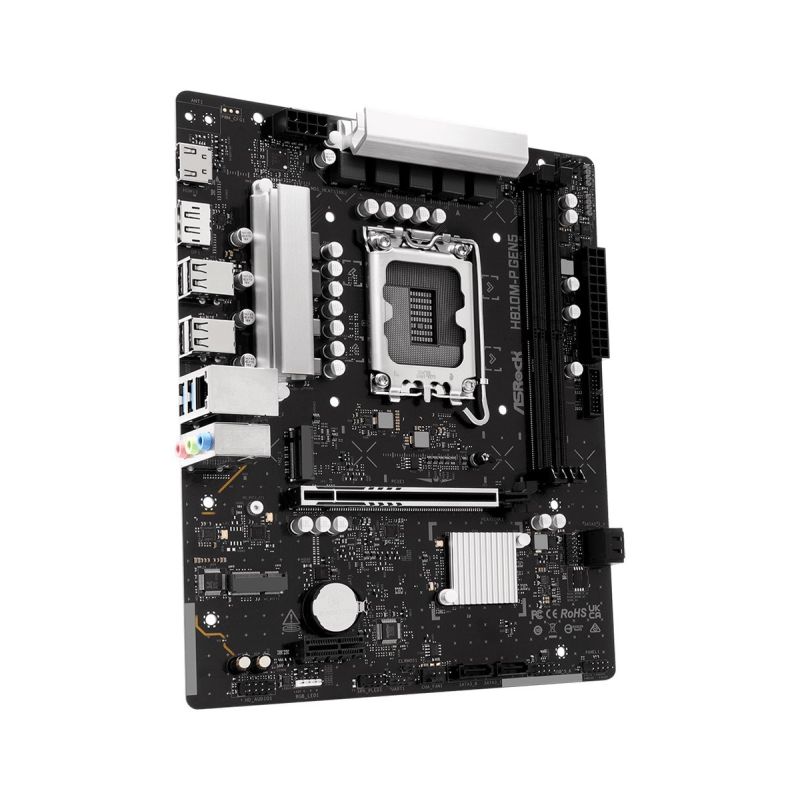

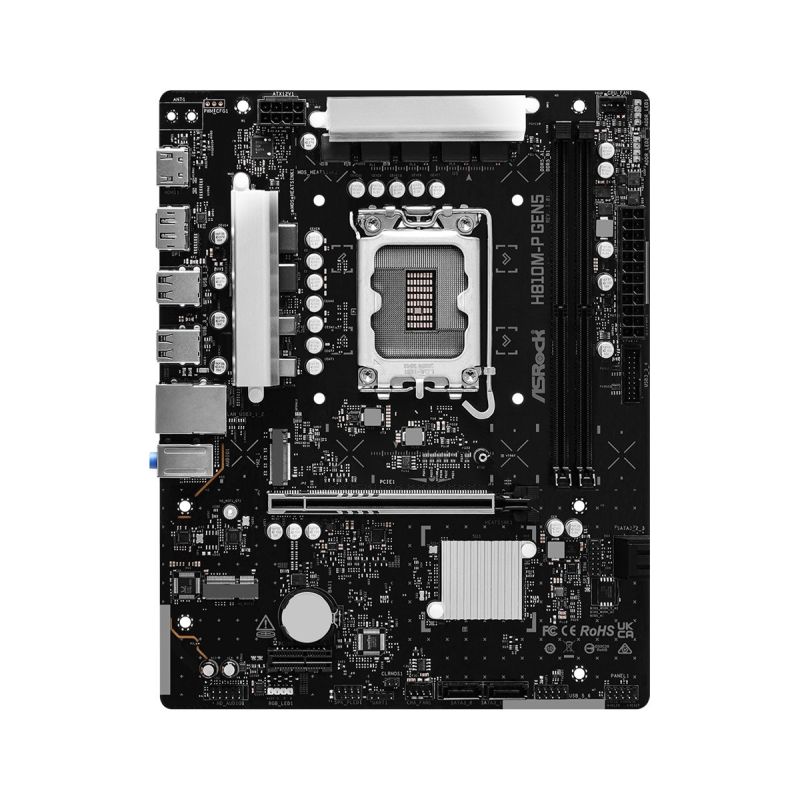

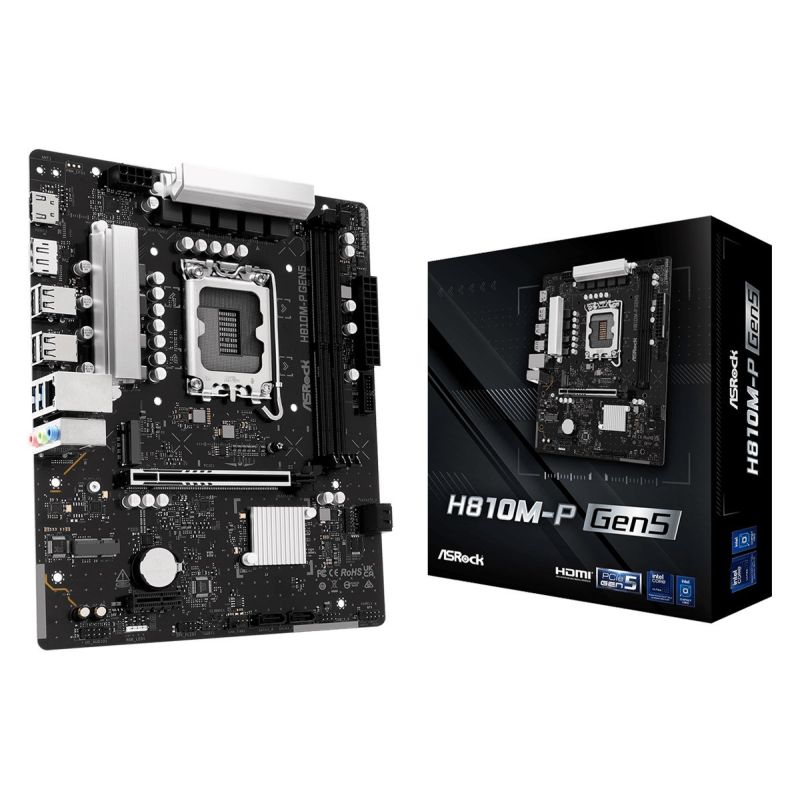

Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard
Asrock H810M-P GEN5 motherboard
PRICE:
116,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- Maximum resolution: 7680 x 4320 px
- HDCP version: 2.3
- HDCP: Yes
- Memory
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 6400 MHz
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- Characteristics
- Power supply type: ATX
- Chipset Board Family: Intel
- Supported Windows operating systems: Windows 11 x64
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Motherboard Layout: Intel H810
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product depth: 193 mm
- Product width: 244 mm
- Internal I/O
- EPS power supply connector (8-pin): Yes
- Number of SATA III connectors: 4
- RGB LED: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 1
- CPU fan connector: Yes
- Front panel audio connector: Yes
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Number of USB 2.0 ports: 2
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- LAN Controller: Realtek RTL8111H
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 5
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

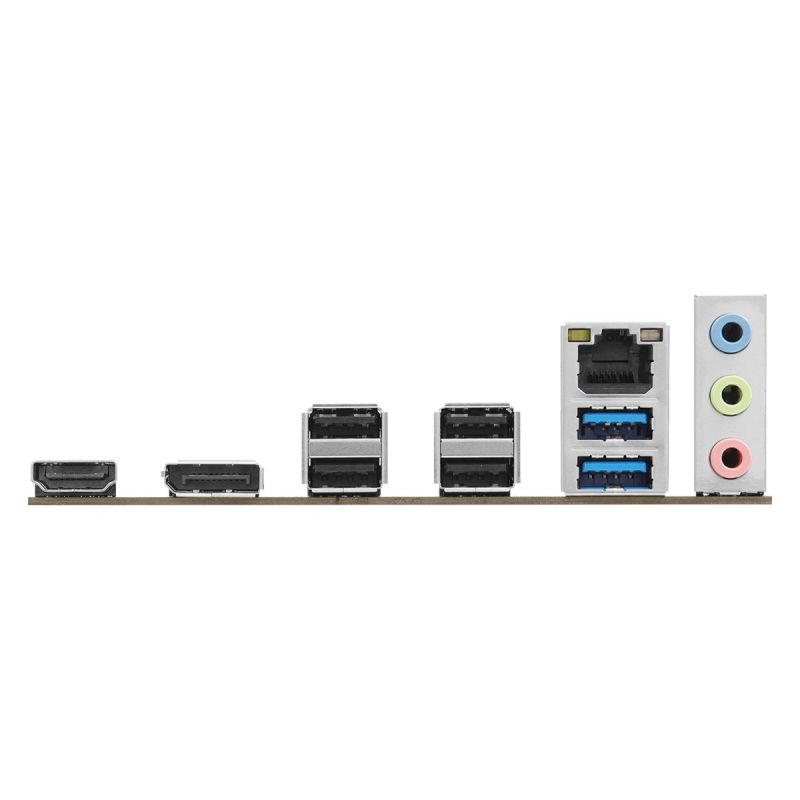

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- HDMI version: 2.1
- Number of HDMI ports: 1
- Headphone outputs: 1
- DisplayPort version: 1.4
- DisplayPort Quantity: 1
- Line Input: No
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
