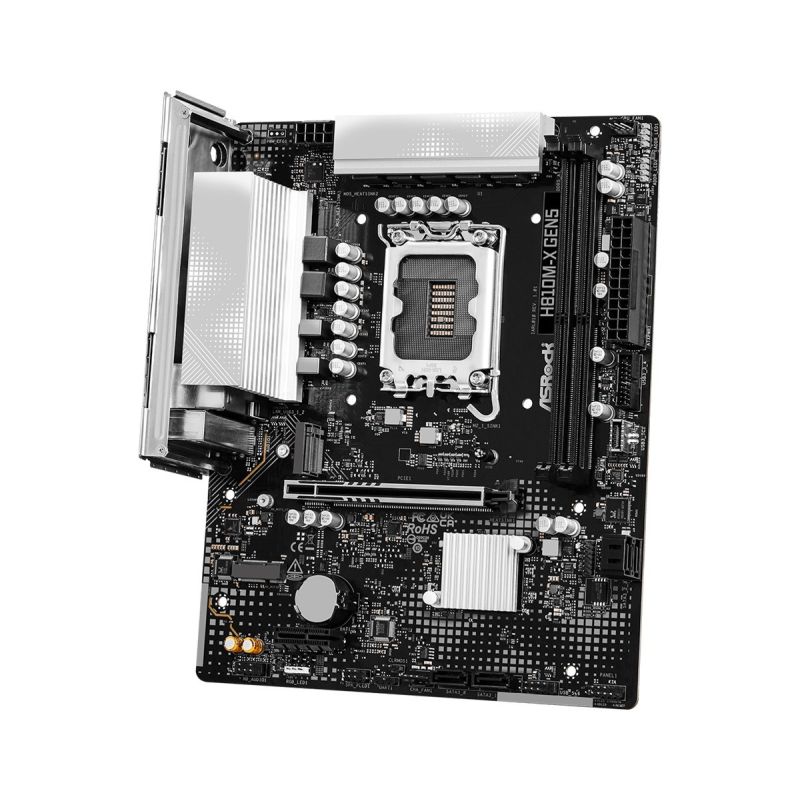

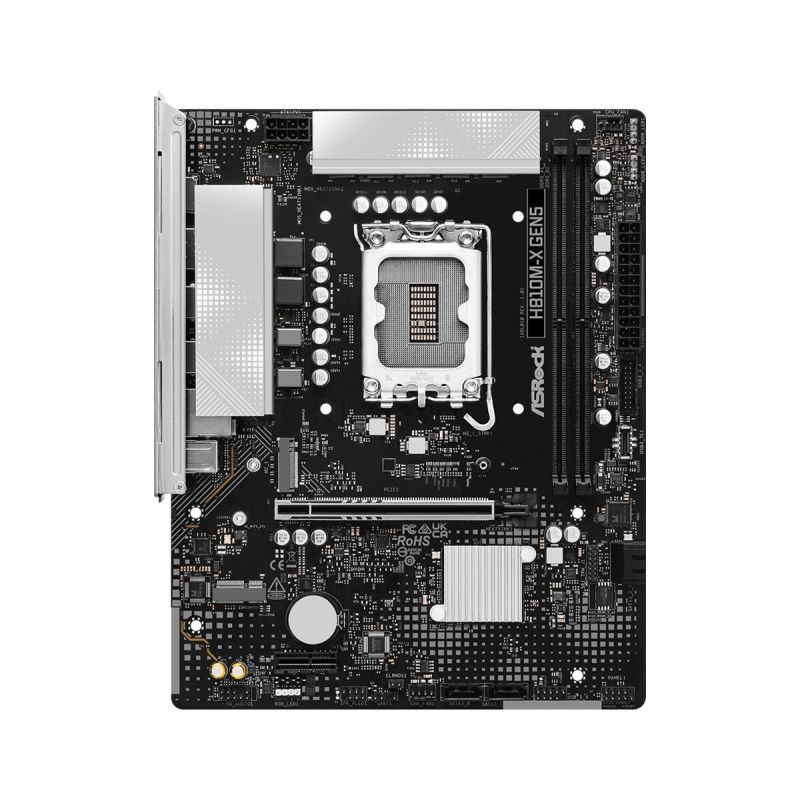

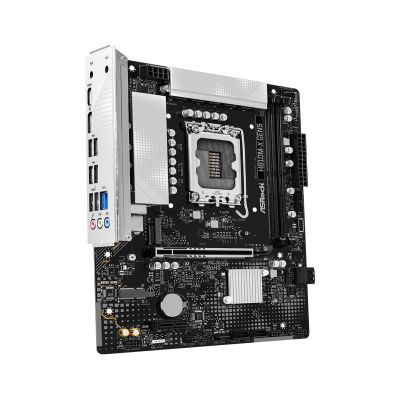

ASRock H810M-X GEN5 1851 mATX HDMI/DP DD
ASRock H810M-X GEN5 1851 mATX HDMI/DP DD
ASRock H810M-X GEN5 1851 mATX HDMI/DP DD
PRICE:
157,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- HDCP: Yes
- HDCP version: 2.3
- Memory
- ECC compatibility: Non-ECC
- Maximum memory capacity: 128 GB
- Supported memory clock speed (max.): 7200 MHz
- Memory channels: Dual-channel
- Number of memory slots: 2
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Unbuffered memory: Yes
- Features
- Audio output channels: 7.1 channels
- Audio chip: Realtek ALC897
- Motherboard chipset: Intel H810
- Motherboard form factor: Micro ATX
- Motherboard chipset family: Intel
- Supported Windows operating systems: Windows 11 x64
- Weight and dimensions
- Product depth: 193 mm
- Product width: 244 mm
- Internal I/O
- Number of CPU fan connectors: 1
- USB 3.2 Gen 1 (3.1 Gen 1) headers: 2
- TPM connector: Yes
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 1
- RGB LED: Yes
- ATX power connector (24-pin): Yes
- Number of USB 2.0 headers: 1
- Number of SATA III connectors: 4
- EPS power connector (8-pin): Yes
- Network
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- BIOS type: UEFI
- Package contents
- Cables: SATA
- Storage controllers
- Supported hard drive interfaces: SATA III, M.2

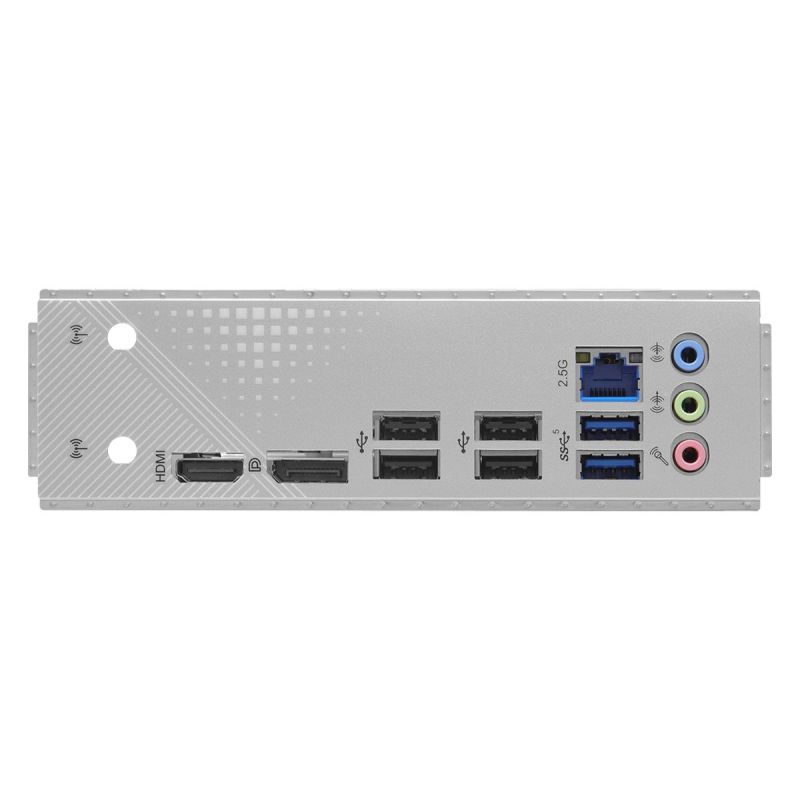

- Rear panel I/O ports
- Number of USB 2.0 ports: 4
- Line-in: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN (RJ-45) ports: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of DisplayPorts: 1
- Expansion slots
- PCI Express x1 slots (Gen 4.x): 1
- PCI Express x16 slots (Gen 5.x): 1
- Special processor features
- Intel® Extreme Memory Profile (XMP): Yes
- Intel® Turbo Boost technology: 3.0
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asrock |
