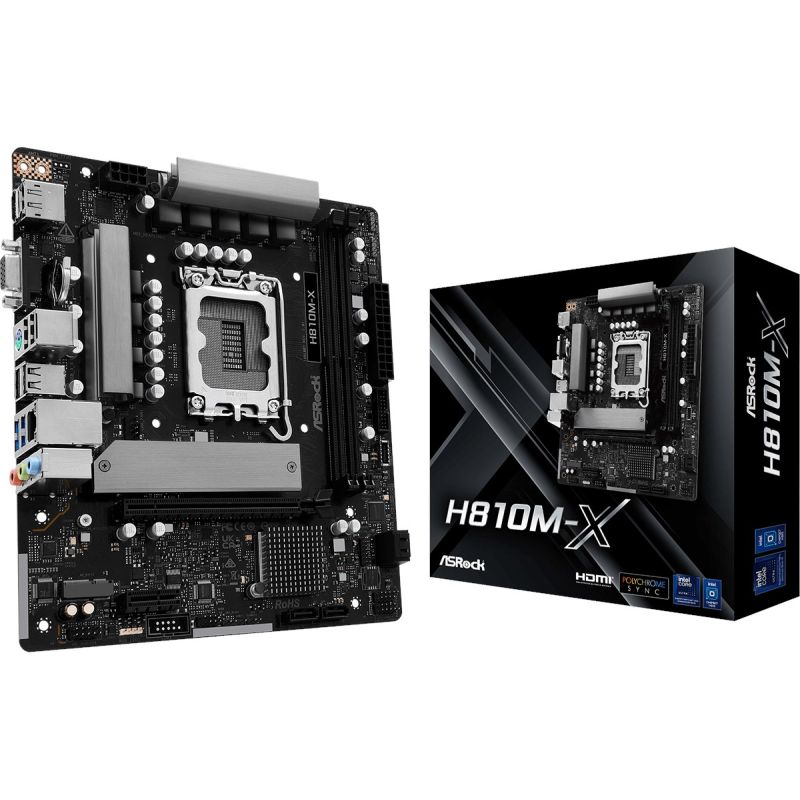

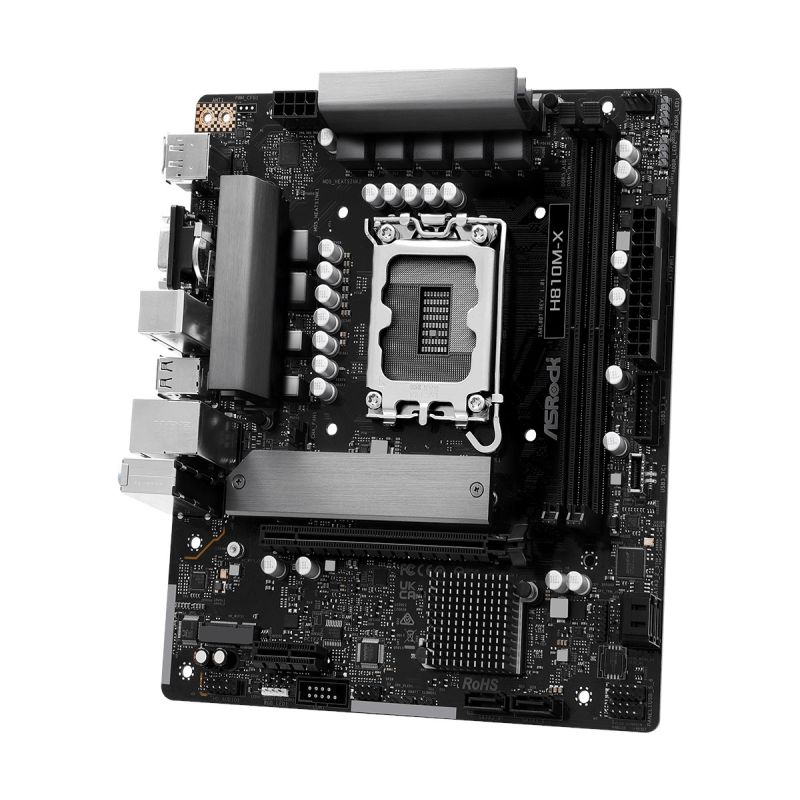

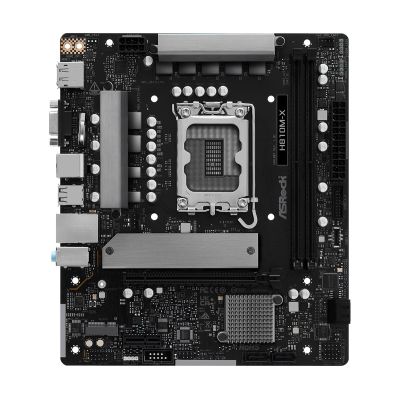

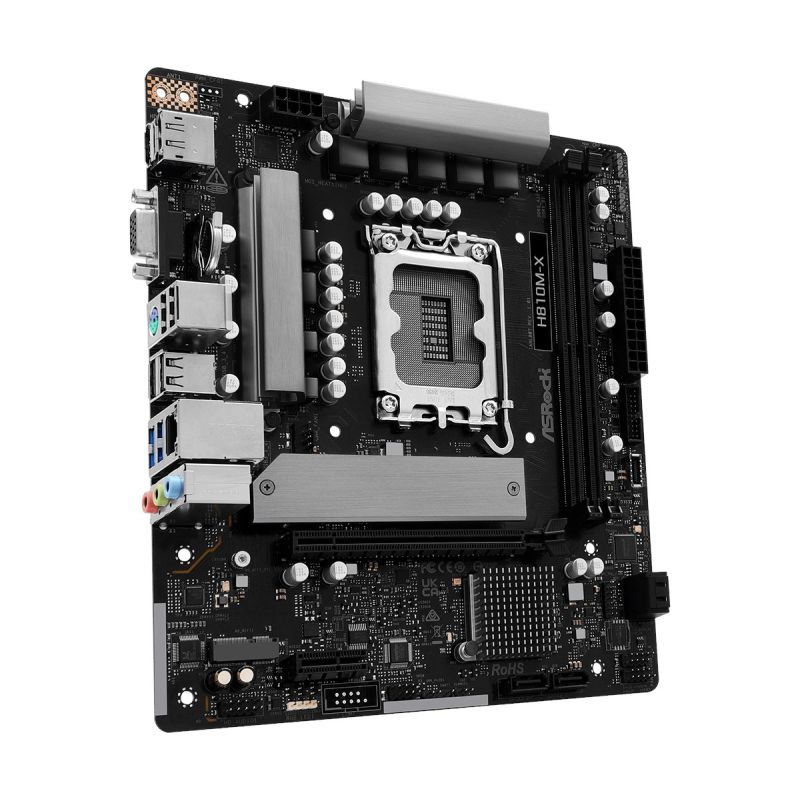

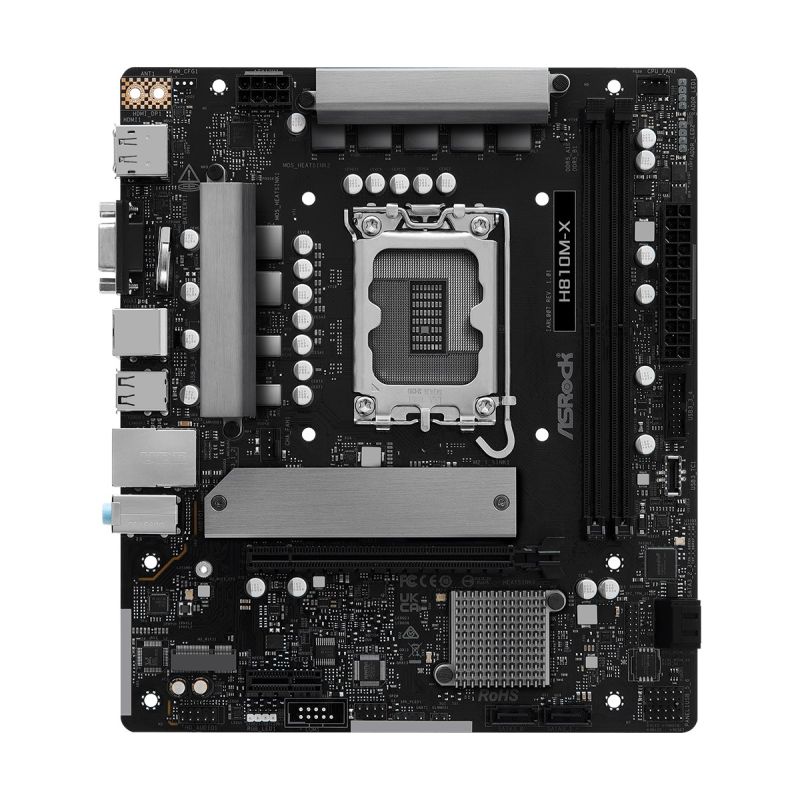

ASRock H810M-X motherboard
ASRock H810M-X motherboard
ASRock H810M-X motherboard
PRICE:
118,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Graphics
- Graphics Adapter Family: Intel
- Memory
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel H810
- Motherboard format: Micro ATX
- Audio chip: Realtek ALC897
- Chipset Board Family: Intel
- Weight and dimensions
- Product depth: 193 mm
- Product width: 220 mm
- Internal I/O
- Number of case fan connectors: 1
- CPU fan connector: Yes
- RGB LED: Yes
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- Number of CPU fan connectors: 1
- Network
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Screws Included: Yes
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III

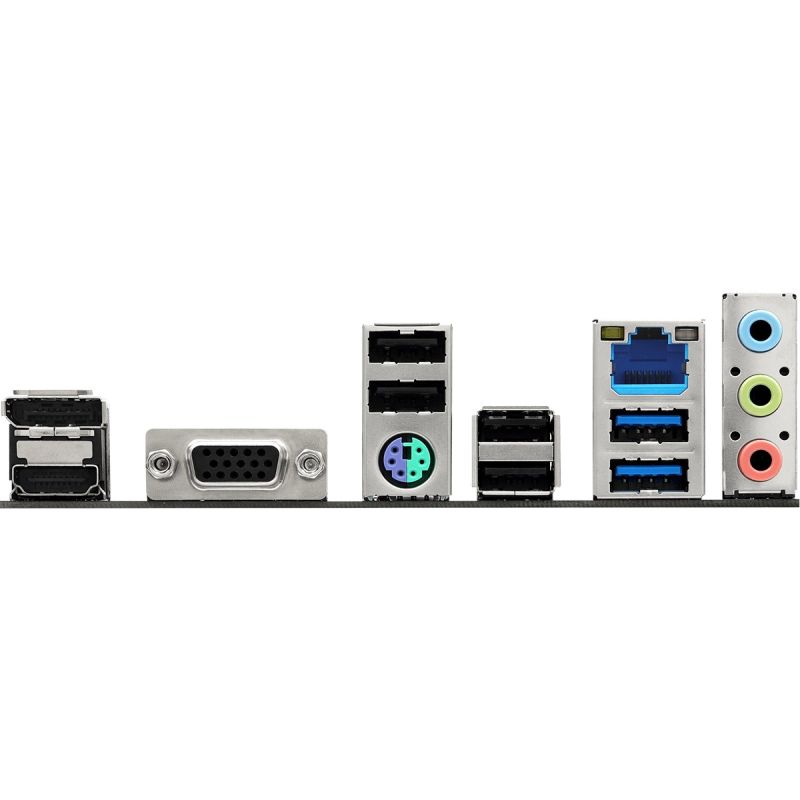

- Rear Panel I/O Ports
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 2
- DisplayPort version: 1.4
- Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- When disposing of this product, please follow local regulations for electronics recycling.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
