Asrock W880D4U motherboard Intel W880 LGA 1851 (Socket V1) micro ATX
Asrock W880D4U motherboard Intel W880 LGA 1851 (Socket V1) micro ATX
Asrock W880D4U motherboard Intel W880 LGA 1851 (Socket V1) micro ATX
PRICE:
837,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- Graphics card: AST2600
- Graphics Adapter Family: ASPEED
- Built-in graphics card: Yes
- Memory
- Number of memory socket pins: 288
- Maximum memory capacity: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Memory slot type: DIMM
- Supported memory clock speeds
- 4400 MHz
- 5600 MHz
- 4800 MHz
- Memory voltage: 1.1 V
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Characteristics
- Chipset Board Family: Intel
- Motherboard Layout: Intel W880
- Motherboard format: Micro ATX
- Purpose: Server
- Weight and dimensions
- Product width: 243.8 mm
- Product depth: 243.8 mm
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 20 - 90%
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- TPM Connector: Yes
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 8
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- LAN Controller: Intel I210
- BIOS
- ACPI version: 6.4
- BIOS Type: AMI
- System BIOS (SMBIOS) version: 2.3
- Memory drivers
- Supported hard drive interfaces: SATA III
- RAID Service: Yes
- RAID levels
- 1
- 0
- 10
- 5

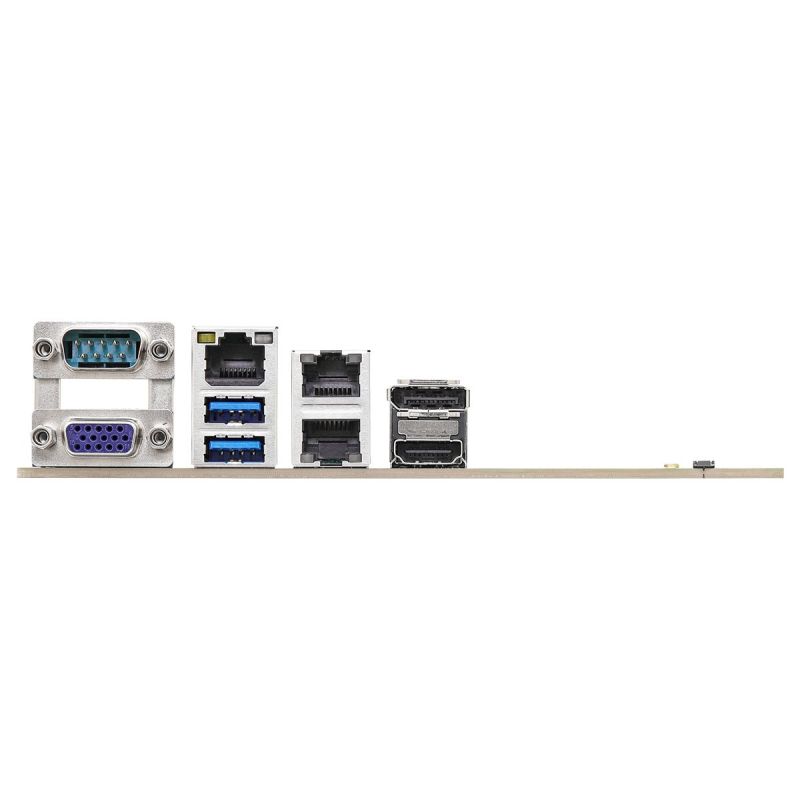

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- IPMI LAN Port (RJ-45): Yes
- Serial communication ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- Number of HDMI ports: 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Asrock |
| Department | Electronics |
