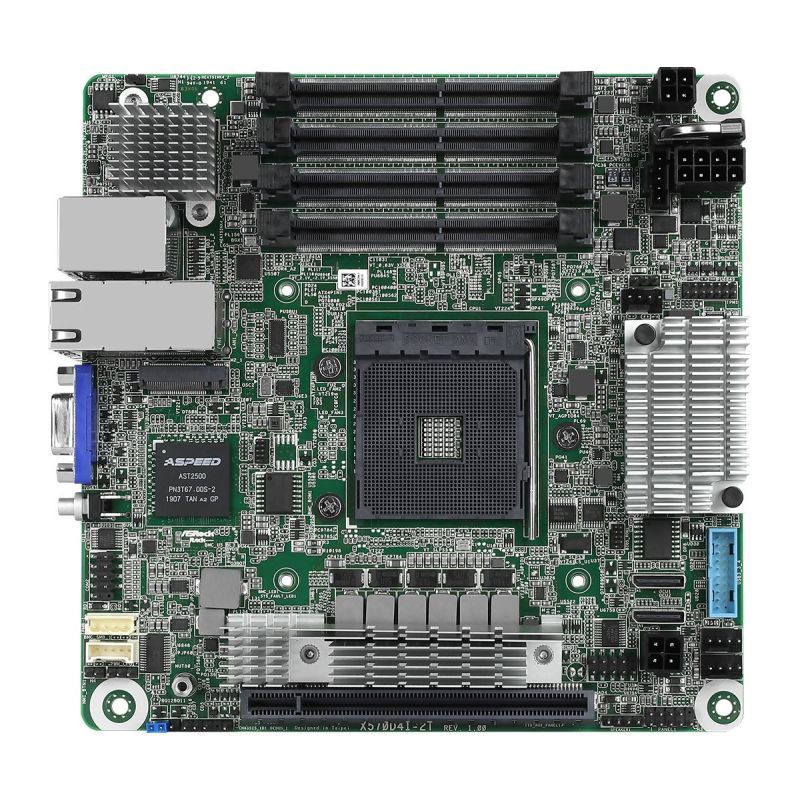

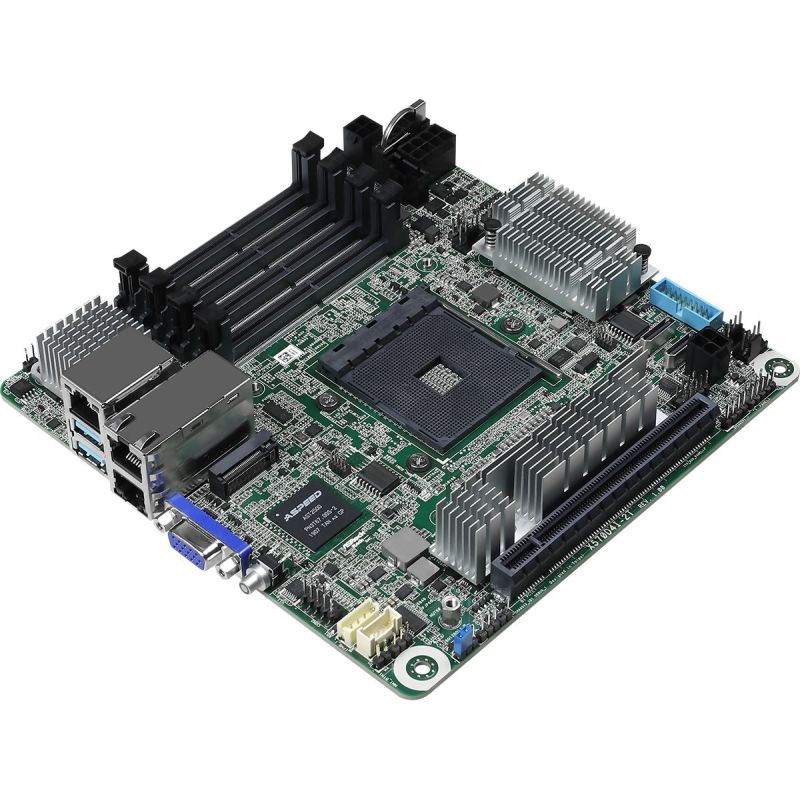

ASRock X570D4I-2T motherboard 1x AM4 AMD Ryzen X570 (SATA, 1xM.2, 2x10GbE, IPMI)
ASRock X570D4I-2T motherboard 1x AM4 AMD Ryzen X570 (SATA, 1xM.2, 2x10GbE, IPMI)
ASRock X570D4I-2T motherboard 1x AM4 AMD Ryzen X570 (SATA, 1xM.2, 2x10GbE, IPMI)
PRICE:
995,99
€
IN A WAREHOUSE
8 pcs
Goods available on request - delivery time to 7 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Processor: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
- Graphics
- Parallel Processing Support: Not Supported
- Built-in graphics card model: Aspeed AST2500
- On-board graphics card memory: 16 MB
- Graphics card: AST2500
- Graphics Adapter Family: ASPEED
- Memory
- Supported memory clock speeds: 2933 MHz
- Memory slot type: SO-DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Maximum memory capacity: 64 GB
- ECC Compatibility: ECC or Non-ECC
- Supported memory types: DDR4-SDRAM
- Memory voltage: 1.2 V
- Characteristics
- Intended use: PC
- Chipset Board Family: AMD
- Motherboard format: Mini ITX
- Motherboard Layout: AMD X570
- Weight and dimensions
- Product width: 170.2 mm
- Product depth: 170.2 mm
- Product height: 285 mm
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 8
- Number of COM sockets: 1
- TPM Connector: Yes
- Number of case fan connectors: 3
- Network
- Wake-On-LAN: Yes
- LAN controller
- Realtek RTL8211E
- Intel® X550-AT2
- Wired LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet
- Wi-Fi: No
- BIOS
- ACPI version: 2.0
- BIOS Type: UEFI AMI
- System BIOS (SMBIOS) version: 2.8
- BIOS memory size: 32 Mbit
- Memory drivers
- Supported hard drive interfaces: Serial ATA III, SATA III

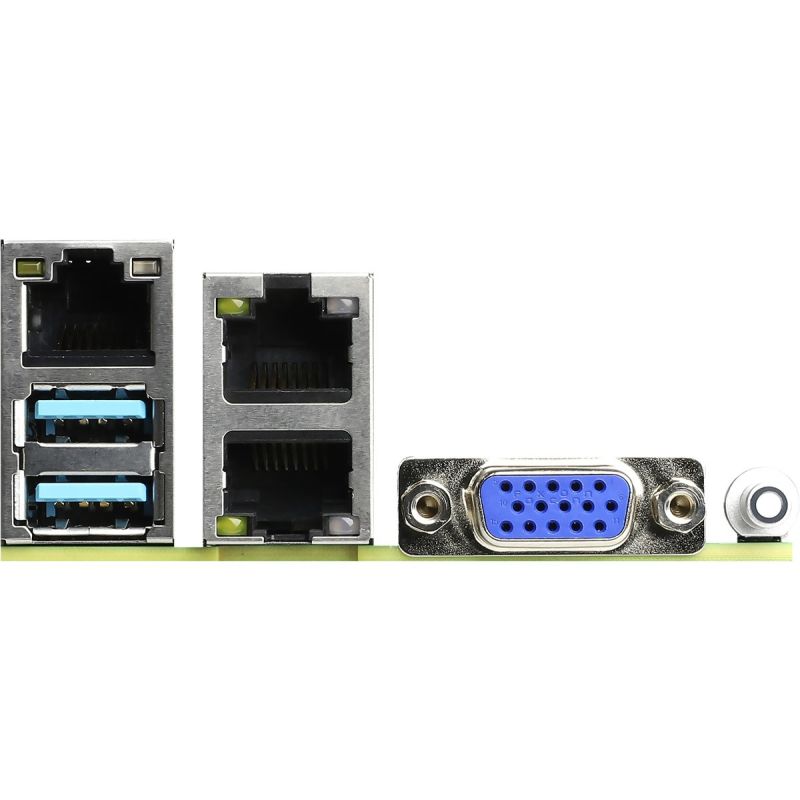

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of VGA (D-Sub) ports: 1
- Number of Ethernet LAN ports (RJ-45): 2
- IPMI LAN Port (RJ-45): Yes
- Expansion slots
- PCI Express x16 slots: 1
- Number of M.2 (M) slots: 1
- Other functions
- Number of DIMM slots: 4
- Product weight: 760 g
- Number of supported processors: 1
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Use only in a dry and well-ventilated place.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Do not open or disassemble the motherboard.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
