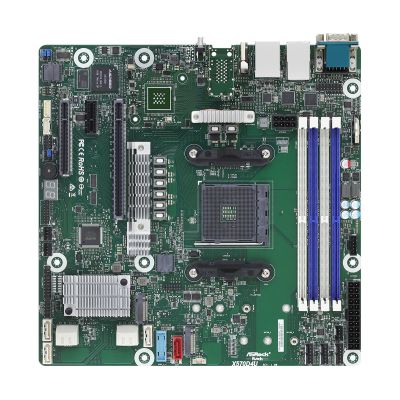

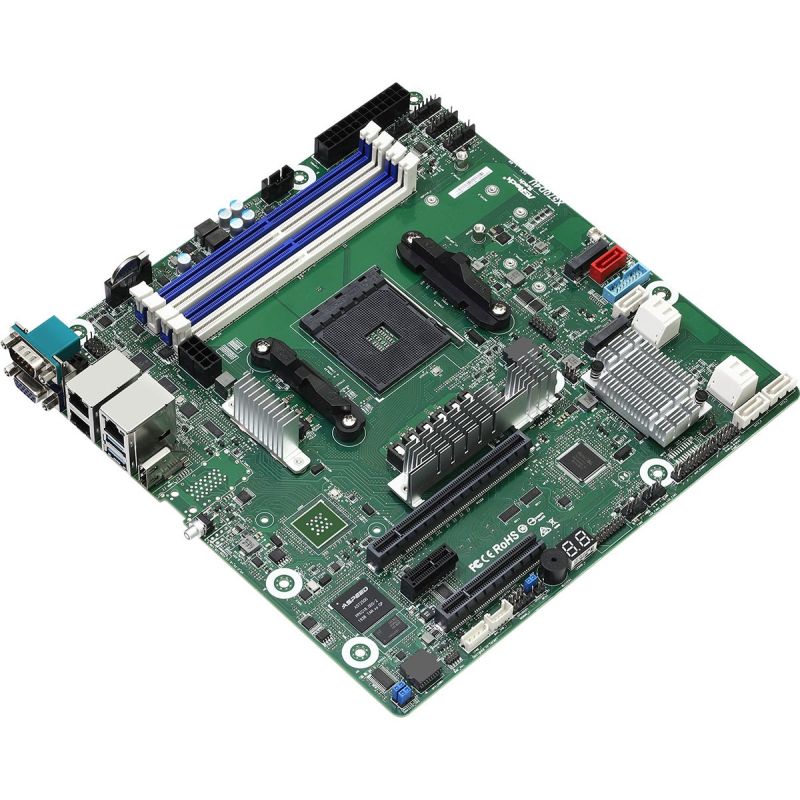

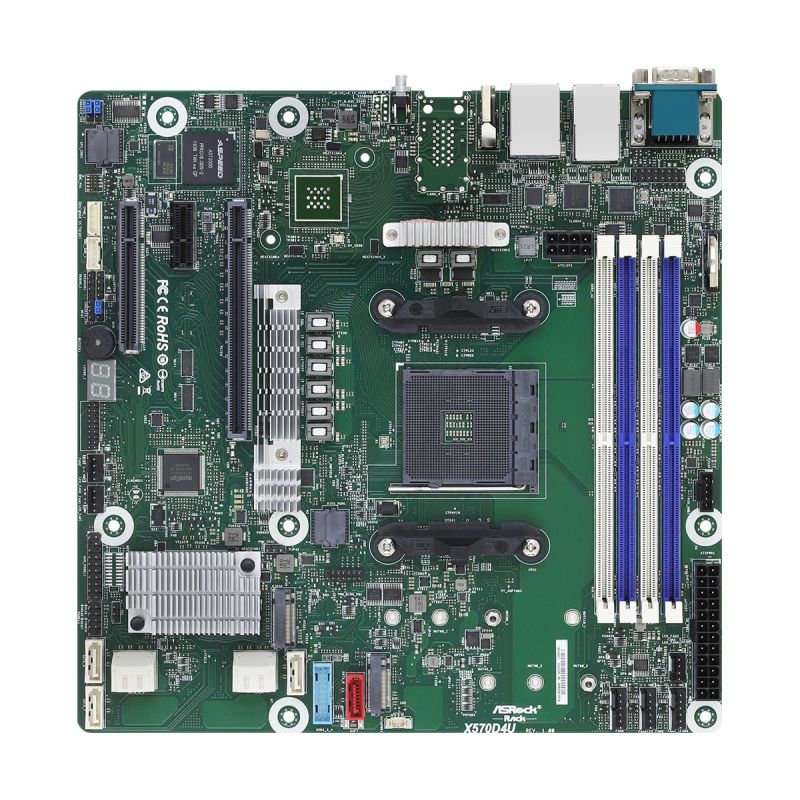

ASRock X570D4U motherboard 1x AM4 AMD Ryzen X570 (SATA, 2xM.2, 2xGbE, IPMI)
ASRock X570D4U motherboard 1x AM4 AMD Ryzen X570 (SATA, 2xM.2, 2xGbE, IPMI)
ASRock X570D4U motherboard 1x AM4 AMD Ryzen X570 (SATA, 2xM.2, 2xGbE, IPMI)
PRICE:
567,99
€
IN A WAREHOUSE
3 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM4
- Supported processor sockets: Socket AM4
- Graphics
- Graphics Adapter Family: ASPEED
- Graphics card: AST2500
- Memory
- Memory voltage: 1.2 V
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR4-SDRAM
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Maximum memory capacity: 32 GB
- Supported memory clock speeds
- 3200 MHz
- 2666 MHz
- Characteristics
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Motherboard Layout: AMD X570
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Working conditions
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- TPM Connector: Yes
- ATX power socket (24-pin): Yes
- 12V power connector: Yes
- Housing intrusion sensor connector: Yes
- Number of SATA III connectors: 12
- Number of SATA ports: 12
- Network
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- LAN controller
- Intel I210
- Realtek RTL8211E
- BIOS
- ACPI version: 2.0
- BIOS Type: UEFI AMI
- Memory drivers
- RAID levels
- 10
- 0
- 1
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- RAID levels

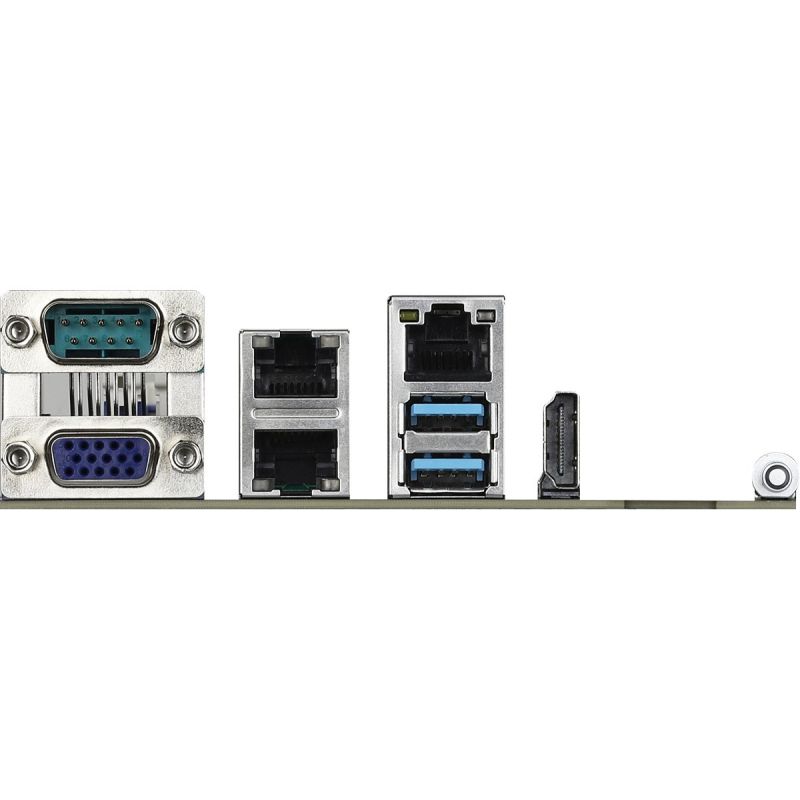

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 3
- Expansion slots
- PCI Express x1 slots: 1
- PCI Express x8 slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Use only in a dry and well-ventilated place.
- Do not open or disassemble the motherboard.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Warnings
