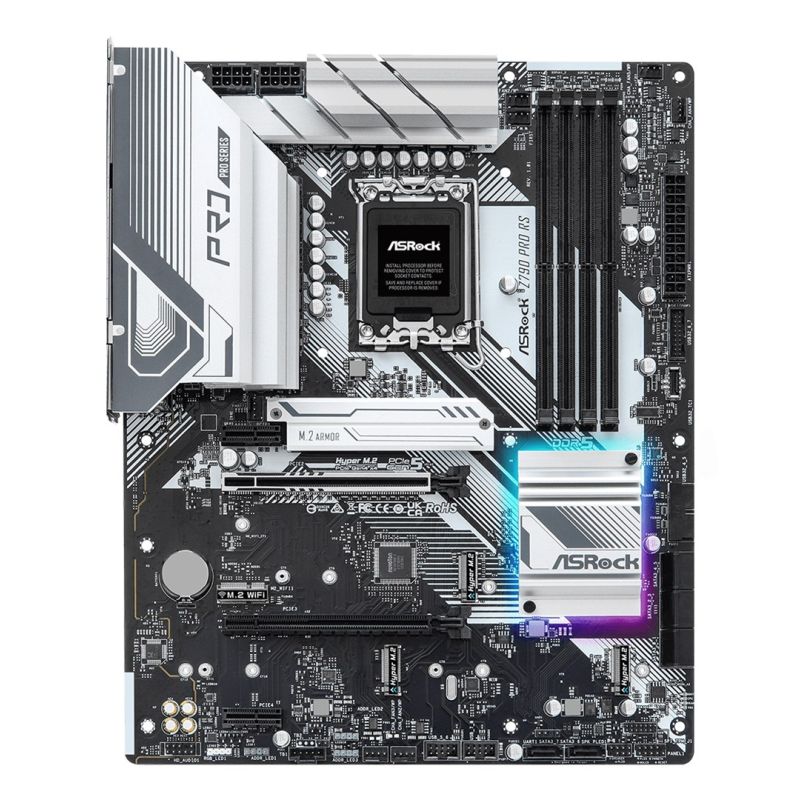

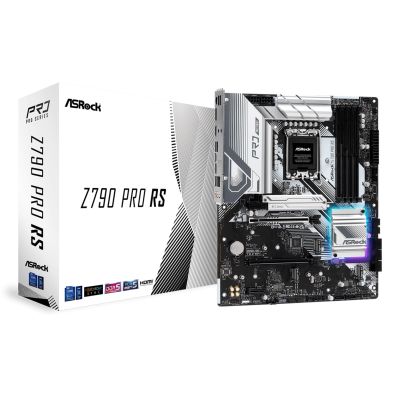

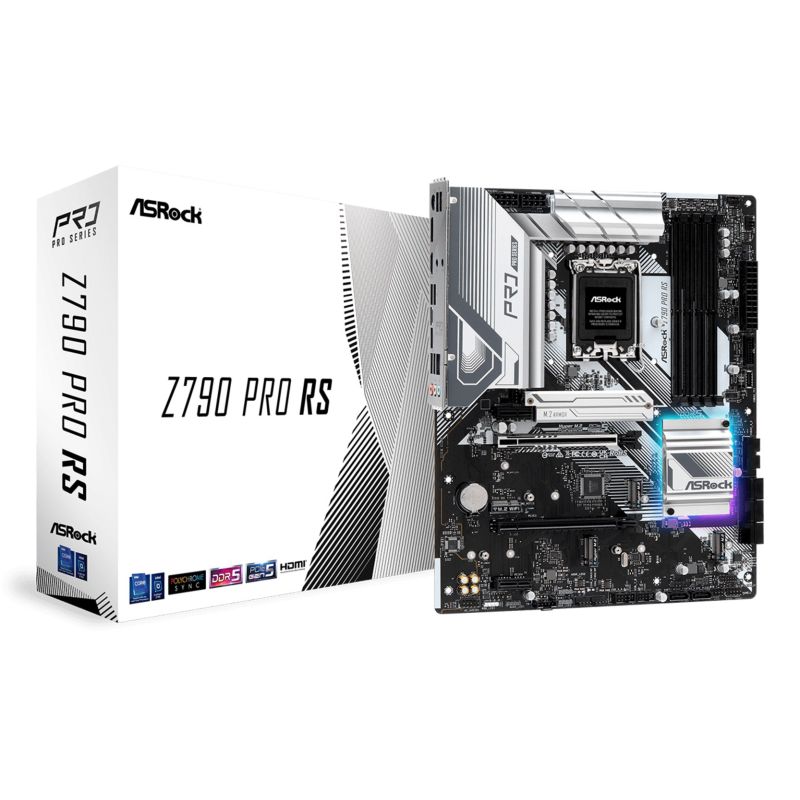

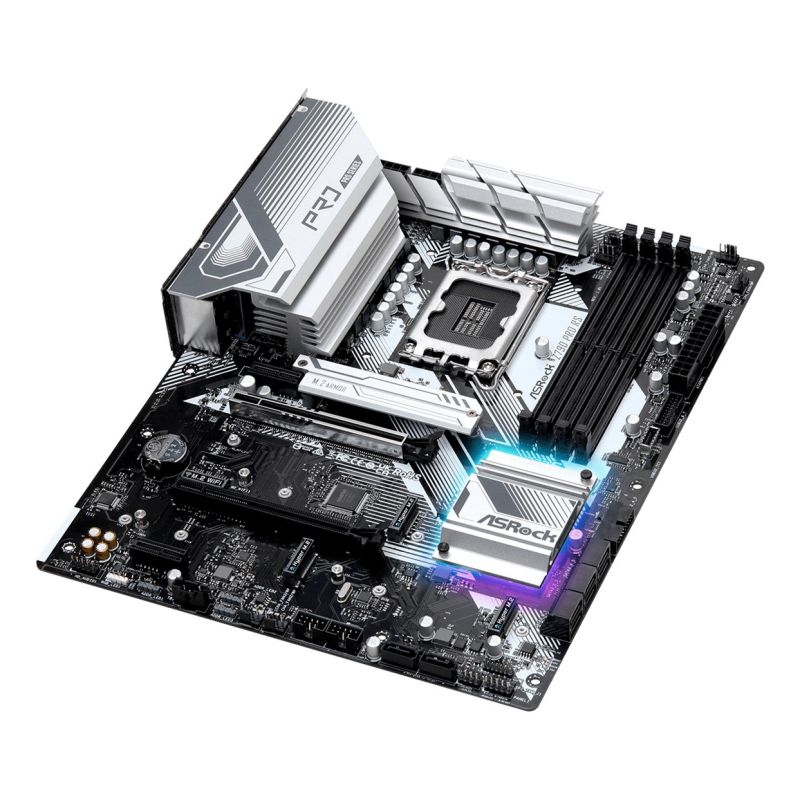

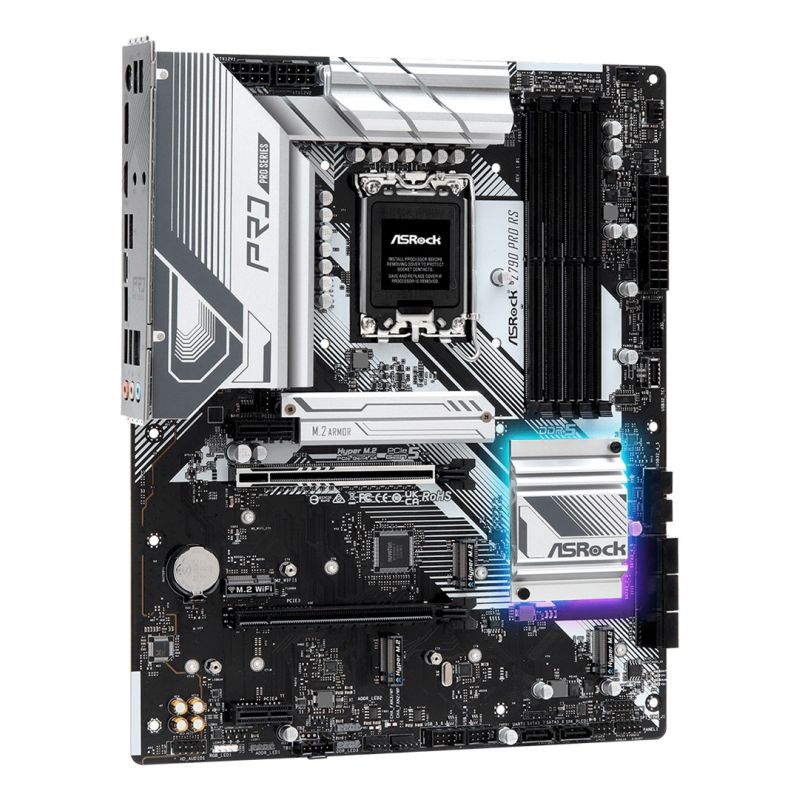

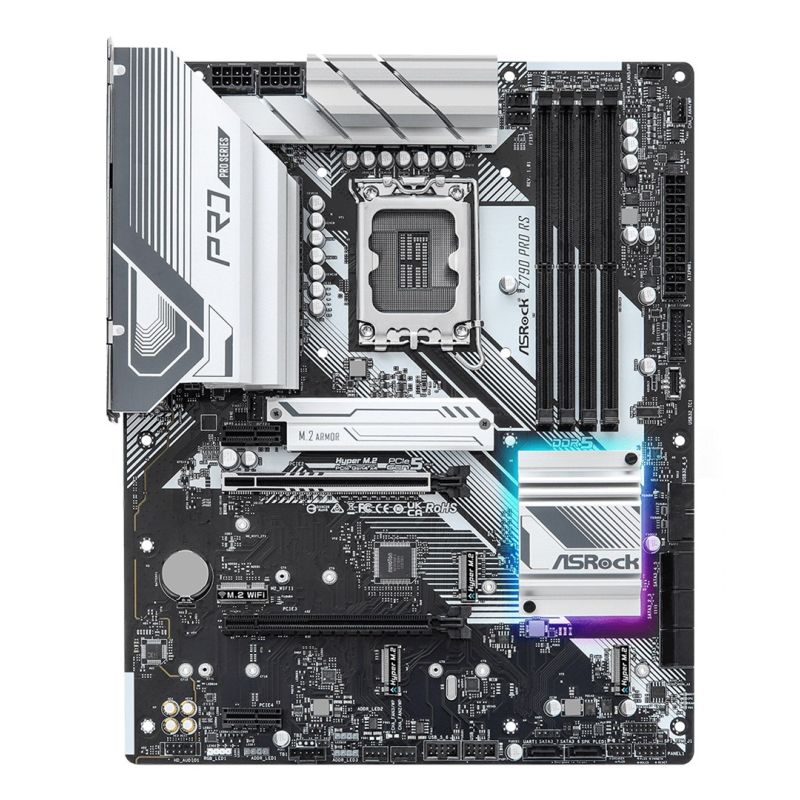

Asrock Z790 Pro RS Motherboard
Asrock Z790 Pro RS Motherboard
Asrock Z790 Pro RS Motherboard
PRICE:
256,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Processor
- Intel® Core™ i9
- Intel® Core™ i7
- Intel® Core™ i5
- Processor socket: LGA 1700
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Number of memory slots: 4
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel Z790
- Motherboard format: ATX
- Chipset Board Family: Intel
- Supported Windows operating systems
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Number of USB 2.0 ports: 2
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Thunderbolt Ends: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 8
- CPU fan connector: Yes
- Network
- Wi-Fi: No
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- LAN controller: Dragon RTL8125BG
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- RAID levels
- 10
- 5
- 1
- 0
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Supported drive types: HDD & SSD
- RAID levels

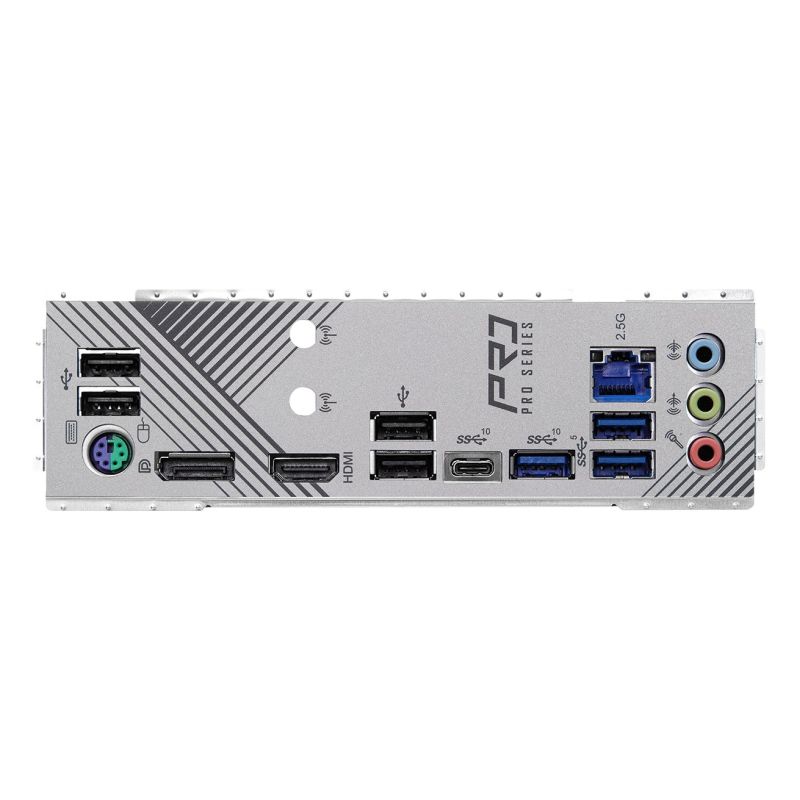

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Headphone outputs: 1
- Line Input: Yes
- Number of USB 2.0 ports: 4
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 1
- Safety warning
- Warnings
- Avoid direct contact with electronics to prevent electrostatic damage.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
