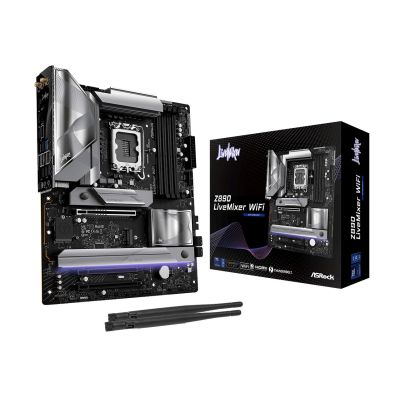

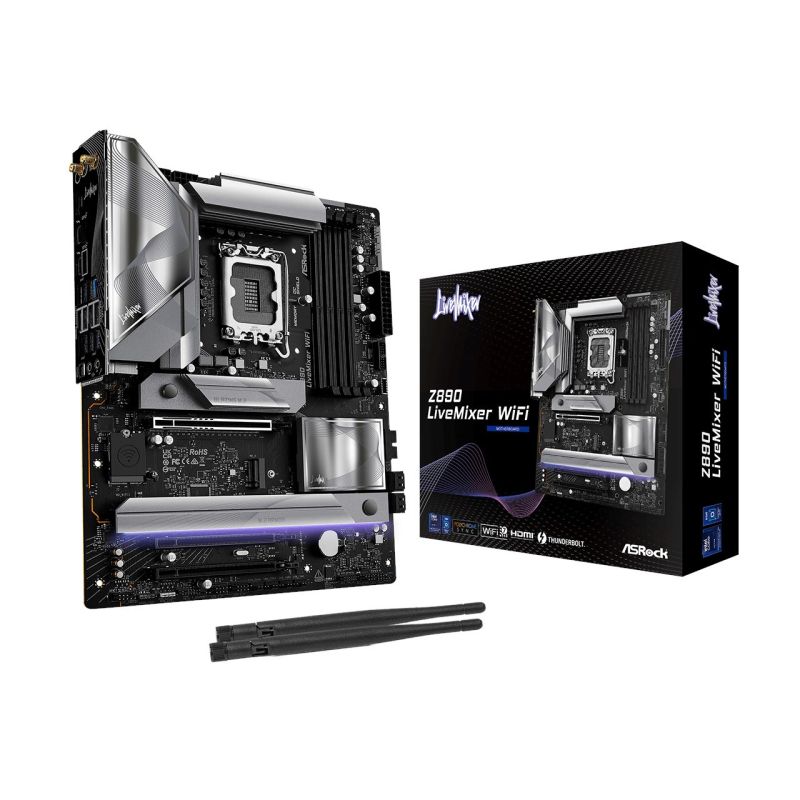

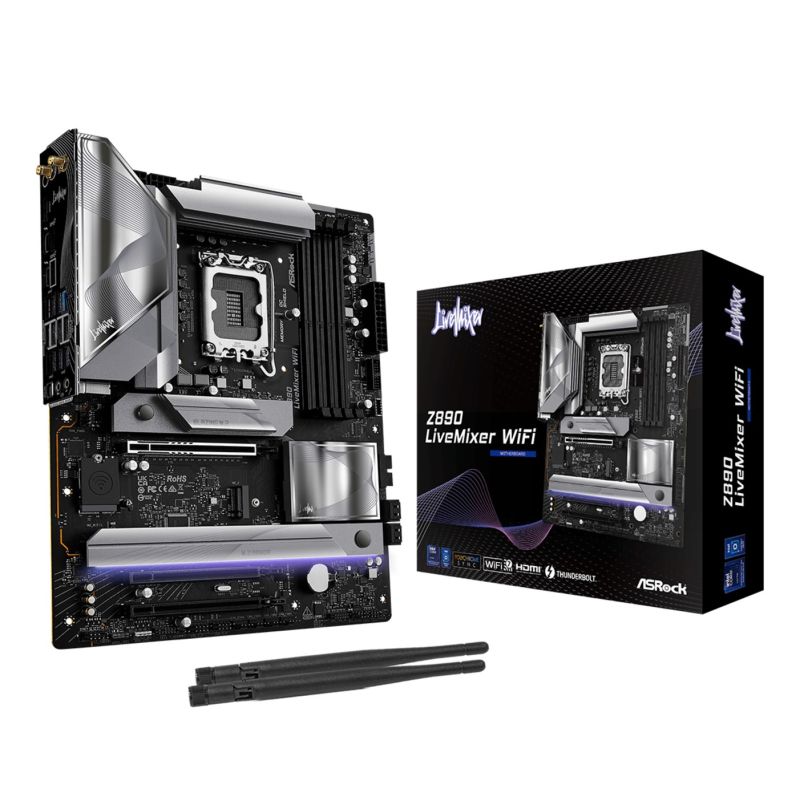

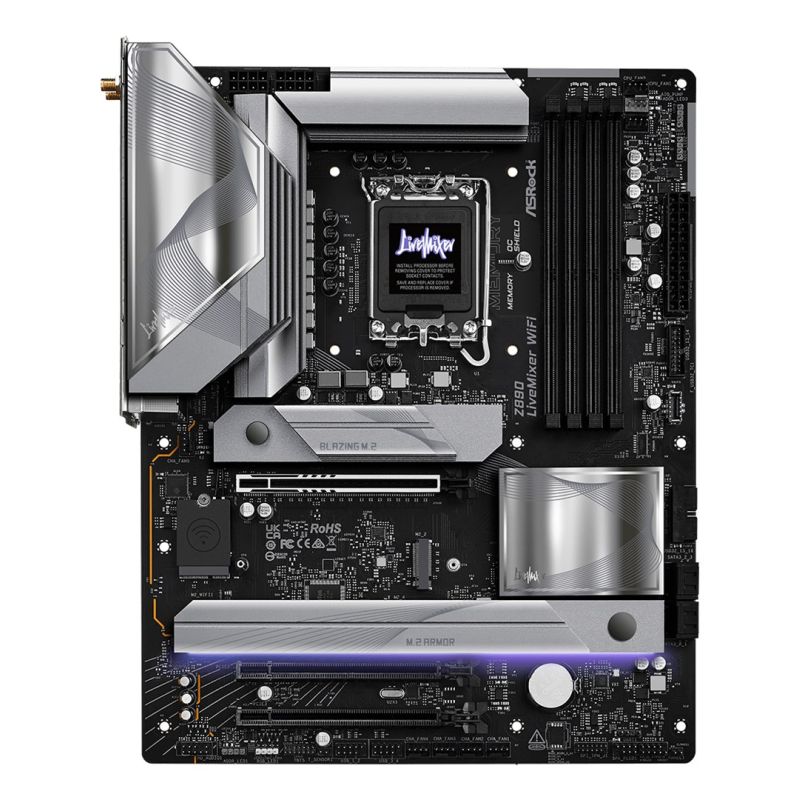

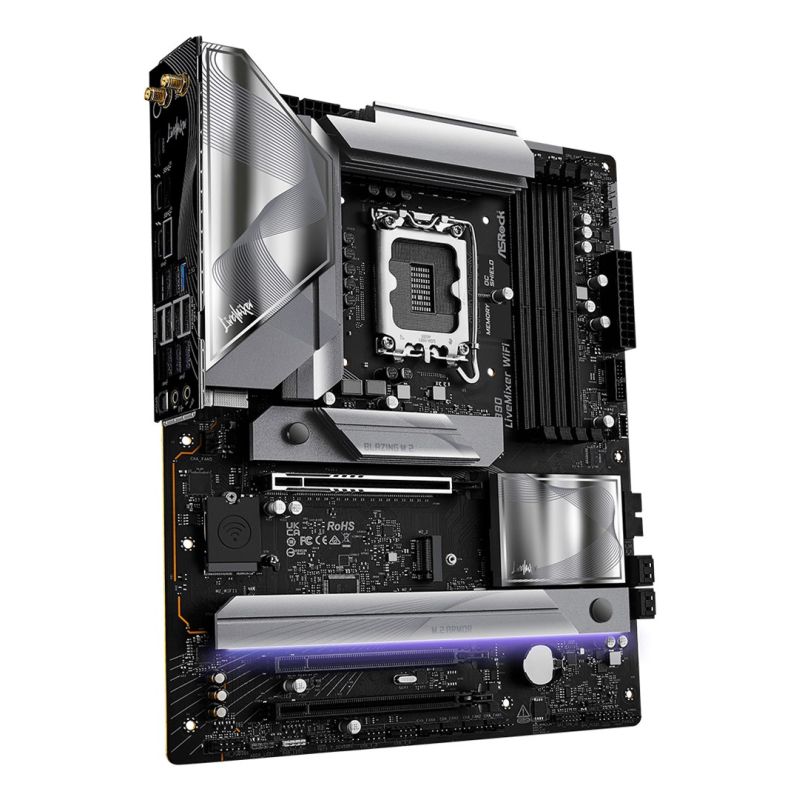

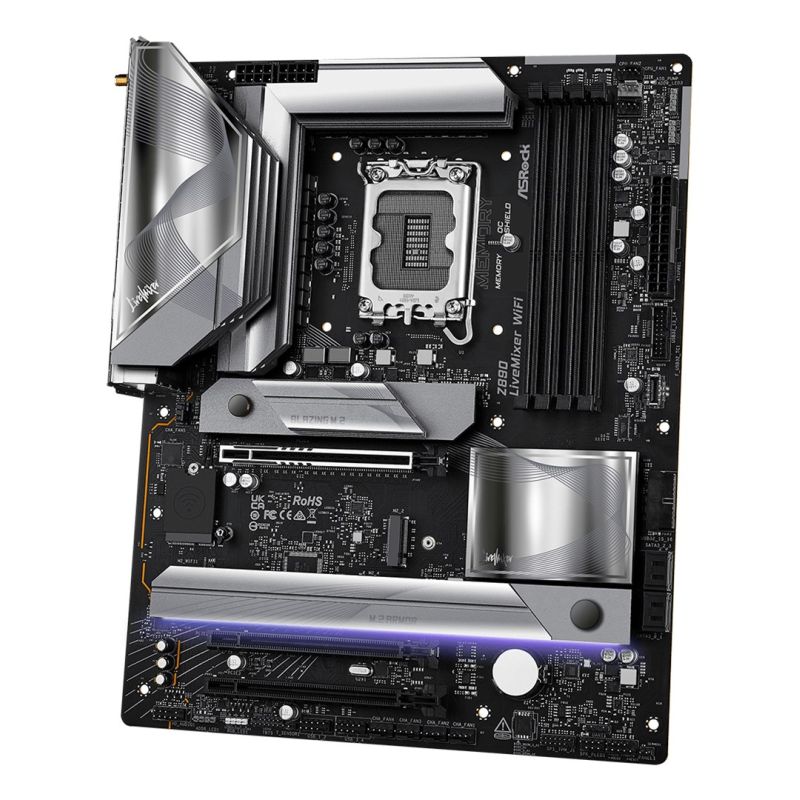

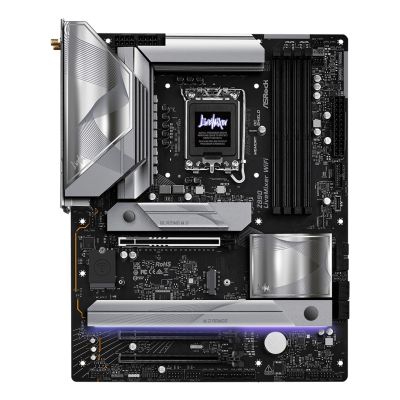

ASRock Z890 LiveMixer WiFi Motherboard
ASRock Z890 LiveMixer WiFi Motherboard
ASRock Z890 LiveMixer WiFi Motherboard
PRICE:
360,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Memory
- Number of memory slots: 4
- Supported memory clock speed (max): 9066 MHz
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5 non-ECC
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Characteristics
- Audio output channels: 7.1 ch.
- Operating system architecture: 64-bit
- Chipset Board Family: Intel
- Audio chip: Realtek ALC1220
- Supported Windows operating systems: Windows 11 x64
- Motherboard Layout: Intel Z890
- Motherboard format: ATX
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- ATX power socket (24-pin): Yes
- Number of Thunderbolt 4 ports: 2
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- RGB LED: Yes
- CPU fan connector: 2
- 8-pin 12V power connector: 2
- AIO Pump Fan Connector: 1
- SPI TPM socket: 1
- LED and speaker power socket: 1
- Network
- Wi-Fi: Yes
- Wi-Fi standards
- Wi-Fi 7 (802.11be)
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 6E (802.11ax)
- 802.11b
- 802.11 axe
- Wi-Fi 5 (802.11ac)
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- MU-MIMO: Yes
- Bluetooth version: 5.4
- LAN controller: Dragon RTL8125BG
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- Memory drivers
- Supported hard drive interfaces: Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

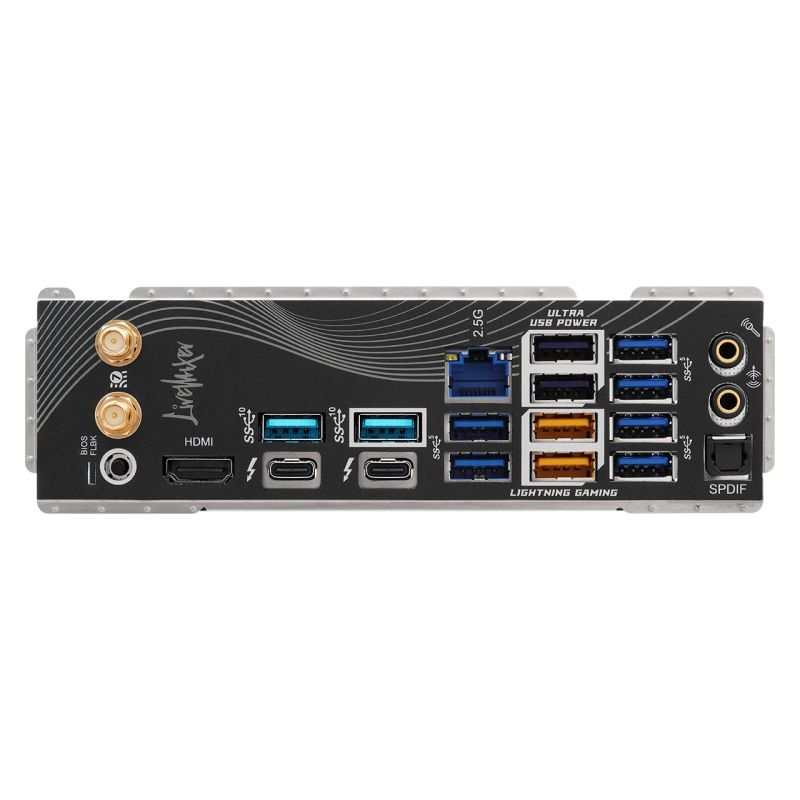

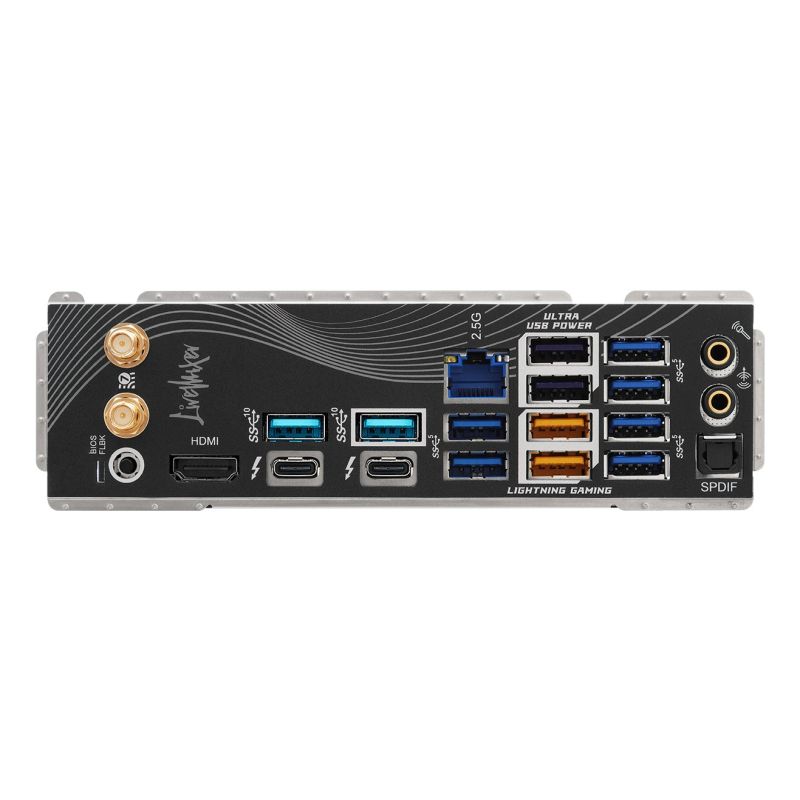

- Rear Panel I/O Ports
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of Thunderbolt 4 ports: 2
- Line out: Yes
- S/PDIF Output Port: Yes
- Number of HDMI ports: 1
- Microphone input: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- BIOS Flashback Button: Yes
- Number of USB 3.2 Gen 1 ports: 4
- External Antenna Connector: Yes, x 2
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
