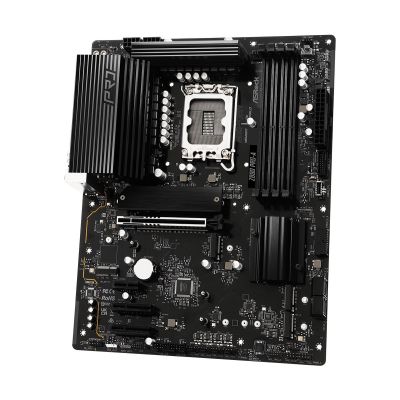

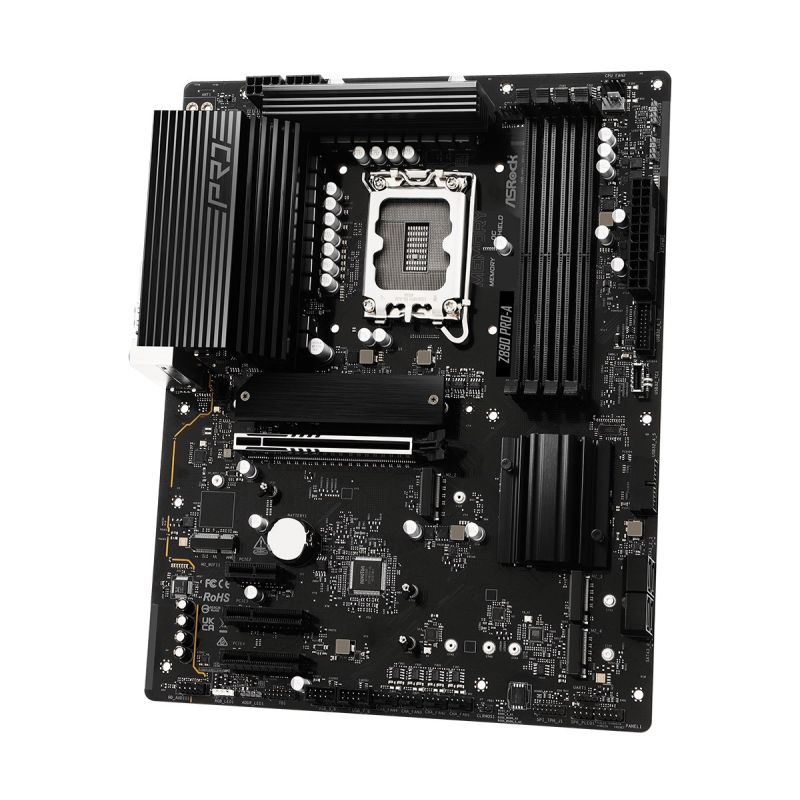

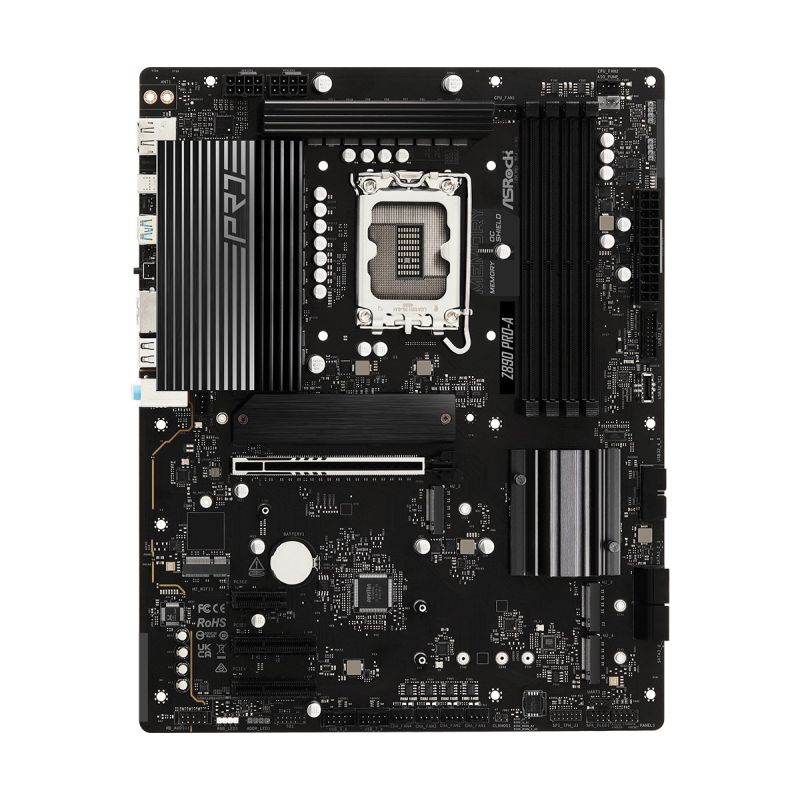

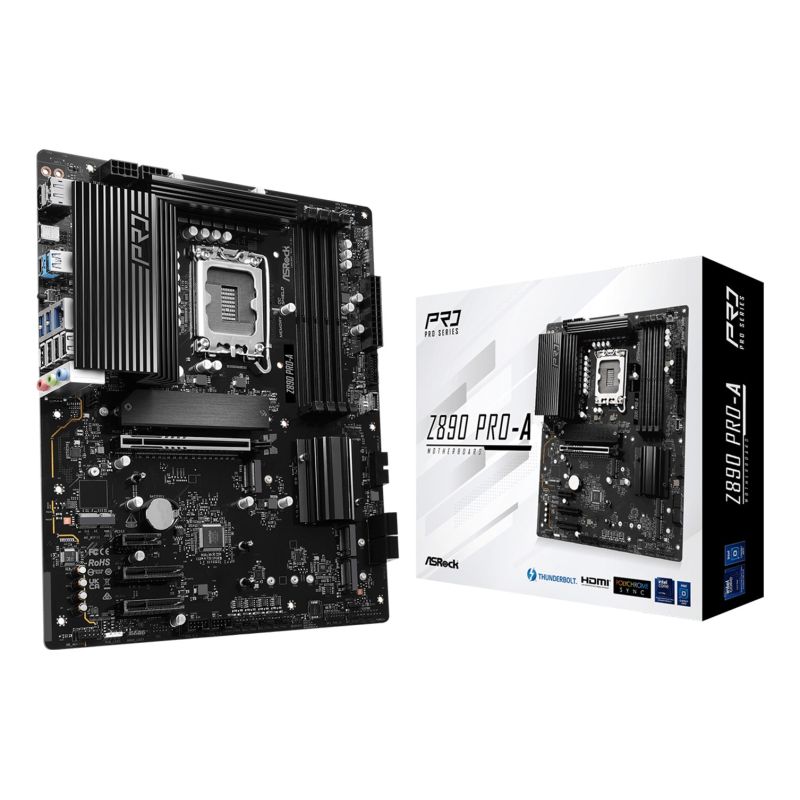

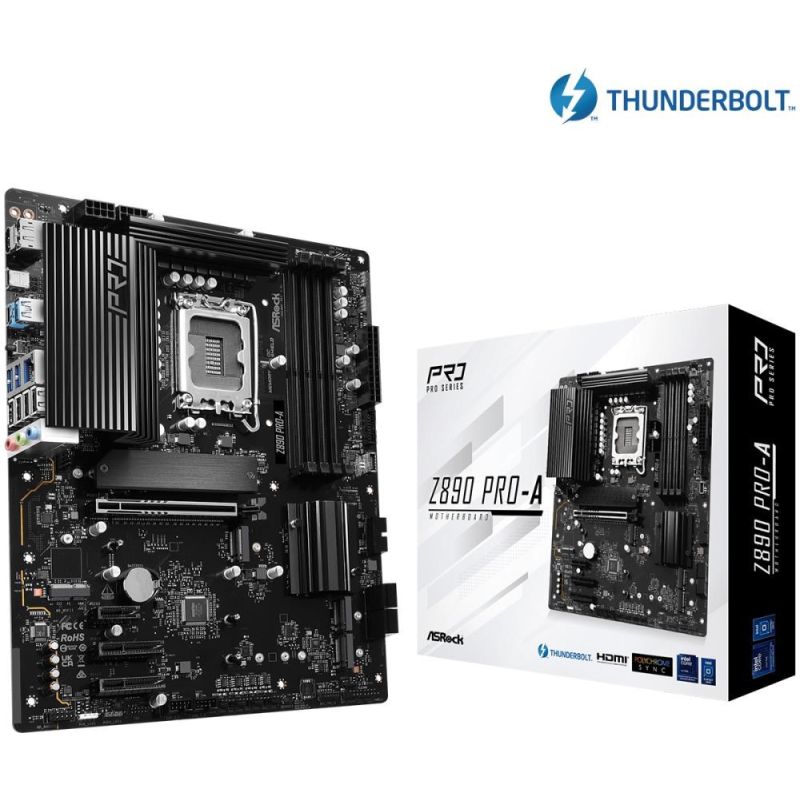

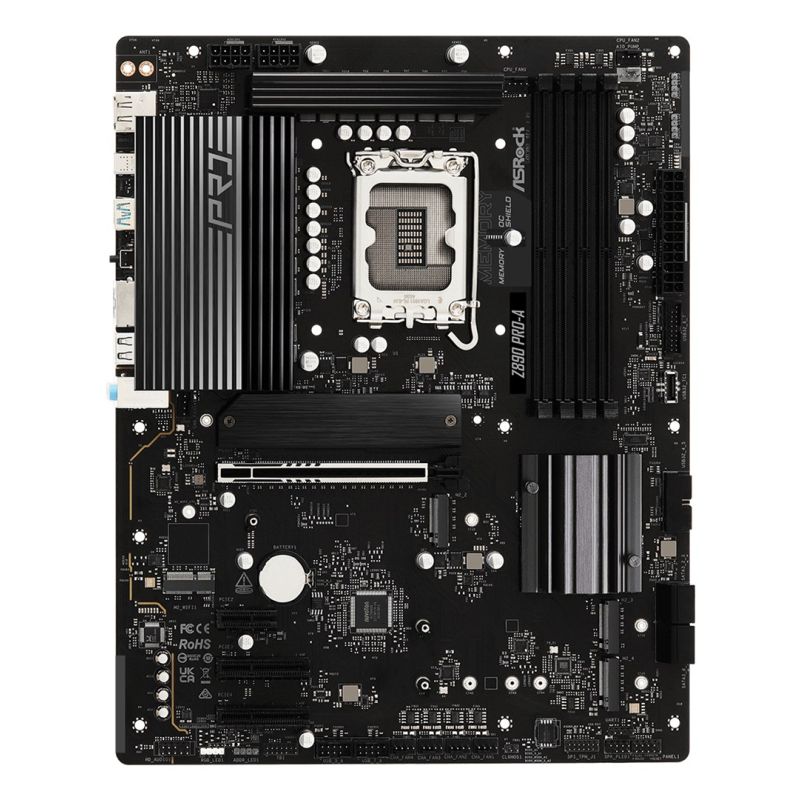

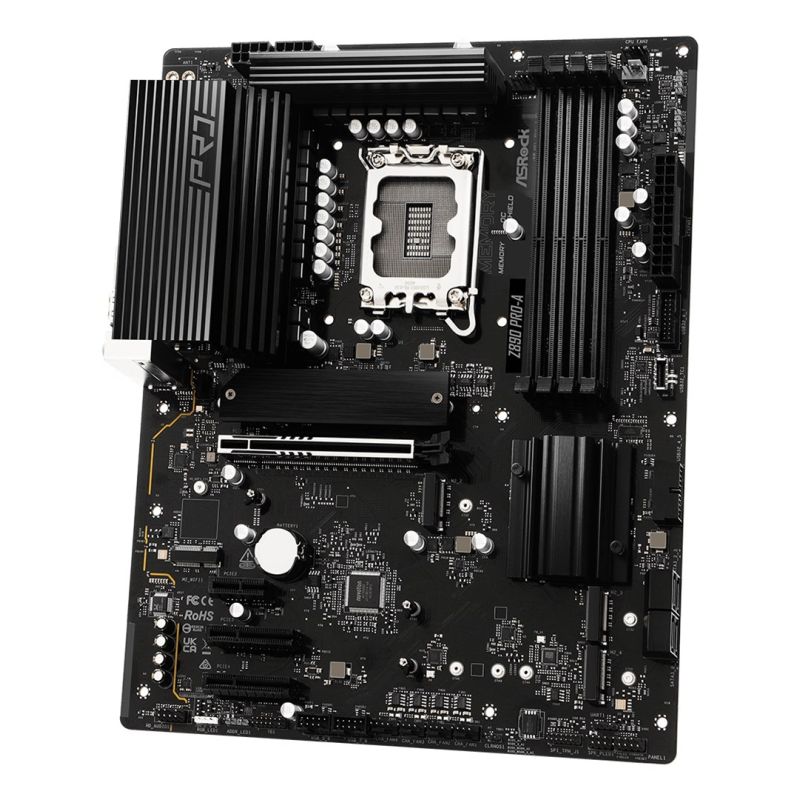

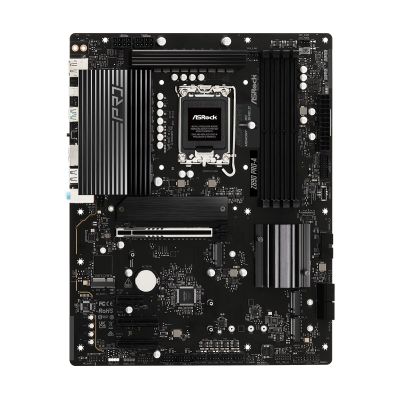

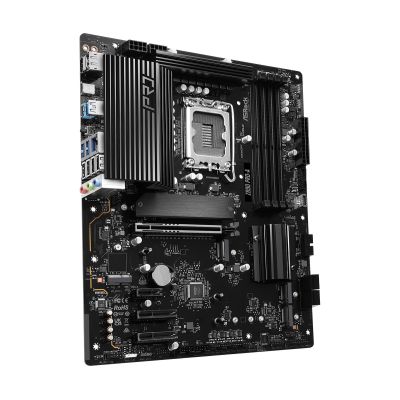

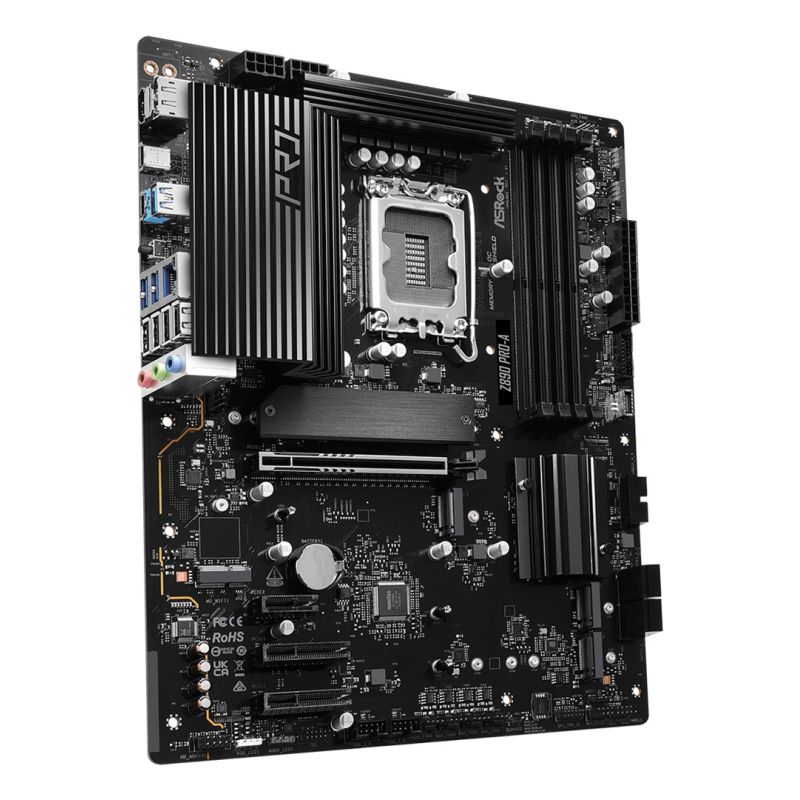

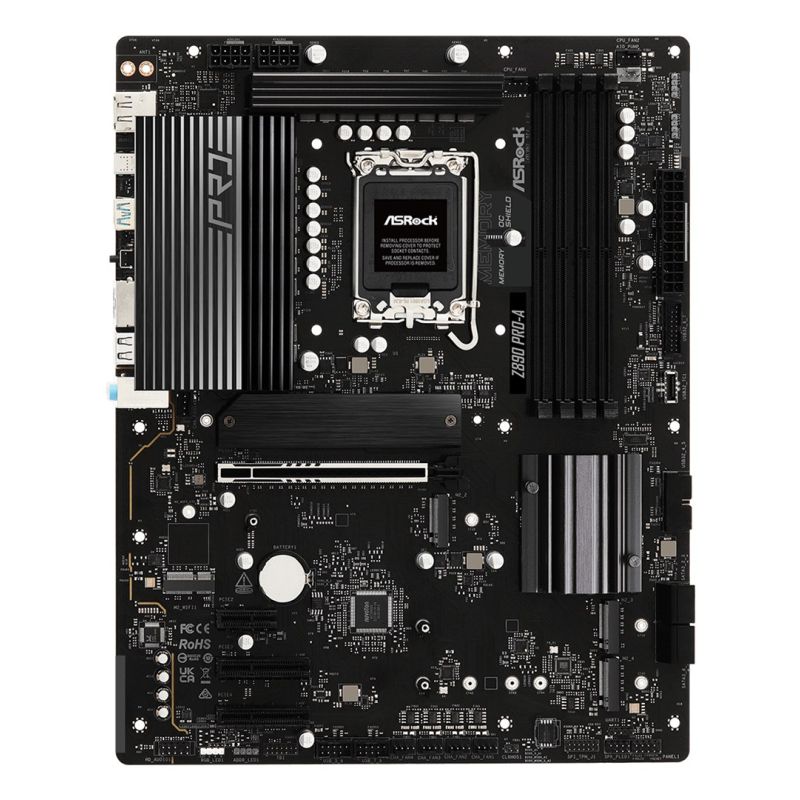

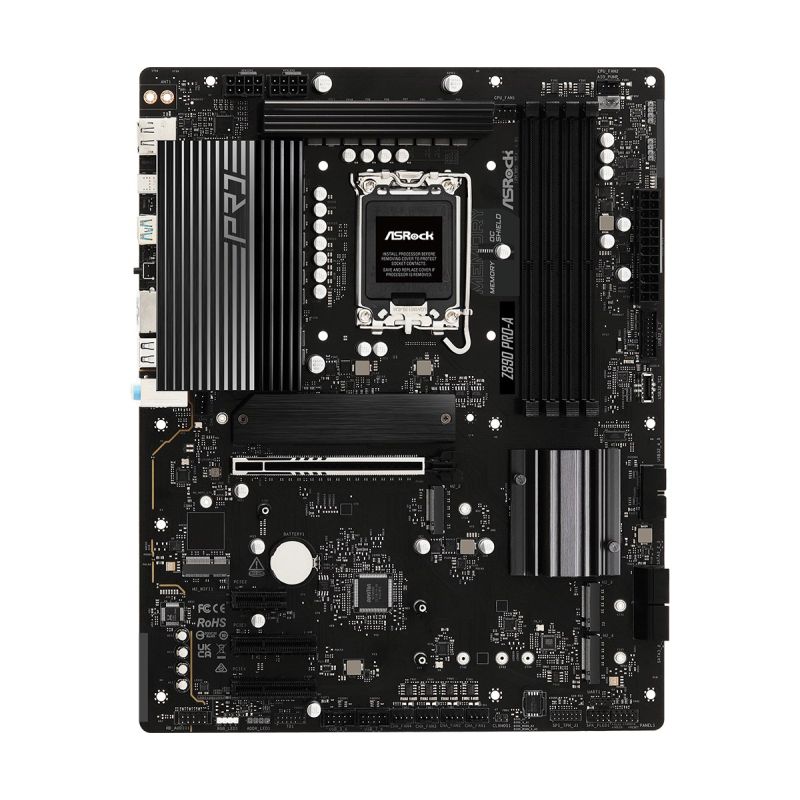

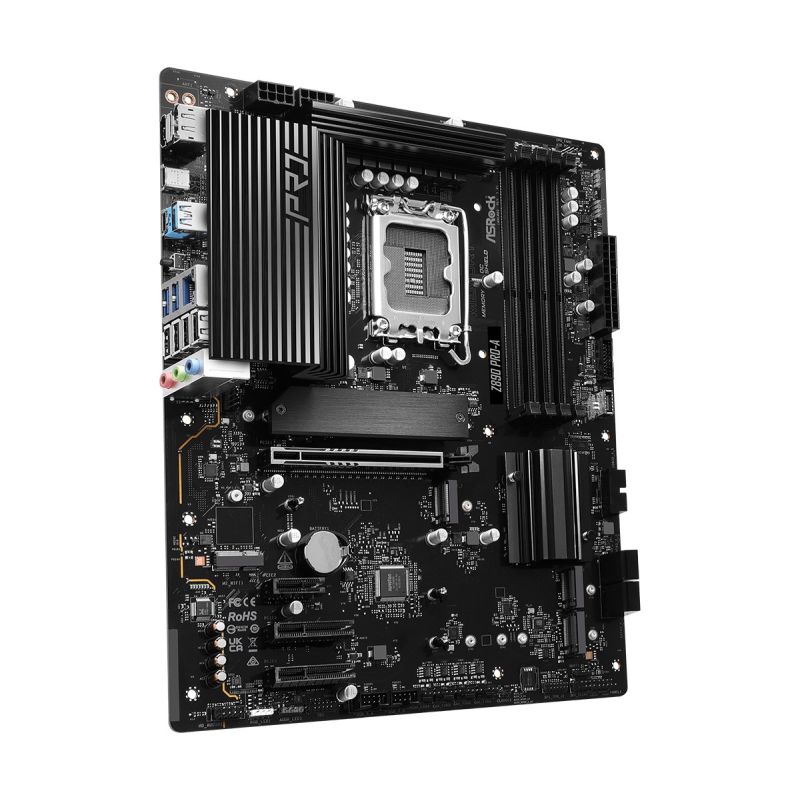

ASRock Z890 Pro-A motherboard
ASRock Z890 Pro-A motherboard
ASRock Z890 Pro-A motherboard
PRICE:
259,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Processor
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Memory
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9066 MHz
- Number of memory slots: 4
- ECC Compatibility: Non-ECC
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Supported Windows operating systems: Windows 11 x64
- Audio chip: Realtek ALC897
- Motherboard format: ATX
- Motherboard Layout: Intel Z890
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Number of CPU fan connectors: 2
- TPM Connector: Yes
- Audio connector: Yes
- RGB LED: Yes
- USB 3.2 Gen 2x2 ports: 1
- 12V power connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 5
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Network
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- LAN controller: Dragon RTL8125BG
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Screws Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- RAID levels
- 5
- 0
- 1
- 10
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes

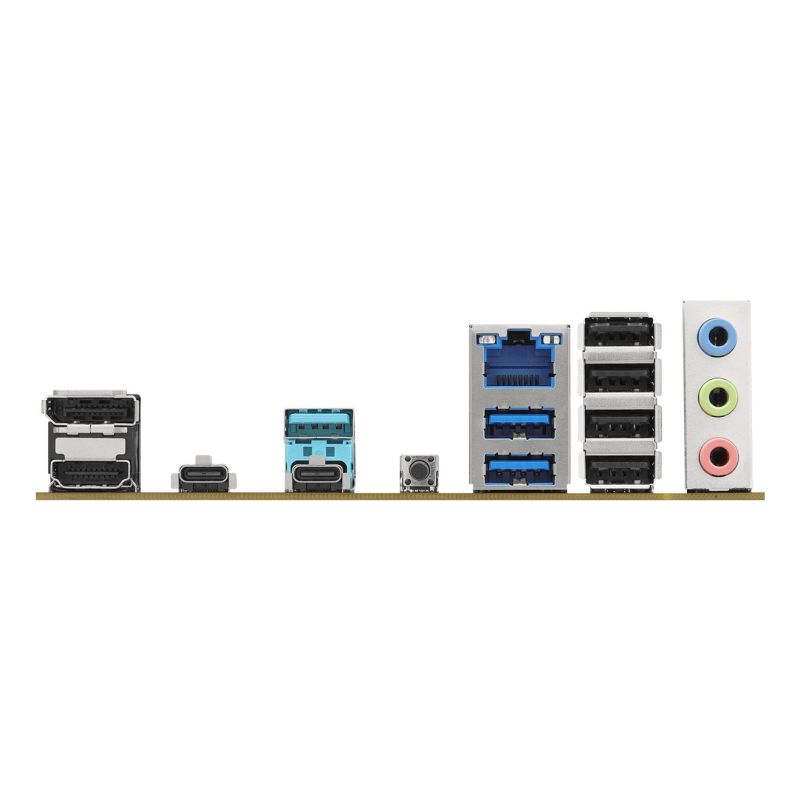

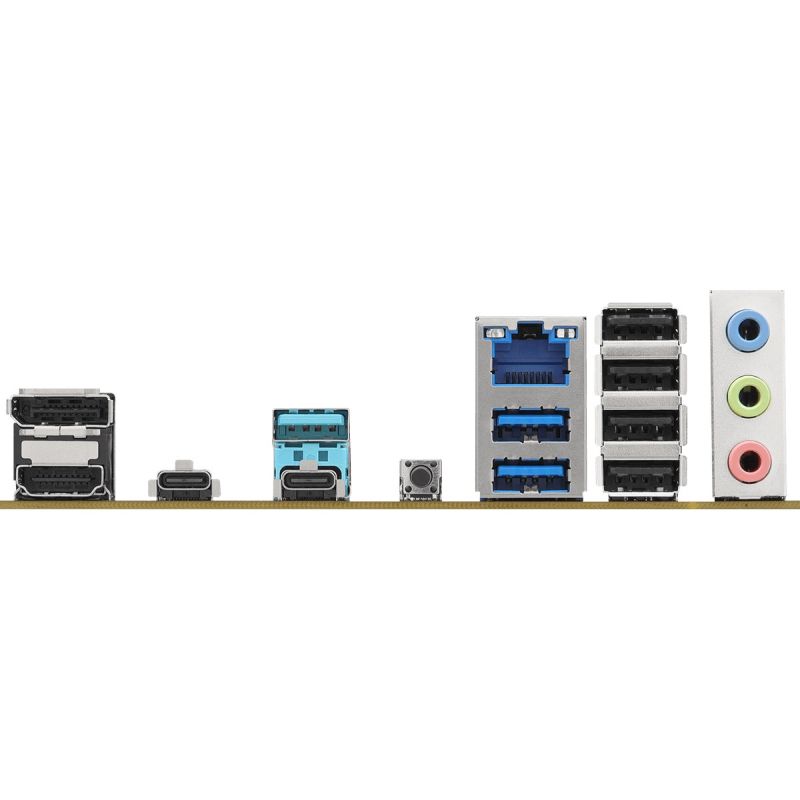

- Rear Panel I/O Ports
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Line Input: Yes
- Number of Thunderbolt ports: 1
- Headphone outputs: 1
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- DisplayPort version: 1.4
- Expansion slots
- PCI Express x4 slots (Gen 4.x): 2
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Asrock |
| Department | Electronics |
