PRICE:
296,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- Certificates of conformity
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1851
- Processor socket: LGA 1851 (Socket V1)
- Memory
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 9066 MHz
- Characteristics
- Audio chip: Realtek ALC897
- Supported Windows operating systems: Windows 11 x64
- Motherboard format: ATX
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel Z890
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- TPM Connector: Yes
- Number of CPU fan connectors: 2
- Number of case fan connectors: 5
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 2x2 ports: 1
- CPU fan connector: Yes
- Audio connector: Yes
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- 802.11b
- Wi-Fi 4 (802.11n)
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- LAN controller: Dragon RTL8125BG
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: Yes
- Bluetooth version: 5.3
- Wi-Fi standards
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Screws Included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 10
- 0
- 1
- 5
- Number of supported storage drive sizes: 8
- Number of supported HDDs: 4

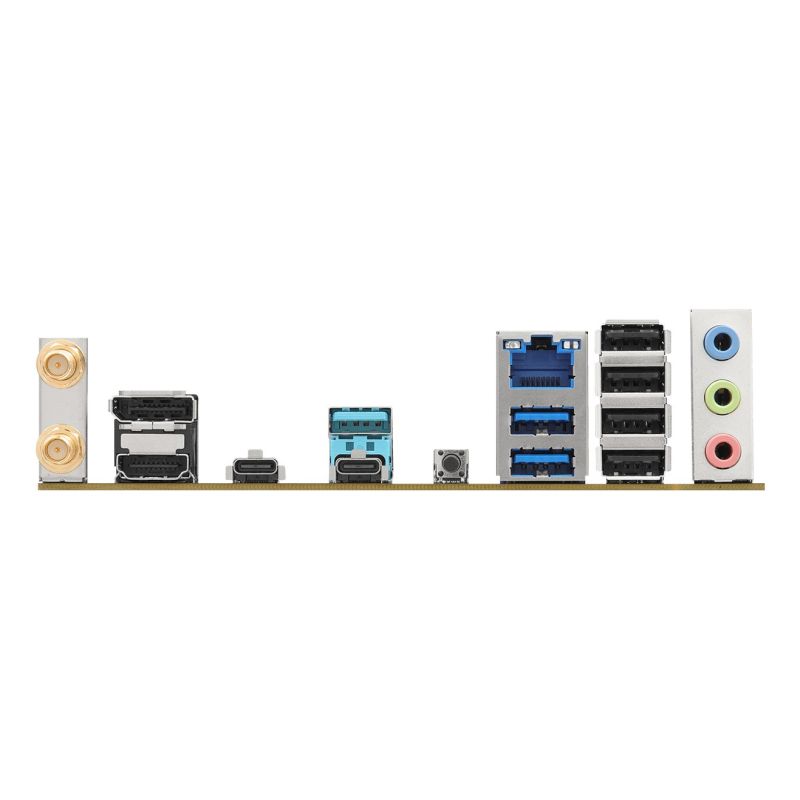

- Rear Panel I/O Ports
- Number of HDMI ports: 1
- Microphone: Yes
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Line Input: Yes
- Number of Thunderbolt ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 2
| Name | Details |
|---|---|
| Producer | Asrock |
