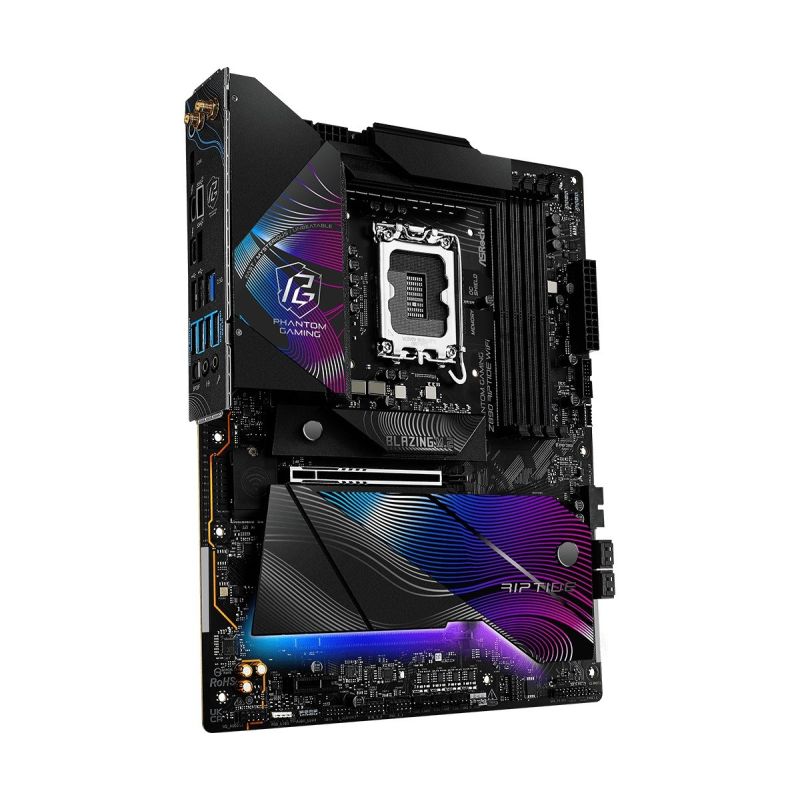

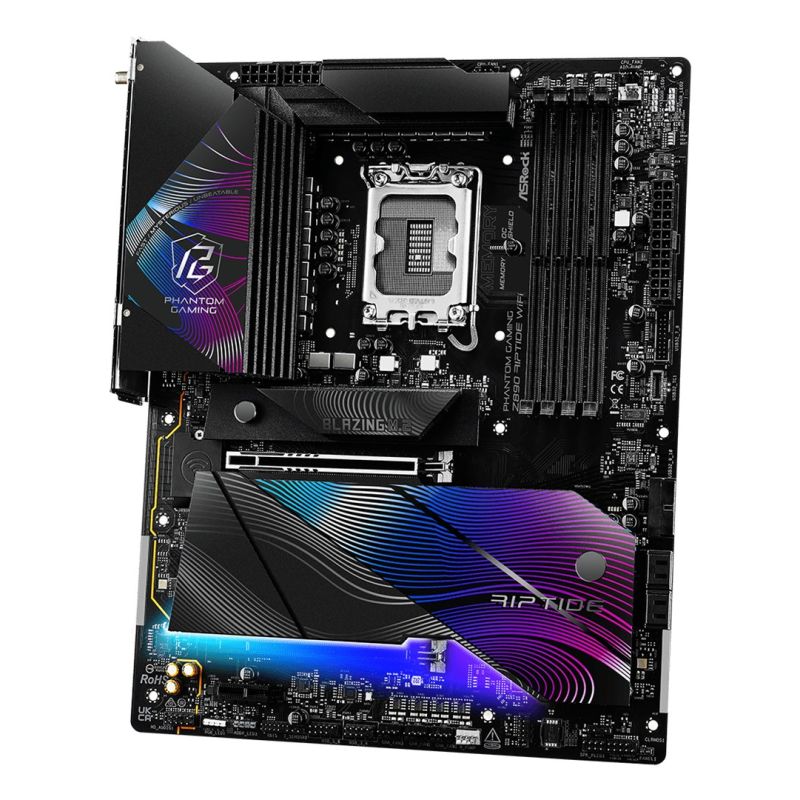

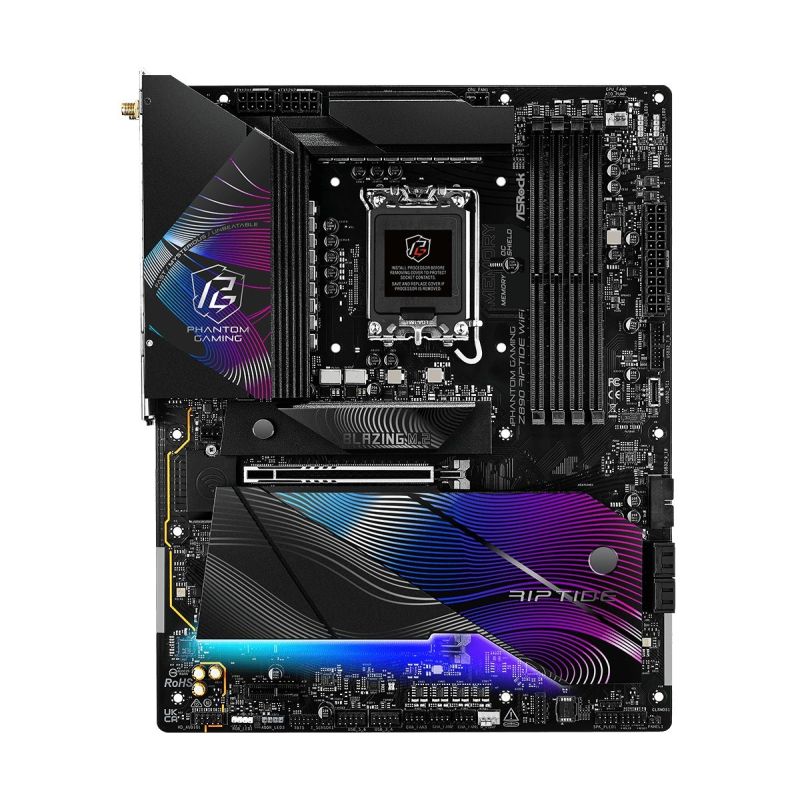

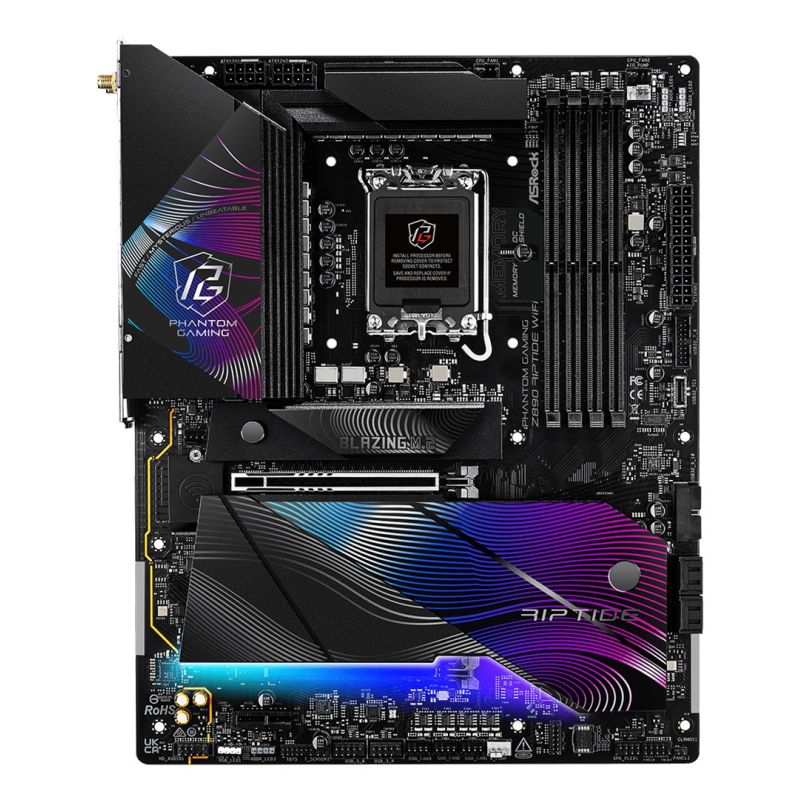

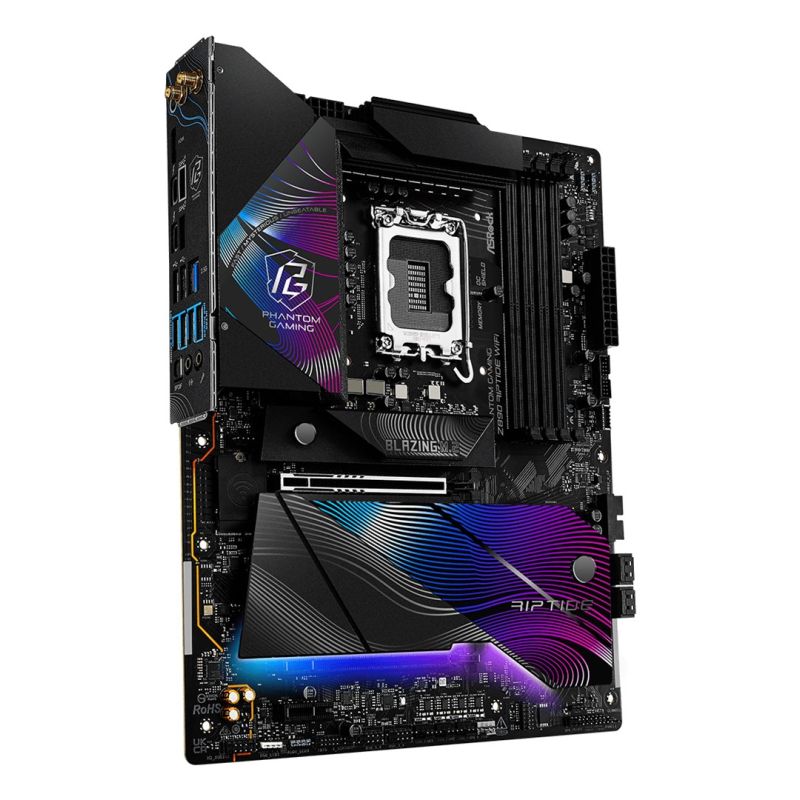

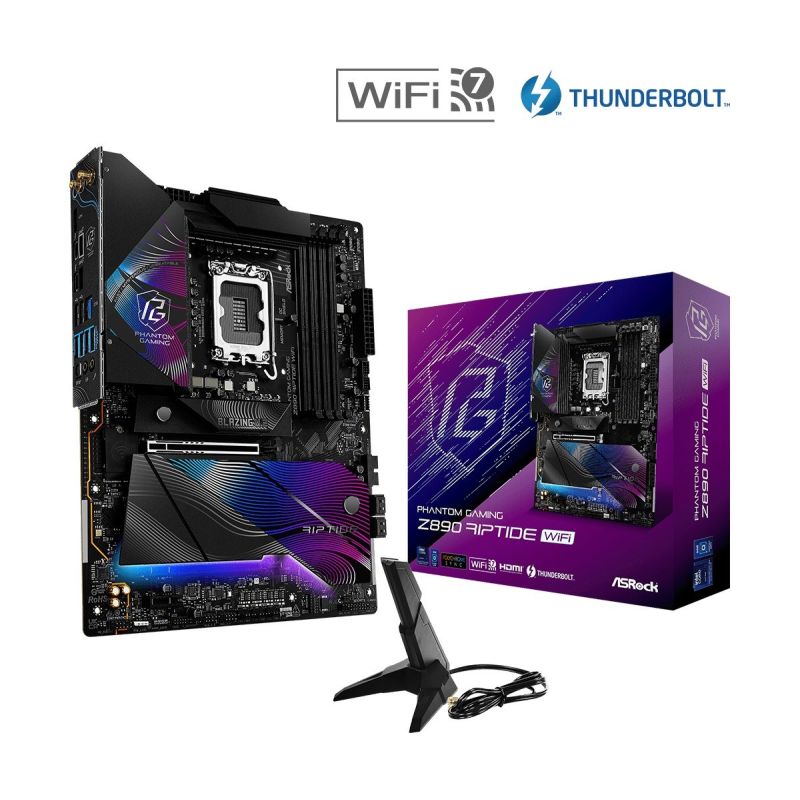

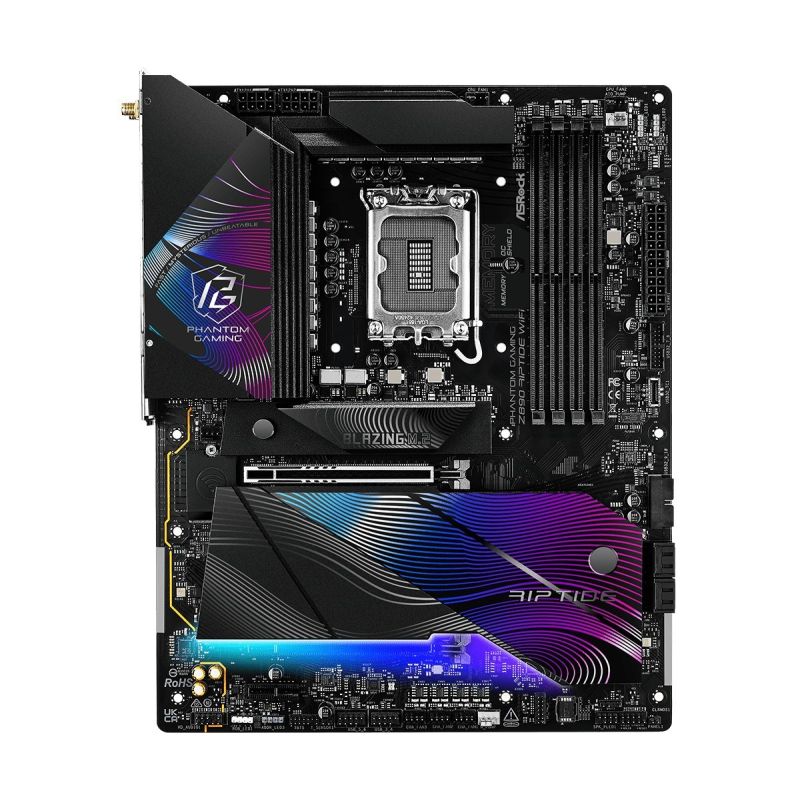

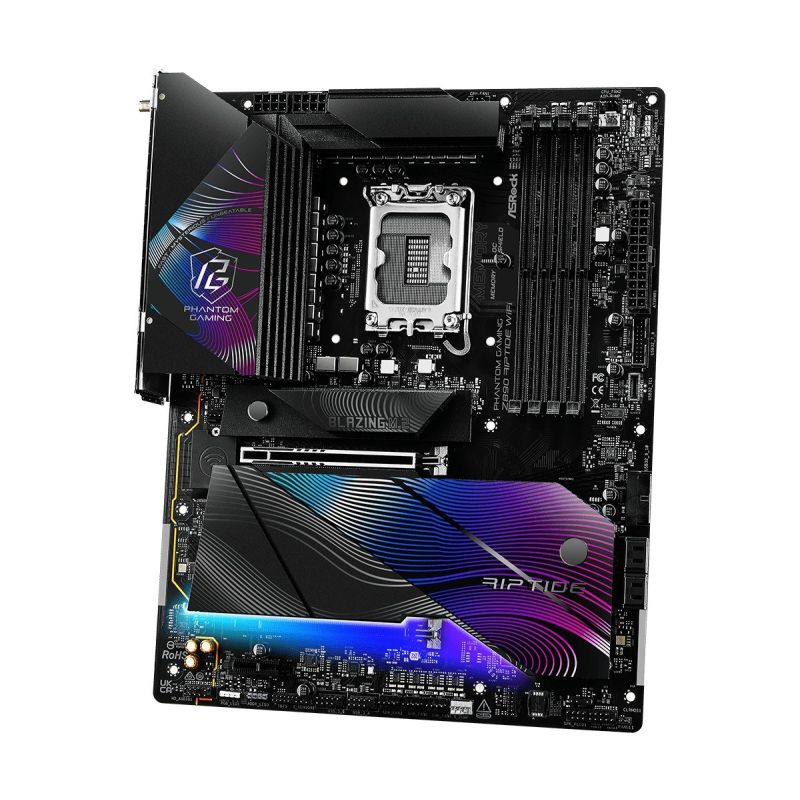

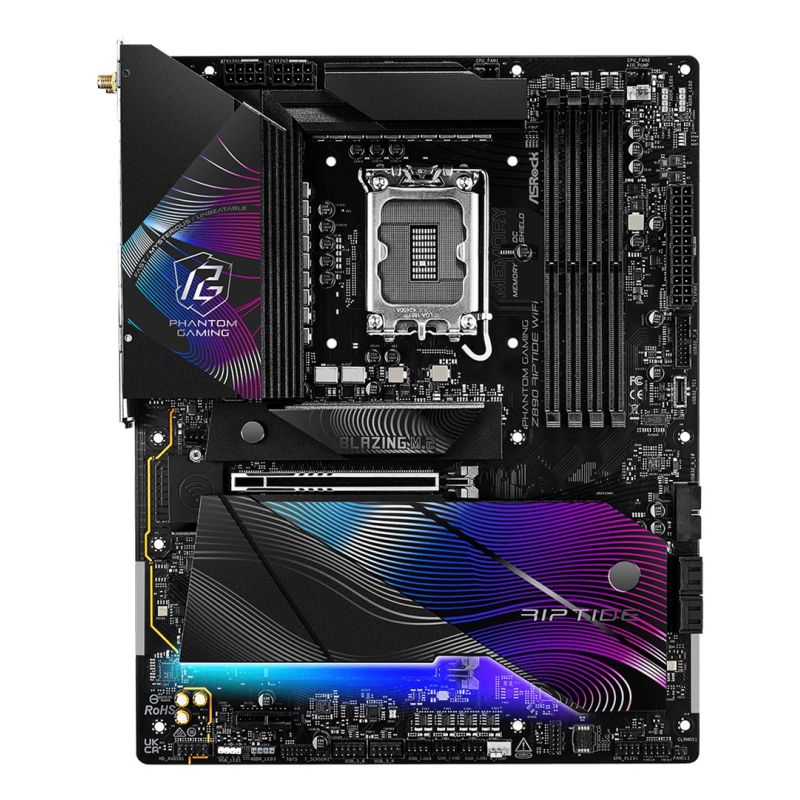

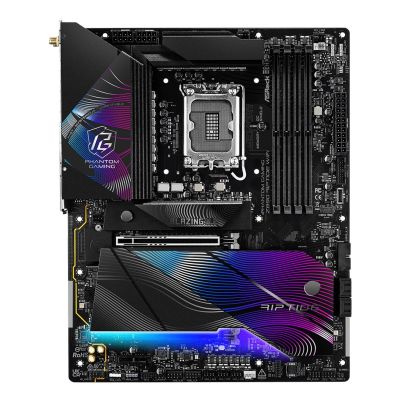

ASRock Z890 Riptide WiFi Motherboard
ASRock Z890 Riptide WiFi Motherboard
ASRock Z890 Riptide WiFi Motherboard
PRICE:
419,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: LGA1851
- Processor: Intel Core Ultra (Series 2)
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Memory
- Memory slot type: DIMM
- Maximum memory capacity: 256 GB
- Supported memory types: DDR5-SDRAM
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Intel® Extreme Memory Profile (XMP) version: 3.0
- ECC Compatibility: Non-ECC
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Chipset Board Family: Intel
- Motherboard format: ATX
- Motherboard Layout: Intel Z890
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Thunderbolt Ends: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Pump connector: 1
- Number of USB 2.0 ports: 2
- CPU fan connector: 2
- RGB LED: Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- Case fan connector (4-pin): 4
- AIO Pump Fan Connector: 1
- Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports: 1
- 8-pin 12V power connector: 2
- Network
- Wi-Fi: Yes
- Wi-Fi standards
- IEEE 802.11n
- IEEE 802.11be
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11ax
- 802.11 axe
- Wired LAN: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi Frequencies: 2.4Ghz / 5GHz / 6GHz
- MU-MIMO technology: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN Controller: Killer E3100G
- BIOS
- BIOS Type: UEFI AMI

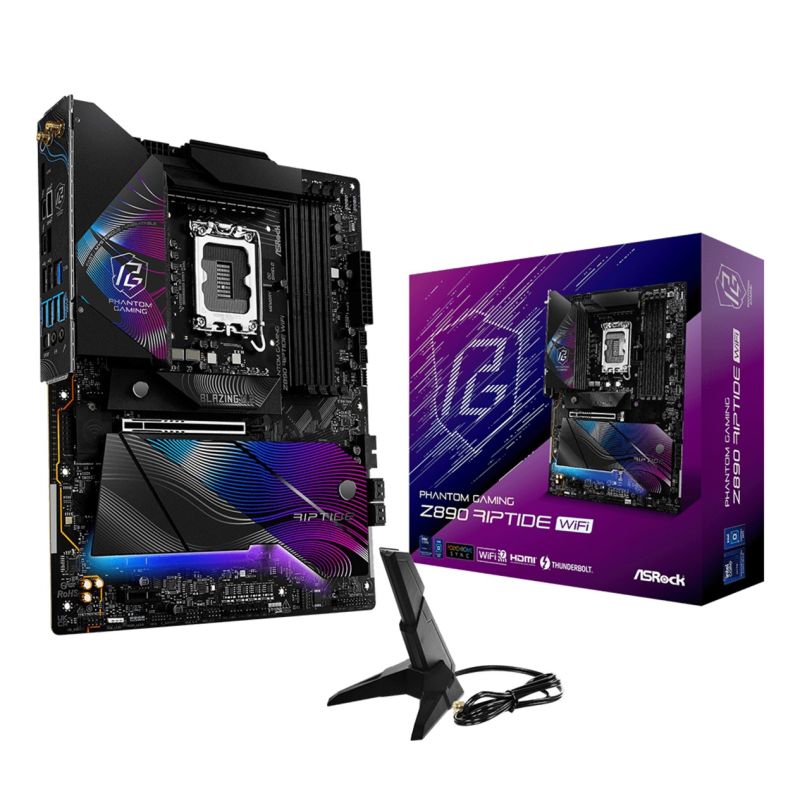

- Package contents
- Cables included
- SATA III 2 pcs.
- Thermistor cable x 1
- ARGB Splitter Cable x 1
- Motherboard: Yes
- Wi-Fi antenna: Yes
- Cables included
- Memory drivers
- RAID Service: Yes
- RAID levels
- 5
- 0
- 1
- 10
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

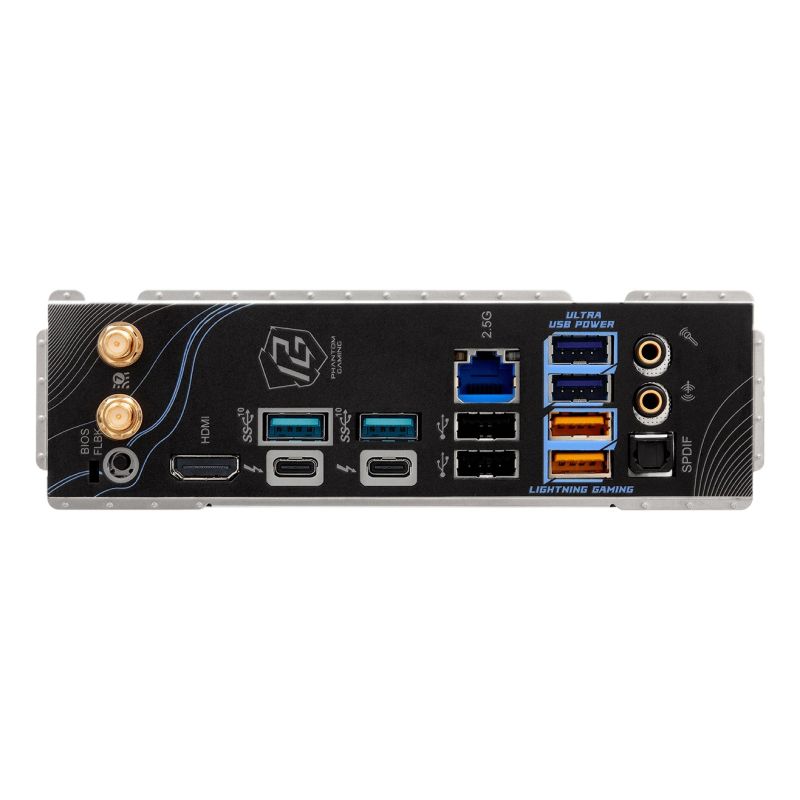

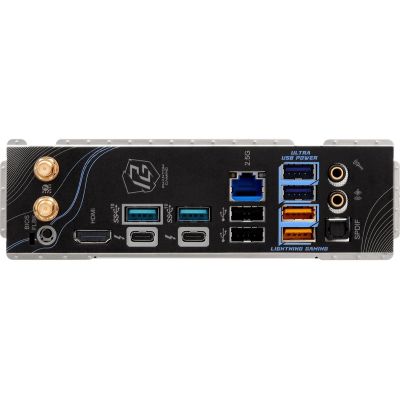

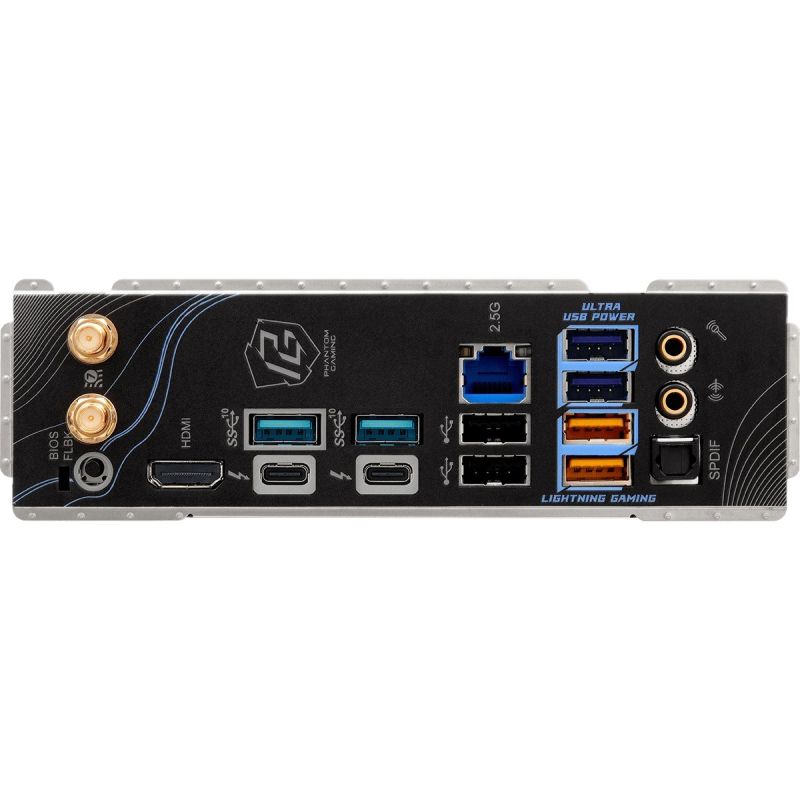

- Rear Panel I/O Ports
- Number of USB 2.0 Type-A ports: 2
- Number of antenna connectors: 2
- Headphone outputs: 1
- Number of HDMI ports: 1
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- SPDIF optical output: Yes
- Number of Thunderbolt 4 USB-C ports: 2
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Certificates
- Certificates
- CE
- FCC
- ErP/EuP ready
- Certificates
- Safety warning
- Warnings
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Producer | Asrock |
