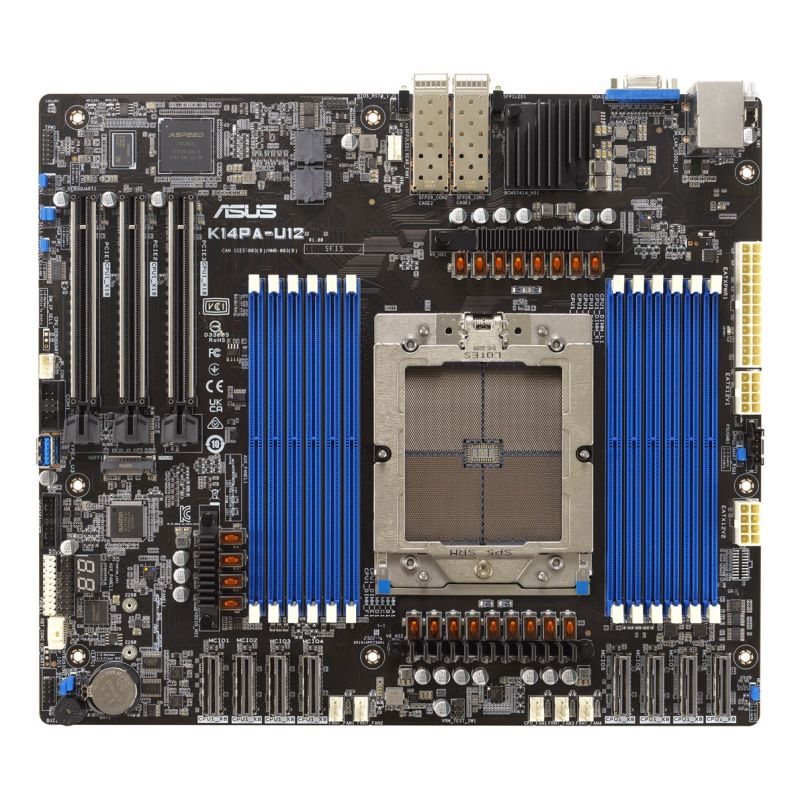

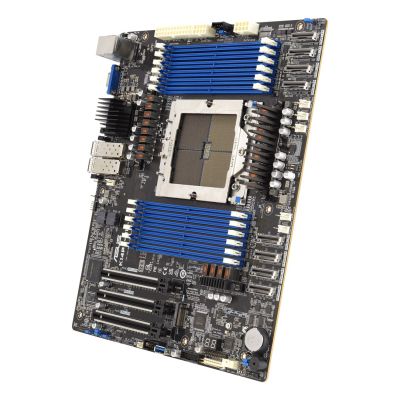

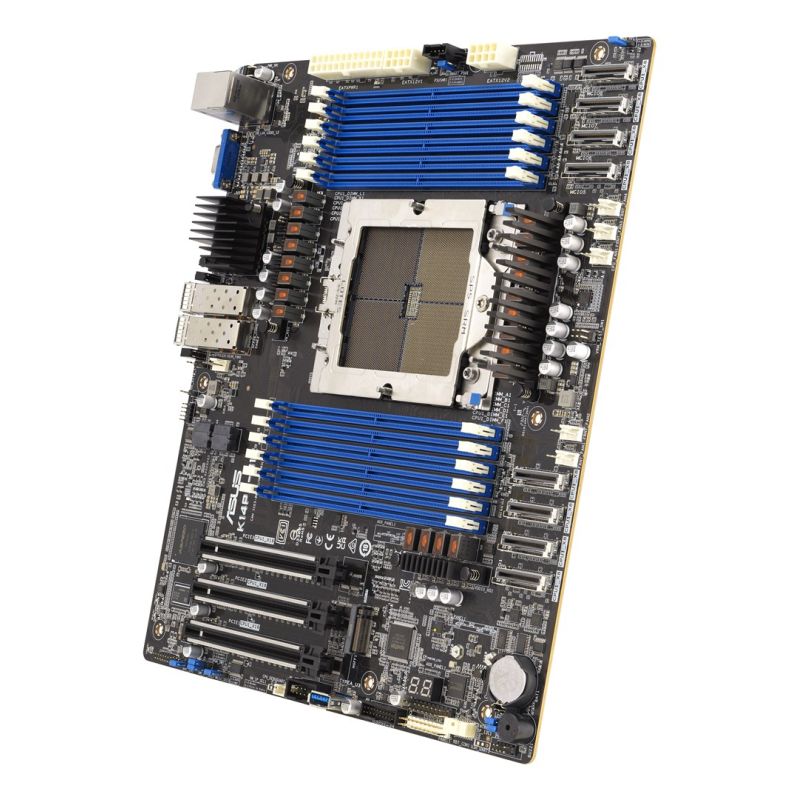

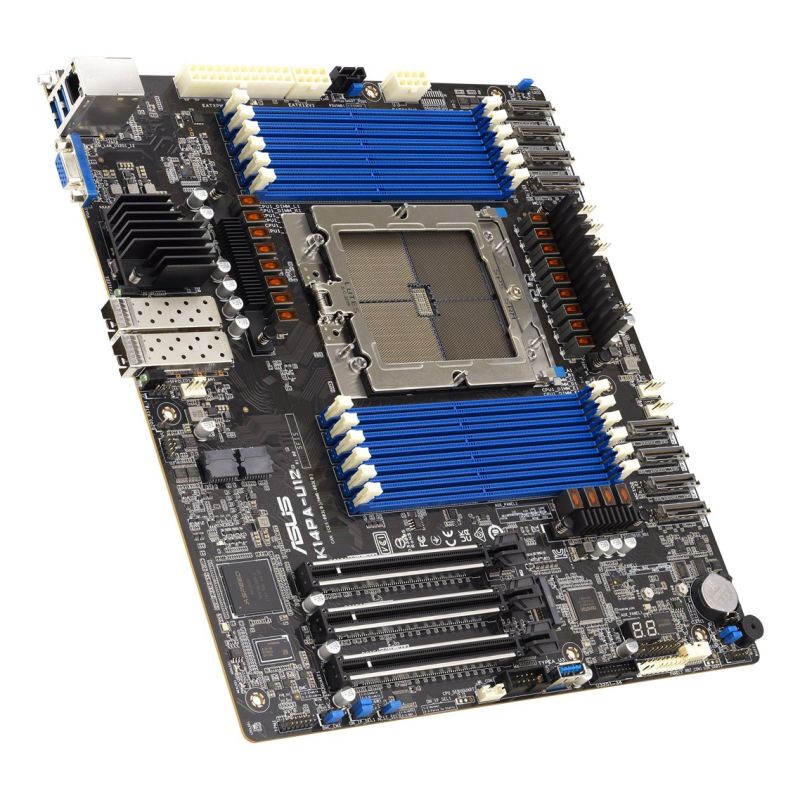

Asus K14PA-U12/ASMB11 motherboard 1x SP5 AMD Epyc 9004 SoC (12xDIMM, 2xSFP28 25G, 3xPCIe 5.0 x16 slot, ASMB11, CEB)
Asus K14PA-U12/ASMB11 motherboard 1x SP5 AMD Epyc 9004 SoC (12xDIMM, 2xSFP28 25G, 3xPCIe 5.0 x16 slot, ASMB11, CEB)
Asus K14PA-U12/ASMB11 motherboard 1x SP5 AMD Epyc 9004 SoC (12xDIMM, 2xSFP28 25G, 3xPCIe 5.0 x16 slot, ASMB11, CEB)
PRICE:
1056,99
€
IN A WAREHOUSE
5 pcs
Goods available on request - delivery time to 7 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket SP5
- Processor: AMD EPYC 9004
- Graphics
- Graphics card: AST2600
- Built-in graphics card model: Aspeed AST2600
- Graphics Adapter Family: ASPEED
- Built-in graphics card: Yes
- Memory
- Maximum memory capacity: 3 TB
- Supported memory module capacities
- 96GB
- 256GB
- 16GB
- 32GB
- 24GB
- 48GB
- 64GB
- 128GB
- Supported memory clock speeds: 4800 MHz
- Number of memory slots: 12
- Supported memory types: DDR5-SDRAM
- Characteristics
- Chipset Board Family: AMD
- Purpose: Server
- Motherboard Format: SSI CEB
- Weight and dimensions
- Product depth: 376 mm
- Product height: 63 mm
- Product width: 409 mm
- Working conditions
- Permissible relative humidity: 20 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 10 - 35 °C
- Internal I/O
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Serial port connector: 1
- Housing intrusion sensor connector: Yes
- TPM Connector: Yes
- Network
- Ethernet interface type: 25 Gigabit Ethernet
- Wired LAN: Yes
- Packaging data
- Package depth: 395 mm
- Package width: 425 mm
- Weight with packaging: 2.2 kg
- Package height: 81 mm
- Memory drivers
- Supported hard drive interfaces: M.2

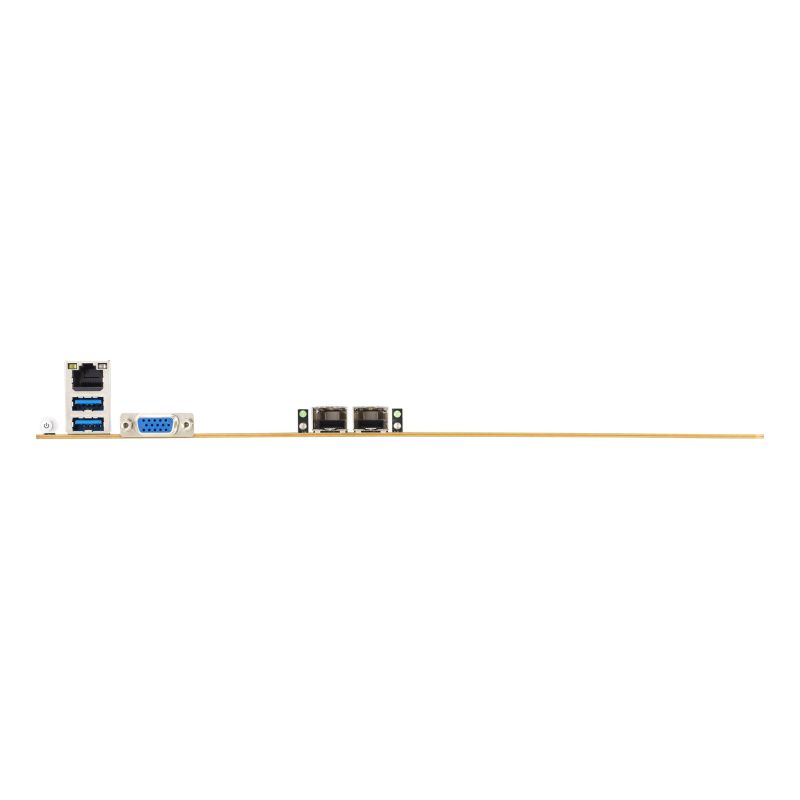

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 5.x) slots: 3
- Other functions
- Product weight: 1.4 kg
- Safety warning
- Warnings
- Do not open or disassemble the motherboard.
- Use only in a dry and well-ventilated place.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
