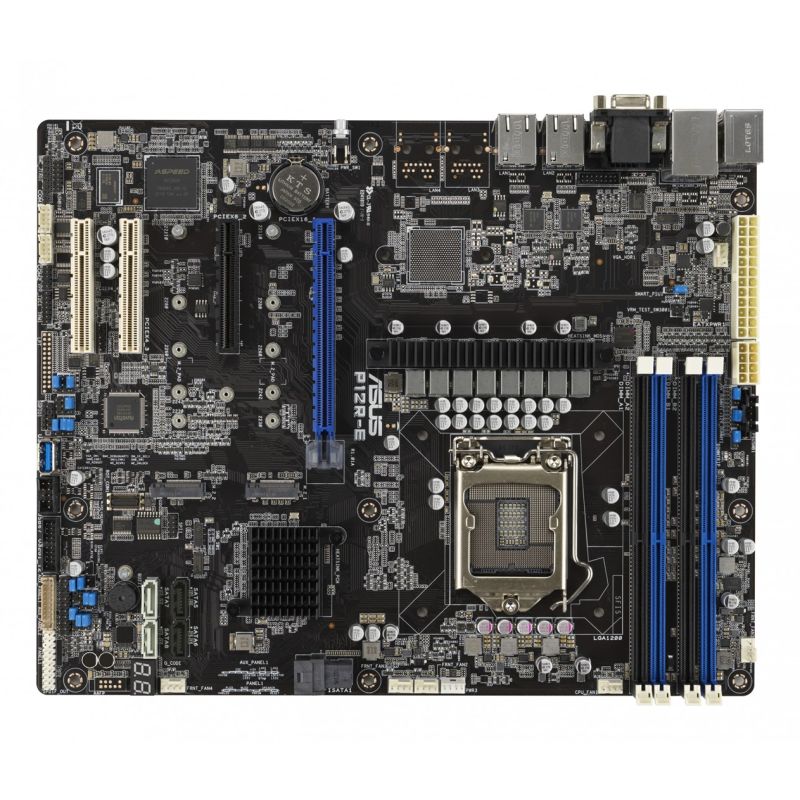

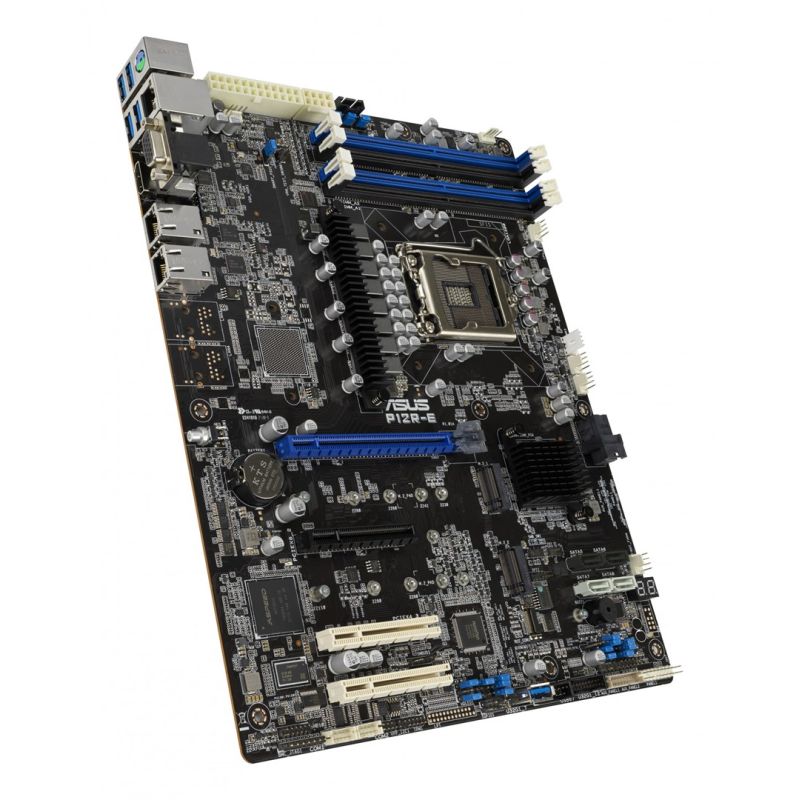

ASUS P12R-E Server Board LGA-1200, C256, 4DIMM, 1*PCIe x16 slot, 3*PCIe x8 slots, 2*M2, 2 x Intel® I210AT + 1 x Mgmt LAN, ATX
ASUS P12R-E Server Board LGA-1200, C256, 4DIMM, 1*PCIe x16 slot, 3*PCIe x8 slots, 2*M2, 2 x Intel® I210AT + 1 x Mgmt LAN, ATX
ASUS P12R-E Server Board LGA-1200, C256, 4DIMM, 1*PCIe x16 slot, 3*PCIe x8 slots, 2*M2, 2 x Intel® I210AT + 1 x Mgmt LAN, ATX
PRICE:
562,99
€
IN A WAREHOUSE
above 10 pcs
Goods available on request - delivery time to 7 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel Xeon E
- Intel® Pentium®
- Processor socket: LGA 1200 (Socket H5)
- Graphics
- Graphics Adapter Family: ASPEED
- Built-in graphics card model: Aspeed AST2600
- Built-in graphics card: Yes
- On-board graphics card memory: 64 MB
- Memory
- Supported memory module capacities
- 32GB
- 16GB
- 8GB
- Supported memory types: DDR4-SDRAM
- Maximum memory capacity: 128 GB
- Number of memory slots: 4
- Supported memory clock speeds
- 2933 MHz
- 3200 MHz
- 2666 MHz
- Memory slot type: DIMM
- Supported memory clock speed (max): 3200 MHz
- Supported memory module capacities
- Characteristics
- Monitoring computer status
- Fan
- Processor
- Purpose: Server
- Motherboard Layout: Intel C256
- Motherboard format: ATX
- Chipset Board Family: Intel
- Monitoring computer status
- Weight and dimensions
- Product depth: 244 mm
- Product height: 68 mm
- Product width: 305 mm
- Working conditions
- Temperature range (operation): 10 - 50 °C
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 20 - 90%
- Internal I/O
- Fan connector: Yes
- Number of SATA III connectors: 8
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of COM sockets: 1
- Number of USB 2.0 ports: 1
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- Packaging data
- Package height: 78 mm
- Package width: 341 mm
- Weight with packaging: 1.5 kg
- Package depth: 281 mm
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported storage drive sizes: 10
- RAID Service: Yes
- Number of supported HDDs: 8

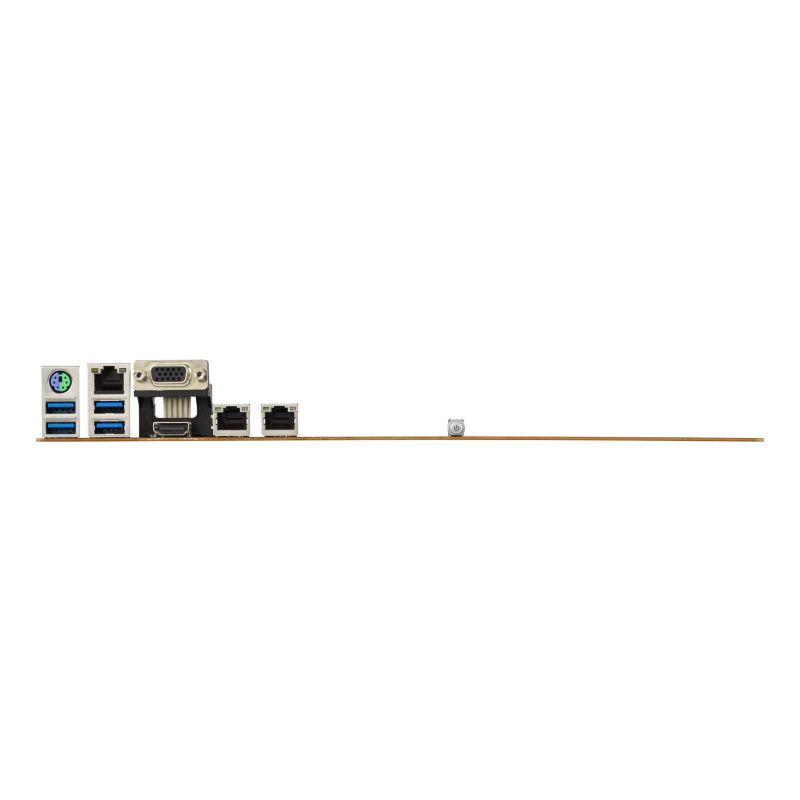

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of VGA (D-Sub) ports: 1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x8 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x8 (Gen 4.x) slots: 1
- Other functions
- Product weight: 800 g
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- This product contains electrical components – please be careful during installation to avoid injury.
- Avoid contact with liquids and moisture to prevent damage to the equipment.
- Provide adequate ventilation to avoid overheating and potential damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
