Asus P13R-E LGA1700 Intel Motherboard
Asus P13R-E LGA1700 Intel Motherboard
Asus P13R-E LGA1700 Intel Motherboard
PRICE:
639,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Pentium®
- AMD Turion X2 Ultra Dual-Core
- Intel Xeon E
- Intel Xeon 6300
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 4400 MHz
- Maximum internal memory per slot: 32 GB
- ECC Compatibility: ECC
- Supported memory clock speeds
- 3600 MHz
- 4000 MHz
- 4400 MHz
- Maximum memory capacity: 128 GB
- Characteristics
- Power supply type: ATX
- Purpose: Server
- Cooling type: Passive
- Chipset Board Family: Intel
- Monitoring computer status
- Processor
- Fan
- Temperature
- Product color: Black
- Motherboard format: ATX
- Motherboard Layout: Intel C266
- Weight and dimensions
- Product depth: 244 mm
- Product height: 68 mm
- Product width: 305 mm
- Working conditions
- Temperature range (operation): 10 - 50 °C
- Permissible relative humidity: 20 - 90%
- Temperature range (storage): -40 - 70 °C
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of COM sockets: 1
- Number of case fan connectors: 6
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- Number of EPS power connectors (8-pin): 1
- Number of USB 2.0 ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 8
- Network
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Packaging data
- Weight with packaging: 1.5 kg
- Package depth: 281 mm
- Package height: 78 mm
- Package width: 341 mm
- Memory drivers
- Number of supported storage drive sizes: 10
- Number of supported HDDs: 8
- Supported hard drive interfaces: PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD

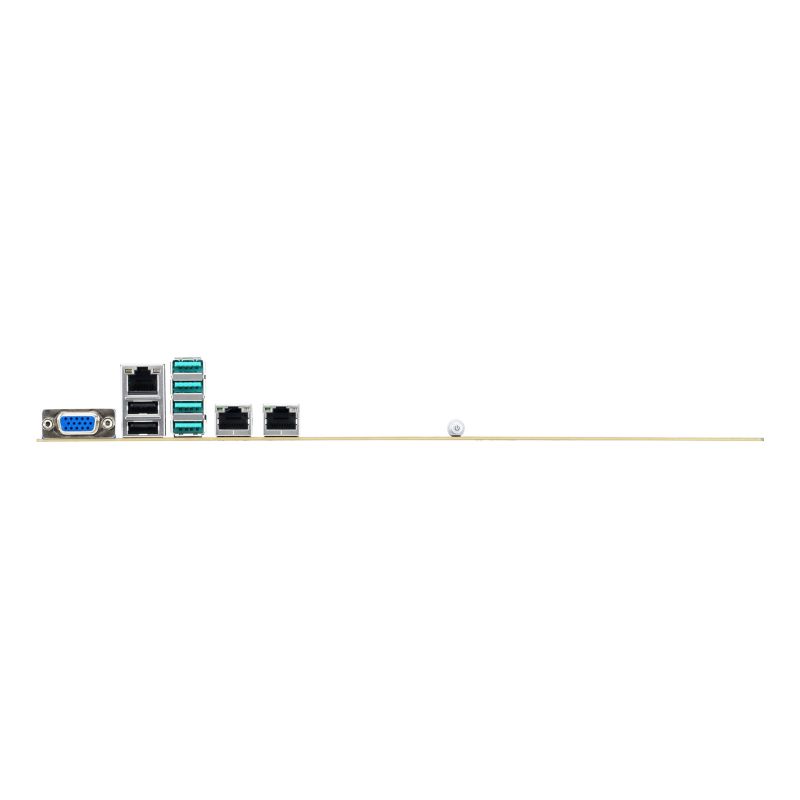

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 2
- PCI Express x8 (Gen 5.x) slots: 1
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 22110
- 1. M.2 highest generation PCI Express: 4.0
- Other functions
- Product weight: 800 g
| Name | Details |
|---|---|
| Producer | Asus |
