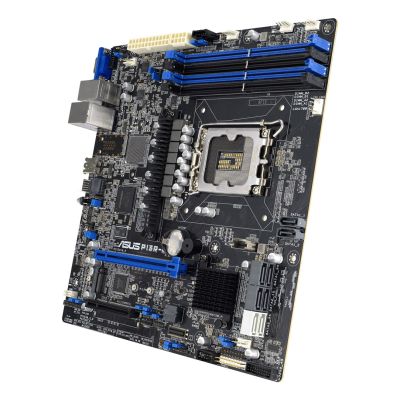

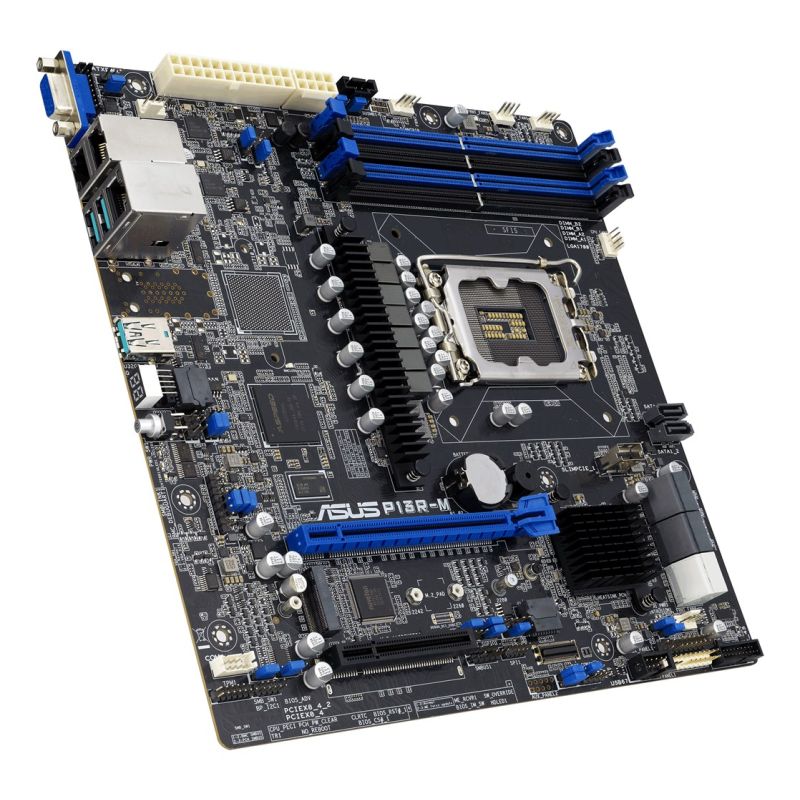

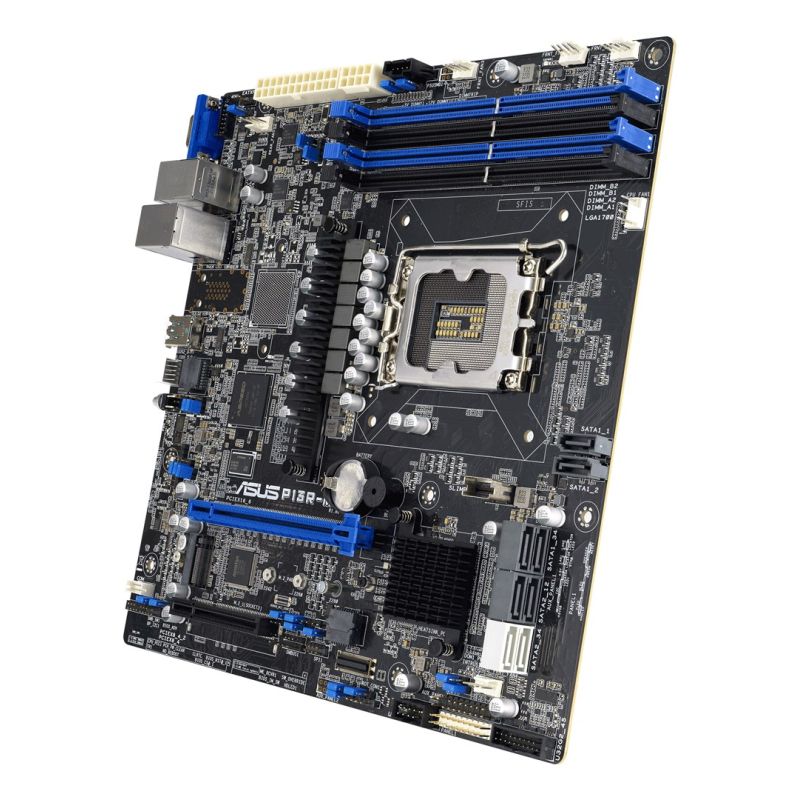

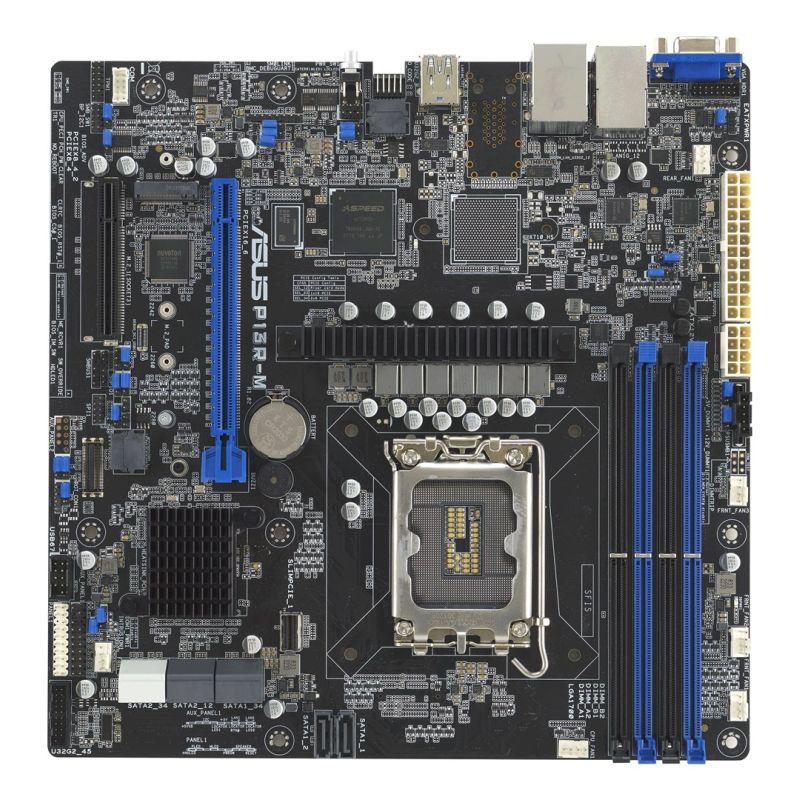

Asus P13R-M motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4xDIMM, 8x SATA, 1xM.2, 2x1GbE, ASMB11-iKVM, mATX)
Asus P13R-M motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4xDIMM, 8x SATA, 1xM.2, 2x1GbE, ASMB11-iKVM, mATX)
Asus P13R-M motherboard 1x LGA1700 Intel Xeon E-24XX C262 (4xDIMM, 8x SATA, 1xM.2, 2x1GbE, ASMB11-iKVM, mATX)
PRICE:
686,99
€
IN A WAREHOUSE
9 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Processor
- Intel® Pentium®
- Intel Xeon E
- Graphics
- Graphics Adapter Family: ASPEED
- Graphics card: AST2600
- Memory
- Maximum memory capacity: 128 GB
- Supported memory clock speeds
- 3600 MHz
- 4000 MHz
- 4400 MHz
- Memory Channel Support: Dual Channel
- Supported memory module capacities
- 16GB
- 32GB
- 8GB
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Characteristics
- Chipset Board Family: Intel
- Motherboard Layout: Intel C262
- Motherboard format: Micro ATX
- Purpose: Server
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Working conditions
- Permissible relative humidity: 20 - 90%
- Temperature range (operation): 10 - 50 °C
- Temperature range (storage): -40 - 70 °C
- Internal I/O
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 3
- Number of SATA III connectors: 8
- EPS power supply connector (8-pin): Yes
- TPM Connector: Yes
- Number of USB 2.0 ports: 1
- Serial port connector: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Network
- Wired LAN: Yes
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- Packaging data
- Weight with packaging: 1.3 kg
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 8

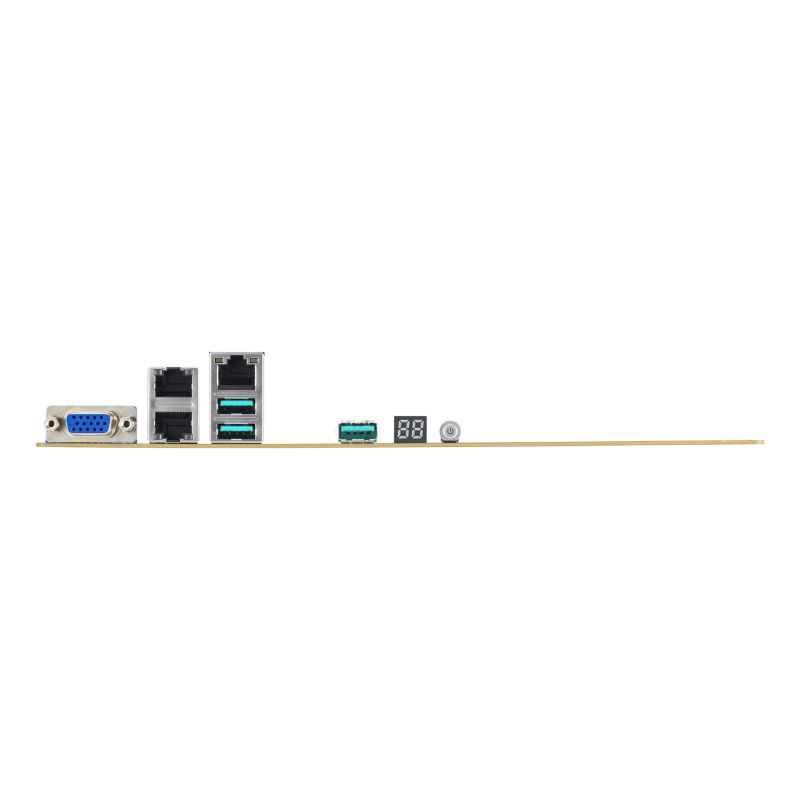

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Other functions
- Product weight: 760 g
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Asus |
| Department | Electronics |
