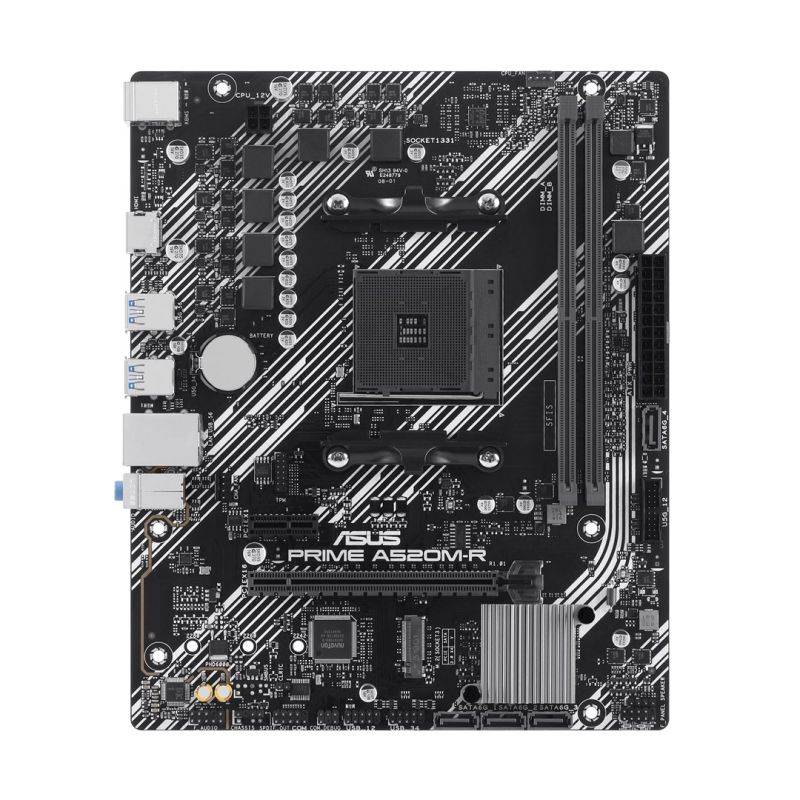

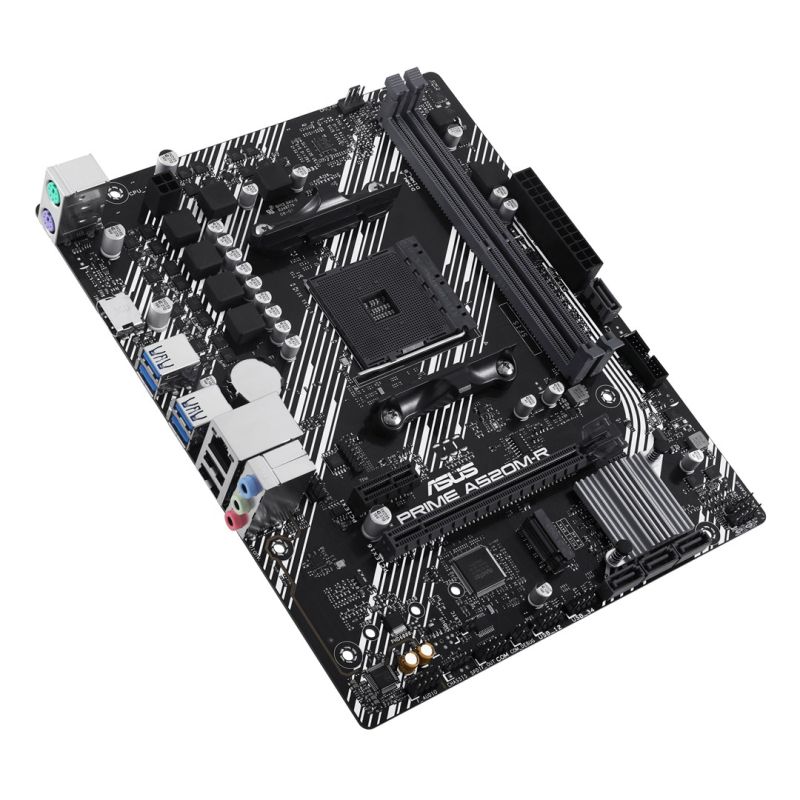

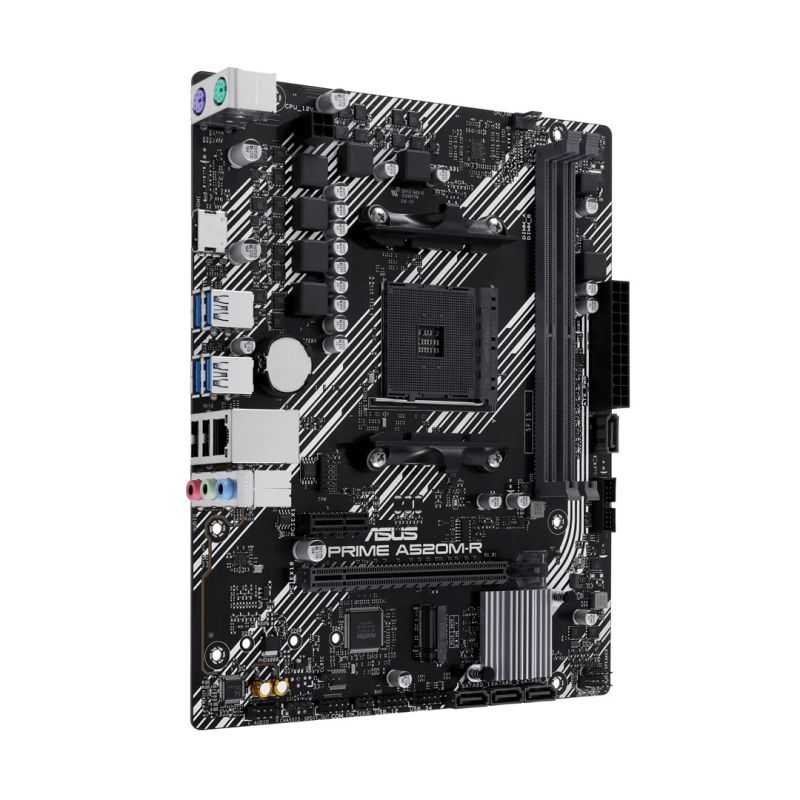

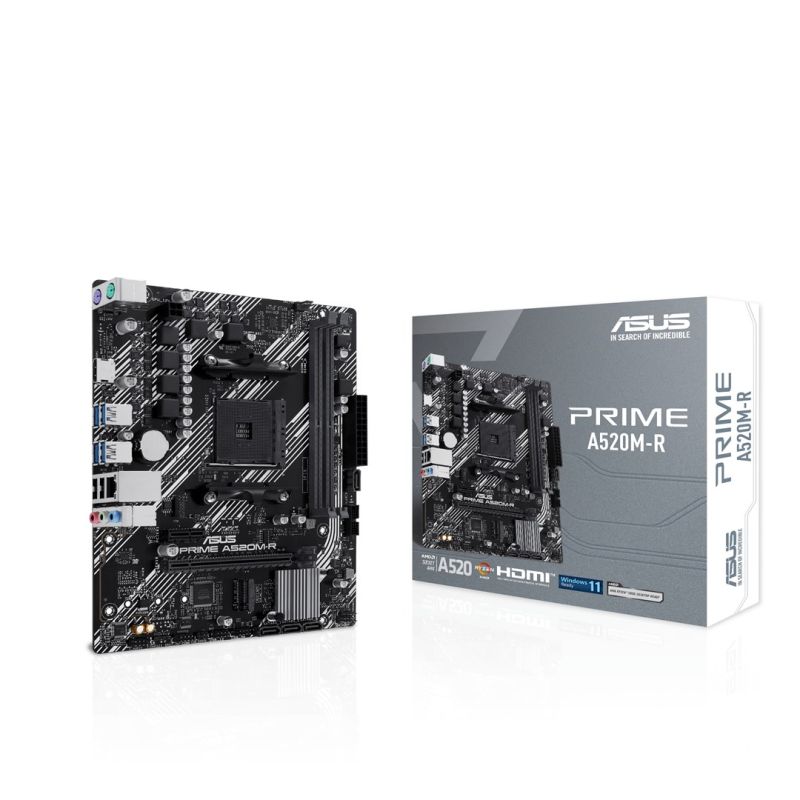

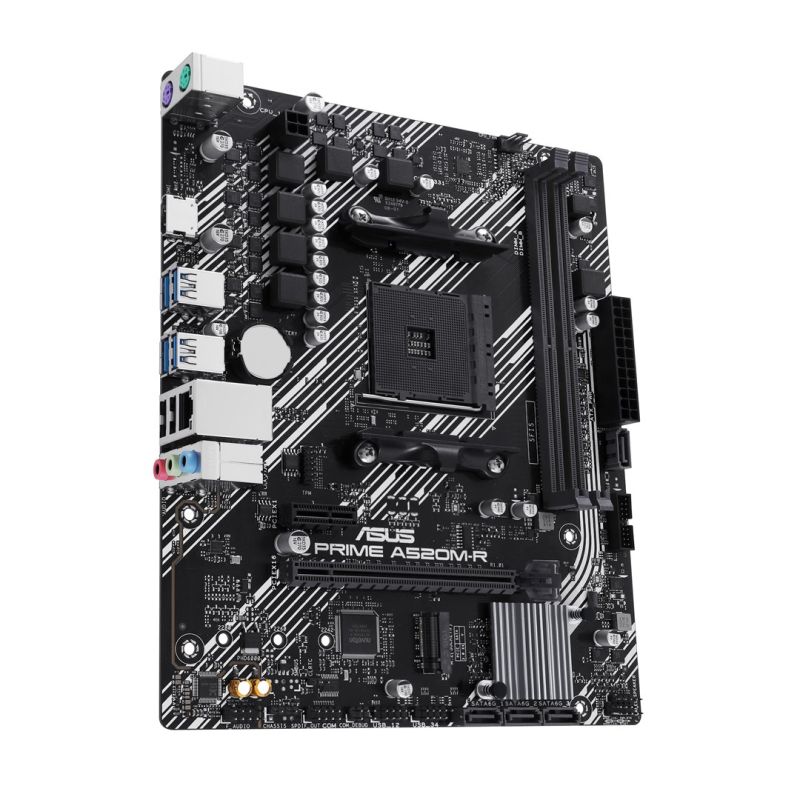

ASUS PRIME A520M-R motherboard
ASUS PRIME A520M-R motherboard
ASUS PRIME A520M-R motherboard
PRICE:
81,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- AMD Ryzen 9 5th Gen
- AMD Ryzen™ 5
- AMD Ryzen™ 3
- AMD Ryzen™ 7
- 3rd Generation AMD Ryzen™ 9
- Processor manufacturer: AMD
- Processor socket: Socket AM4
- Supported processor sockets: Socket AM4
- Processor
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 3466 MHz
- 3733 MHz
- 2933 MHz
- 4266 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- 3200 MHz
- 2666 MHz
- 4333 MHz
- 2133 MHz
- 2800 MHz
- 3333 MHz
- 4400 MHz
- 3000 MHz
- 4200 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 5100 MHz
- 4866 MHz
- 4666 MHz
- 4466 MHz
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Memory slot type: DIMM
- Supported memory clock speed (max): 5100 MHz
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Maximum memory capacity: 64 GB
- Supported memory clock speeds
- Characteristics
- Cooling type: Passive
- Power supply type: ATX
- Audio output channels: 7.1 ch.
- Product color: Black
- Supported Windows operating systems
- Windows 10
- Windows 11
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Motherboard Layout: AMD A520
- Weight and dimensions
- Product depth: 193 mm
- Product width: 236 mm
- Internal I/O
- 12V power connector: Yes
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of case fan connectors: 1
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Peripheral (Molex) Power Connectors (4-pin): 1
- Network
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Weight with packaging: 880 g
- Package height: 51.5 mm
- Package width: 270 mm
- Package depth: 263 mm

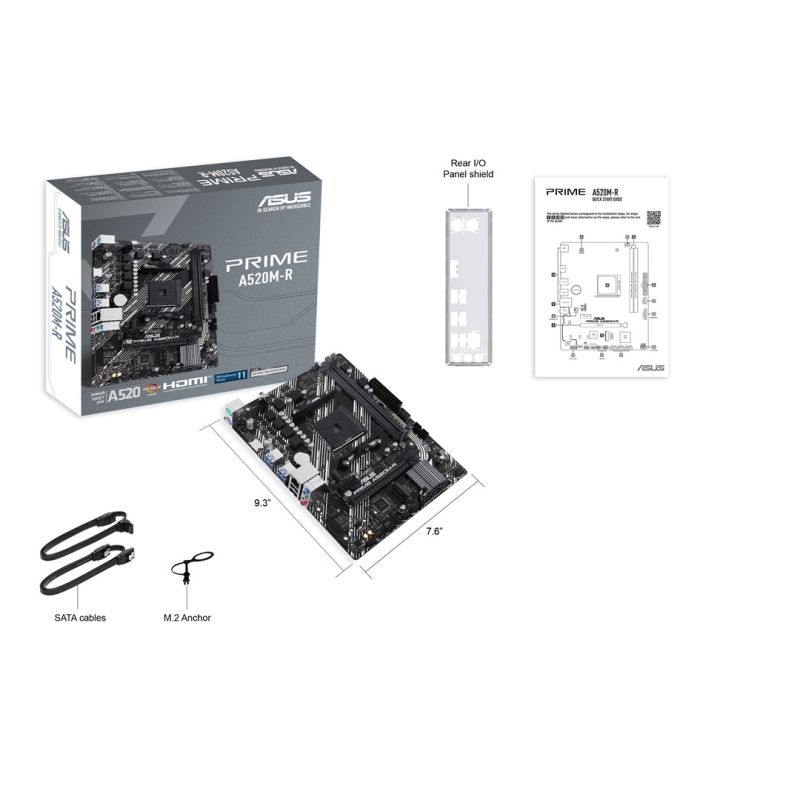

- Package contents
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 5
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- RAID levels
- 1
- 0
- 10

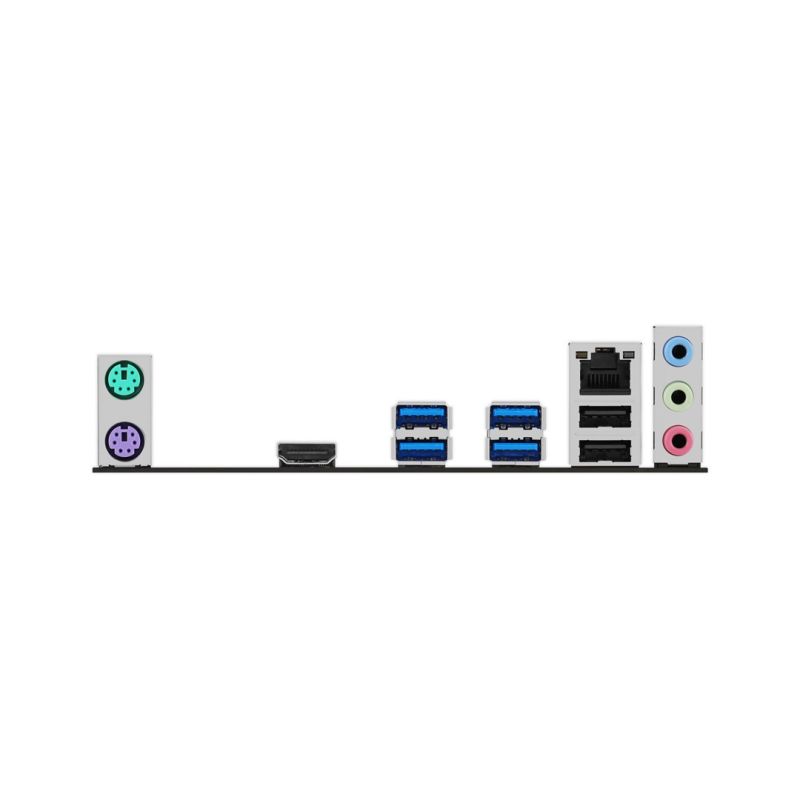

- Rear Panel I/O Ports
- Microphone: Yes
- HDMI version: 2.1
- Line Input: Yes
- Headphone outputs: 1
- Number of PS/2 ports: 2
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- Safety warning
- Warnings
- Dispose of in accordance with local regulations regarding electronic waste.
- Store away from water and sources of moisture.
- Avoid direct contact with sensitive electronic components.
- Warnings
