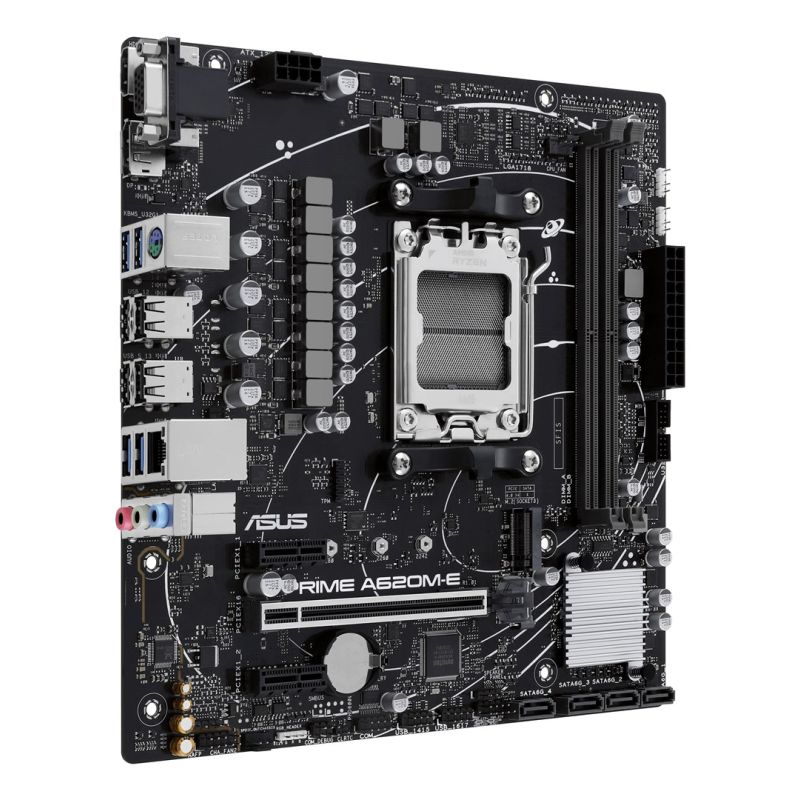

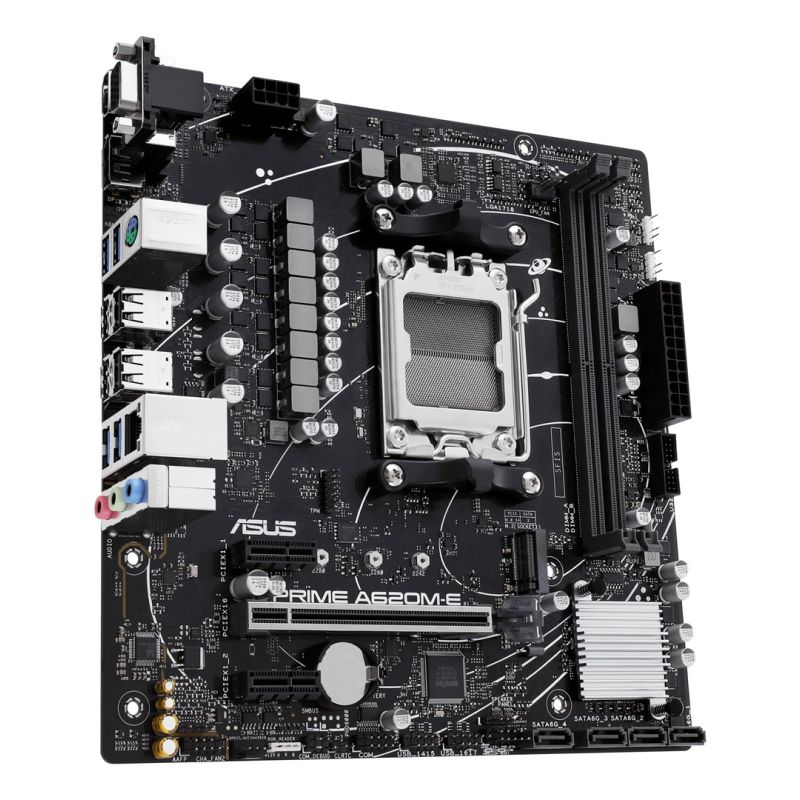

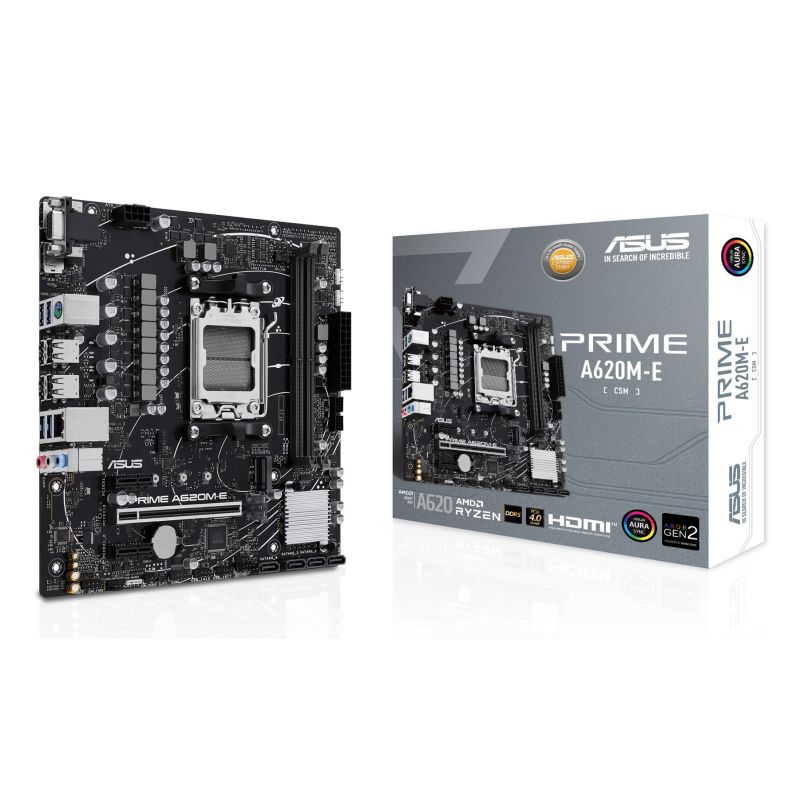

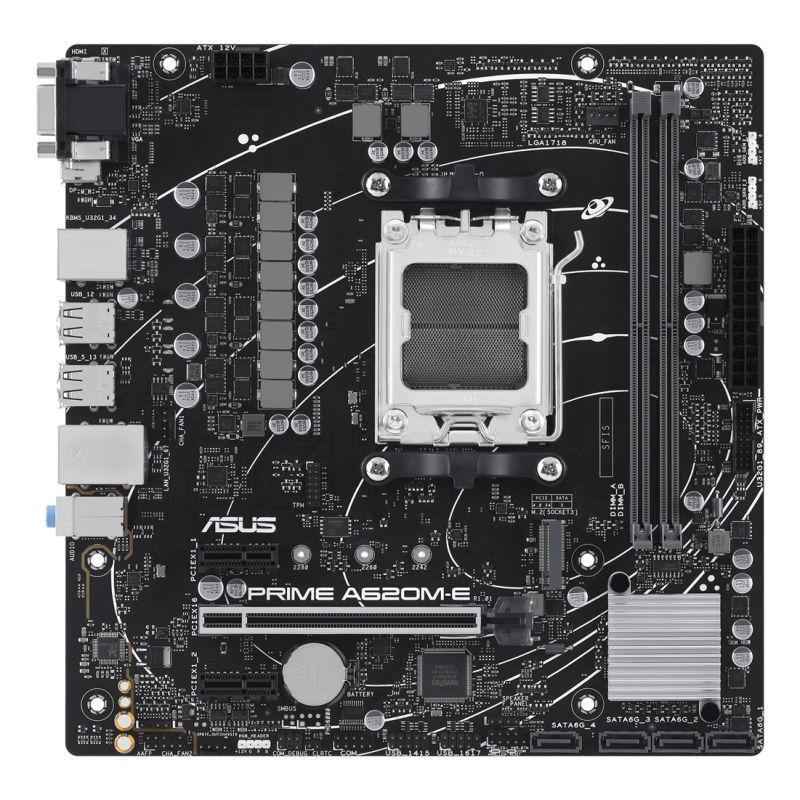

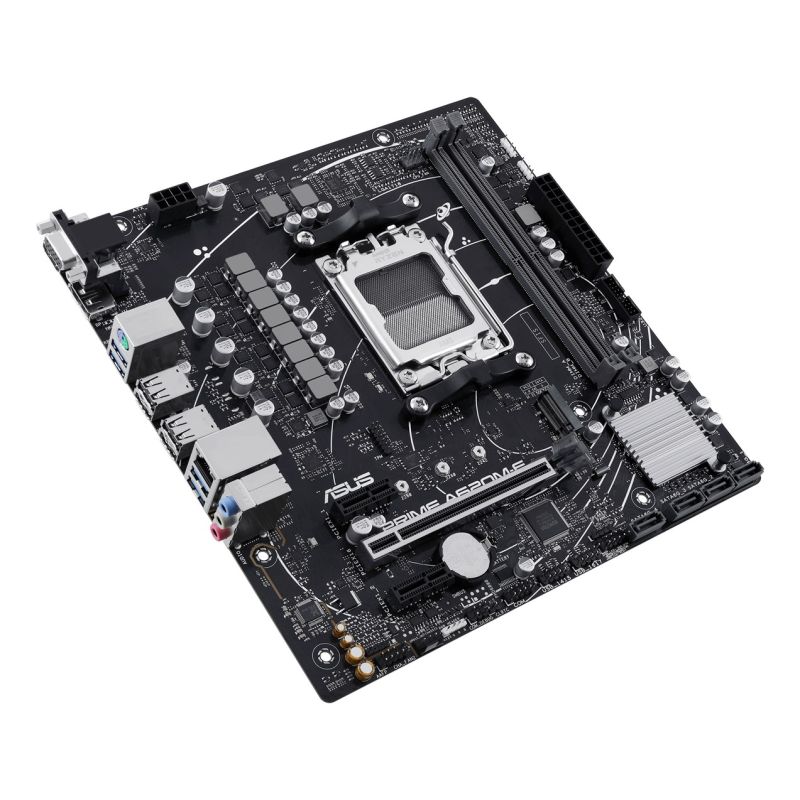

ASUS PRIME A620M-E-CSM AMD A620 Socket AM5 micro ATX
ASUS PRIME A620M-E-CSM AMD A620 Socket AM5 micro ATX
ASUS PRIME A620M-E-CSM AMD A620 Socket AM5 micro ATX
PRICE:
145,99
€
IN A WAREHOUSE
10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: AMD Ryzen 7000 Series
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory clock speeds
- 6200 MHz
- 5000 MHz
- 5600 MHz
- 6400 MHz
- 4800 MHz
- 5400 MHz
- 6000 MHz
- 5200 MHz
- 5800 MHz
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Maximum memory capacity: 96 GB
- Supported memory clock speed (max): 6400 MHz
- Characteristics
- Power supply type: ATX
- Cooling type: Passive
- Supported Windows operating systems
- Windows 10
- Windows 11
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Intended use: PC
- Motherboard Layout: AMD A620
- Motherboard format: Micro ATX
- Weight and dimensions
- Product depth: 221 mm
- Product width: 226 mm
- Internal I/O
- TPM Connector: Yes
- RGB LED: Yes
- 12V power connector: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Number of SATA III connectors: 4
- Number of COM sockets: 1
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 2
- CPU fan connector: Yes
- S/PDIF jack: Yes
- EPS power supply connector (8-pin): Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Packaging data
- Package height: 51.5 mm
- Package depth: 270 mm
- Weight with packaging: 940 g
- Package width: 260 mm
- Package contents
- Cables: SATA
- User Guide: Yes
- Memory drivers
- Number of supported storage drive sizes: 5
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 1
- 10
- RAID Service: Yes

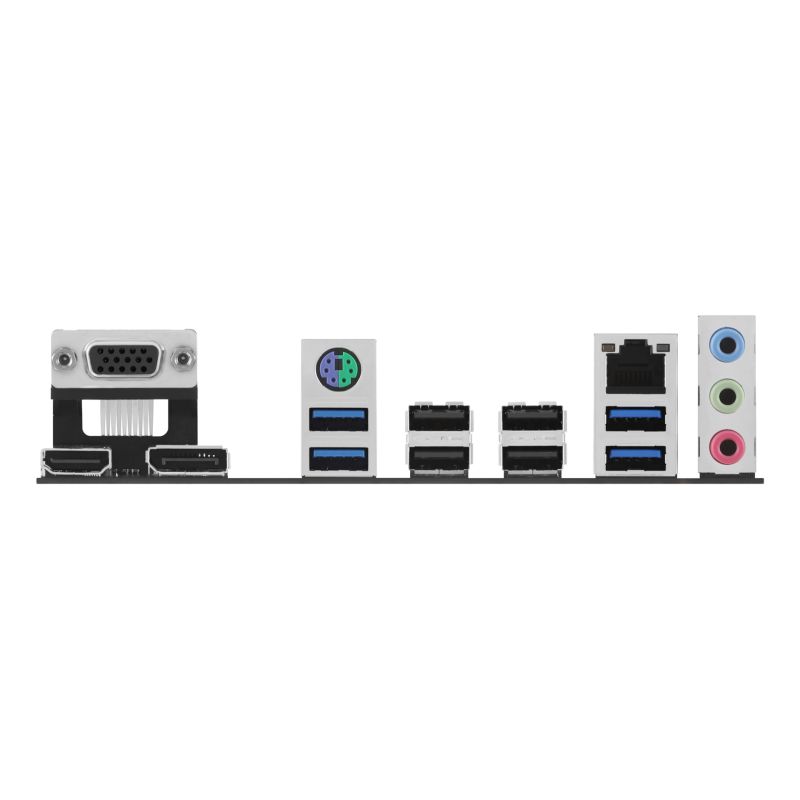

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of HDMI ports: 1
- Headphone outputs: 1
- Line Input: Yes
- Microphone: Yes
- Number of USB 2.0 ports: 4
- DisplayPort Quantity: 1
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
| Name | Details |
|---|---|
| Producer | Asus |
