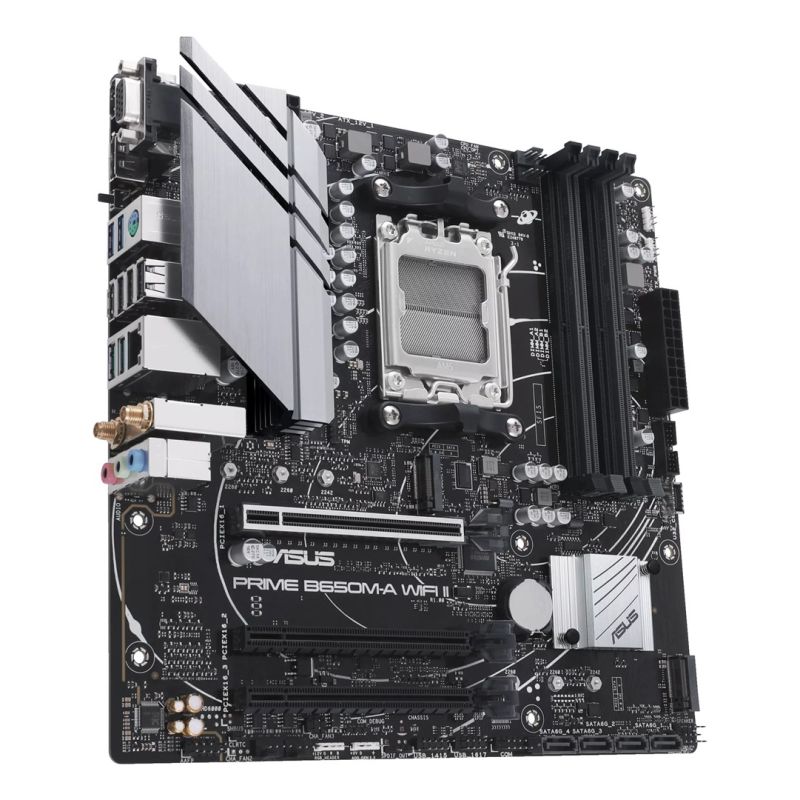

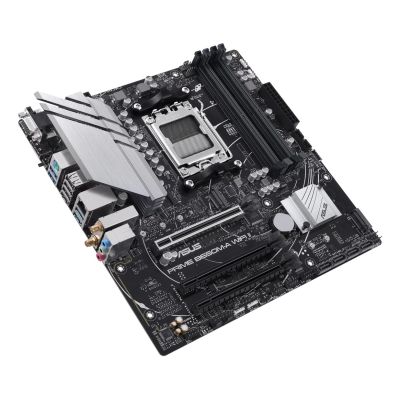

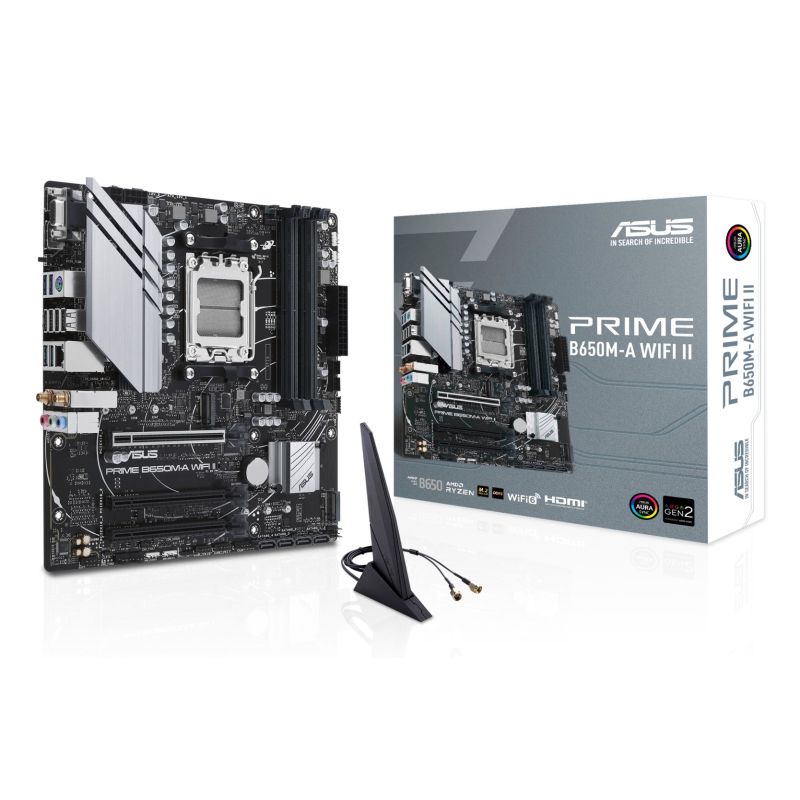

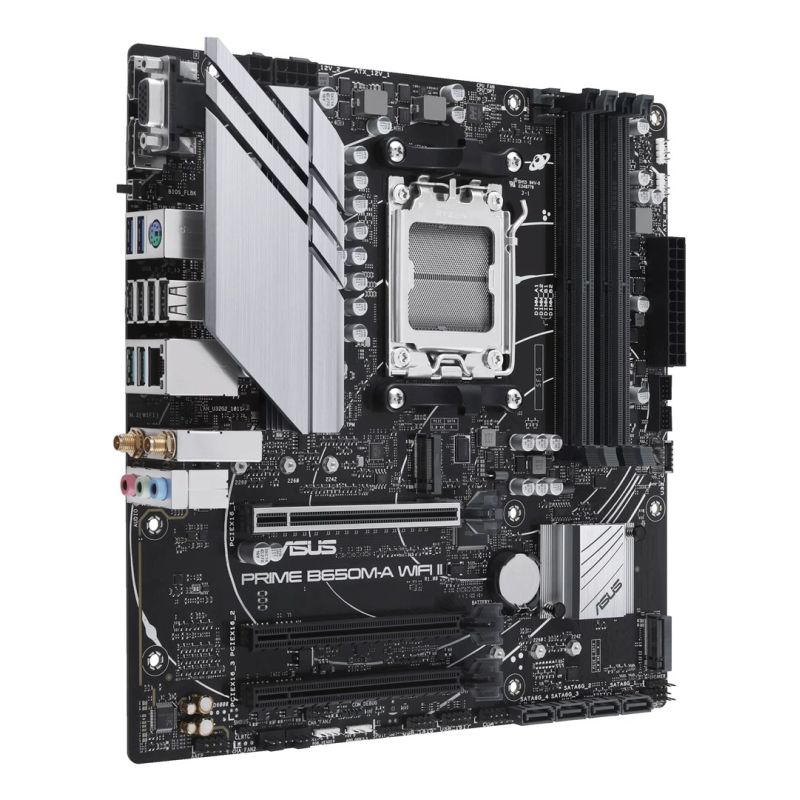

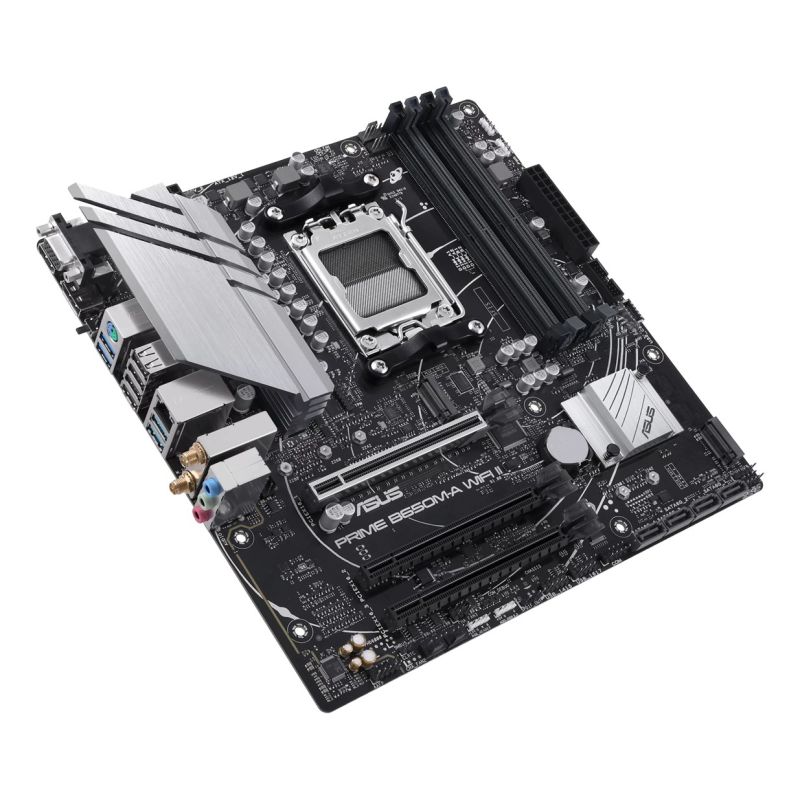

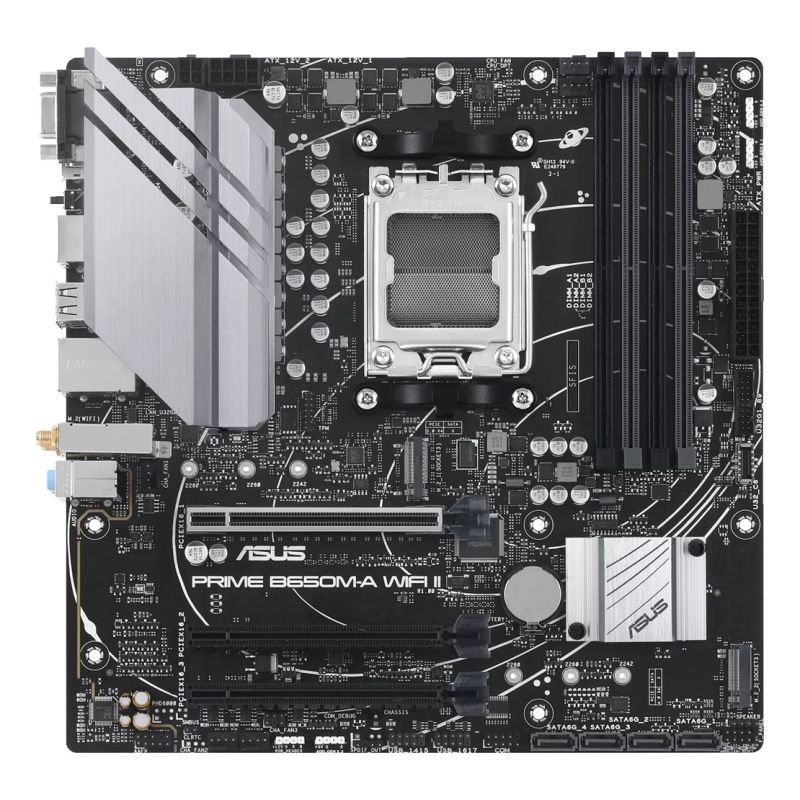

ASUS PRIME B650M-A WIFI II motherboard
ASUS PRIME B650M-A WIFI II motherboard
ASUS PRIME B650M-A WIFI II motherboard
PRICE:
187,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor: AMD Ryzen™ 7
- Processor socket: Socket AM5
- Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- ECC Compatibility: ECC or Non-ECC
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 4800 MHz
- 5000 MHz
- 6200 MHz
- 5400 MHz
- 5200 MHz
- 5600 MHz
- 6400 MHz
- 5800 MHz
- 6000 MHz
- Maximum memory capacity: 128 GB
- Characteristics
- Chipset Board Family: AMD
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 10
- Windows 11
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Motherboard Layout: AMD B650
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Total number of SATA connectors: 4
- Number of USB 2.0 ports: 2
- 12V power connector: Yes
- Audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- ATX power socket (24-pin): Yes
- Number of COM sockets: 1
- RGB LED: Yes
- Front panel connector: Yes
- S/PDIF jack: Yes
- CPU fan connector: Yes
- Fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of SATA ports: 4
- Number of case fan connectors: 3
- Peripheral (Molex) Power Connectors (4-pin): 4
- TPM Connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Wi-Fi: Yes
- Bluetooth version: 5.2
- Bluetooth: Yes
- BIOS
- Clear CMOS Button: Yes
- BIOS Type: UEFI AMI

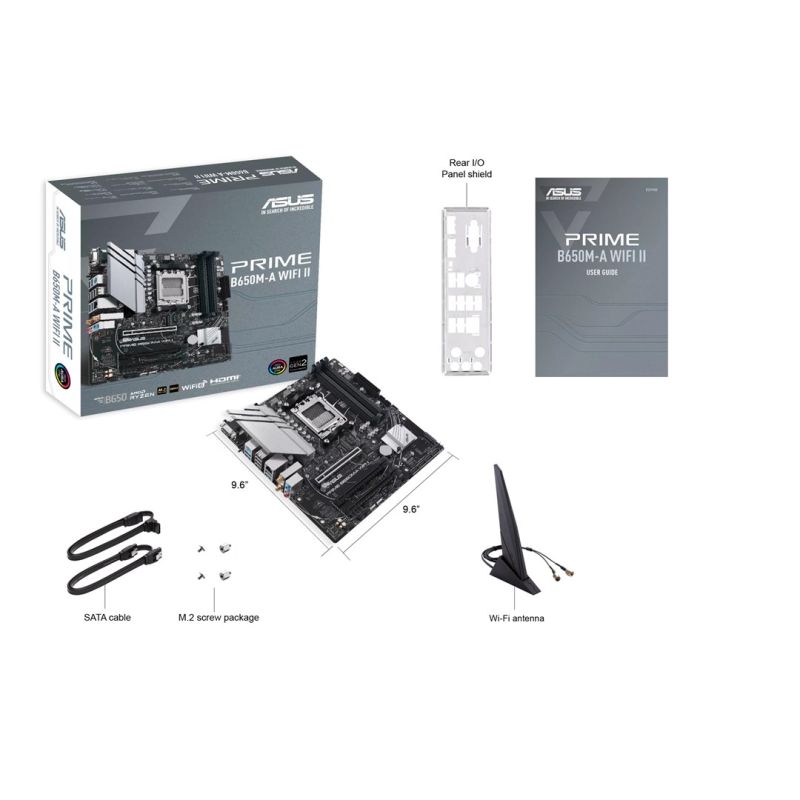

- Package contents
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- RAID Service: Yes
- RAID levels
- 1
- 0
- 10
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA
- Number of supported storage drive sizes: 2

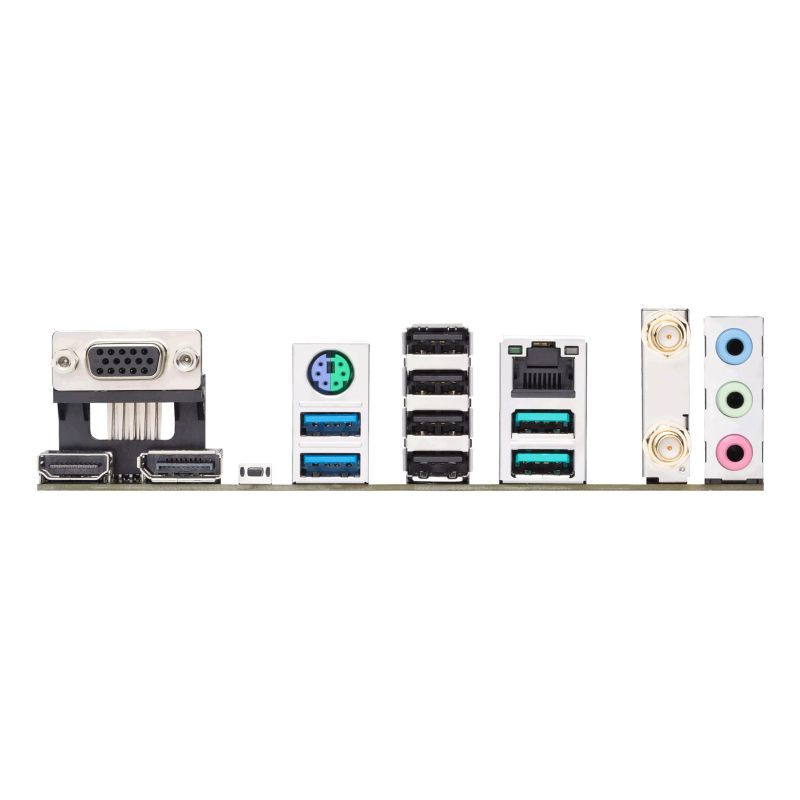

- Rear Panel I/O Ports
- Number of VGA (D-Sub) ports: 1
- Headphone outputs: 1
- Microphone: Yes
- Line Input: Yes
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Supported USB type: USB Type-A
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 3
- Safety warning
- Warnings
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
