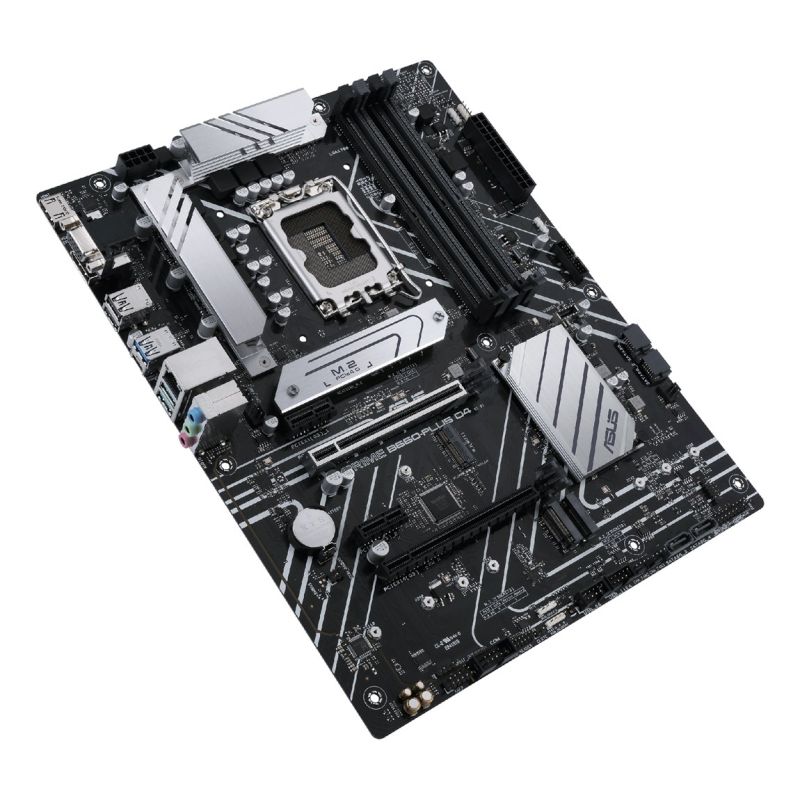

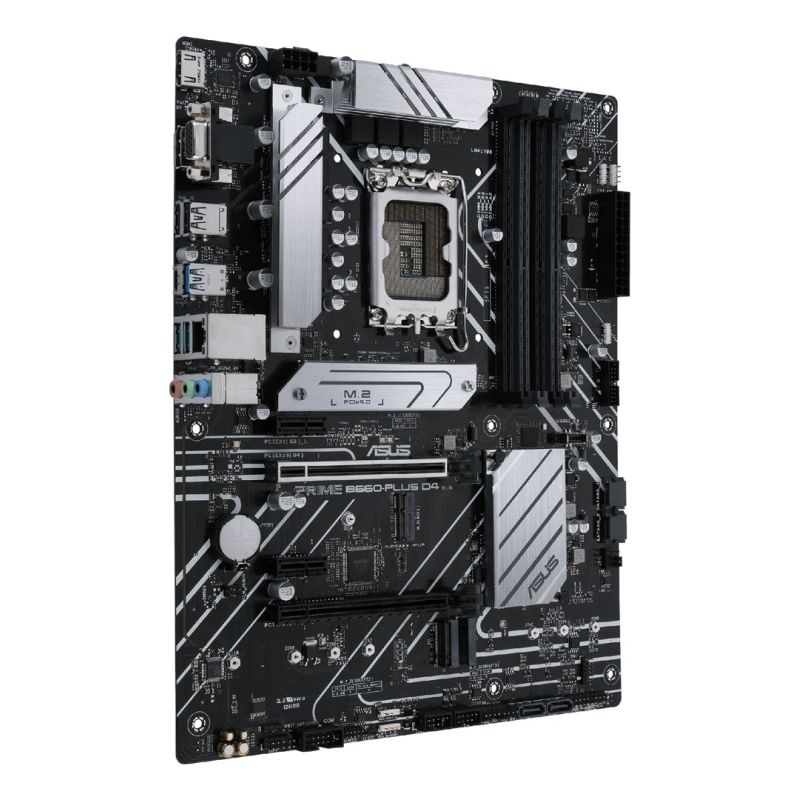

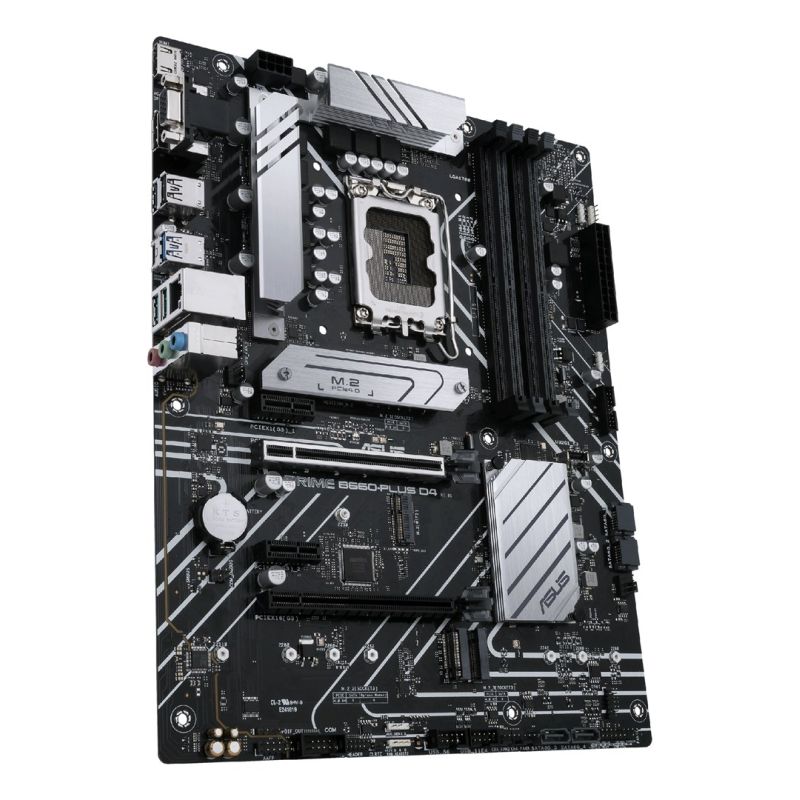

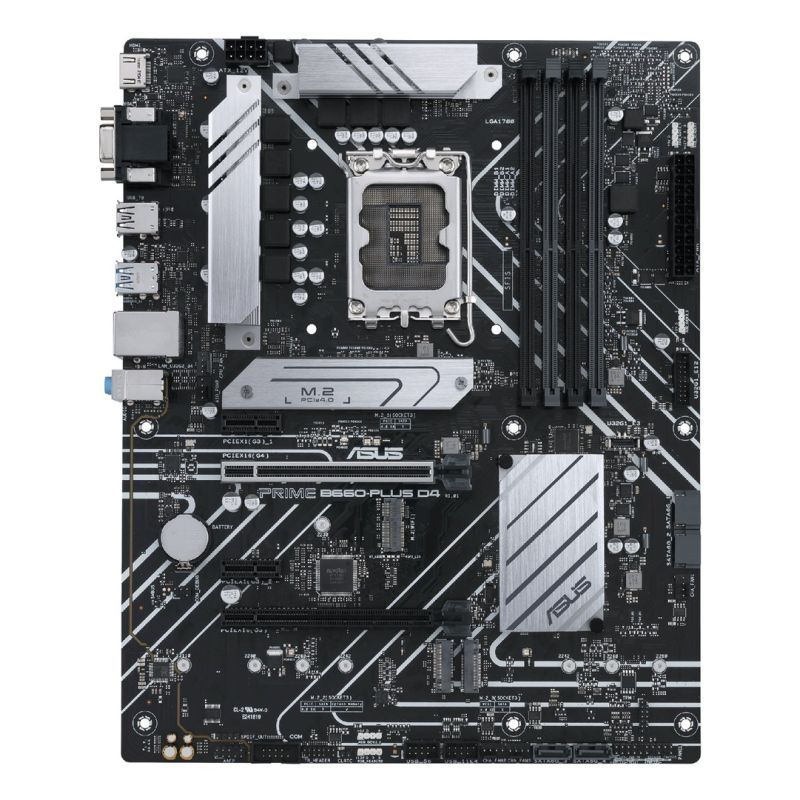

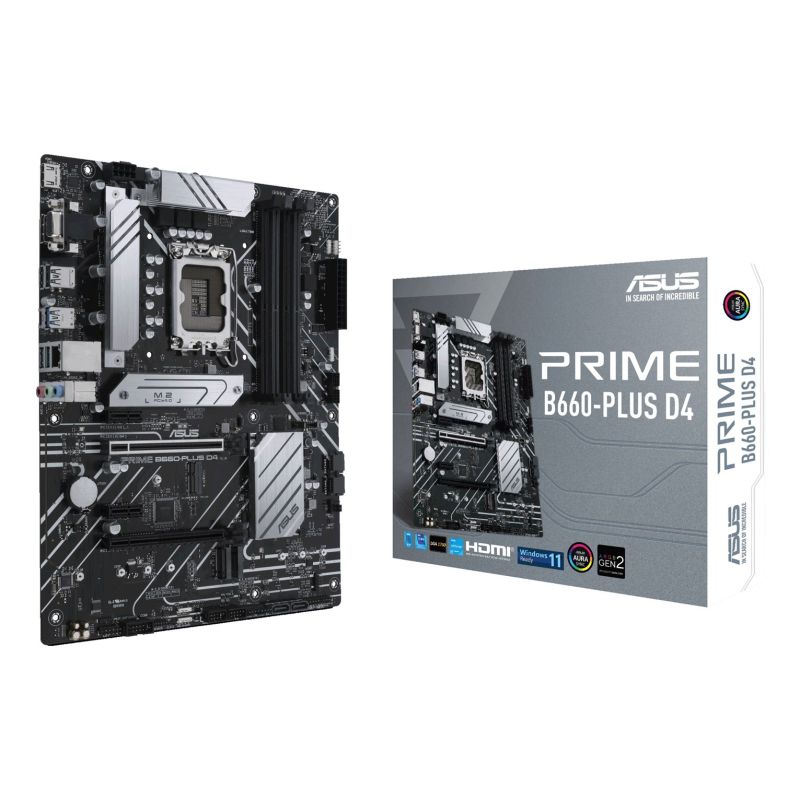

ASUS PRIME B660-PLUS D4 motherboard
ASUS PRIME B660-PLUS D4 motherboard
ASUS PRIME B660-PLUS D4 motherboard
PRICE:
172,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Core™ i7
- Intel® Pentium® Gold
- Intel® Core™ i9
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i3
- Processor socket: LGA 1700
- Memory
- Number of memory slots: 4
- Memory slot type: DIMM
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Supported memory clock speeds
- 3733 MHz
- 2133 MHz
- 3466 MHz
- 2666 MHz
- 4266 MHz
- 5066 MHz
- 2800 MHz
- 3333 MHz
- 4400 MHz
- 3000 MHz
- 2933 MHz
- 4800 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 5000 MHz
- 3400 MHz
- 3866 MHz
- 4600 MHz
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 128 GB
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Power supply type: ATX
- Motherboard format: ATX
- Motherboard Layout: Intel B660
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 53 mm
- Internal I/O
- TPM Connector: Yes
- Number of COM sockets: 1
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- CPU fan connector: Yes
- S/PDIF jack: Yes
- Thunderbolt Ends: 1
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 3
- Housing intrusion sensor connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 7
- RAID levels
- 0
- 10
- 5
- 1
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD

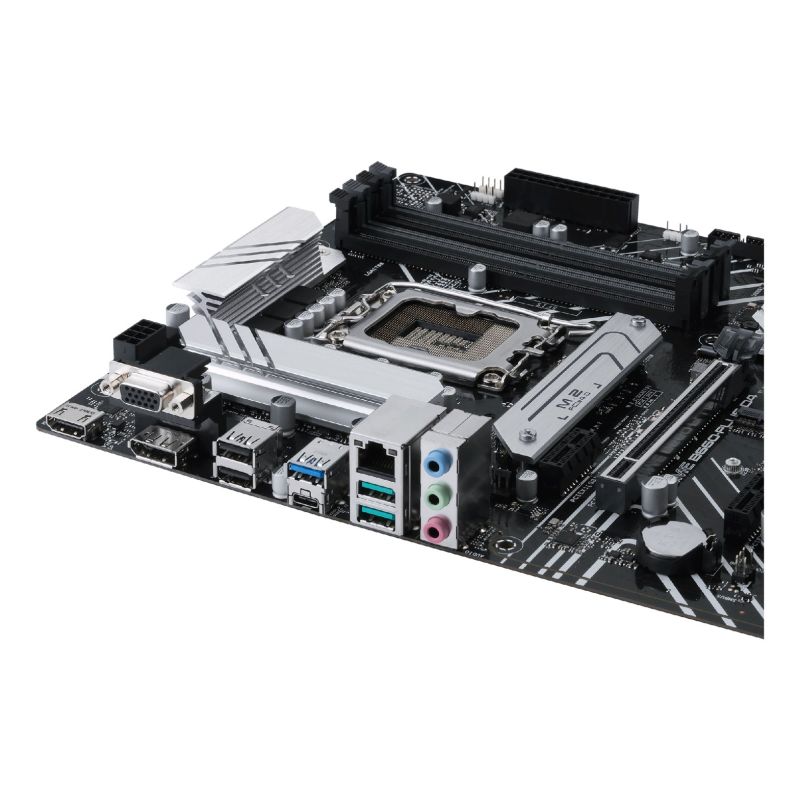

- Rear Panel I/O Ports
- Headphone outputs: 3
- Number of HDMI ports: 1
- Number of VGA (D-Sub) ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Supported USB type
- USB Type-C
- USB Type-A
- DisplayPort version: 1.4
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 3
- Other functions
- Product weight: 891 g
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
