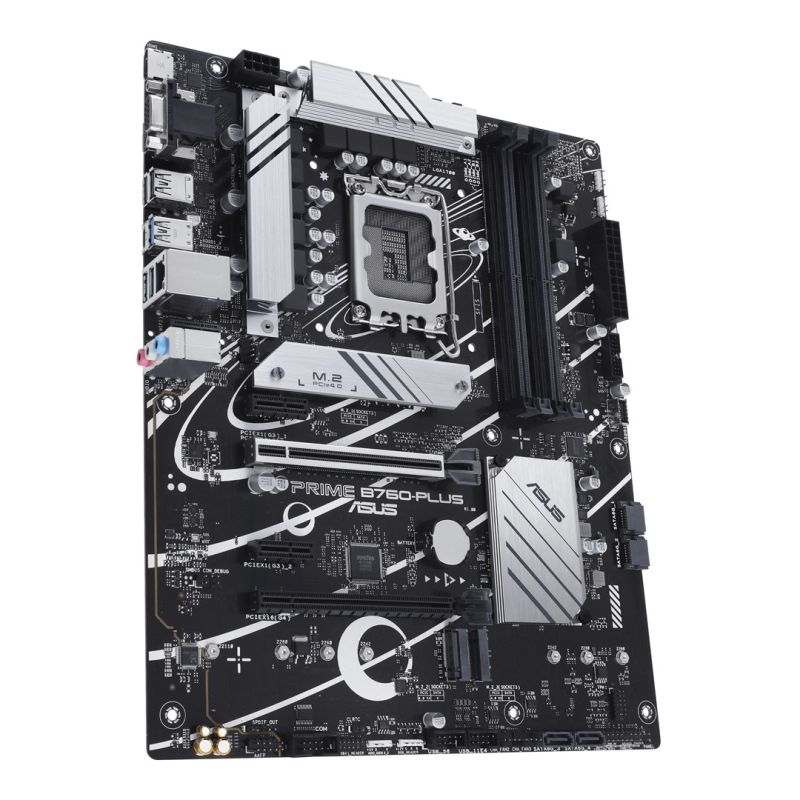

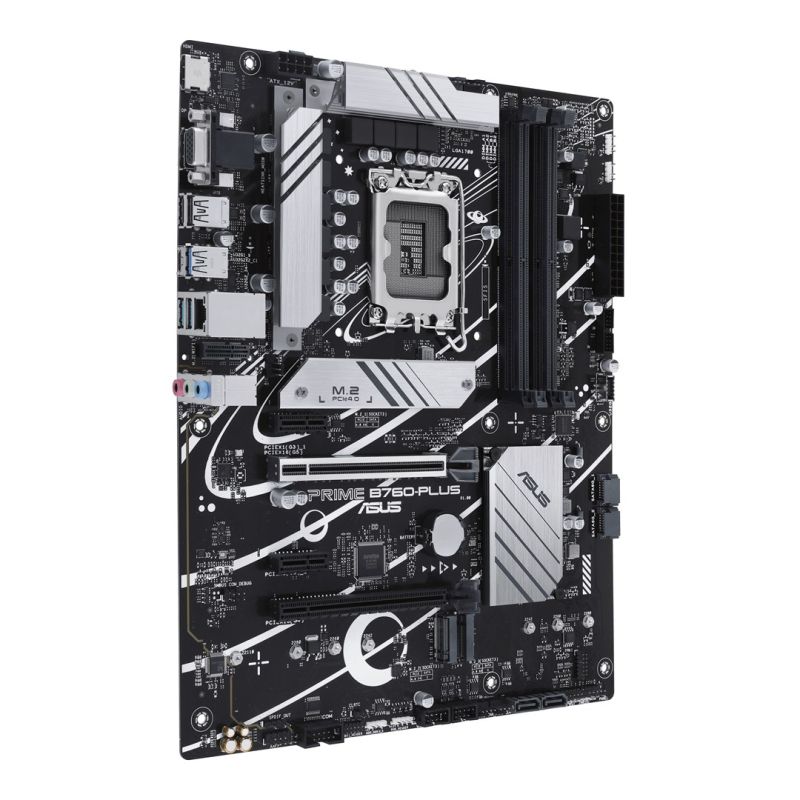

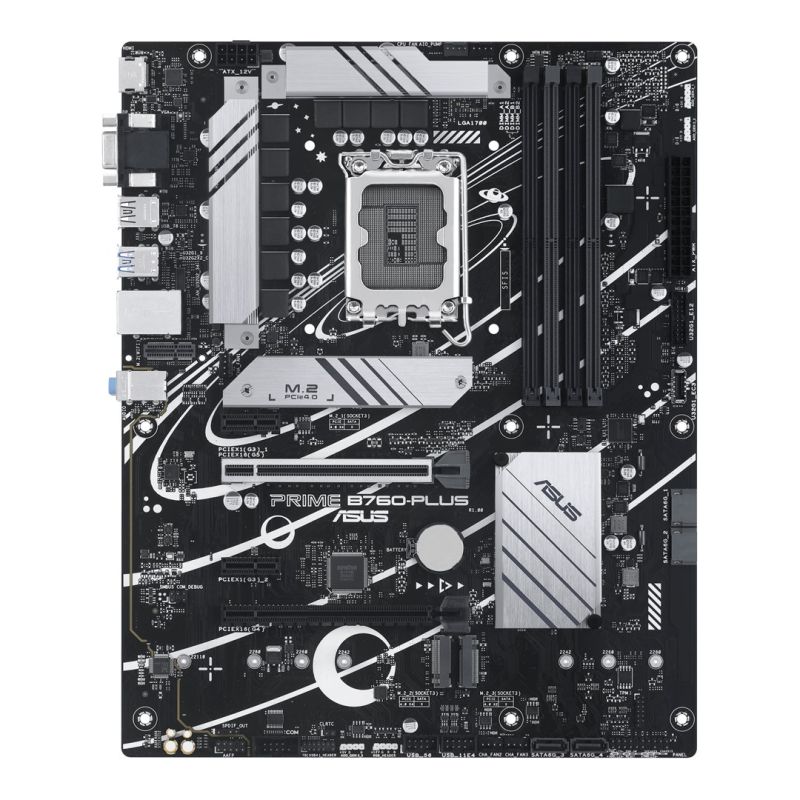

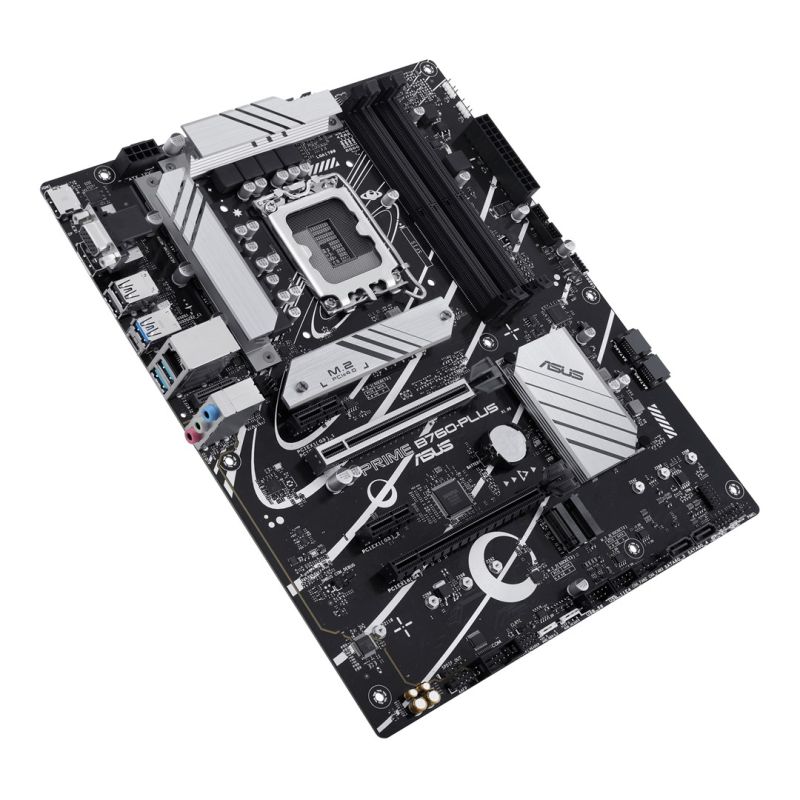

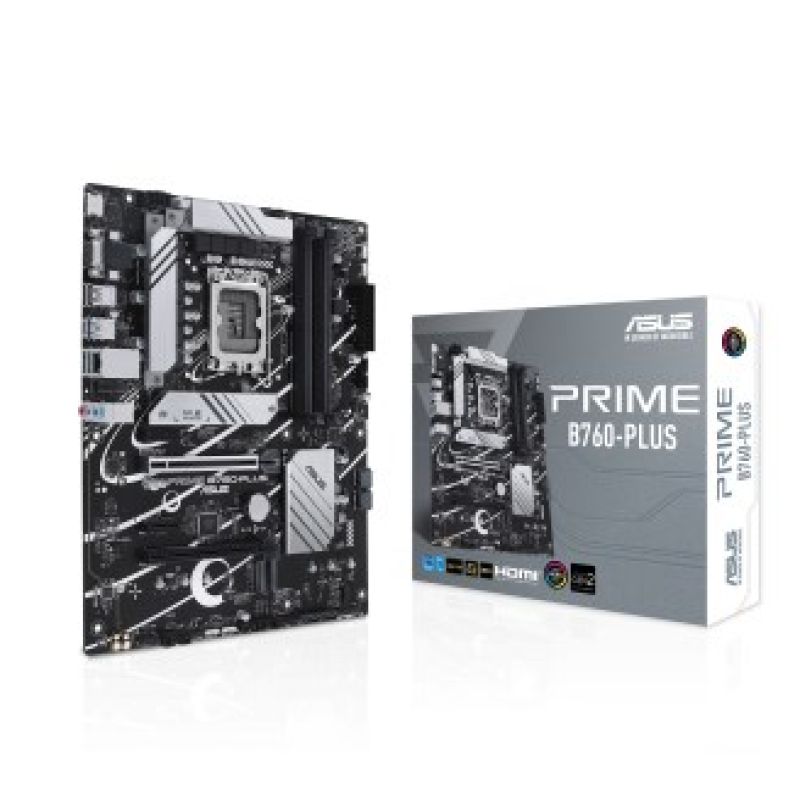

ASUS PRIME B760-PLUS motherboard
ASUS PRIME B760-PLUS motherboard
ASUS PRIME B760-PLUS motherboard
PRICE:
187,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- Intel® Core™ i5
- Intel® Core™ i3
- Intel® Celeron®
- Intel® Core™ i7
- Intel® Pentium® Gold
- Intel® Core™ i9
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Maximum number of SMP processors: 1
- Processor socket: LGA 1700
- Processor
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- 6000 MHz
- 5800 MHz
- 5200 MHz
- 5600 MHz
- 6400 MHz
- 6200 MHz
- 4800 MHz
- 7000
- 7200
- 5400 MHz
- 5000 MHz
- 6600
- 6800
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 192 GB
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Characteristics
- Power supply type: ATX
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel B760
- Cooling type: Passive
- Motherboard format: ATX
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Weight and dimensions
- Product width: 305 mm
- Product height: 36 mm
- Product depth: 244 mm
- Internal I/O
- TPM Connector: Yes
- Number of case fan connectors: 3
- Peripheral (Molex) Power Connectors (4-pin): 1
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- Thunderbolt Ends: 1
- CPU fan connector: Yes
- Number of SATA III connectors: 4
- Number of COM sockets: 1
- S/PDIF jack: Yes
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel connector: Yes
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Ethernet network interface type
- Gigabit Ethernet
- Fast Ethernet
- 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet network interface type
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Package width: 328 mm
- Package depth: 266 mm
- Weight with packaging: 1.2 kg
- Package height: 53 mm
- Package contents
- Cables: SATA
- Memory drivers
- RAID levels
- 0
- 5
- 1
- 10
- Number of supported storage drive sizes: 7
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- Number of supported HDDs: 4
- RAID levels

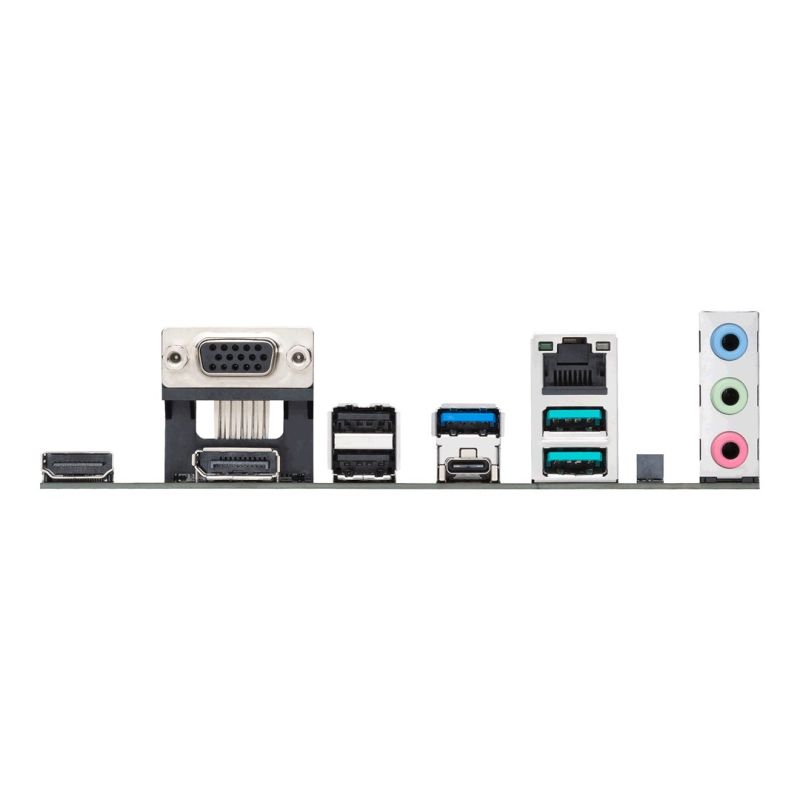

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- DisplayPort version: 1.4
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Number of VGA (D-Sub) ports: 1
- Line Input: Yes
- Headphone outputs: 1
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 760 g
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
