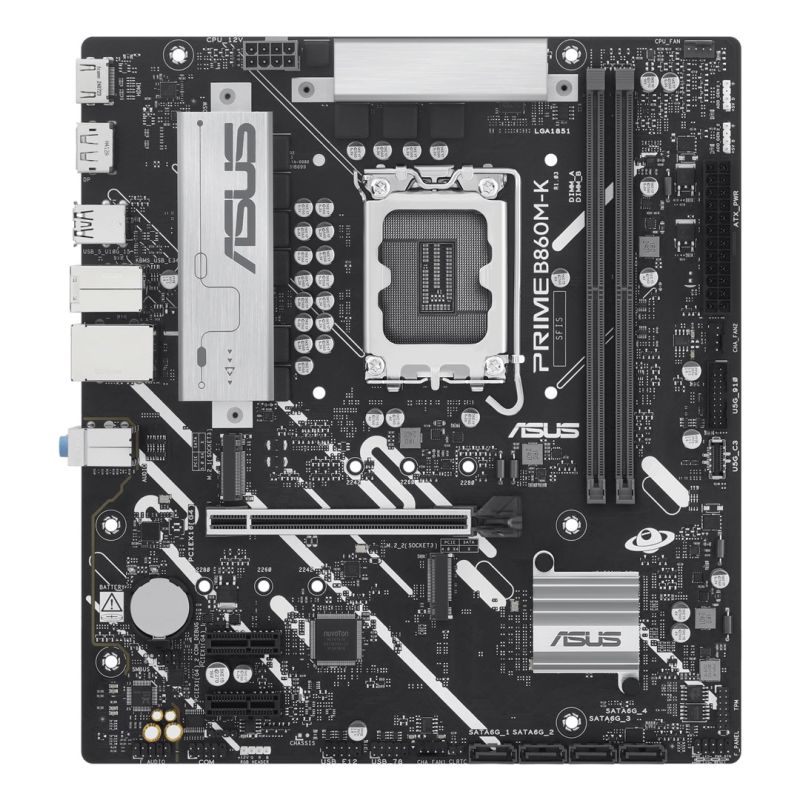

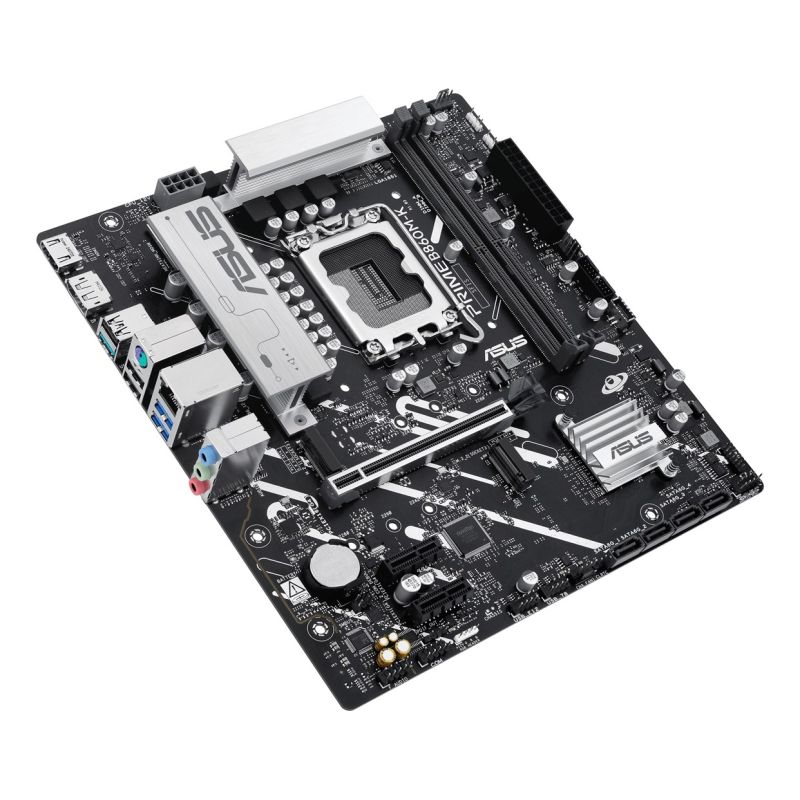

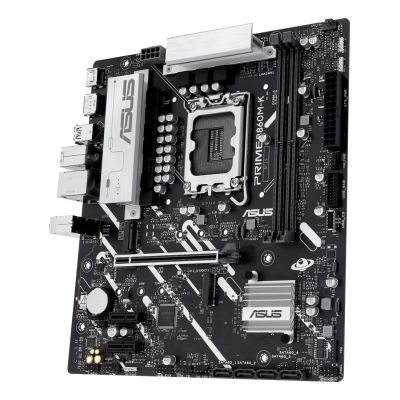

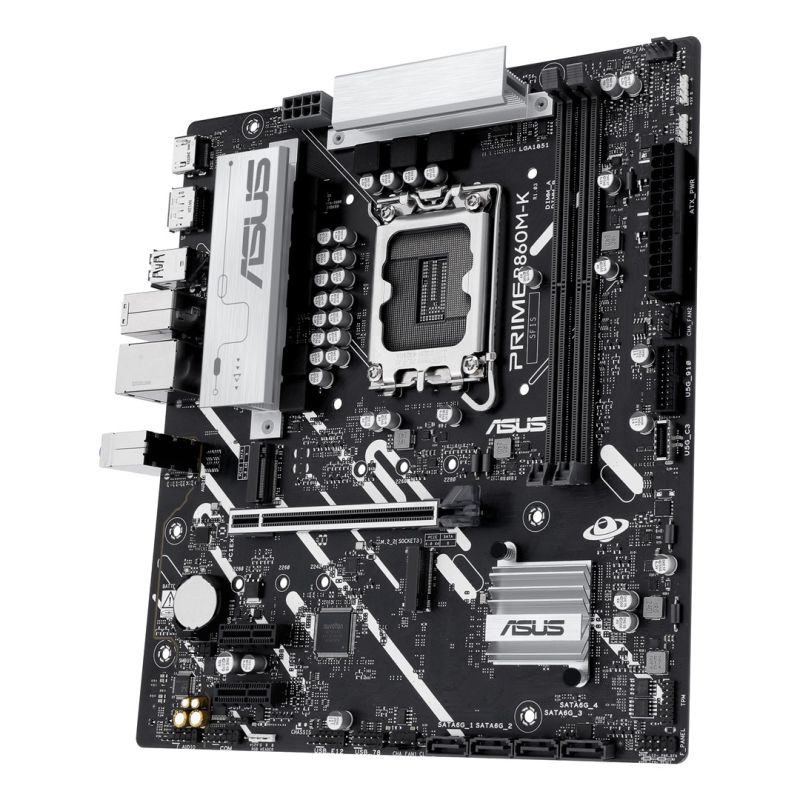

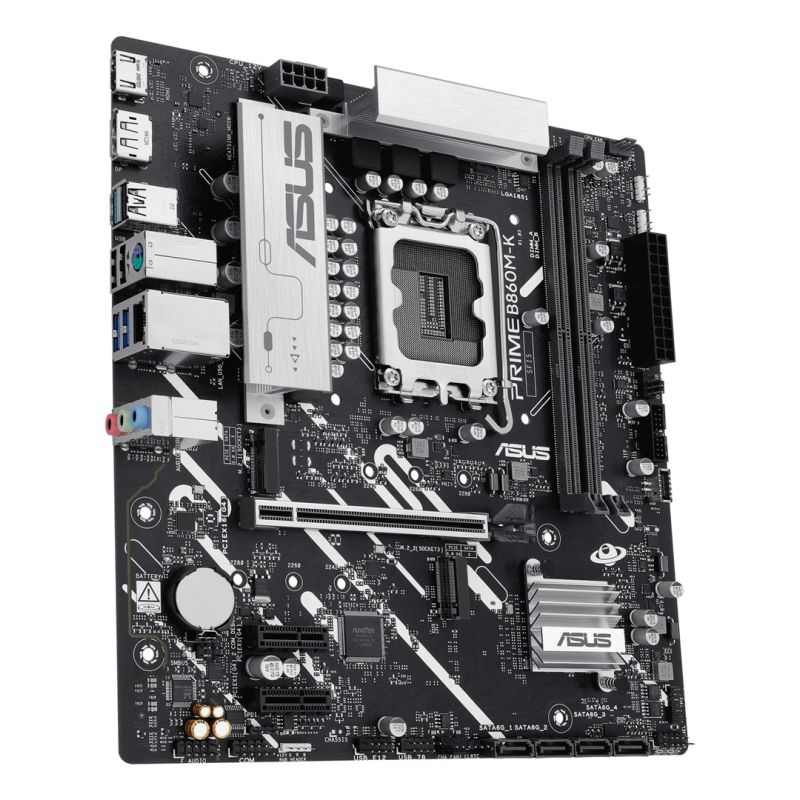

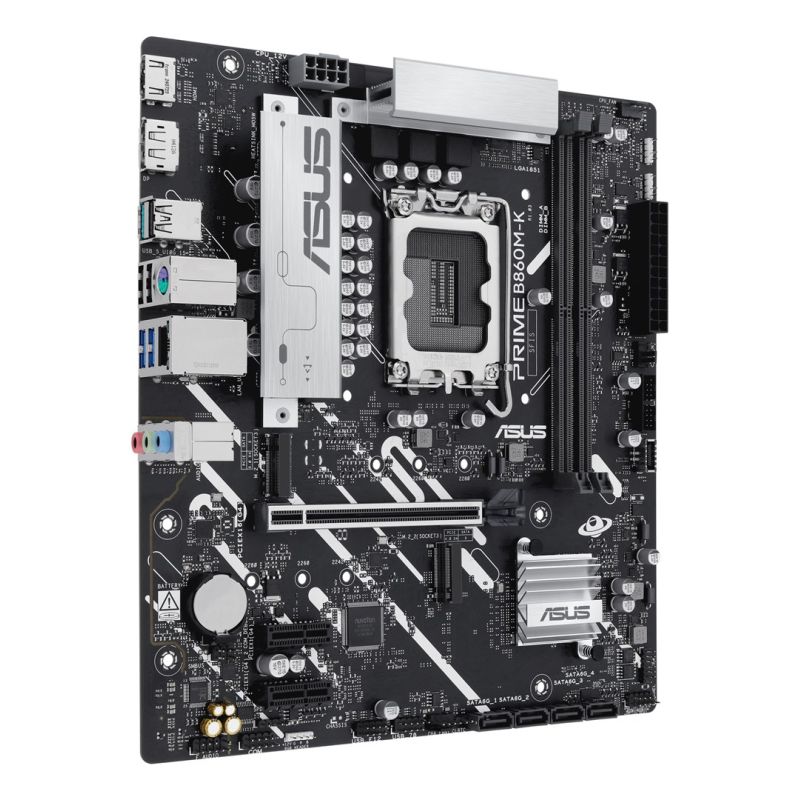

ASUS PRIME B860M-K motherboard
ASUS PRIME B860M-K motherboard
ASUS PRIME B860M-K motherboard
PRICE:
234,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- ECC Compatibility: Non-ECC
- Number of memory slots: 2
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Characteristics
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Weight and dimensions
- Product width: 244 mm
- Product depth: 222 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- S/PDIF jack: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- 12V power connector: Yes
- CPU fan connector: Yes
- Front panel connector: Yes
- Number of COM sockets: 1
- Number of case fan connectors: 2
- RGB LED: Yes
- TPM Connector: Yes
- Network
- Wi-Fi: No
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables included: SATA III 2 pcs.
- Memory drivers
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4
- Number of M.2 (M) slots: 2
- RAID levels
- 1
- 5
- 0
- 10

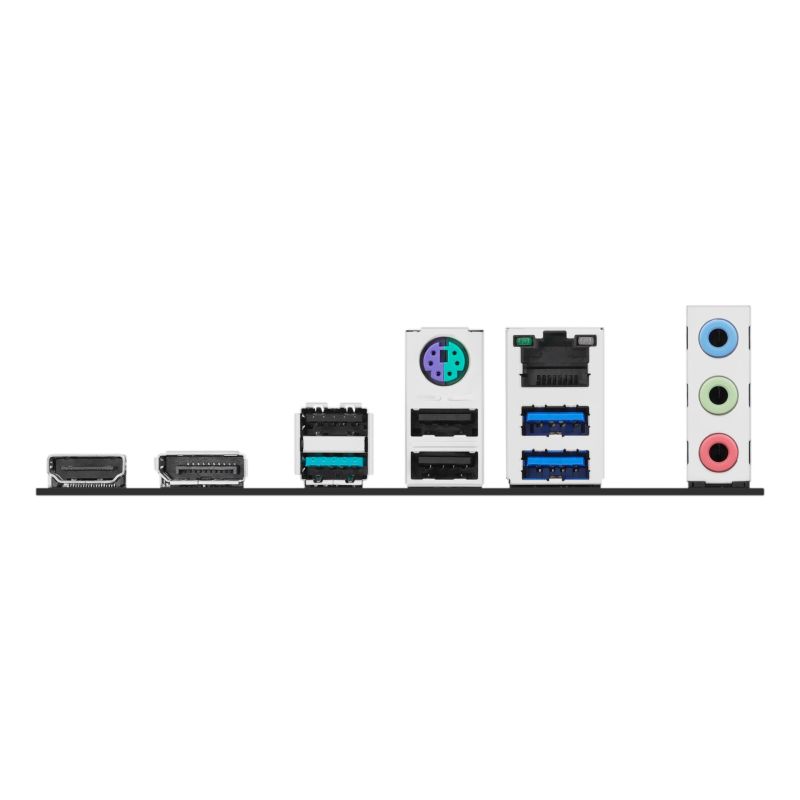

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 3
- Number of audio jacks: 3
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Expansion slots
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 2. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 2
- 2nd largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 2
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
