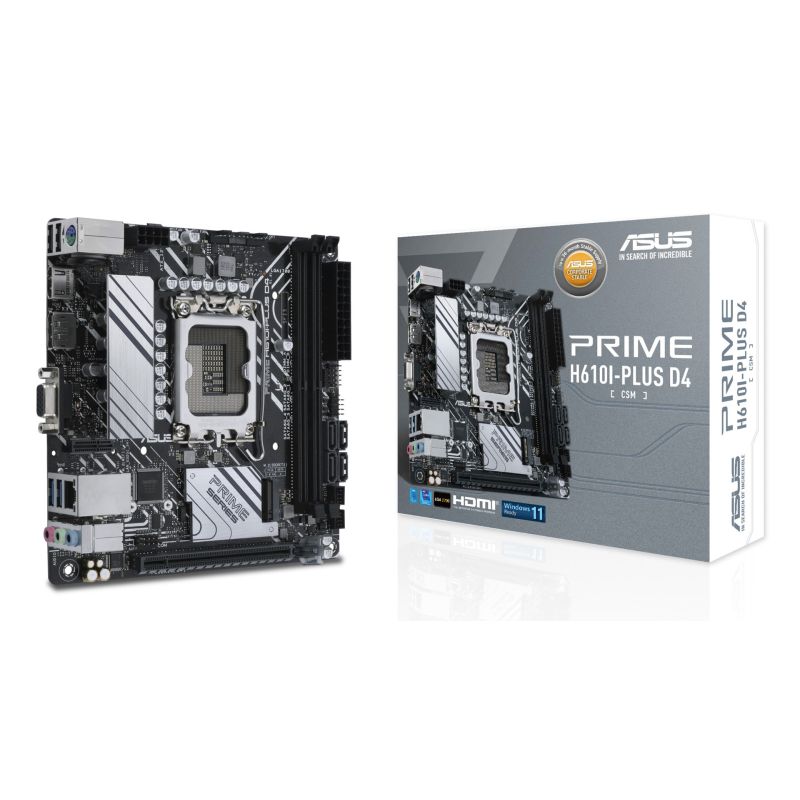

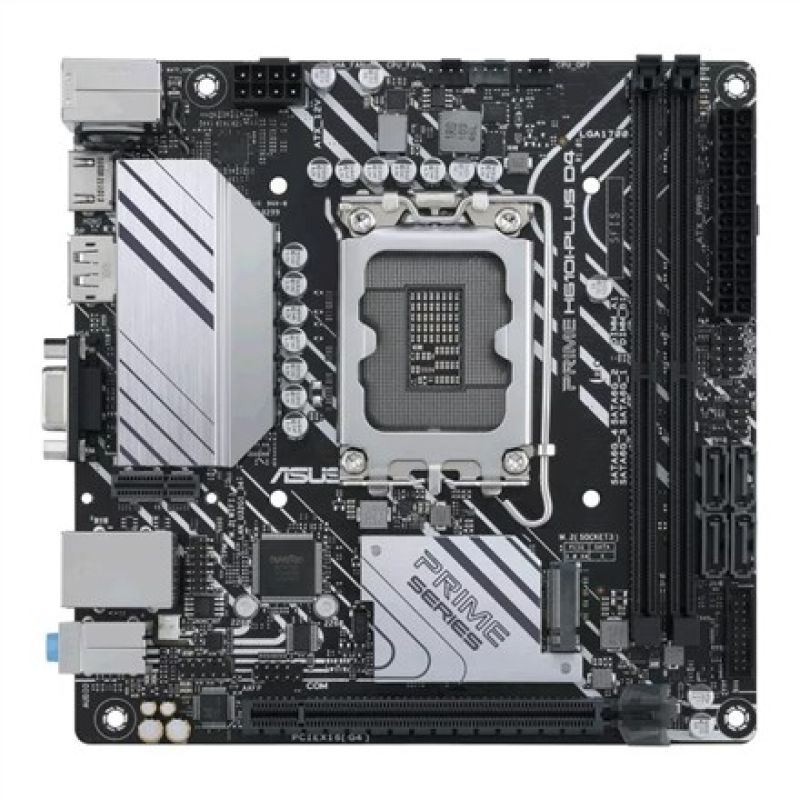

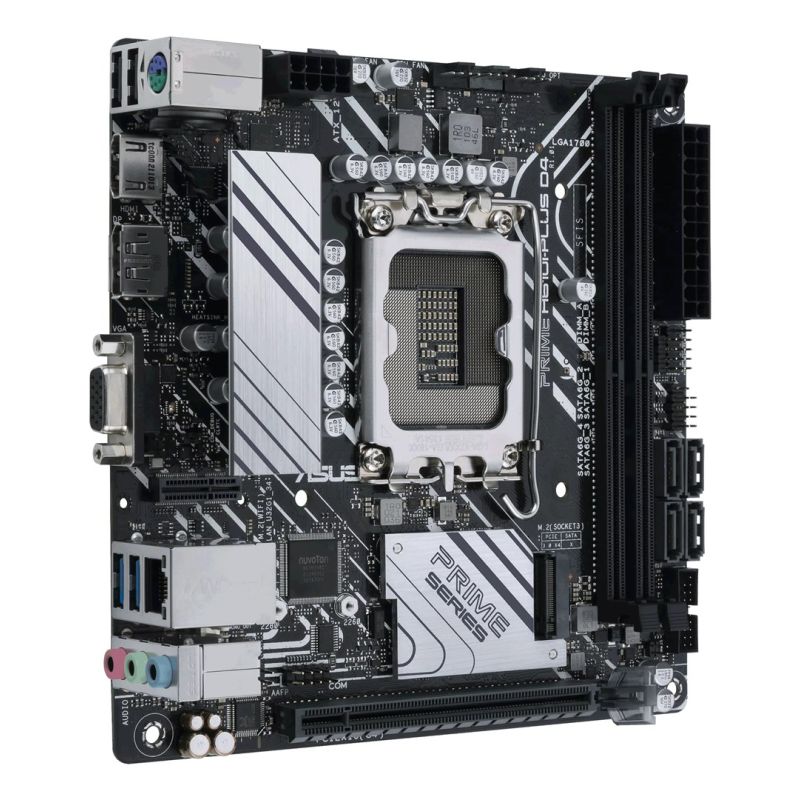

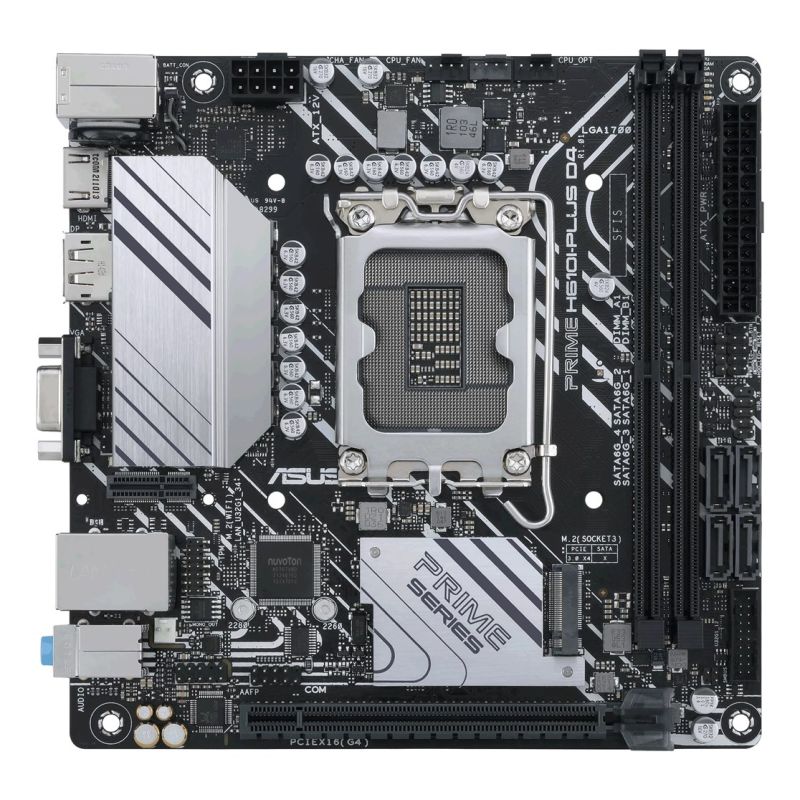

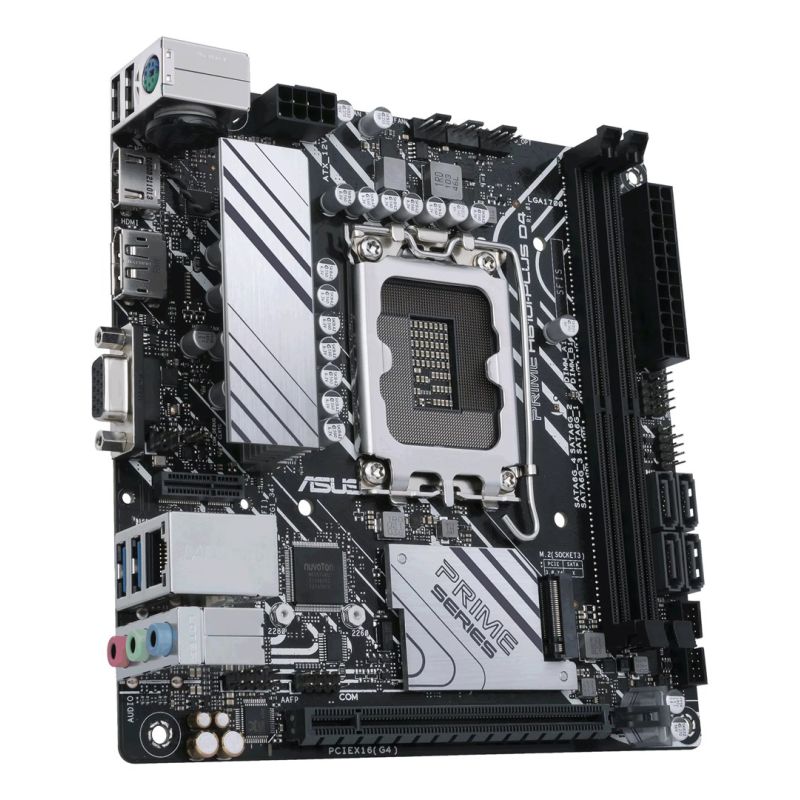

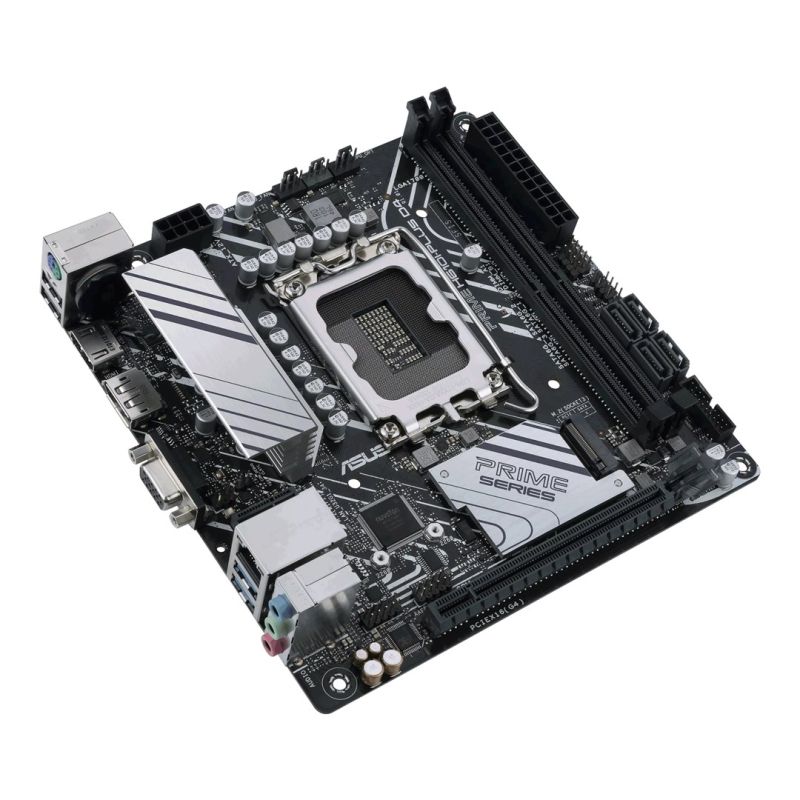

ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX

EAN: 4711081755753
ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
2. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
3. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
4. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
5. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
6. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
7. ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX

ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX

EAN: 4711081755753
PRICE: 212,99 €
BUY NOW
IN A WAREHOUSE 2 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €! 30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
JOYs

  • Processor
    • Maximum internal memory supported by the processor: 64 GB
    • Processor socket: LGA 1700
    • Processor manufacturer: Intel
    • Processor
      • Intel® Core™ i7
      • Intel® Core™ i5
      • Intel® Celeron®
      • Intel® Core™ i3
      • Intel® Pentium®
      • Intel® Core™ i9
    • Supported CPU sockets: LGA 1700
  • Memory
    • Number of memory slots: 2
    • Supported memory types: DDR4-SDRAM
    • ECC Compatibility: Non-ECC
    • Memory slot type: DIMM
    • Supported memory clock speeds
      • 2933 MHz
      • 3000 MHz
      • 2400 MHz
      • 2800 MHz
      • 2133 MHz
      • 3200 MHz
      • 2666 MHz
    • Unbuffered memory: Yes
    • Maximum memory capacity: 64 GB
    • Memory Channel Support: Dual Channel
  • Characteristics
    • Power supply type: ATX
    • Chipset Board Family: Intel
    • Audio output channels: 7.1 ch.
    • Motherboard format: Mini ITX
    • Motherboard Layout: Intel H610
    • Supported Windows operating systems
      • Windows 10
      • Windows 11
    • Intended use: PC
  • Weight and dimensions
    • Product height: 71 mm
    • Product depth: 170.2 mm
    • Product width: 170.2 mm
  • Internal I/O
    • Front panel audio connector: Yes
    • USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
    • Number of USB 2.0 ports: 1
    • ATX power socket (24-pin): Yes
    • Number of SATA III connectors: 4
    • CPU fan connector: Yes
    • Fan connector: Yes
    • Number of COM sockets: 1
    • EPS power supply connector (8-pin): Yes
    • Number of case fan connectors: 1
  • Network
    • Wi-Fi: No
    • Ethernet interface type: Gigabit Ethernet
    • Wired LAN: Yes
  • BIOS
    • BIOS Type: UEFI AMI
    • BIOS memory size: 128 Mbit
  • Packaging data
    • Package depth: 182 mm
    • Package width: 226 mm
    • Package height: 60 mm
  • Package contents
    • Cables: SATA
    • Drivers included: Yes
  • Memory drivers
    • Supported hard drive interfaces: M.2, SATA III
    • Supported drive types: HDD & SSD

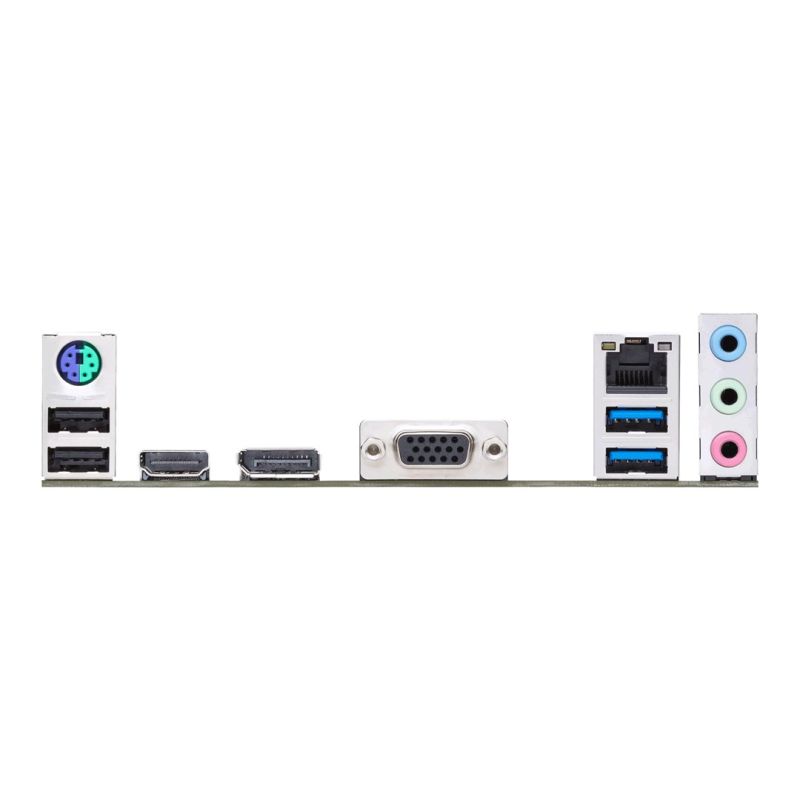

  • Rear Panel I/O Ports
    • Number of VGA (D-Sub) ports: 1
    • Headphone outputs: 2
    • Number of Ethernet LAN ports (RJ-45): 1
    • DisplayPort version: 1.4
    • Number of USB 2.0 ports: 2
    • DisplayPort Quantity: 1
    • Microphone: Yes
    • HDMI version: 2.1
    • Number of HDMI ports: 1
    • Number of PS/2 ports: 2
    • Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
  • Expansion slots
    • PCI Express x16 (Gen 4.x) slots: 1
    • Number of M.2 (M) slots: 1
  • Other functions
    • Product weight: 382 g
  • Logistics data
    • Harmonized System (HS) code: 84733020
  • Safety warning
    • Warnings
      • Avoid direct contact with electronics to prevent electrostatic damage.
      • Do not throw the motherboard into the regular trash; the product requires special disposal.
      • Before starting any maintenance or assembly, disconnect the product from the power source.
