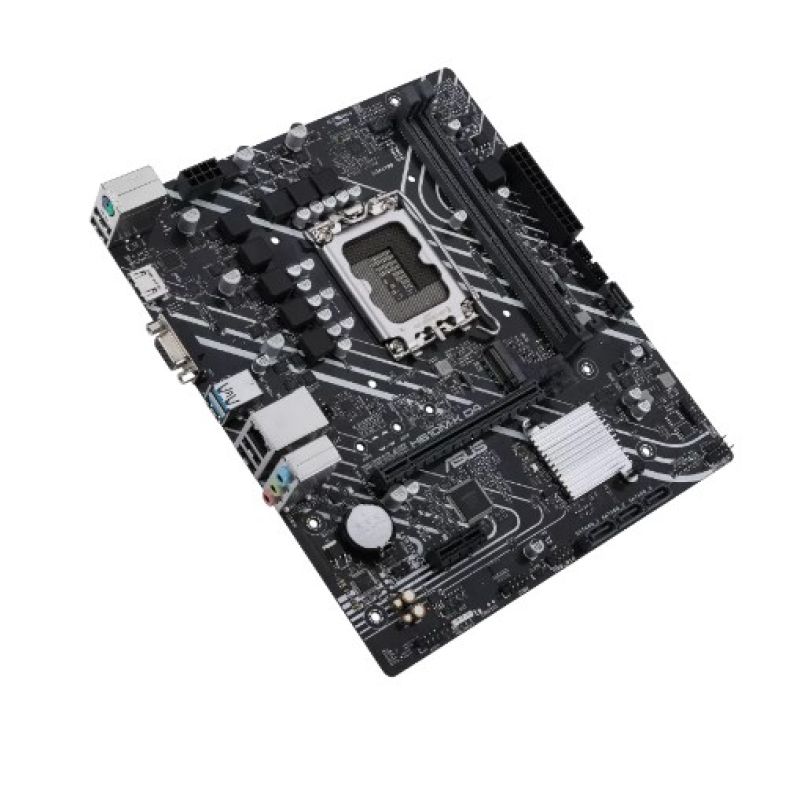

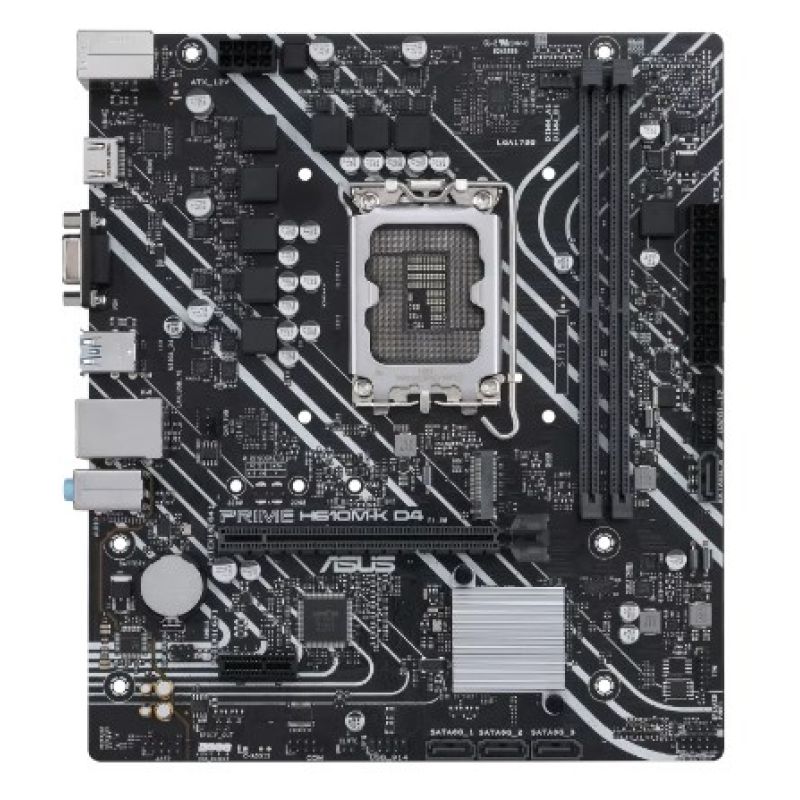

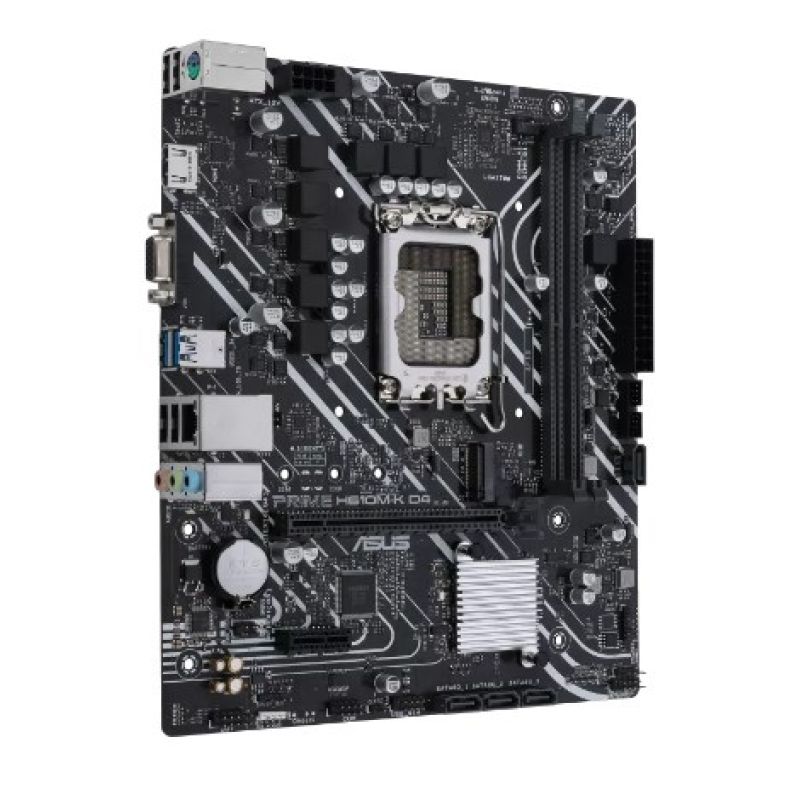

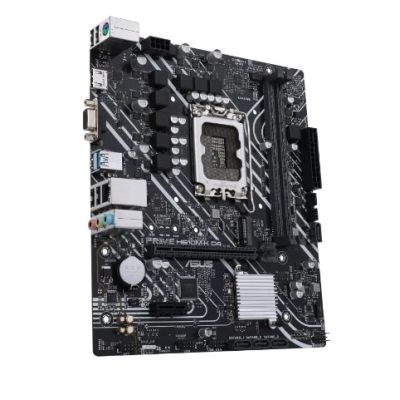

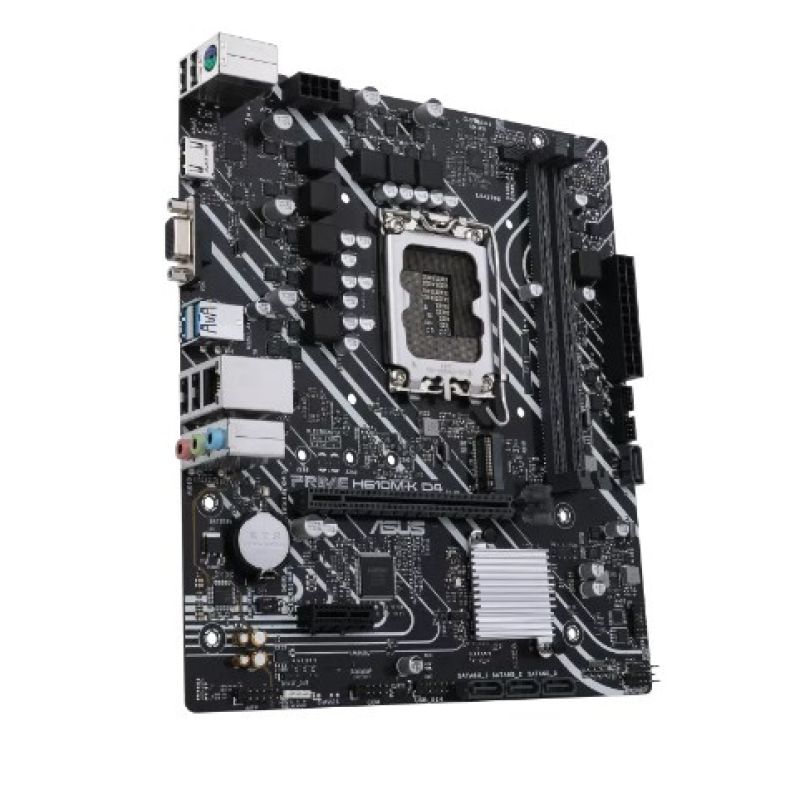

ASUS PRIME H610M-K D4 motherboard
ASUS PRIME H610M-K D4 motherboard
ASUS PRIME H610M-K D4 motherboard
PRICE:
113,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- Intel® Core™ i7
- Intel® Pentium®
- Intel® Core™ i9
- Intel® Core™ i3
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Processor
- Graphics
- Number of displays supported: 2
- Memory
- Number of memory slots: 2
- Unbuffered memory: Yes
- Maximum memory capacity: 64 GB
- Supported memory types: DDR4-SDRAM
- Supported memory clock speeds
- 2933 MHz
- 2133 MHz
- 3200 MHz
- 2800 MHz
- 2400 MHz
- 3000 MHz
- 2666 MHz
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Characteristics
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Motherboard Layout: Intel H610
- Chipset Board Family: Intel
- Motherboard format: Micro ATX
- Harmonized System (HS) code: 84733020
- Weight and dimensions
- Product height: 51 mm
- Product depth: 203 mm
- Product width: 234 mm
- Internal I/O
- Number of case fan connectors: 1
- ATX power socket (24-pin): Yes
- Front panel audio connector: Yes
- TPM Connector: Yes
- Number of SATA III connectors: 4
- S/PDIF jack: Yes
- RGB LED: Yes
- Number of USB 2.0 ports: 1
- EPS power supply connector (8-pin): Yes
- Number of COM sockets: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- 12V power connector: Yes
- CPU fan connector: Yes
- Network
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA

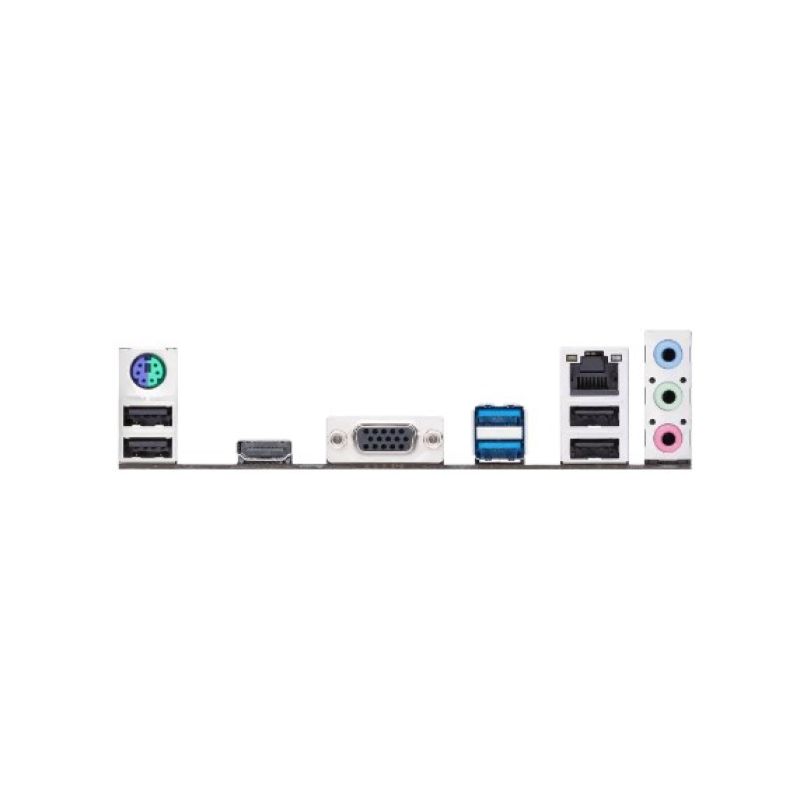

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of VGA (D-Sub) ports: 1
- HDMI version: 2.1
- Number of HDMI ports: 1
- Microphone: Yes
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 842 g
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asus |
