Asus PRIME H610M-R D4-SI motherboard
Asus PRIME H610M-R D4-SI motherboard
Asus PRIME H610M-R D4-SI motherboard
PRICE:
93,99
€
IN A WAREHOUSE
LAST ITEM!
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Pentium G
- Intel® Core™ i9
- Intel® Core™ i3
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Celeron®
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Graphics
- Maximum resolution: 3840 x 2160 px
- Parallel Processing Support: Not Supported
- Memory
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 2800 MHz
- 3000 MHz
- 3200 MHz
- 2666 MHz
- 2133 MHz
- 2933 MHz
- 2400 MHz
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 64 GB
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Motherboard Layout: Intel H610
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 193 mm
- Product height: 51 mm
- Product width: 226 mm
- Internal I/O
- Number of case fan connectors: 1
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of USB 2.0 ports: 2
- Housing intrusion sensor connector: Yes
- Front panel audio connector: Yes
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of COM sockets: 1
- Audio connector: Yes
- 12V power connector: Yes
- CPU fan connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- Wake-On-LAN: Yes
- BIOS
- Clear CMOS Jumper: Yes
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Number of supported storage drive sizes: 5
- Supported drive types: HDD & SSD

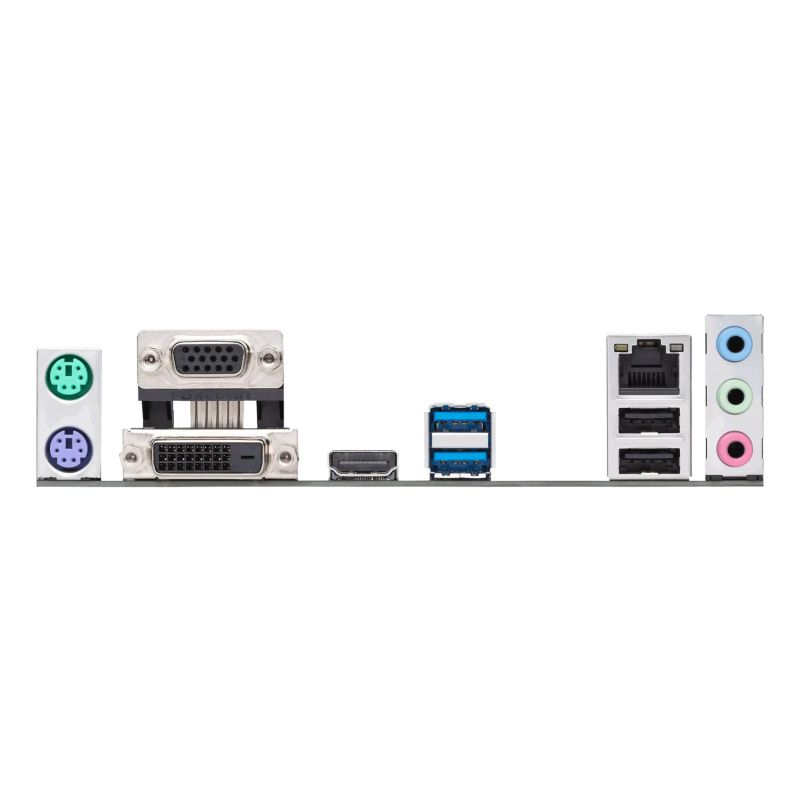

- Rear Panel I/O Ports
- HDMI version: 2.1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Headphone outputs: 3
- Number of PS/2 ports: 2
- Supported USB type: USB Type-A
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 2
- Number of DVI-D ports: 1
- Microphone: Yes
- Number of VGA (D-Sub) ports: 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- Other functions
- Product weight: 842 g
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
