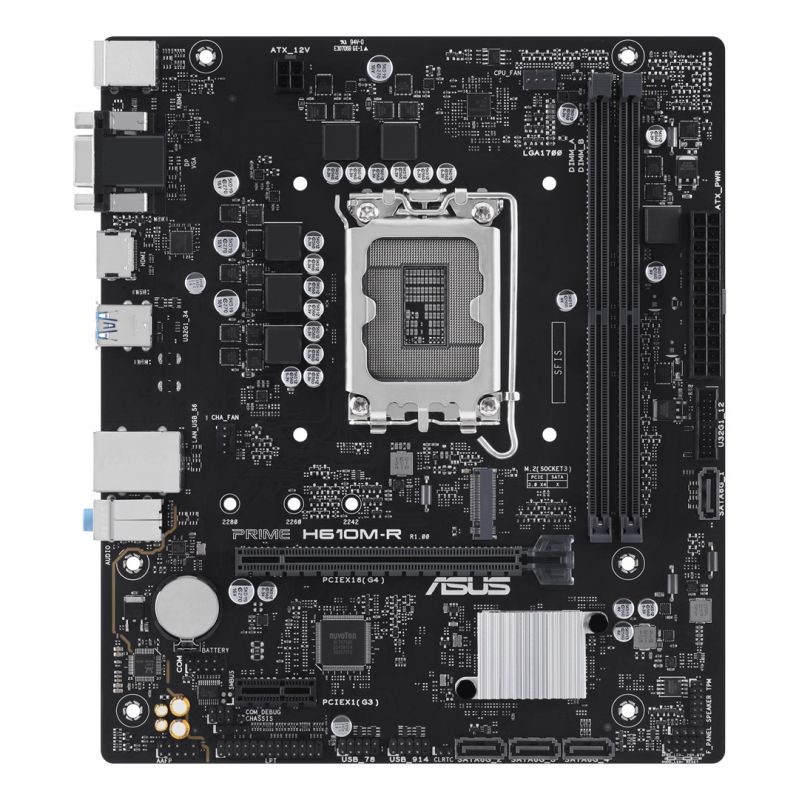

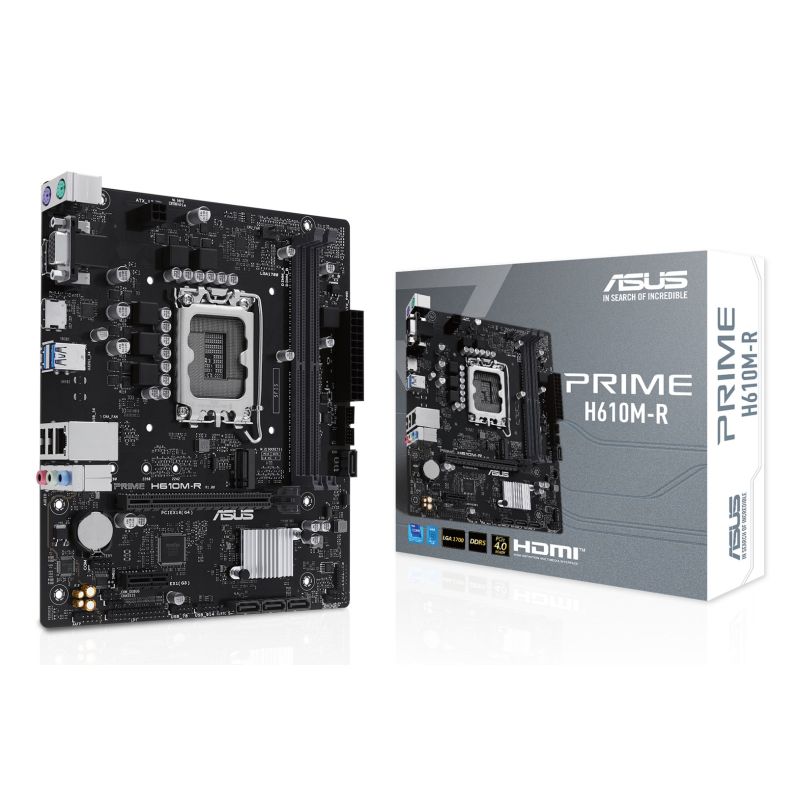

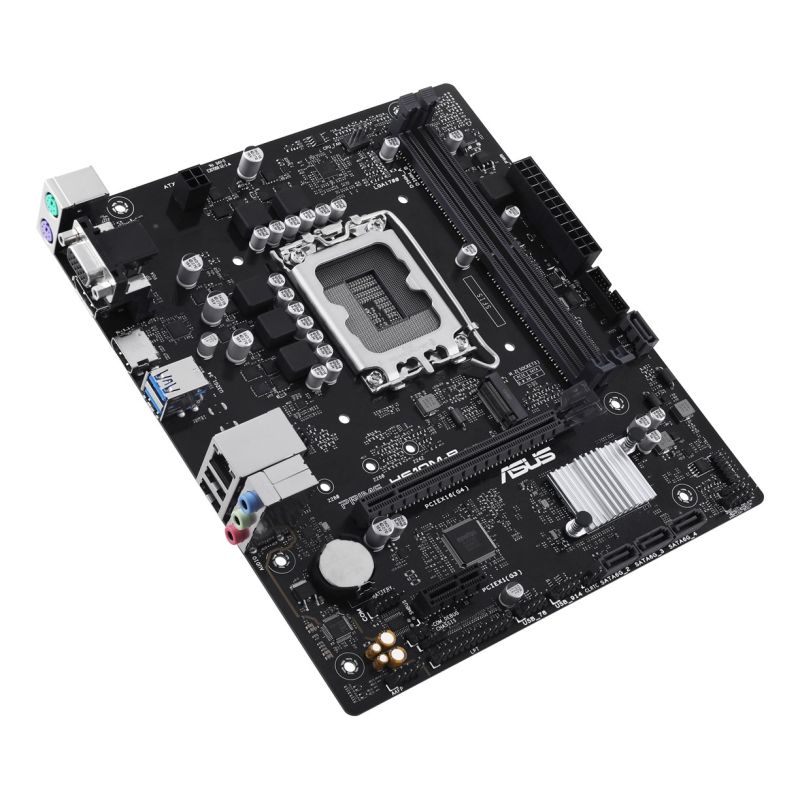

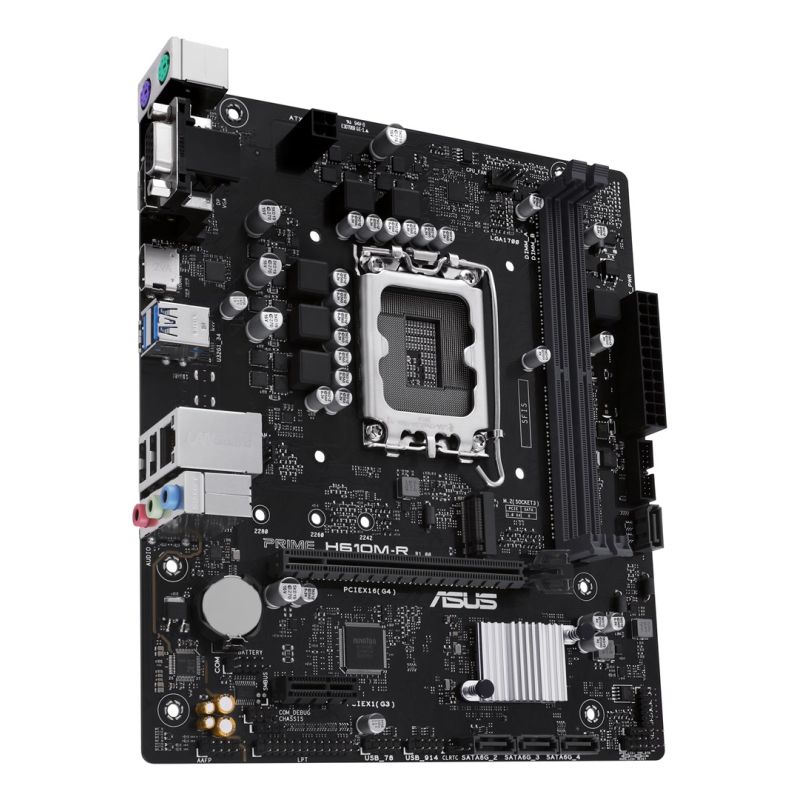

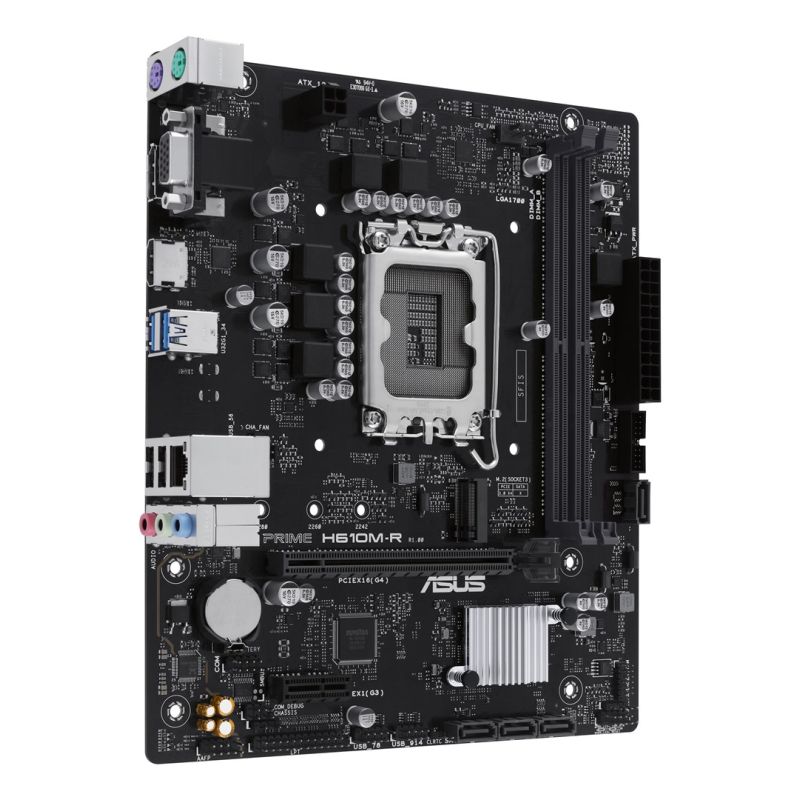

Asus PRIME H610M-R-SI motherboard
Asus PRIME H610M-R-SI motherboard
Asus PRIME H610M-R-SI motherboard
PRICE:
74,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Processor
- Intel® Core™ i7
- Intel® Core™ i9
- Intel® Core™ i3
- Intel® Pentium® Gold
- Intel® Core™ i5
- Intel® Celeron®
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 5600 MHz
- 5000 MHz
- 5200 MHz
- 5400 MHz
- 4800 MHz
- Maximum memory capacity: 96 GB
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Number of memory slots: 2
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 5600 MHz
- Supported memory clock speeds
- Characteristics
- Chipset Board Family: Intel
- Motherboard Layout: Intel H610
- Motherboard format: Micro ATX
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 x64
- Windows 11 x64
- Weight and dimensions
- Product height: 36.5 mm
- Product depth: 195 mm
- Product width: 226 mm
- Internal I/O
- Number of SATA III connectors: 4
- Number of case fan connectors: 1
- Number of COM sockets: 1
- Number of USB 2.0 ports: 2
- ATX power socket (24-pin): Yes
- CPU fan connector: Yes
- TPM Connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- 12V power connector: Yes
- Audio connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 223 mm
- Package width: 246 mm
- Weight with packaging: 680 g
- Package height: 50 mm
- Package contents
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported storage drive sizes: 5
- Number of supported HDDs: 4

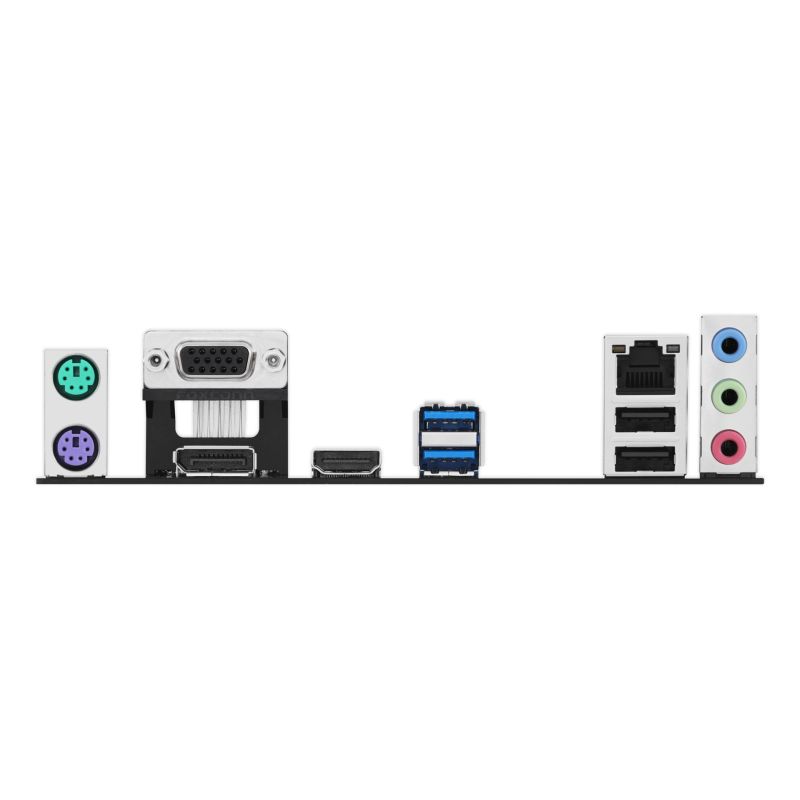

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- Headphone outputs: 1
- Microphone: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Number of VGA (D-Sub) ports: 1
- Number of PS/2 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Line Input: Yes
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 437 g
| Name | Details |
|---|---|
| Producer | Asus |
