ASUS PRIME H810M-A-CSM motherboard
ASUS PRIME H810M-A-CSM motherboard
ASUS PRIME H810M-A-CSM motherboard
PRICE:
185,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1851
- Processor manufacturer: Intel
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Graphics
- Parallel Processing Support: Not Supported
- Built-in graphics card: No
- Memory
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Supported memory clock speed (max): 6400 MHz
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Characteristics
- Motherboard format: Micro ATX
- Chipset Board Family: Intel
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10 x64
- Windows 11
- Motherboard Layout: Intel H810
- Audio output channels: 7.1 ch.
- Product color: Black
- Weight and dimensions
- Product width: 244 mm
- Product depth: 222 mm
- Product height: 37 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of COM sockets: 1
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of USB 2.0 ports: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- S/PDIF jack: Yes
- Number of case fan connectors: 2
- TPM Connector: Yes
- RGB LED: Yes
- Number of EPS power connectors (8-pin): 1
- Number of CPU fan connectors: 1
- Number of RGB LED connectors: 3
- Network
- Wake-On-LAN: Yes
- LAN Controller: Intel I219V
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Weight with packaging: 782 g
- Package width: 270 mm
- Package depth: 263 mm
- Package height: 51.5 mm
- Memory drivers
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA III
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 6
- Number of supported HDDs: 4

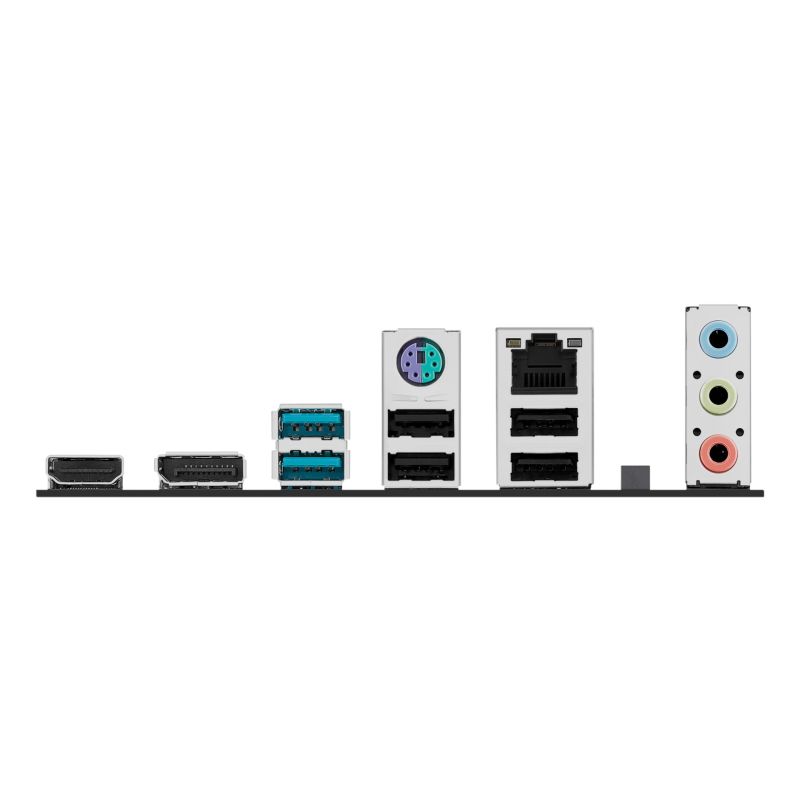

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 4
- DisplayPort version: 1.4
- Number of HDMI ports: 1
- Microphone: Yes
- HDMI version: 2.1
- Number of PS/2 ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Line Input: Yes
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 4.0
- Other functions
- Product weight: 534 g
- Number of M.2 (E) slots: 1
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- Do not open or modify the motherboard to prevent damage.
- When disposing of this product, please follow local regulations for electronics recycling.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
