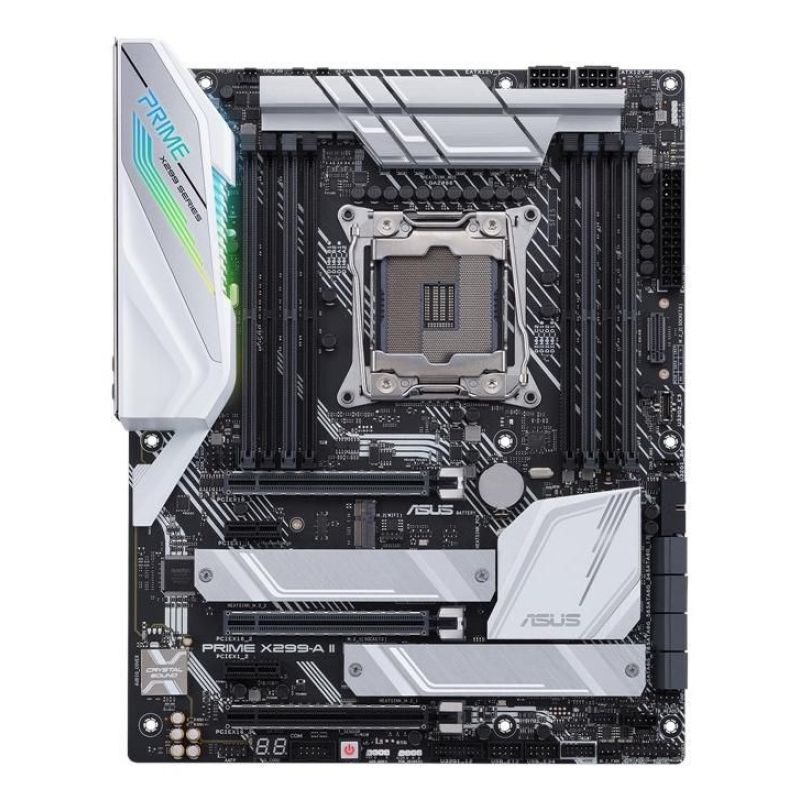

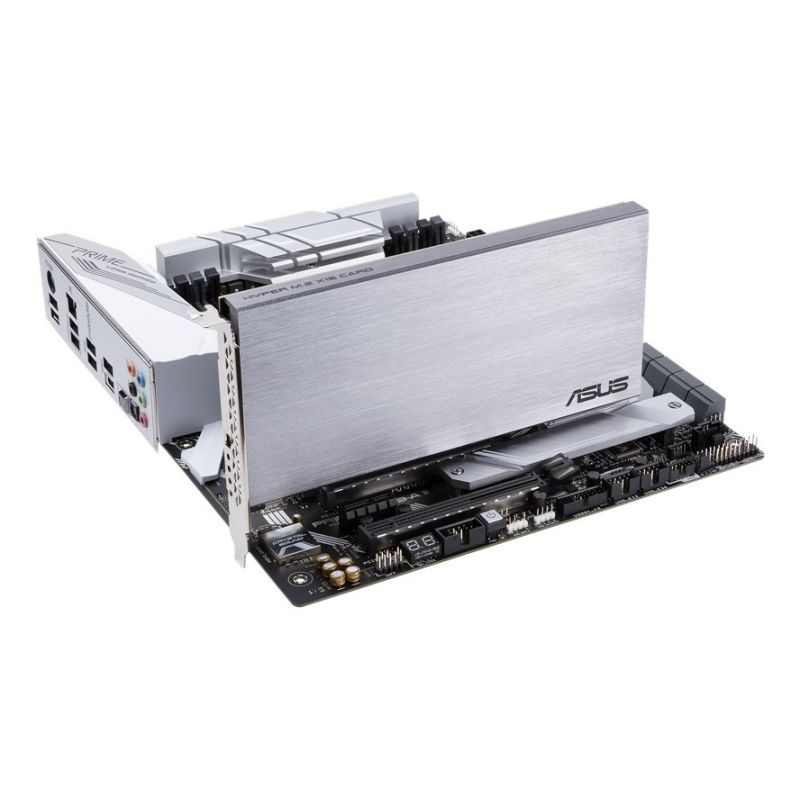

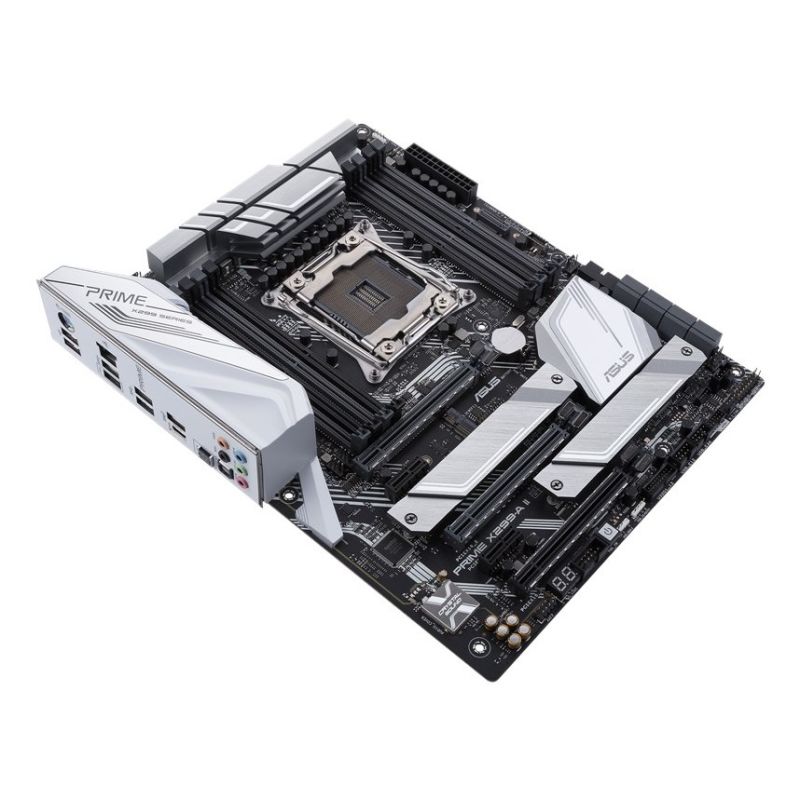

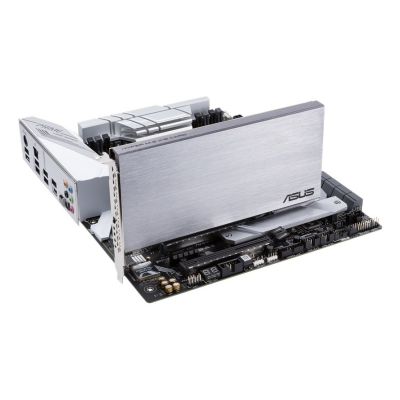

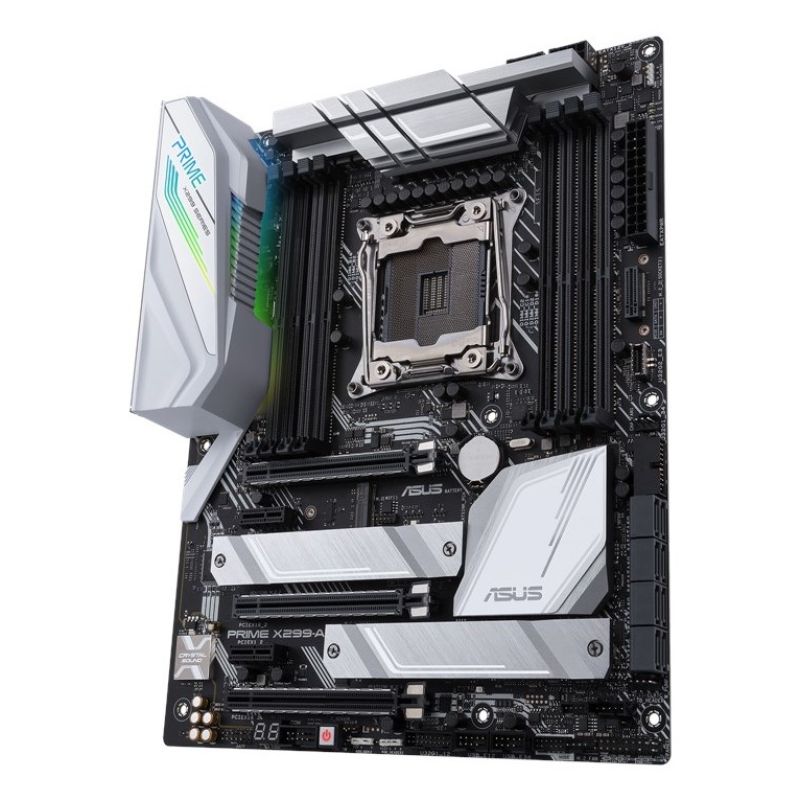

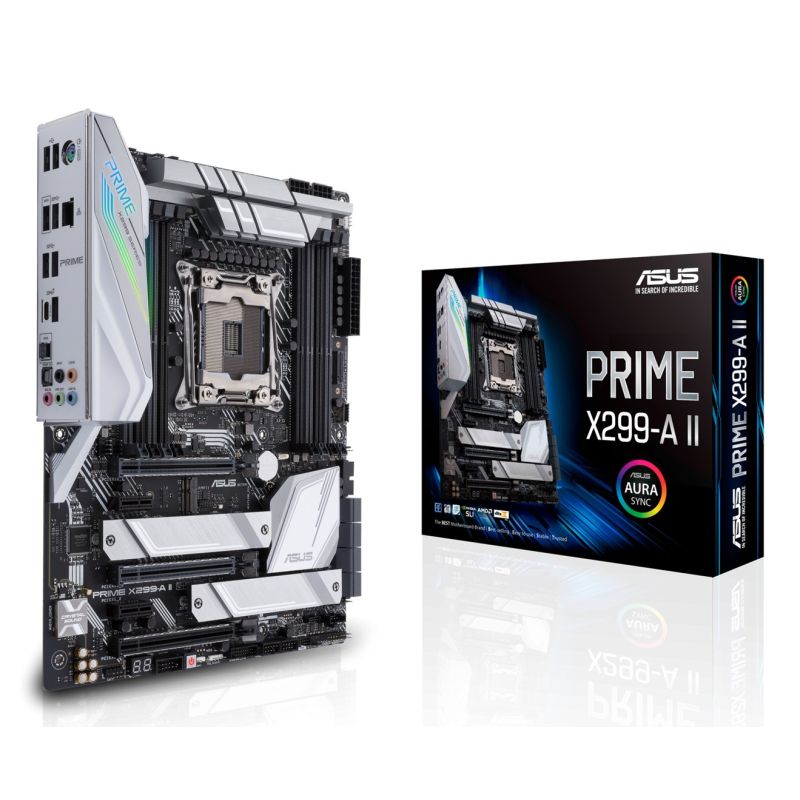

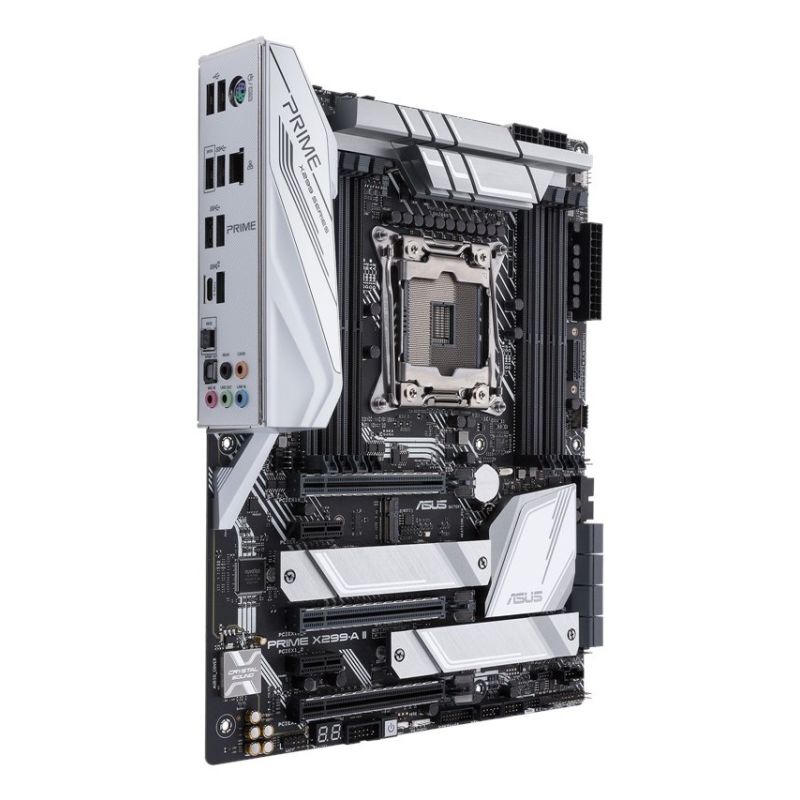

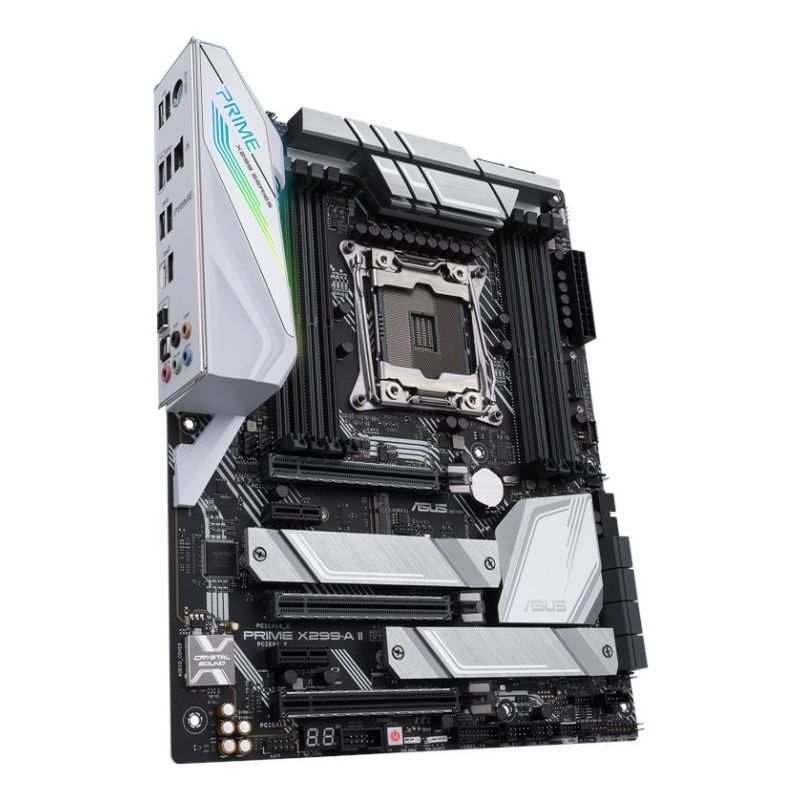

Asus Prime X299-A II LGA2066 motherboard
Asus Prime X299-A II LGA2066 motherboard
Asus Prime X299-A II LGA2066 motherboard
PRICE:
427,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Maximum number of SMP processors: 1
- Processor manufacturer: Intel
- Processor: Intel® Core™ X-series
- CPU Socket: LGA 2066 (Socket R4)
- Supported CPU sockets: LGA 2066
- Graphics
- Parallel processing support
- Quad-GPU SLI
- 3-Way SLI
- Quad-GPU CrossFireX
- 3-Way CrossFireX
- 2-Way SLI
- Built-in graphics card: No
- Parallel processing support
- Memory
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Supported memory clock speeds
- 3733 MHz
- 3200 MHz
- 2666 MHz
- 3300 MHz
- 4133 MHz
- 3400 MHz
- 3866 MHz
- 2933 MHz
- 2133 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- 3000 MHz
- 2800 MHz
- 3800 MHz
- 3333 MHz
- 4266 MHz
- 3466 MHz
- Maximum memory capacity: 256 GB
- Memory slot type: DIMM
- Number of memory slots: 8
- Supported memory types: DDR4-SDRAM
- Characteristics
- Chipset Board Family: Intel
- Motherboard Layout: Intel® X299
- Motherboard format: ATX
- Power supply type: ATX
- Product color
- Black
- Silver
- Audio chip: Realtek ALC S1220A
- Audio output channels: 7.1 ch.
- Supported Windows operating systems
- Windows 10 Home x64
- Windows 10 Pro x64
- Windows 10 Enterprise x64
- Windows 10 x64
- Windows 10 Education x64
- Cooling type: Passive
- Intended use: PC
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Thunderbolt Ends: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 8
- Number of COM sockets: 1
- Number of EATX sockets: 2
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Front panel connector: Yes
- Number of case fan connectors: 2
- Network
- LAN Controller: Intel® I219-V
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- BIOS
- System BIOS (SMBIOS) version: 3.1
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- ACPI version: 6.1
- Package contents
- Drivers included: Yes
- Memory drivers
- RAID Service: Yes
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 10
- 1
- 5
- 0
- Rear Panel I/O Ports
- S/PDIF Output Port: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of PS/2 ports: 1
- Headphone outputs: 1
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 3
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 3
- Special features of the processor
- Intel® Extreme Memory Profile (XMP): Yes
- Intel® Optane™ Memory Ready: Yes
- Other functions
- Tools included: Yes
- Lithographic process: 14 nm
- HDD size: 2.5/3.5"
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Producer | Asus |
