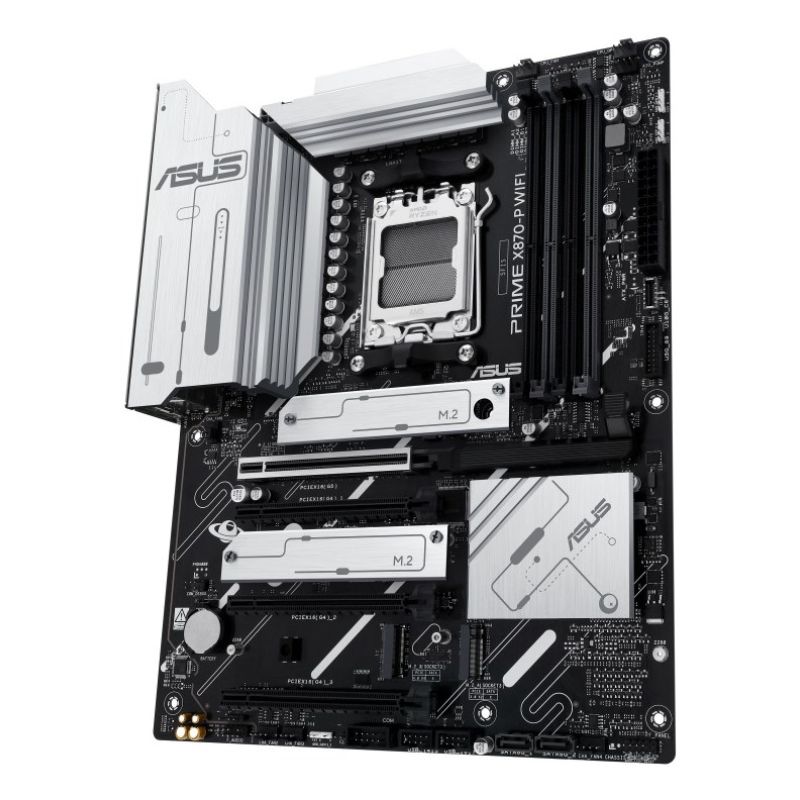

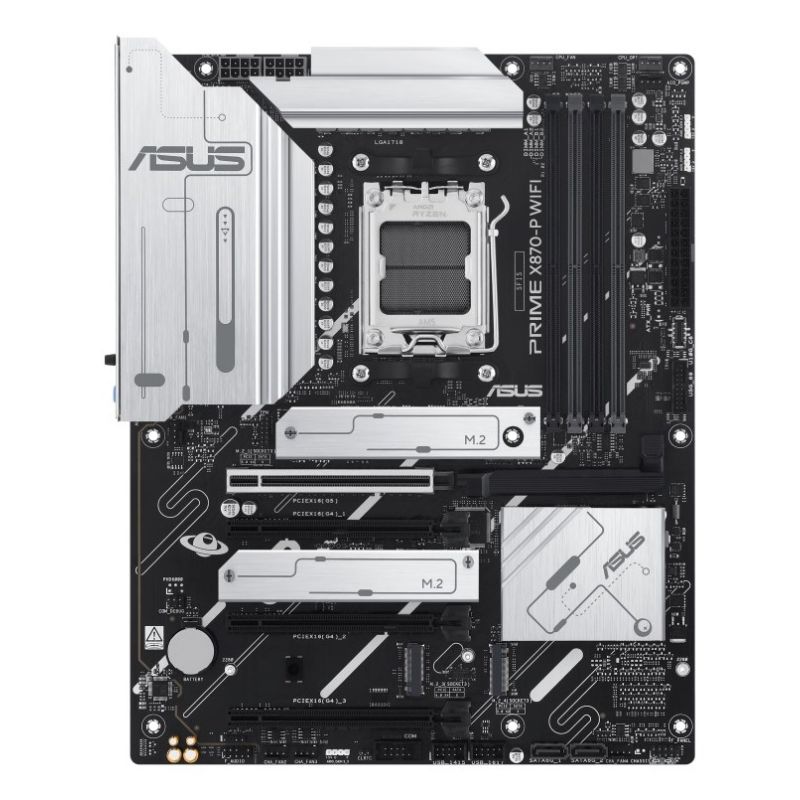

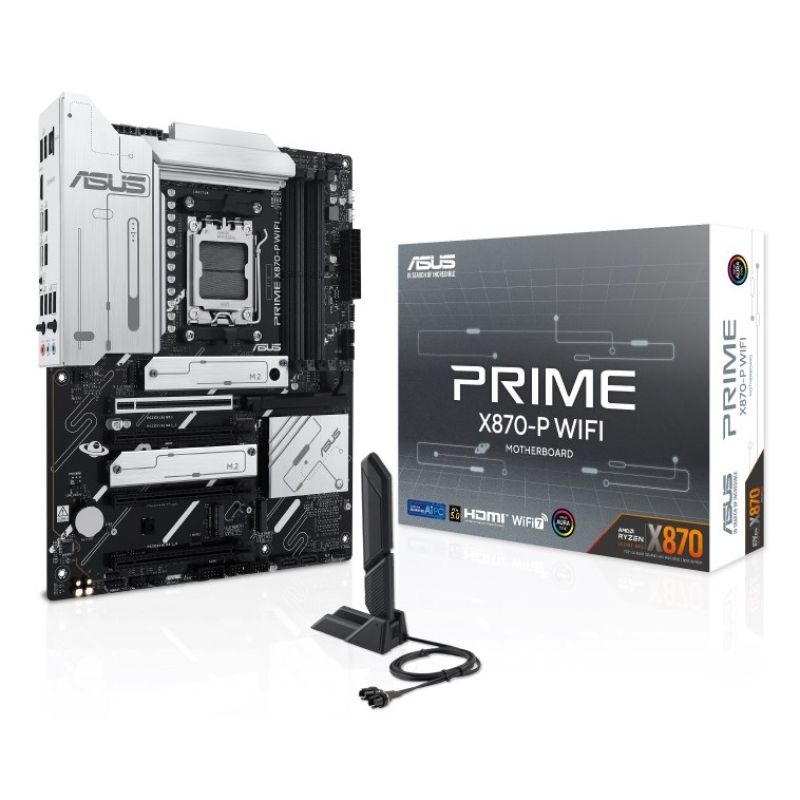

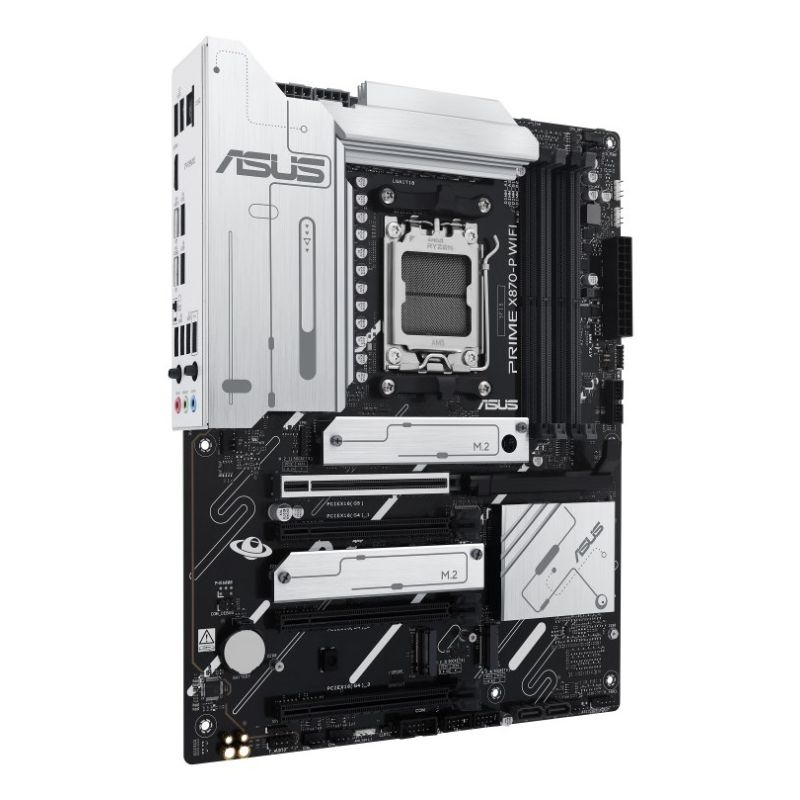

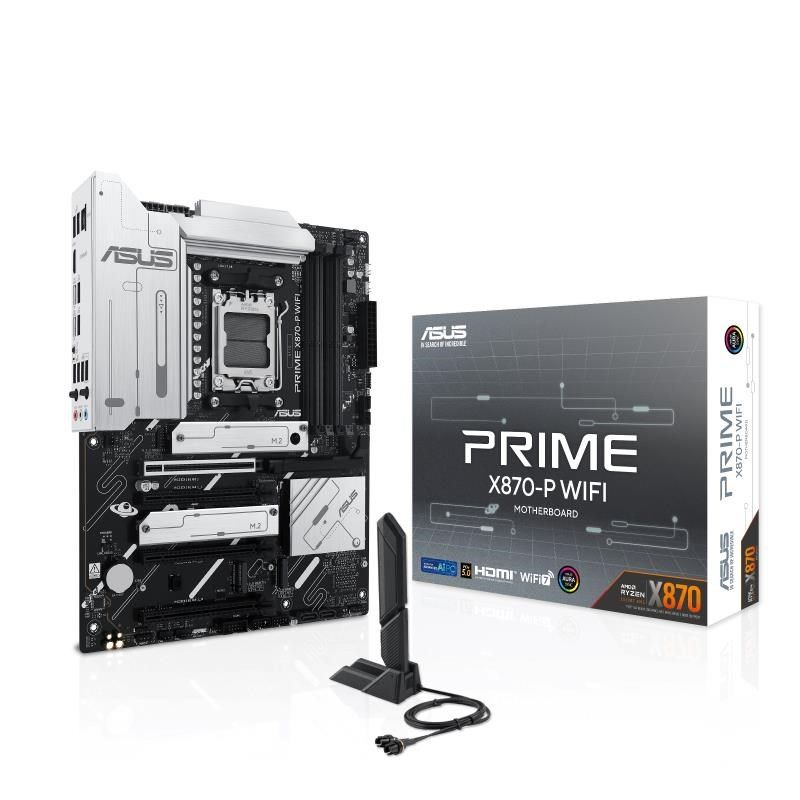

ASUS PRIME X870-P WIFI Motherboard
ASUS PRIME X870-P WIFI Motherboard
ASUS PRIME X870-P WIFI Motherboard
PRICE:
345,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speed (max): 8000 MHz
- ECC Compatibility: ECC or Non-ECC
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 192 GB
- Characteristics
- Motherboard Layout: AMD X870
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10
- Windows 11
- Product color: Black
- Chipset Board Family: AMD
- Motherboard format: ATX
- Cooling type: Passive
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 48 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- 12V power connector: Yes
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 4
- Number of COM sockets: 1
- ATX power socket (24-pin): Yes
- TPM Connector: Yes
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- Number of SATA III connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Wi-Fi standards
- 802.11a
- Wi-Fi 6 (802.11ax)
- Wi-Fi 7 (802.11be)
- Wi-Fi 6E (802.11ax)
- 802.11g
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- Wired LAN: Yes
- Bluetooth version: 5.4
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 273 mm
- Weight with packaging: 1.56 kg
- Package height: 68 mm
- Package width: 353 mm
- Package contents
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 2
- Number of supported storage drive sizes: 6
- RAID levels
- 5
- 1
- 10
- 0
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes

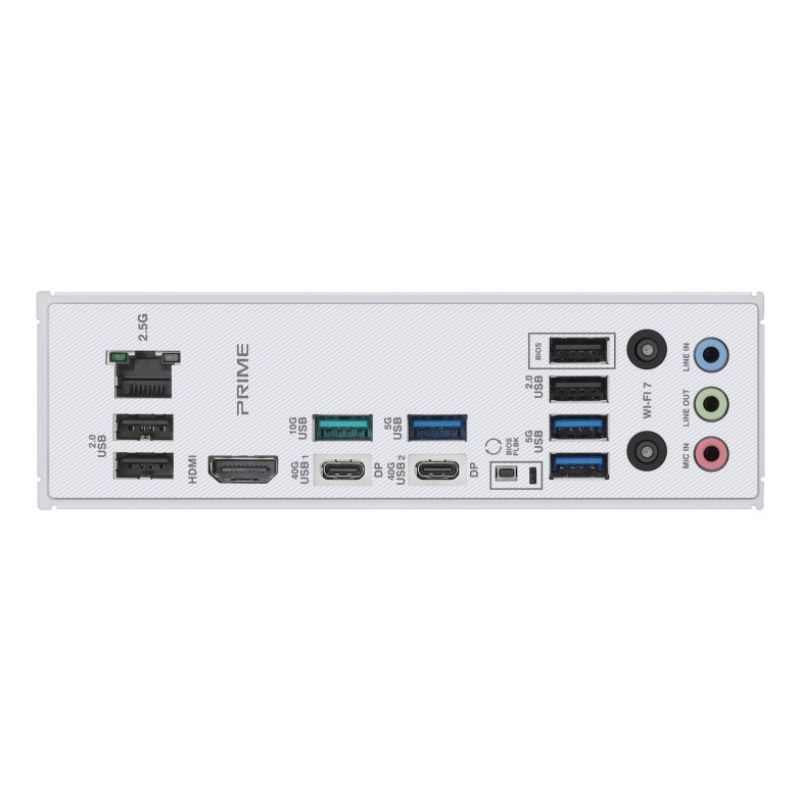

- Rear Panel I/O Ports
- Microphone: Yes
- Line Input: Yes
- Number of USB4 Gen 2x2 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 2.0 ports: 4
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- DisplayPort version: 1.4a
- HDMI version: 2.1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 4
- Other functions
- Back-to-BIOS button: Yes
- Product weight: 1.56 kg
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Dispose of in accordance with local regulations for electronic waste.
- Avoid contact with liquids to prevent electronic damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
