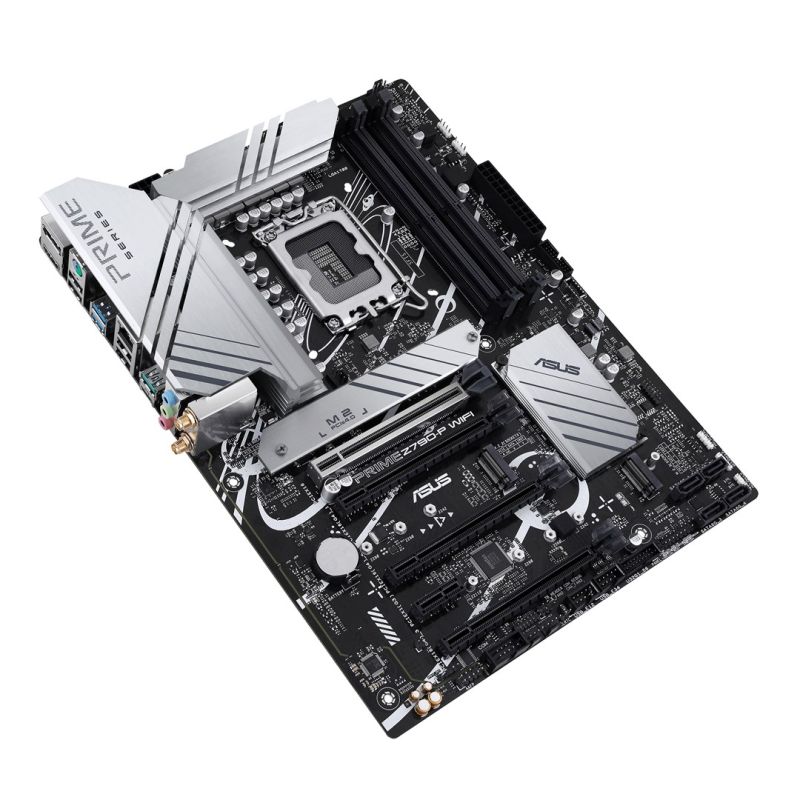

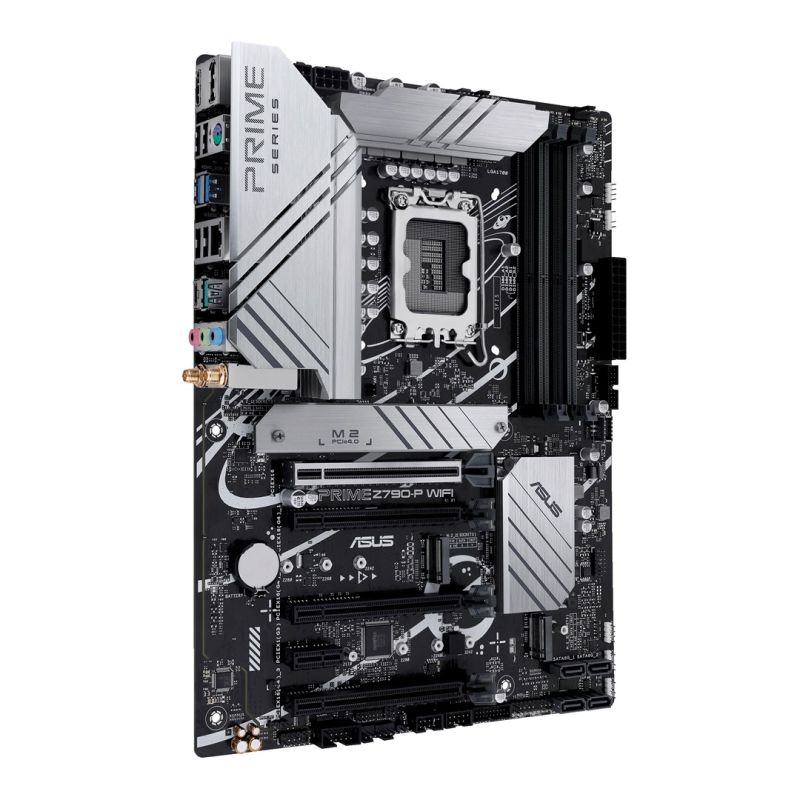

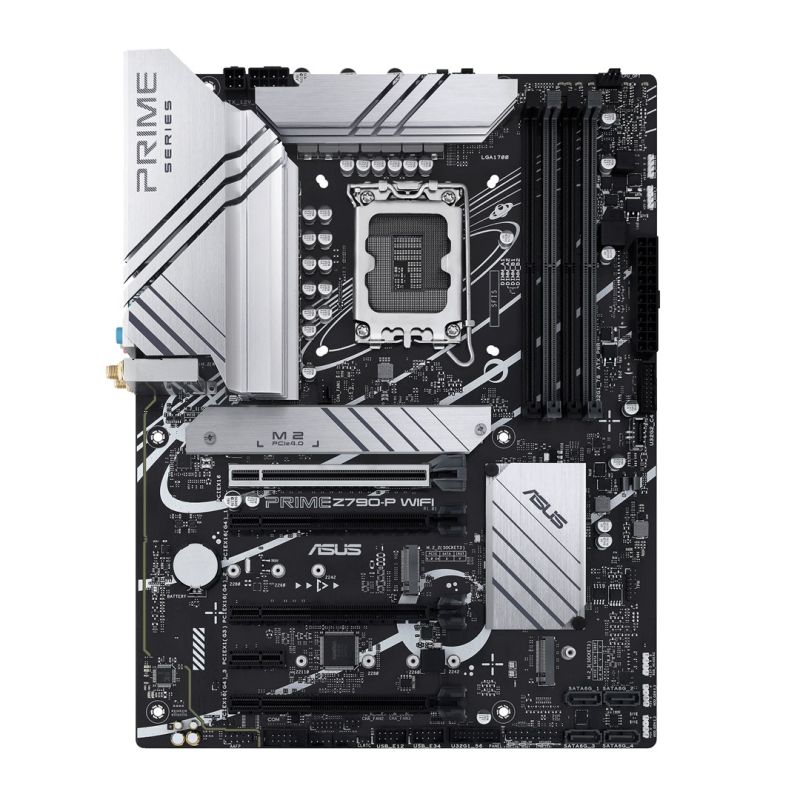

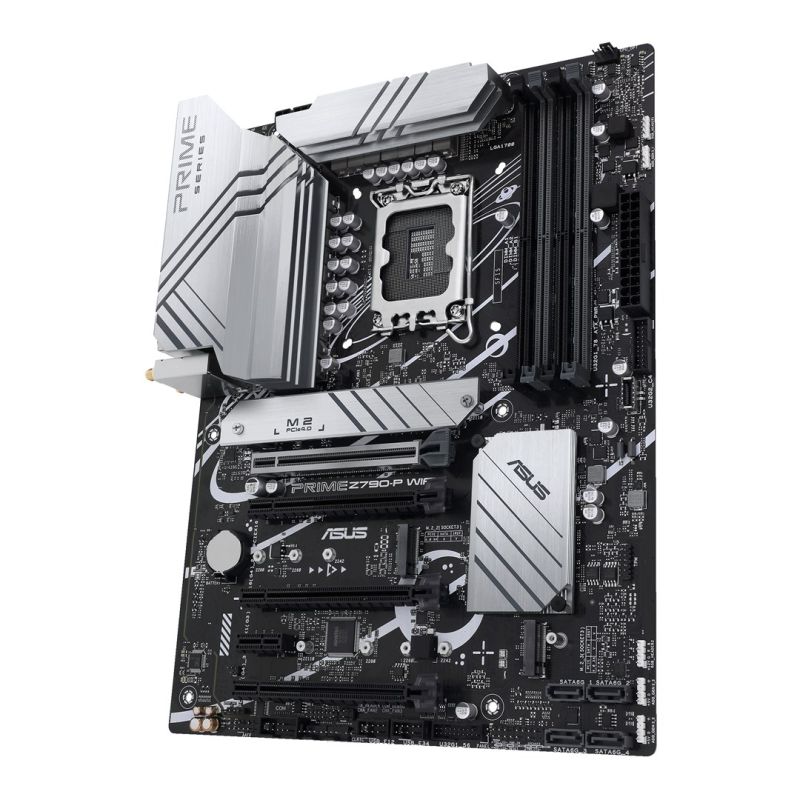

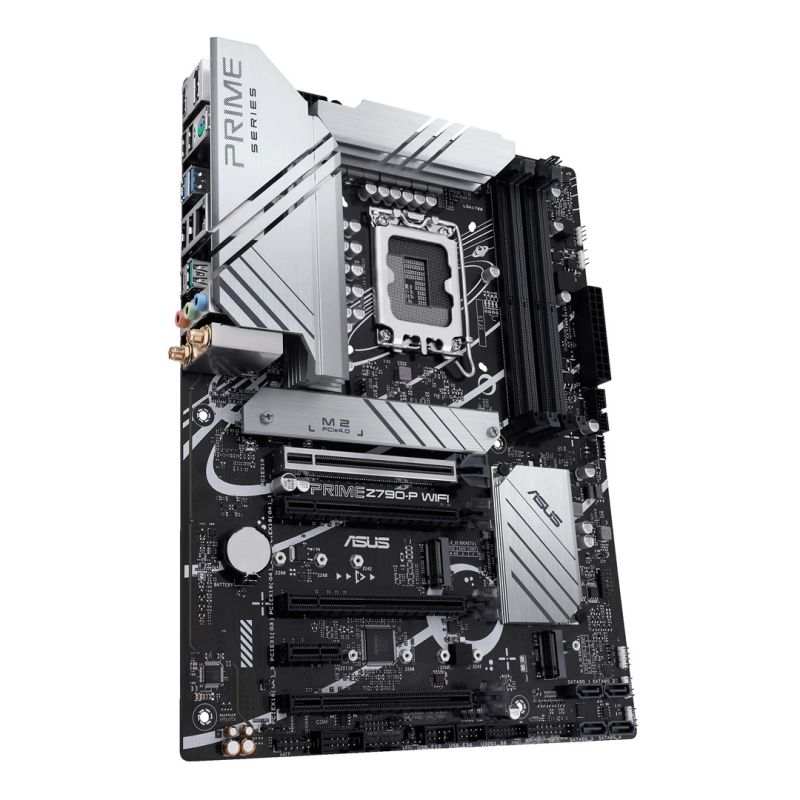

ASUS PRIME Z790-P WIFI Motherboard
ASUS PRIME Z790-P WIFI Motherboard
ASUS PRIME Z790-P WIFI Motherboard
PRICE:
271,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i9
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i7
- Intel® Core™ i3
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Supported CPU sockets: LGA 1700
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 6200 MHz
- 7200
- 6000 MHz
- 5400 MHz
- 5000 MHz
- 5600 MHz
- 6400 MHz
- 5200 MHz
- 4800 MHz
- 7000
- 5800 MHz
- 6600
- 6800
- Unbuffered memory: Yes
- Maximum memory capacity: 128 GB
- ECC Compatibility: Non-ECC
- Memory Channel Support: Dual Channel
- Supported memory clock speed (max): 7200 MHz
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds
- Characteristics
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel Z790
- Product color
- Black
- Aluminum
- Motherboard format: ATX
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Power supply type: ATX
- Chipset Board Family: Intel
- Weight and dimensions
- Product depth: 234 mm
- Product width: 305 mm
- Product height: 40 mm
- Internal I/O
- S/PDIF jack: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of SATA III connectors: 4
- EPS power supply connector (8-pin): Yes
- CPU fan connector: Yes
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Thunderbolt Ends: 1
- Peripheral (Molex) Power Connectors (4-pin): 1
- Number of USB 2.0 ports: 2
- 12V power connector: Yes
- Number of COM sockets: 1
- Number of case fan connectors: 3
- Front panel audio connector: Yes
- TPM Connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Network
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- Wi-Fi 6 (802.11ax)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wired LAN: Yes
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth version: 5.2
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Packaging data
- Package width: 338 mm
- Package depth: 273 mm
- Weight with packaging: 1.68 kg
- Package height: 68 mm
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- 5
- 1
- 0
- 10
- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Microphone: Yes
- Number of PS/2 ports: 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Headphone outputs: 1
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 3
- Other functions
- Product weight: 1.03 kg
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
