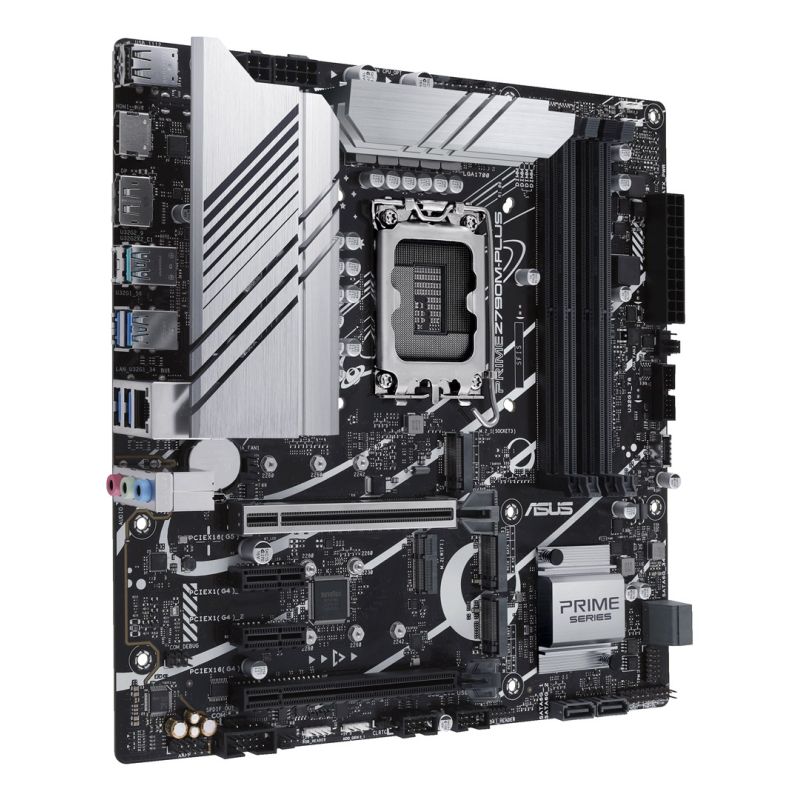

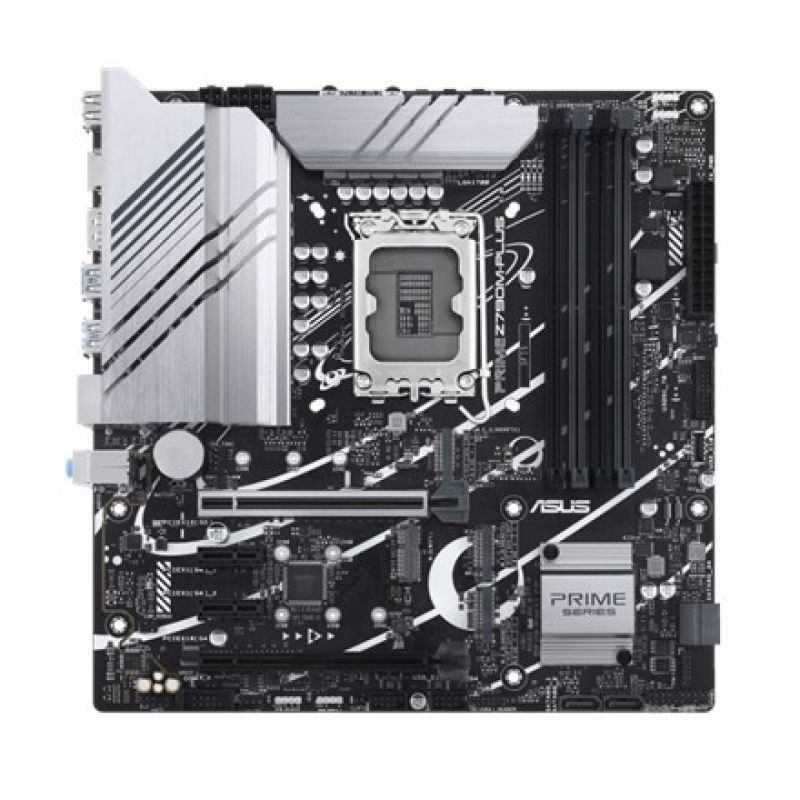

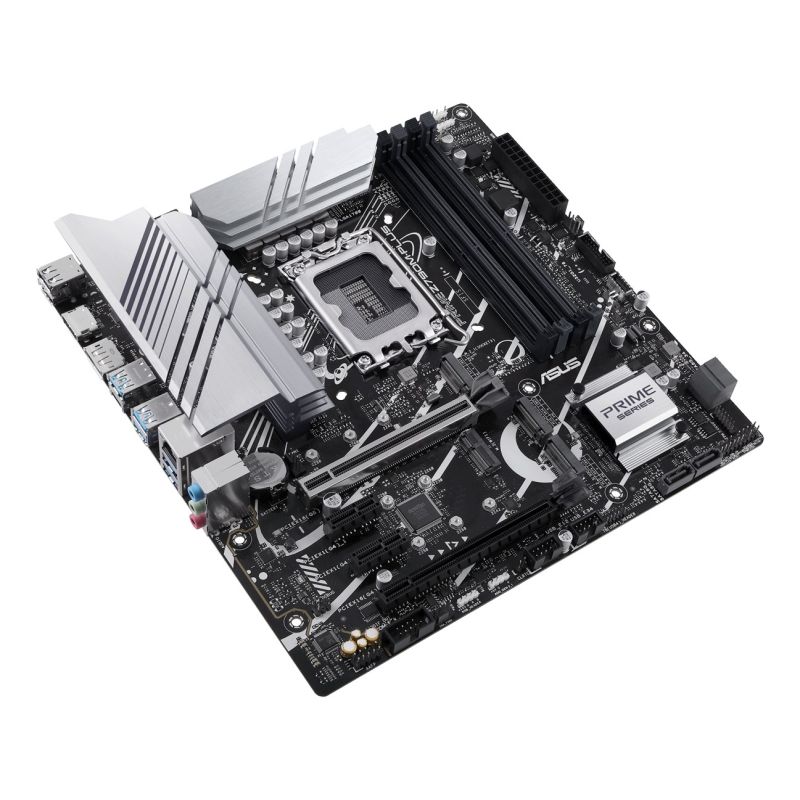

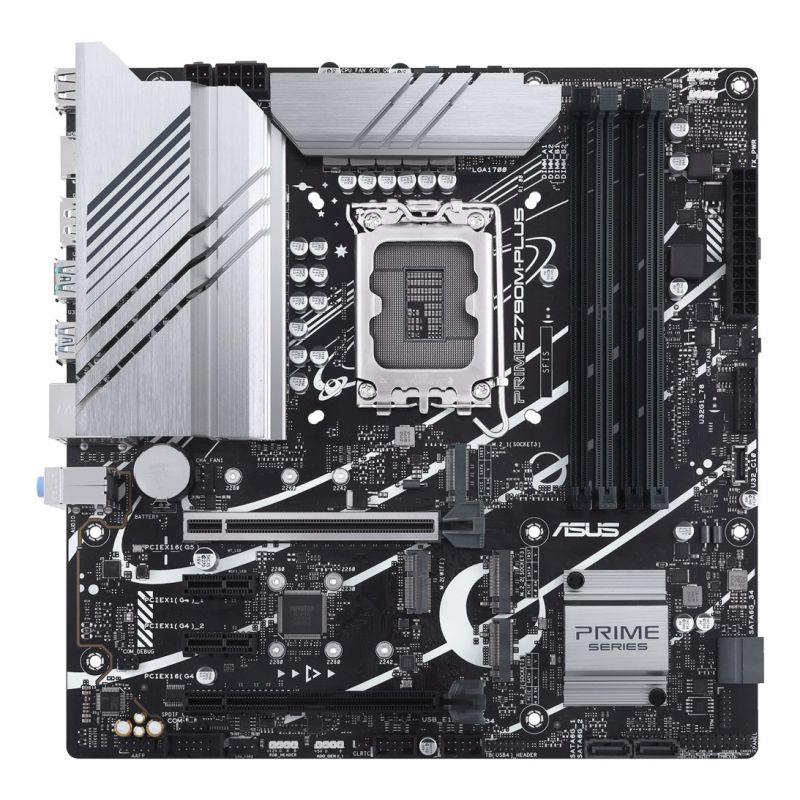

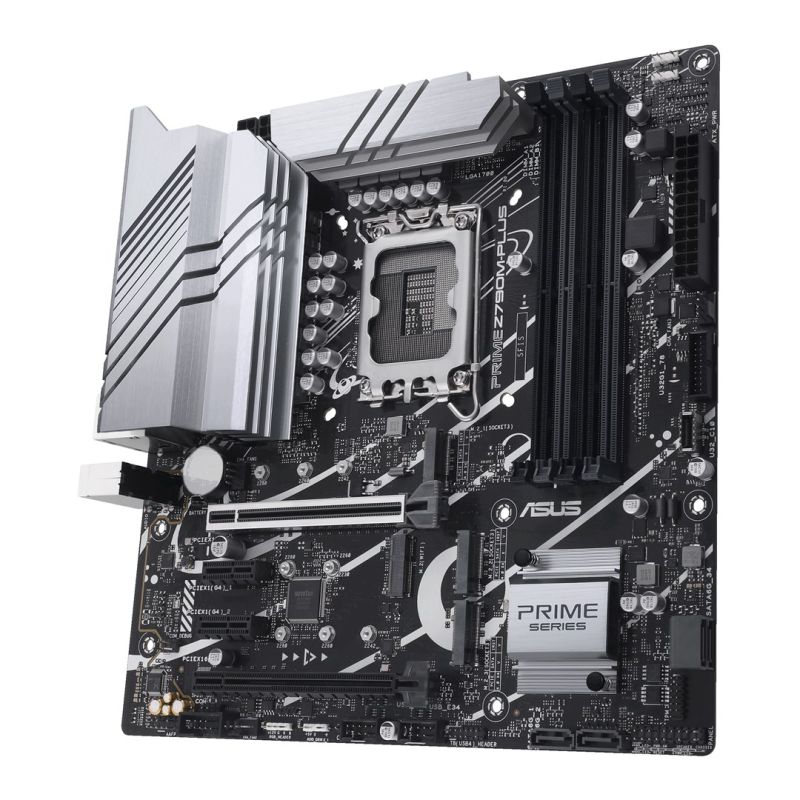

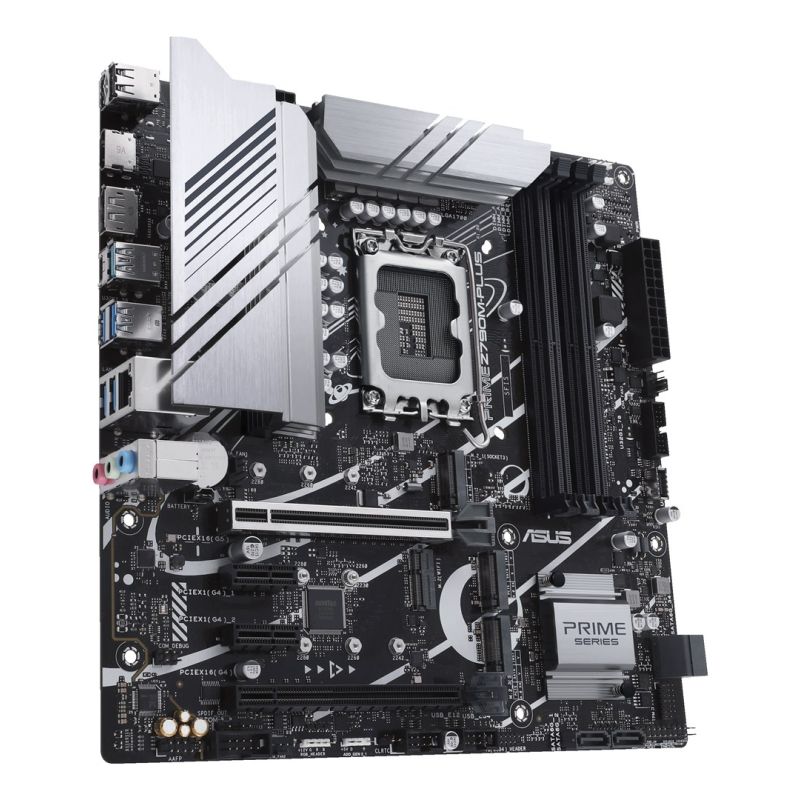

ASUS PRIME Z790M-PLUS motherboard
ASUS PRIME Z790M-PLUS motherboard
ASUS PRIME Z790M-PLUS motherboard
PRICE:
335,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i9
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Pentium® Gold
- Intel® Core™ i3
- Intel® Core™ i7
- Processor socket: LGA 1700
- Graphics
- Built-in graphics card: No
- Memory
- Supported memory clock speeds
- 6000 MHz
- 5600 MHz
- 6400 MHz
- 5800 MHz
- 5200 MHz
- 5400 MHz
- 4800 MHz
- 7000
- 6200 MHz
- 7200
- 5000 MHz
- 6600
- 6800
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- ECC Compatibility: Non-ECC
- Supported memory clock speeds
- Characteristics
- Product color
- Aluminum
- Black
- Motherboard Layout: Intel Z790
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10
- Windows 11
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Product color
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- Peripheral (Molex) Power Connectors (4-pin): 1
- 12V power connector: Yes
- Fan connector: Yes
- Number of case fan connectors: 3
- Number of COM sockets: 1
- S/PDIF jack: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Serial port connector: 1
- Audio connector: Yes
- CPU fan connector: Yes
- RGB LED: Yes
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- Thunderbolt Ends: 1
- ATX power socket (24-pin): Yes
- Network
- Wi-Fi: No
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Memory drivers
- RAID levels
- 10
- 5
- 0
- 1
- Number of supported HDDs: 3
- Number of supported storage drive sizes: 4
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, PCI Express 4.0, SATA
- RAID levels

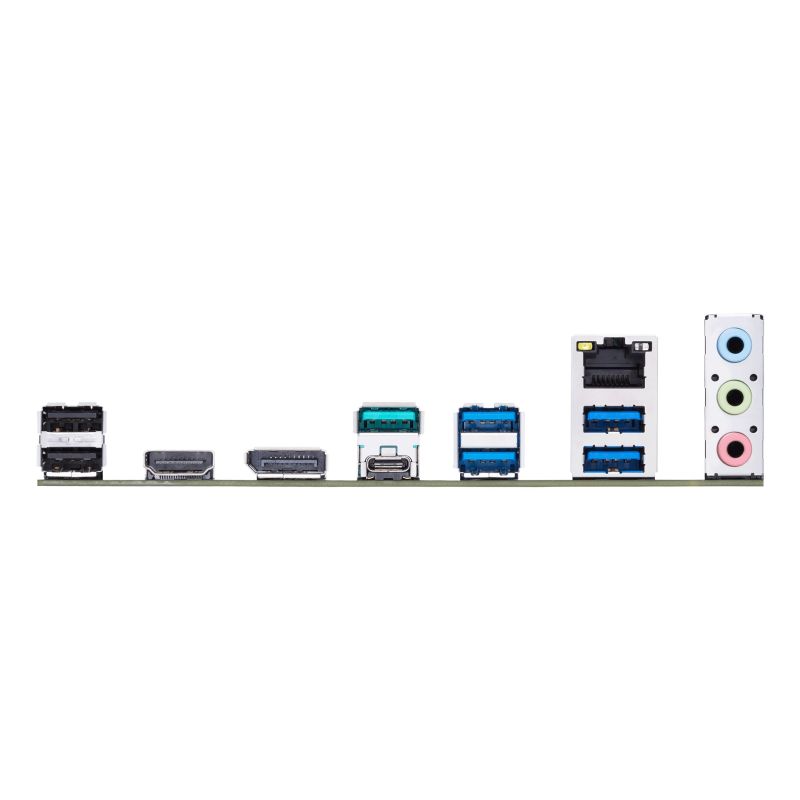

- Rear Panel I/O Ports
- Headphone outputs: 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Supported USB type: USB Type-A
- Microphone: Yes
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Line Input: Yes
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports: 1
- Number of COM ports: 1
- HDMI version: 2.0
- Number of Ethernet LAN ports (RJ-45): 1
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 2
- Safety warning
- Warnings
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
