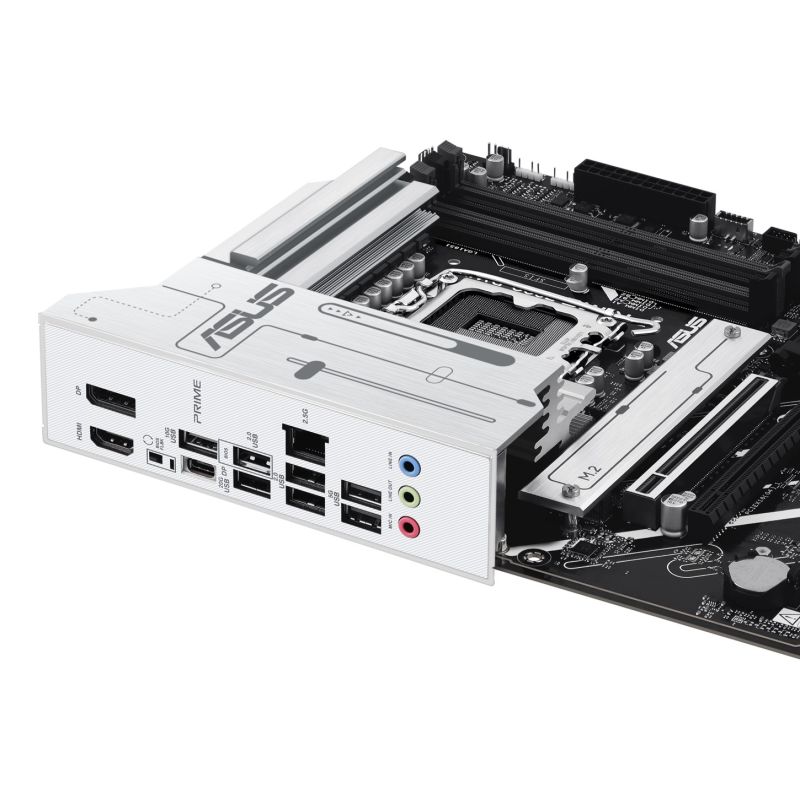

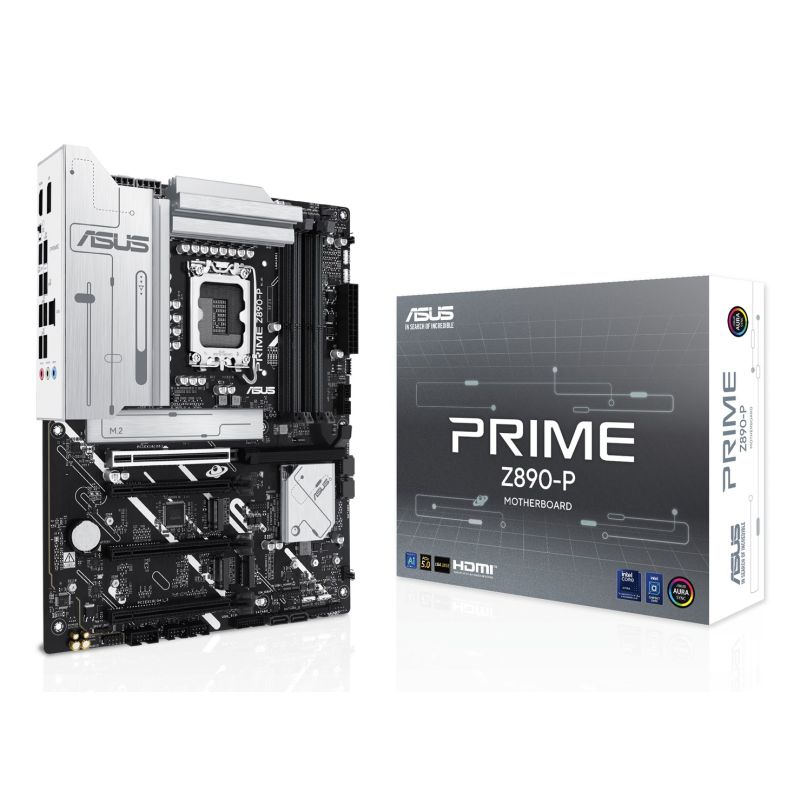

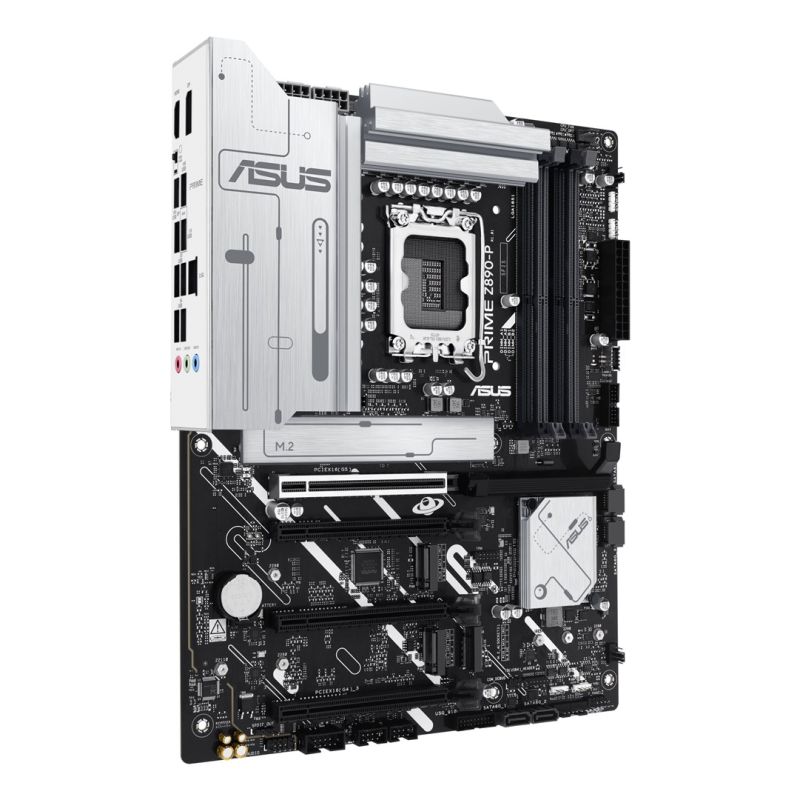

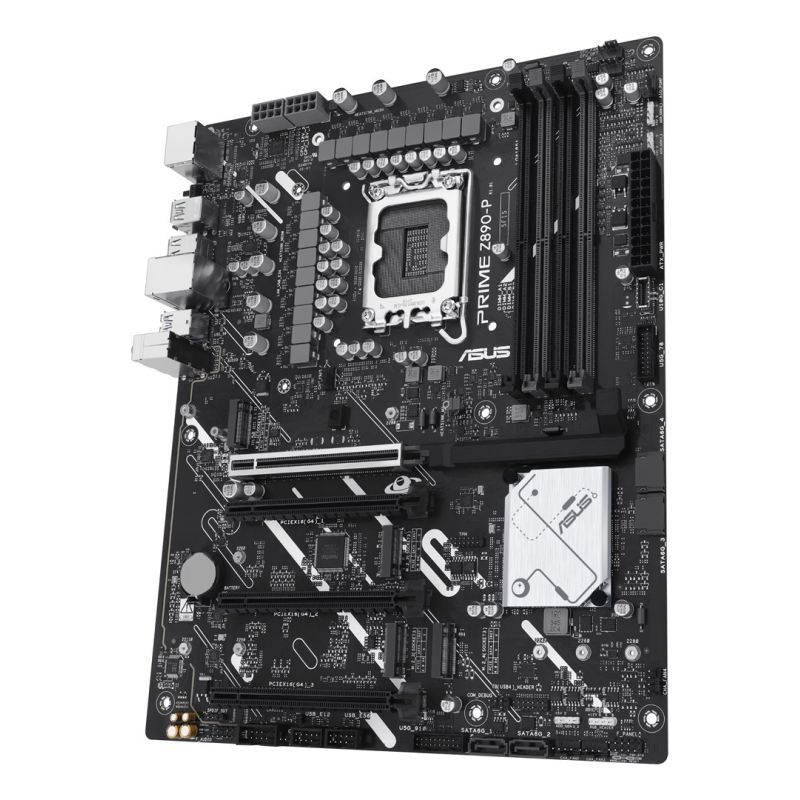

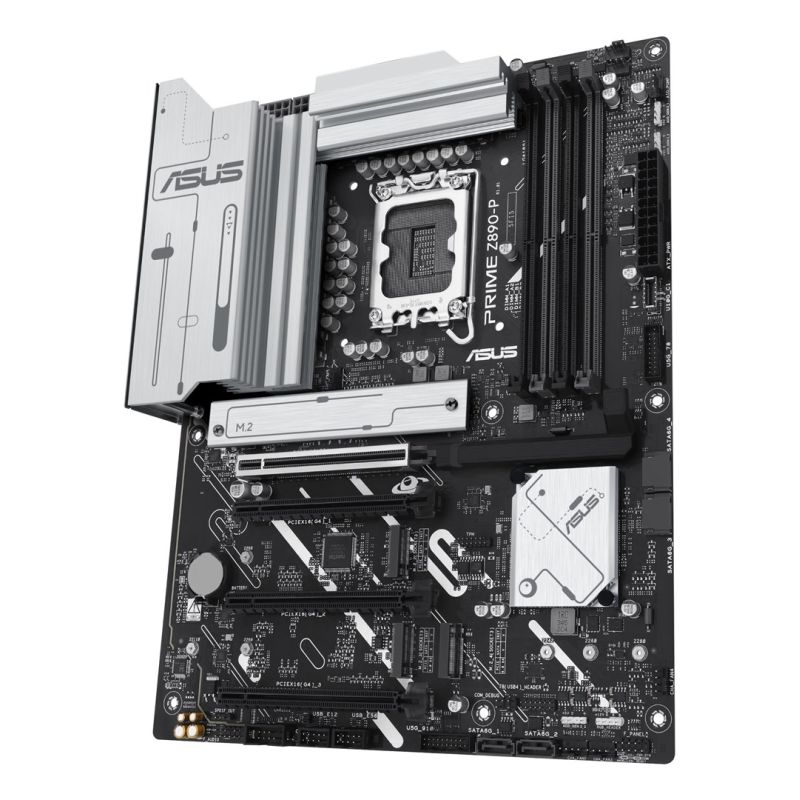

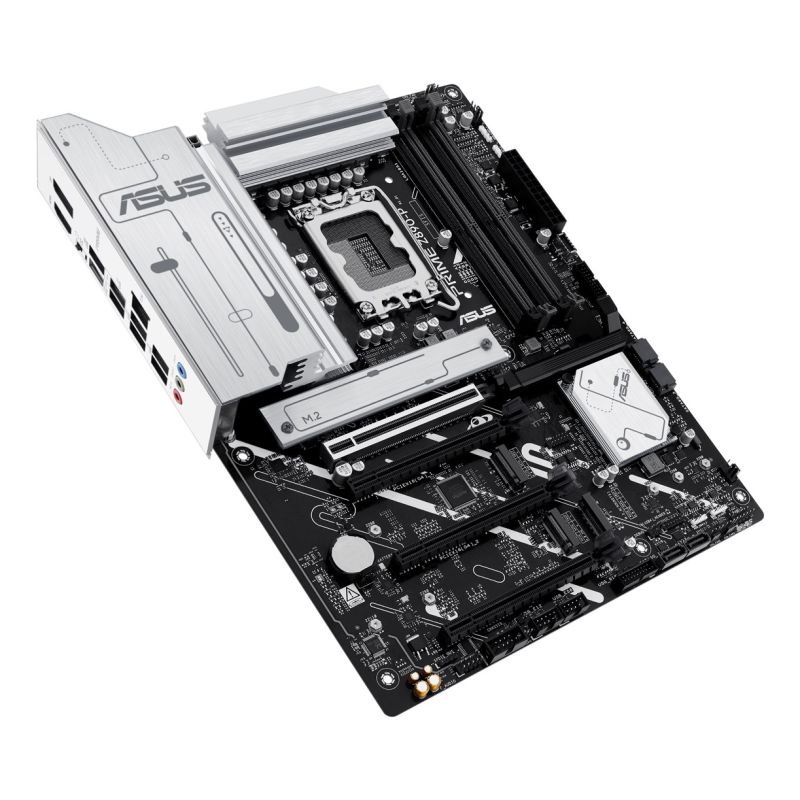

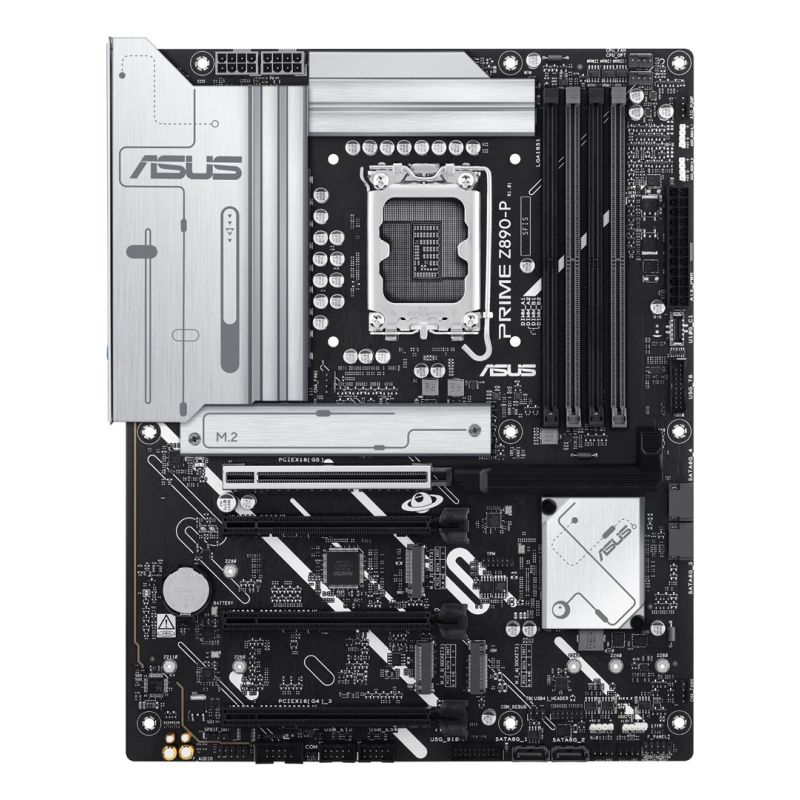

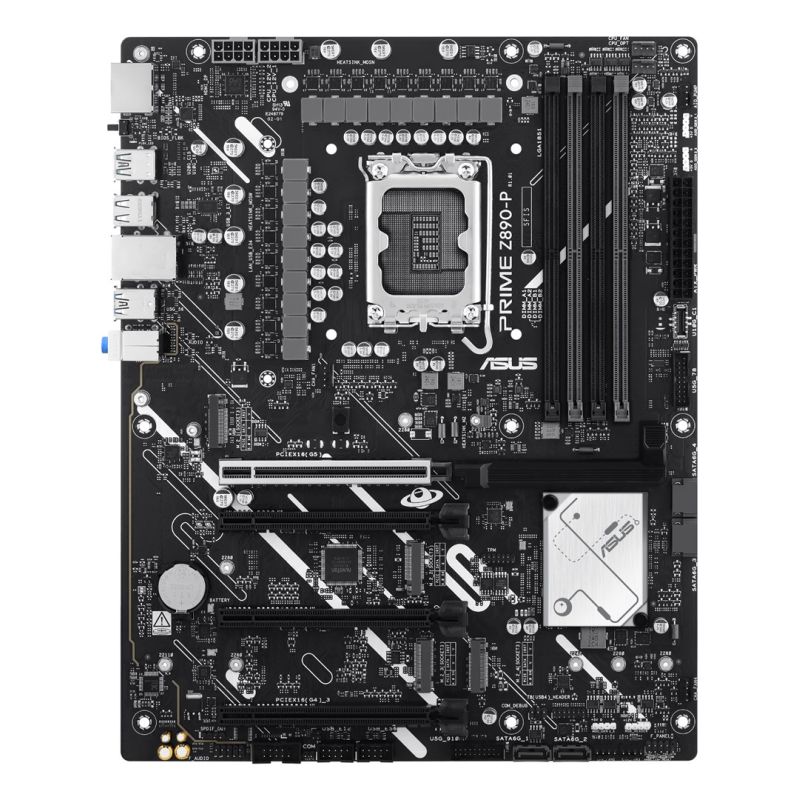

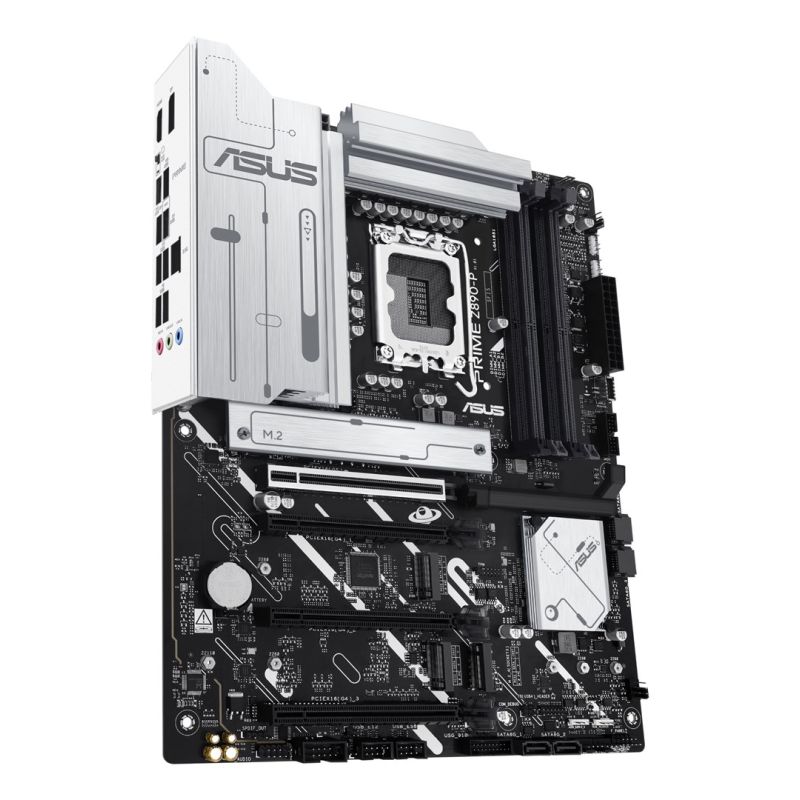

ASUS PRIME Z890-P motherboard
ASUS PRIME Z890-P motherboard
ASUS PRIME Z890-P motherboard
PRICE:
387,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 192 GB
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory clock speed (max): 7600 MHz
- ECC Compatibility: Non-ECC
- Characteristics
- Motherboard format: ATX
- Chipset Board Family: Intel
- Motherboard Layout: Intel Z890
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Cooling type: Passive
- Supported Windows operating systems
- Windows 10
- Windows 11
- Product color: Black
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- Number of COM sockets: 1
- CPU fan connector: Yes
- 12V power connector: Yes
- EPS power supply connector (8-pin): Yes
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Thunderbolt Ends: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 2
- S/PDIF jack: Yes
- Number of case fan connectors: 4
- TPM Connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 273 mm
- Package height: 68 mm
- Weight with packaging: 1.89 kg
- Package width: 353 mm

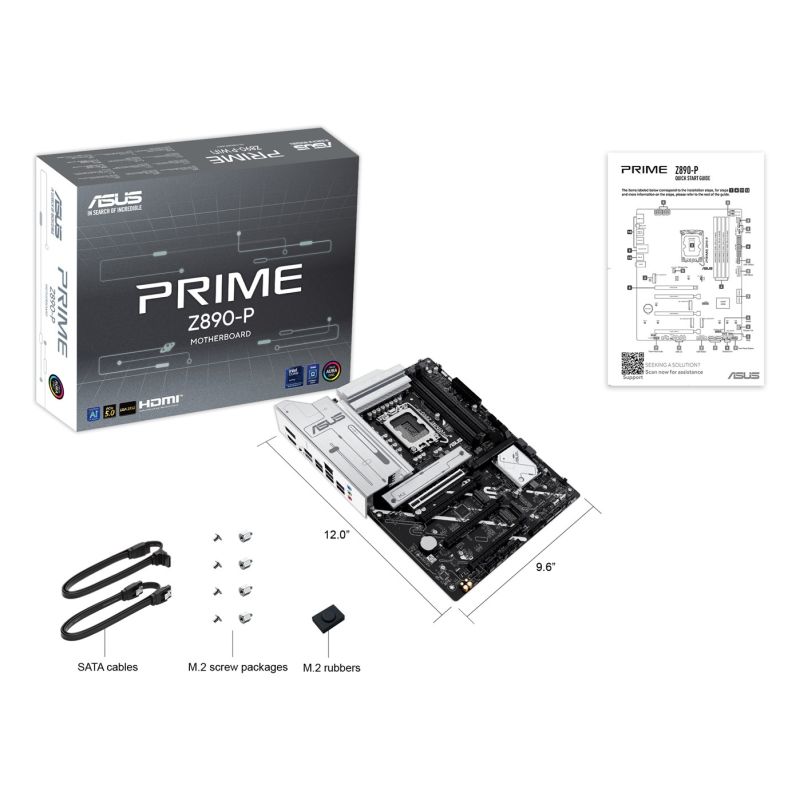

- Package contents
- Cables: SATA
- Memory drivers
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 0
- 10
- 1
- 5
- Number of supported storage drive sizes: 8
- Number of supported HDDs: 4

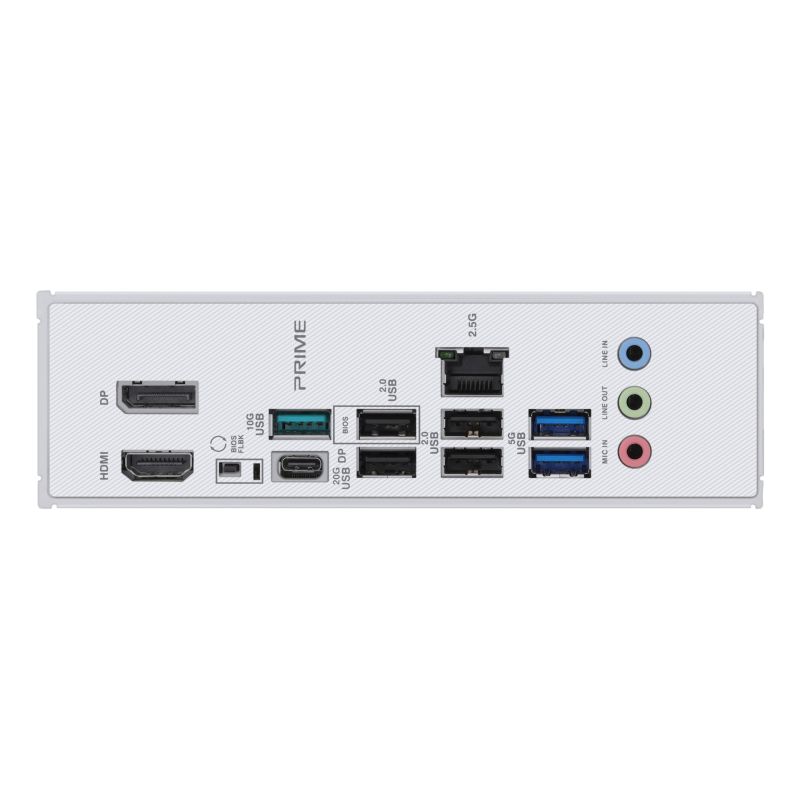

- Rear Panel I/O Ports
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 4
- Line Input: Yes
- HDMI version: 2.1
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of HDMI ports: 1
- Headphone outputs: 1
- Expansion slots
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 4.x) slots: 3
- PCI Express x16 (Gen 5.x) slots: 1
- Other functions
- Quick Installation Guide: Yes
- Back-to-BIOS button: Yes
- Safety warning
- Warnings
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- If you experience any problems with installation, please contact a qualified service center.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
