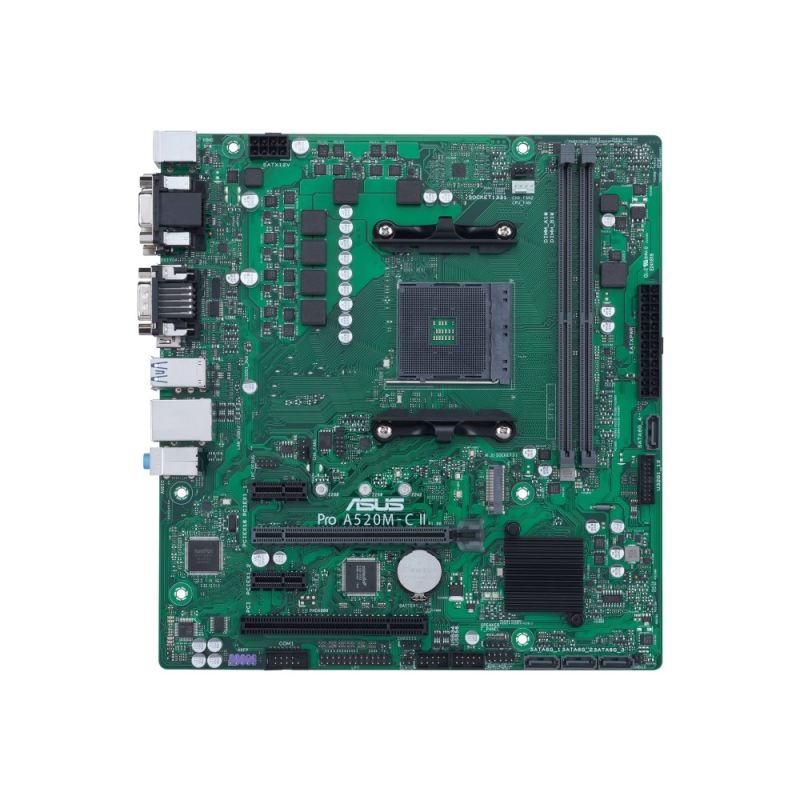

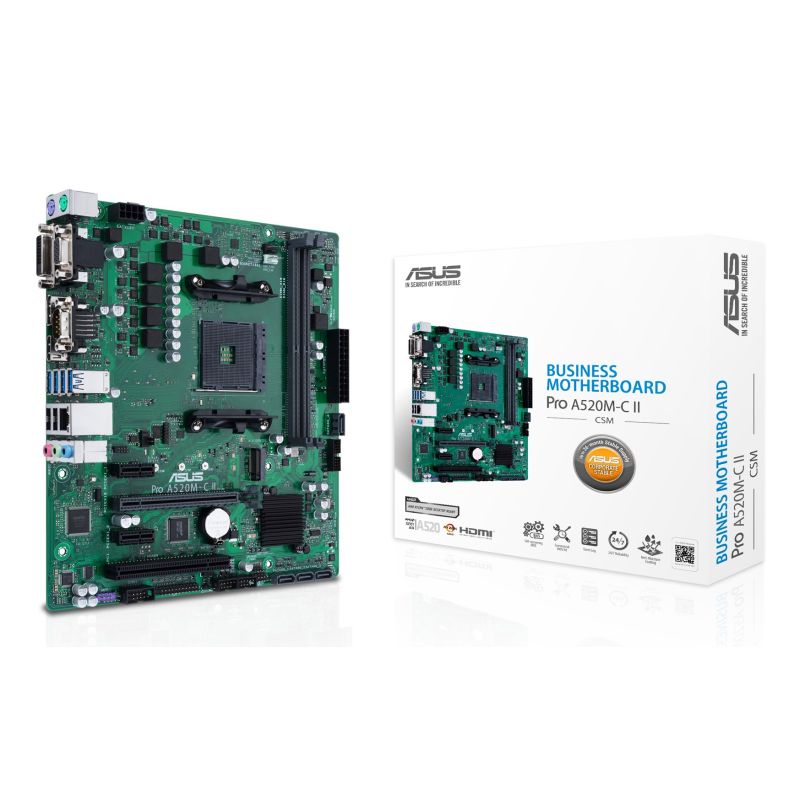

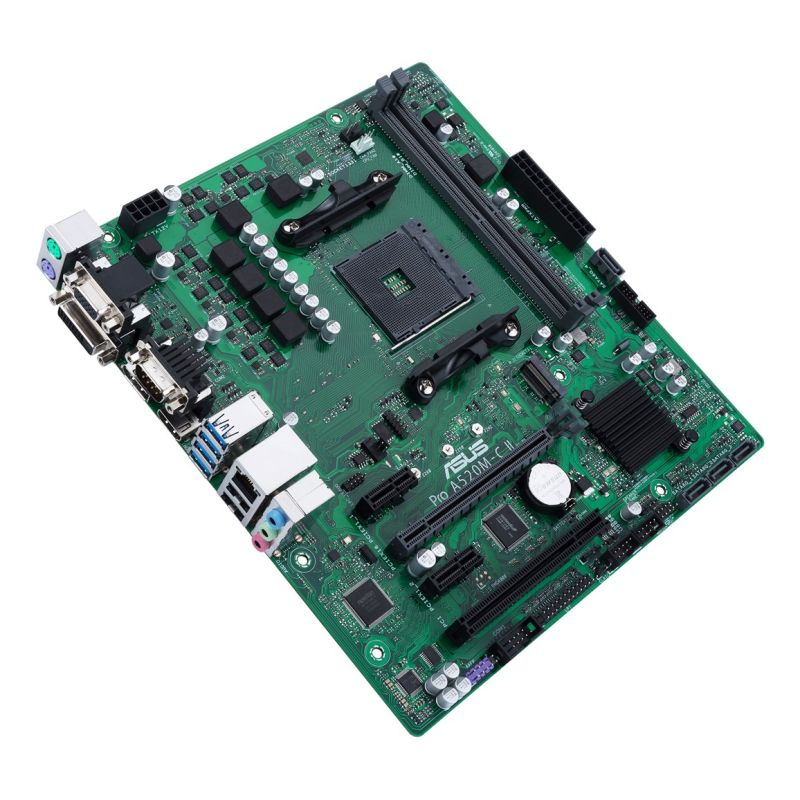

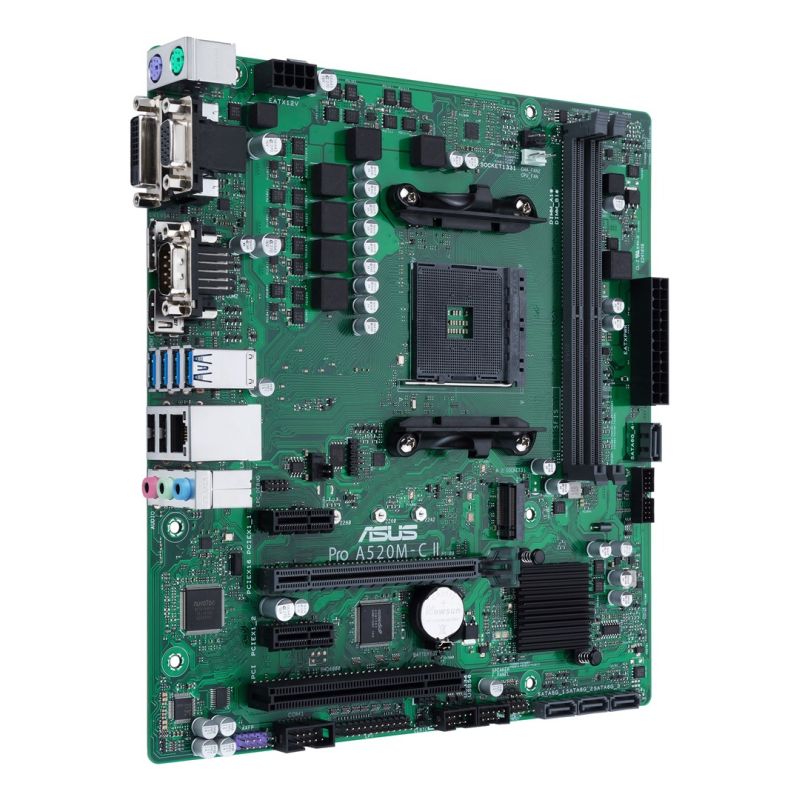

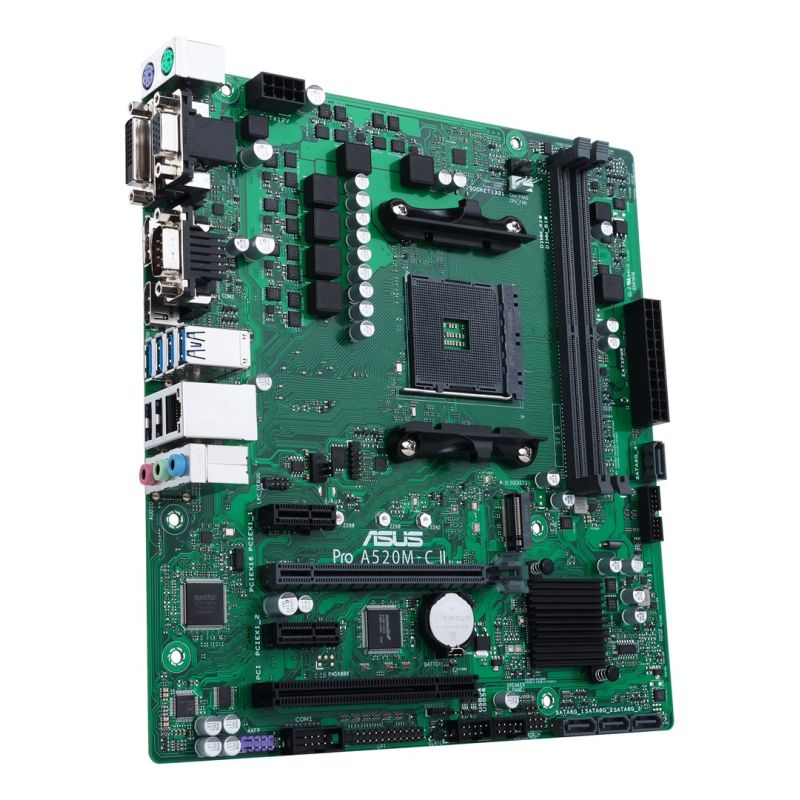

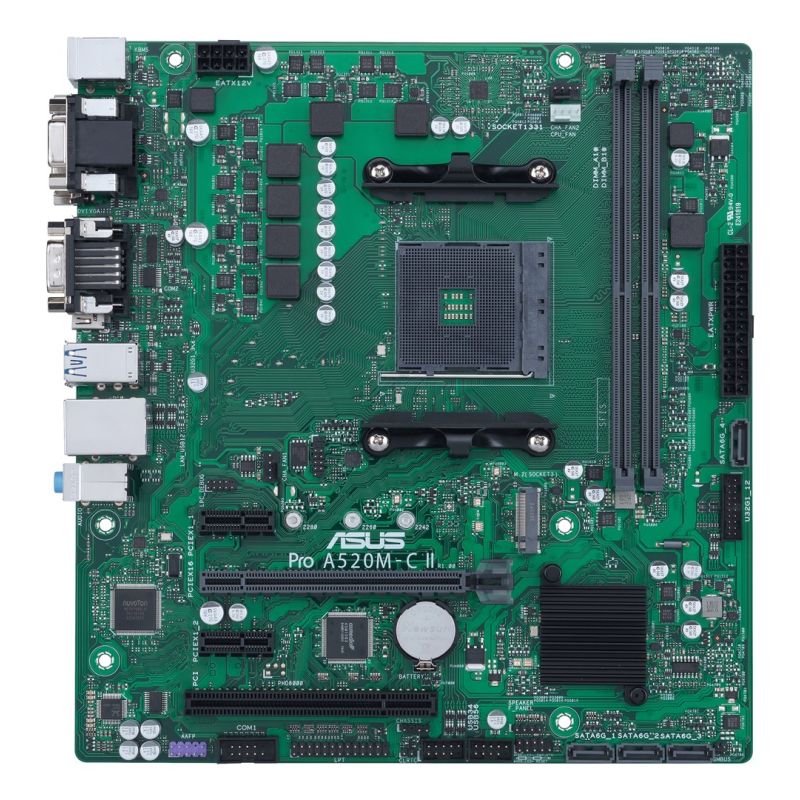

Asus Pro A520M-C II/CSM motherboard
Asus Pro A520M-C II/CSM motherboard
Asus Pro A520M-C II/CSM motherboard
PRICE:
148,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Maximum number of SMP processors: 1
- Processor
- AMD Ryzen™ 5
- AMD Ryzen™ 7
- AMD Ryzen™ 3
- Processor socket: Socket AM4
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 3200 MHz
- 2666 MHz
- 2800 MHz
- 3333 MHz
- 4400 MHz
- 2133 MHz
- 3000 MHz
- 4133 MHz
- 3866 MHz
- 4600 MHz
- 3466 MHz
- 3733 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- Maximum memory capacity: 64 GB
- Unbuffered memory: Yes
- ECC Compatibility: ECC
- Number of memory slots: 2
- Supported memory types: DDR4-SDRAM
- Memory Channel Support: Dual Channel
- Memory slot type: DIMM
- Supported memory clock speeds
- Characteristics
- Intended use: PC
- Motherboard format: Micro ATX
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD A520
- Audio chip: Realtek ALC897
- Supported Windows operating systems: Windows 10 x64
- Weight and dimensions
- Product depth: 229 mm
- Product width: 244 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- Number of SATA III connectors: 4
- Serial port connector: 1
- CPU fan connector: Yes
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Parallel connector: Yes
- Number of EATX sockets: 1
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit
- Clear CMOS Jumper: Yes
- Packaging data
- Weight with packaging: 910 g
- Package depth: 263 mm
- Package height: 51.5 mm
- Package width: 270 mm
- Package contents
- Drivers included: Yes
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID levels
- 1
- 0
- 10
- RAID Service: Yes
- Number of supported storage drive sizes: 5

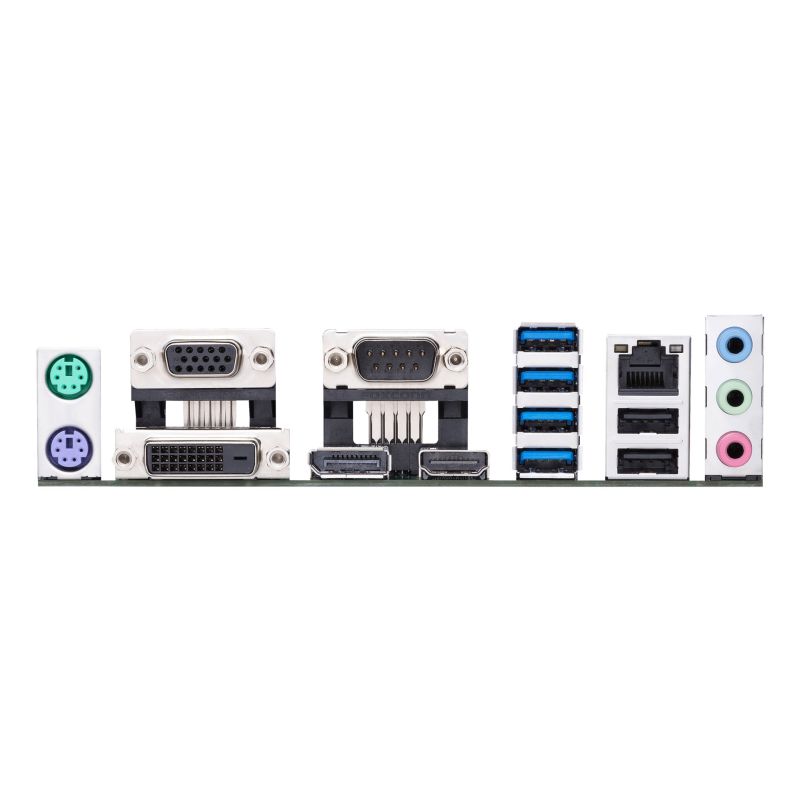

- Rear Panel I/O Ports
- Supported USB type: USB Type-A
- DisplayPort Quantity: 1
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Headphone outputs: 1
- Number of VGA (D-Sub) ports: 1
- Number of PS/2 ports: 2
- Number of DVI-D ports: 1
- Number of COM ports: 1
- Expansion slots
- Number of M.2 (M) slots: 1
- PCI slots: 1
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 2
| Name | Details |
|---|---|
| Producer | Asus |
