ASUS Pro H610T D4-CSM Motherboard
ASUS Pro H610T D4-CSM Motherboard
ASUS Pro H610T D4-CSM Motherboard
PRICE:
214,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Maximum number of SMP processors: 1
- Processor
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i9
- Intel® Pentium®
- Intel® Core™ i3
- Processor socket: LGA 1700
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 64 GB
- Memory Channel Support: Dual Channel
- Supported memory clock speeds
- 2800 MHz
- 2933 MHz
- 3200 MHz
- 2666 MHz
- 2133 MHz
- 2400 MHz
- Supported memory types: DDR4-SDRAM
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Memory slot type: SO-DIMM
- Number of memory slots: 2
- Characteristics
- Supported Windows operating systems
- Windows 11 x64
- Windows 10 x64
- Intended use: PC
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Motherboard Layout: Intel H610
- Motherboard format: Thin Mini ITX
- Supported Windows operating systems
- Weight and dimensions
- Product width: 170 mm
- Product height: 221 mm
- Product depth: 170 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 2
- CPU fan connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 3
- TPM Connector: Yes
- Number of COM sockets: 1
- Front panel audio connector: Yes
- Housing intrusion sensor connector: Yes
- Network
- Wake-On-LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 128 Mbit

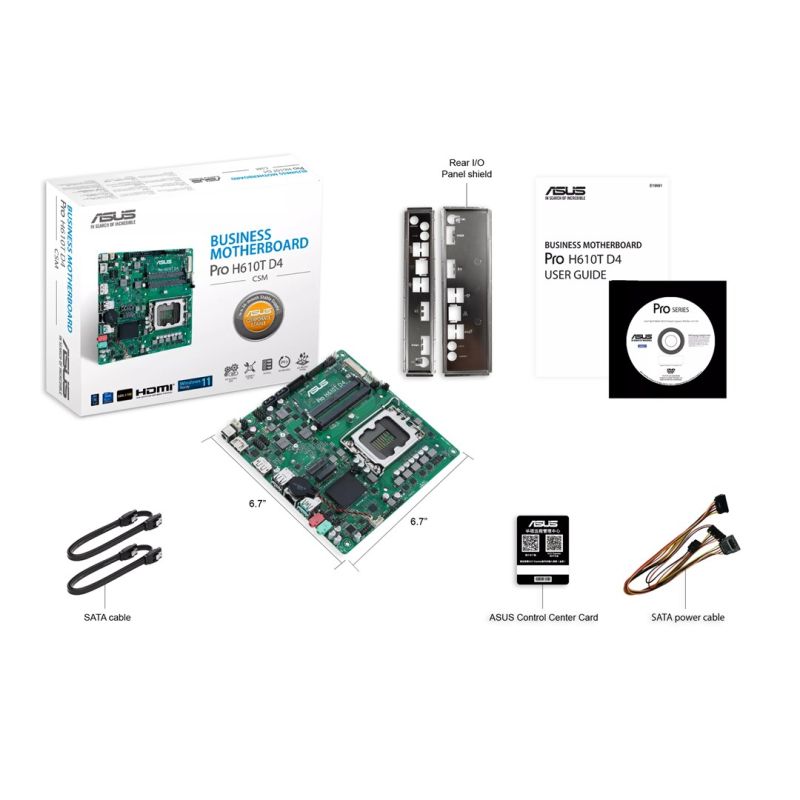

- Package contents
- Drivers included: Yes
- Cables: SATA
- Memory drivers
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD

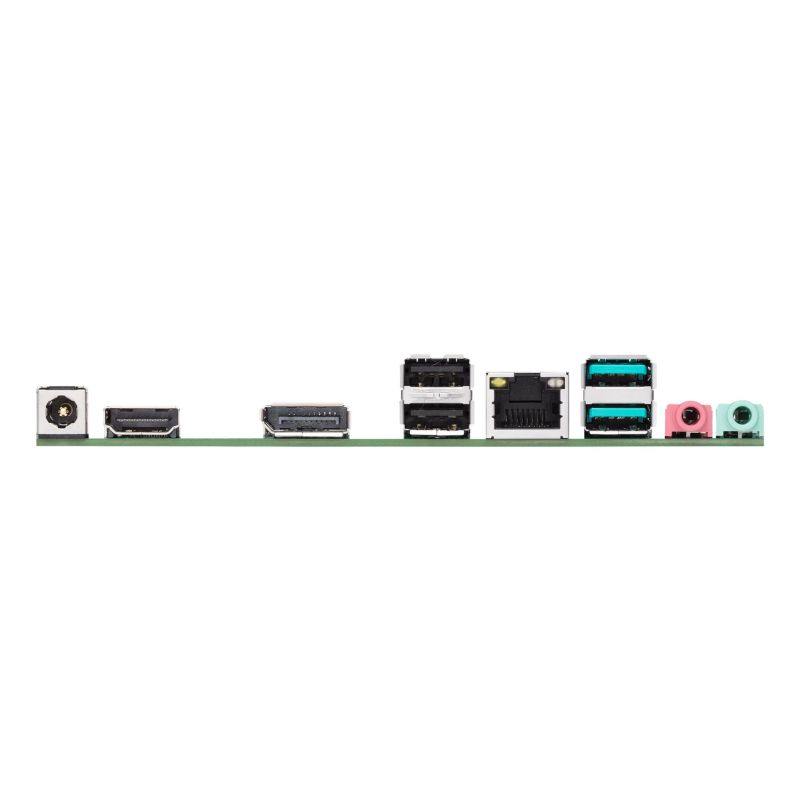

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 2
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of HDMI ports: 1
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- HDMI version: 2.1
- Expansion slots
- Number of M.2 (M) slots: 1
- Other functions
- Product weight: 382 g
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- This product contains electrical components – please be careful during installation to avoid injury.
- Avoid contact with liquids and moisture to prevent damage to the equipment.
- Provide adequate ventilation to avoid overheating and potential damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
