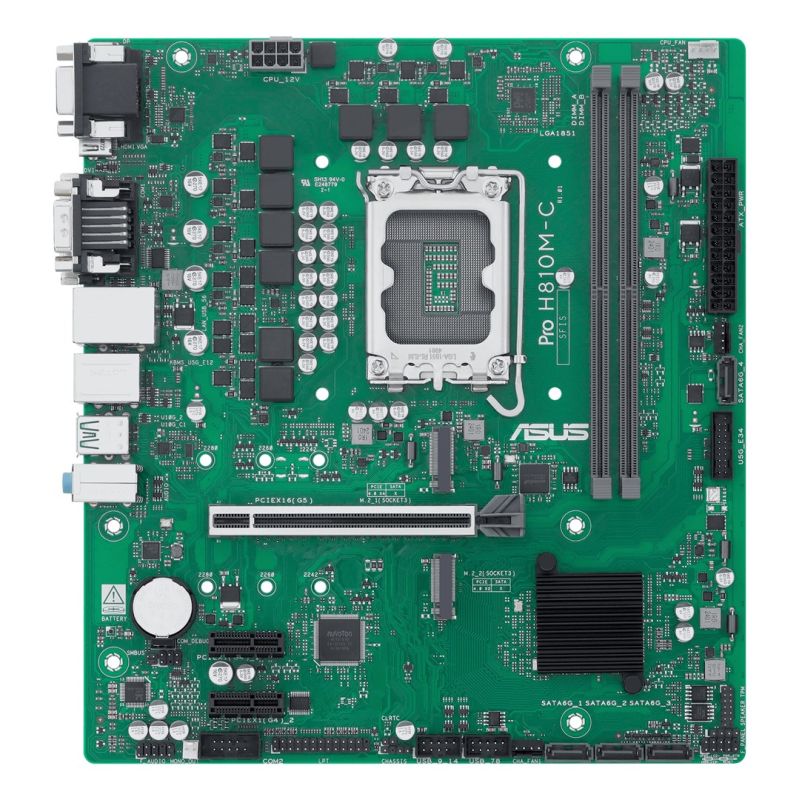

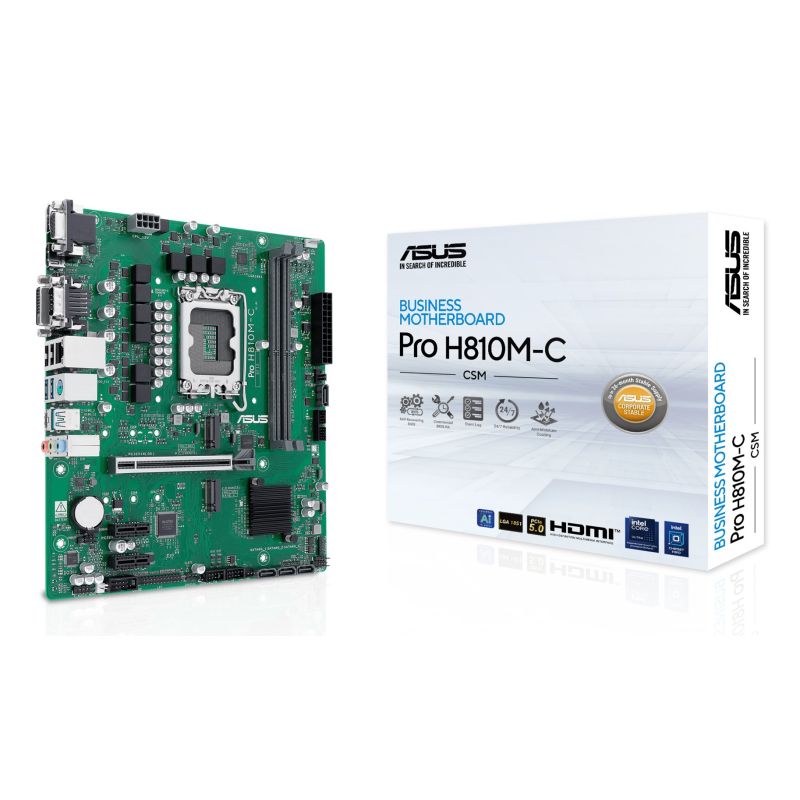

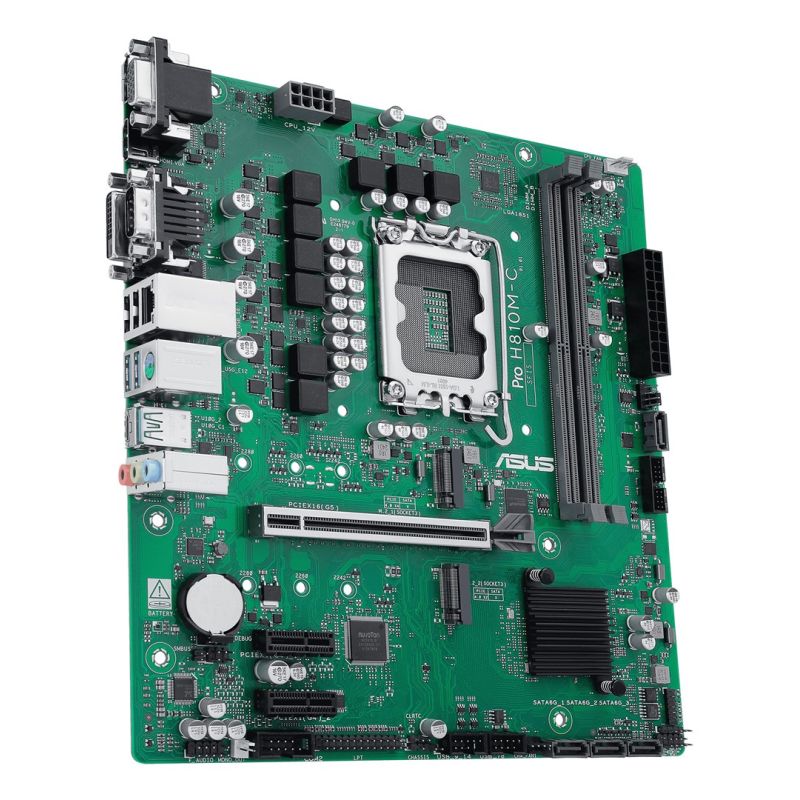

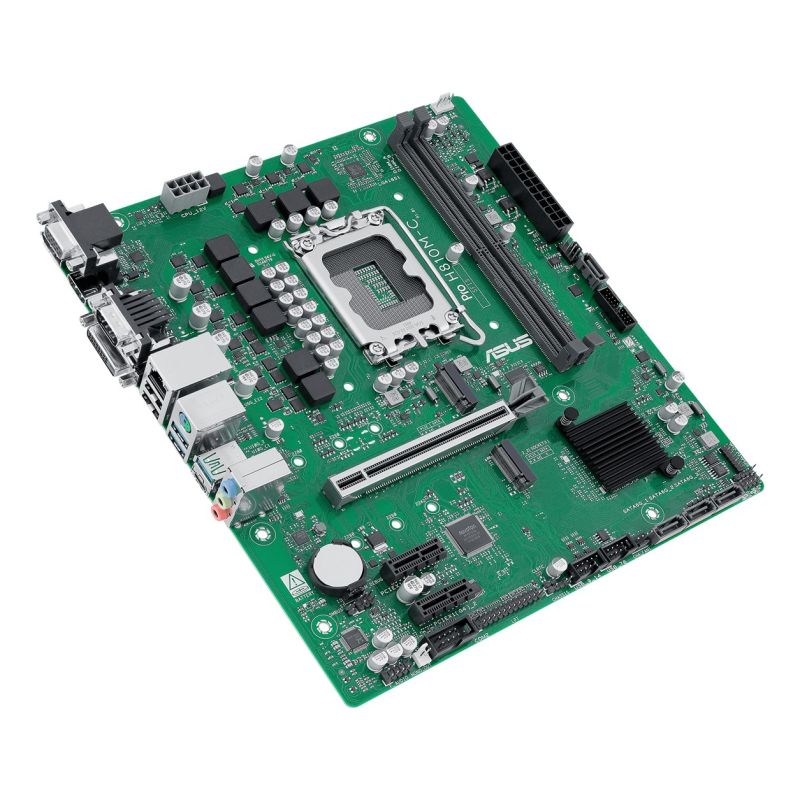

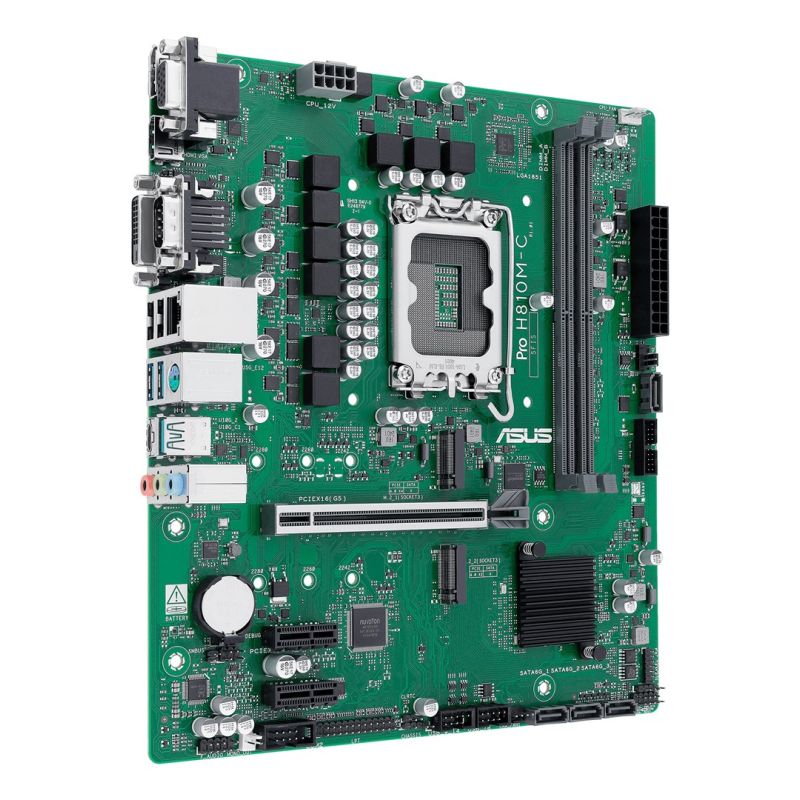

ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
ASUS PRO H810M-C-CSM Intel H810 LGA 1851 (Socket V1) micro ATX
PRICE:
212,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported CPU sockets: LGA 1851
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Maximum memory capacity: 128 GB
- Unbuffered memory: Yes
- ECC Compatibility: Non-ECC
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- Number of memory slots: 2
- Characteristics
- Motherboard Layout: Intel H810
- Intended use: PC
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard format: Micro ATX
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Weight and dimensions
- Product depth: 222 mm
- Product width: 244 mm
- Internal I/O
- Number of CPU fan connectors: 1
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- Number of USB 2.0 ports: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of case fan connectors: 2
- Front panel connector: Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of COM sockets: 1
- CPU fan connector: Yes
- 12V power connector: Yes
- Audio connector: Yes
- Network
- Ethernet interface type: Gigabit Ethernet
- Wi-Fi: No
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Packaging data
- Package width: 270 mm
- Package depth: 263 mm
- Weight with packaging: 1 kg
- Package height: 51.5 mm
- Package contents
- Cables: SATA
- Memory drivers
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 6

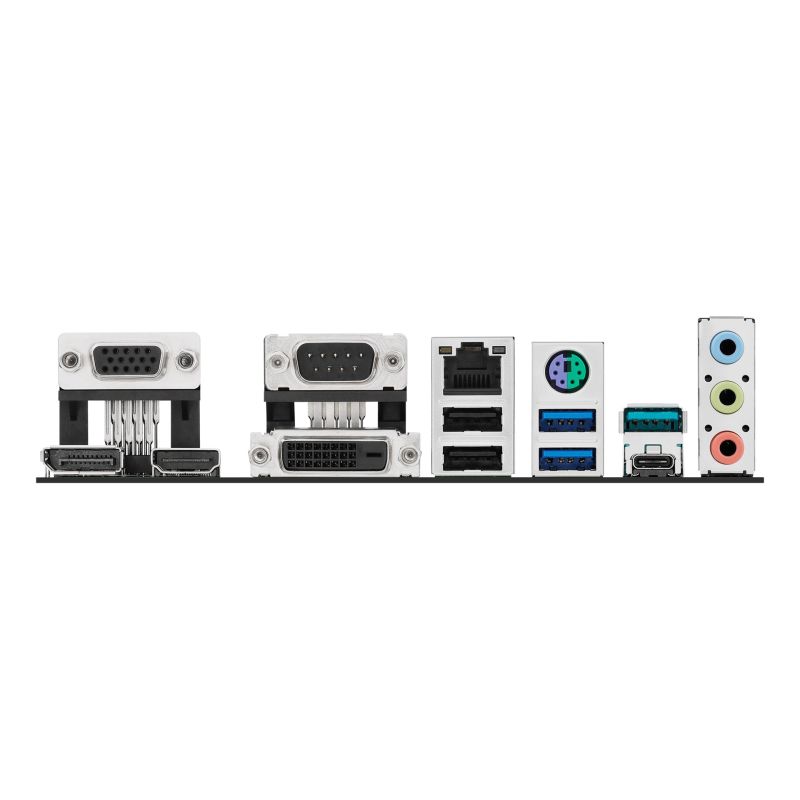

- Rear Panel I/O Ports
- Number of PS/2 ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of VGA (D-Sub) ports: 1
- Number of COM ports: 1
- Number of HDMI ports: 1
- Number of DVI-D ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 2
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- PCI Express x16 (Gen 5.x) slots: 1
- 1. largest M.2 key size: 2280
- PCI Express x1 (Gen 4.x) slots: 2
- 1. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 2
| Name | Details |
|---|---|
| Producer | Asus |
