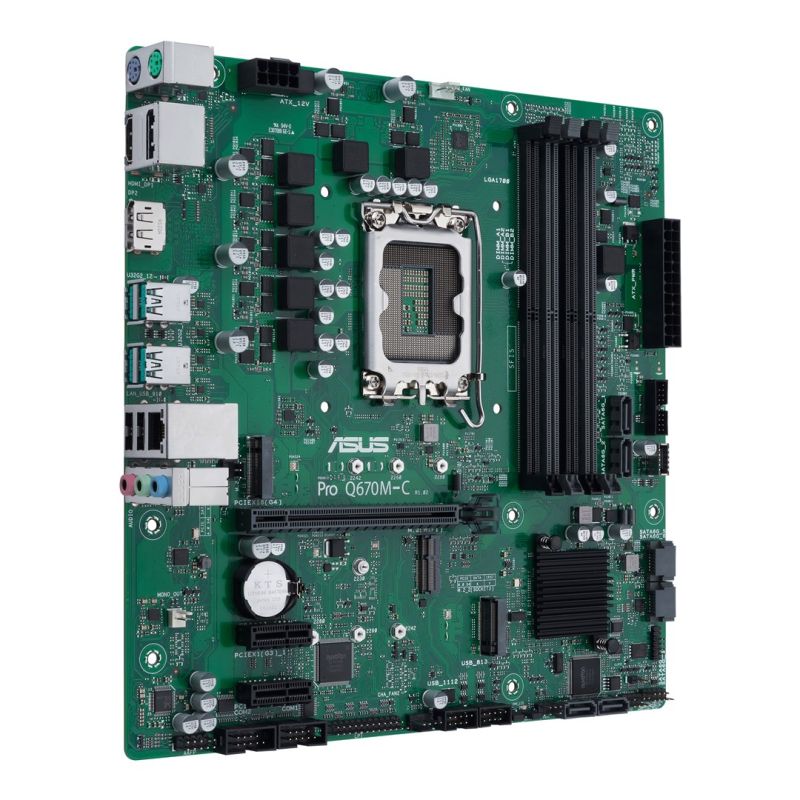

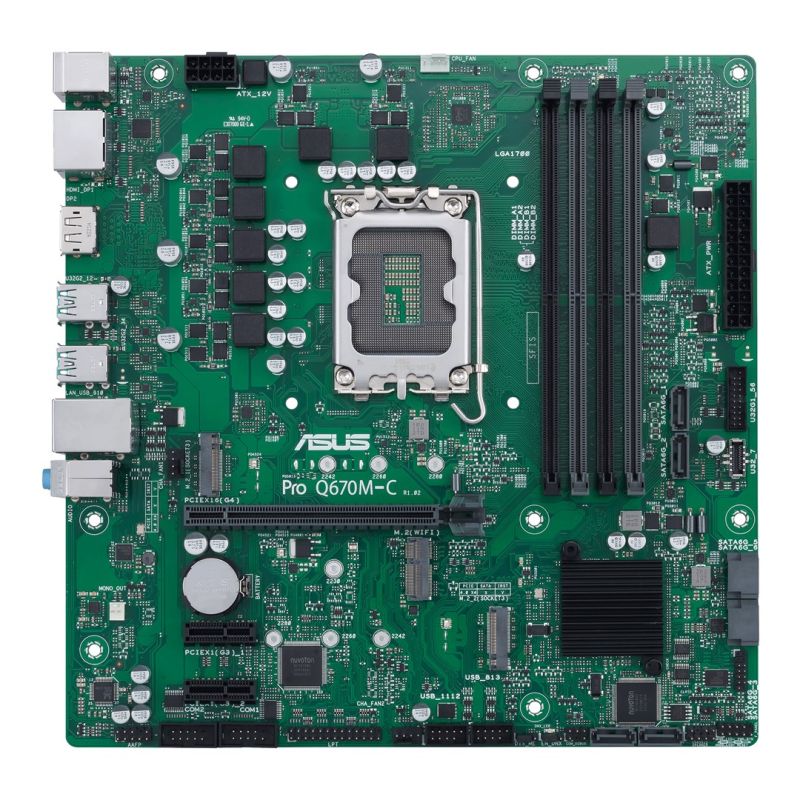

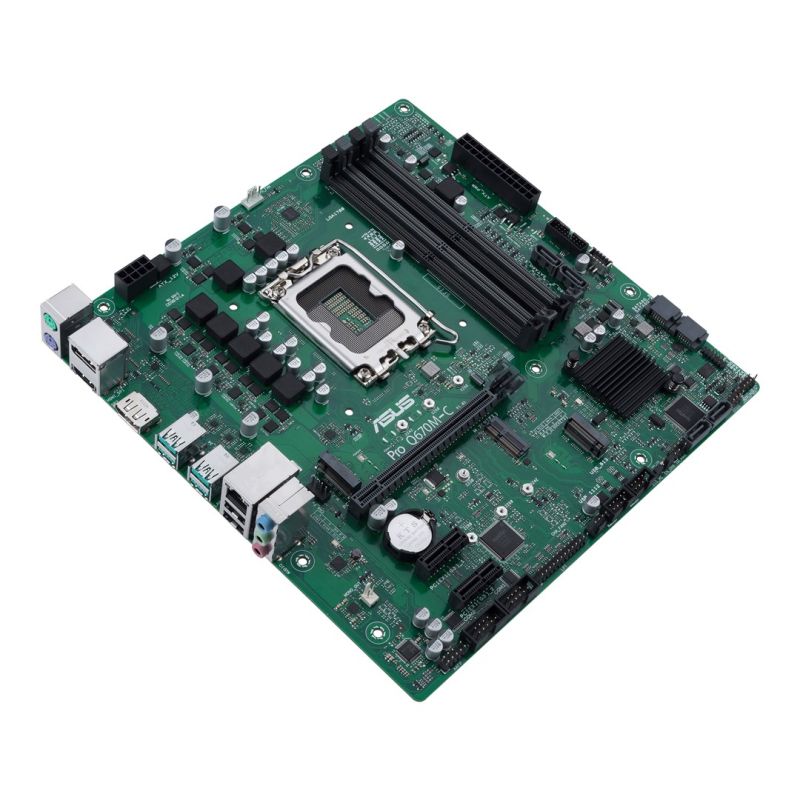

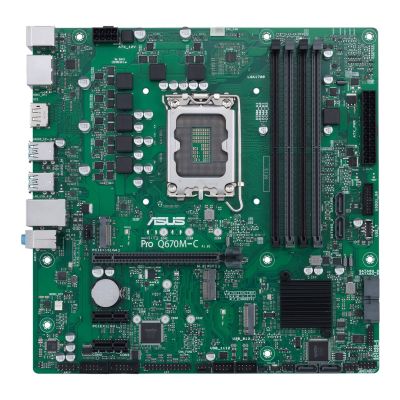

ASUS PRO Q670M-C-CSM Motherboard
ASUS PRO Q670M-C-CSM Motherboard
ASUS PRO Q670M-C-CSM Motherboard
PRICE:
330,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported processor sockets: LGA 1700
- Processor
- Intel® Core™ i3
- Intel® Core™ i7
- Intel® Pentium G
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i9
- Processor socket: LGA 1700
- Maximum internal memory supported by the processor: 128 GB
- Memory
- Supported memory types: DDR5-SDRAM
- Supported memory clock speeds: 4800 MHz
- Memory slot type: DIMM
- Memory channels: Dual-channel
- Supported memory module capacities
- 4GB
- 32GB
- 8GB
- 16GB
- Number of memory slots: 4
- Maximum memory capacity: 128 GB
- ECC compatibility: Non-ECC
- Features
- Audio output channels: 7.1 ch
- Power supply type: ATX
- Motherboard chipset: Intel Q670
- Number of mounting holes: 8
- Cooling type: Active
- Purpose: PC
- Motherboard chipset family: Intel
- Supported Windows operating systems
- Windows 10
- Windows 11
- Motherboard form factor: Micro ATX
- Weight and dimensions
- Product depth: 244 mm
- Product height: 51 mm
- Product width: 244 mm
- Internal I/O
- Audio connector: Yes
- Number of USB 2.0 connectors: 2
- CPU fan connector: Yes
- Number of COM connectors: 2
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- EPS power connector (8-pin): Yes
- ATX power connector (24-pin): Yes
- Number of SATA III connectors: 6
- Number of chassis fan connectors: 2
- Network
- Wi-Fi: No
- Wired LAN: Yes
- Ethernet interface type: Gigabit Ethernet
- BIOS
- BIOS memory size: 256 Mbit
- Packaging content
- Drivers included: Yes
- Cables: SATA
- Storage controllers
- RAID support: Yes
- Number of supported storage drive sizes: 8
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- Number of supported HDDs: 6
- RAID levels
- 10
- 5
- 1
- 0

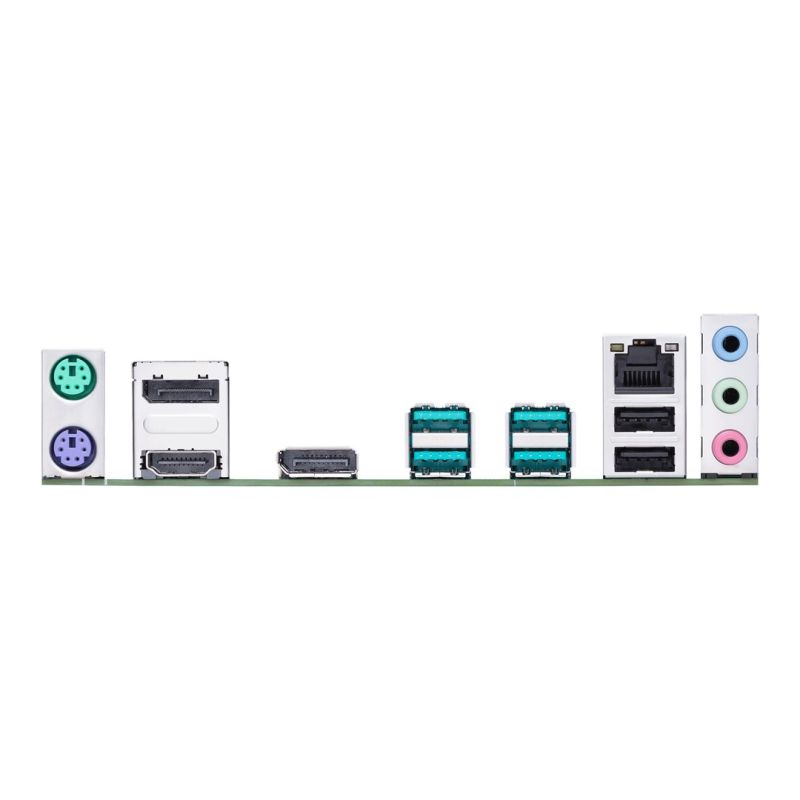

- Rear panel I/O ports
- HDMI version: 2.1
- Number of DisplayPort connections: 2
- Microphone: Yes
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 4
- Number of USB 2.0 ports: 2
- Number of PS/2 ports: 2
- DisplayPort version: 1.4
- Number of Ethernet LAN (RJ-45) ports: 1
- Headphone outputs: 2
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
- Other features
- Product weight: 634 g
- Logistics data
- Harmonized System (HS) code: 84733020
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asus |
| Department | Electronics |
