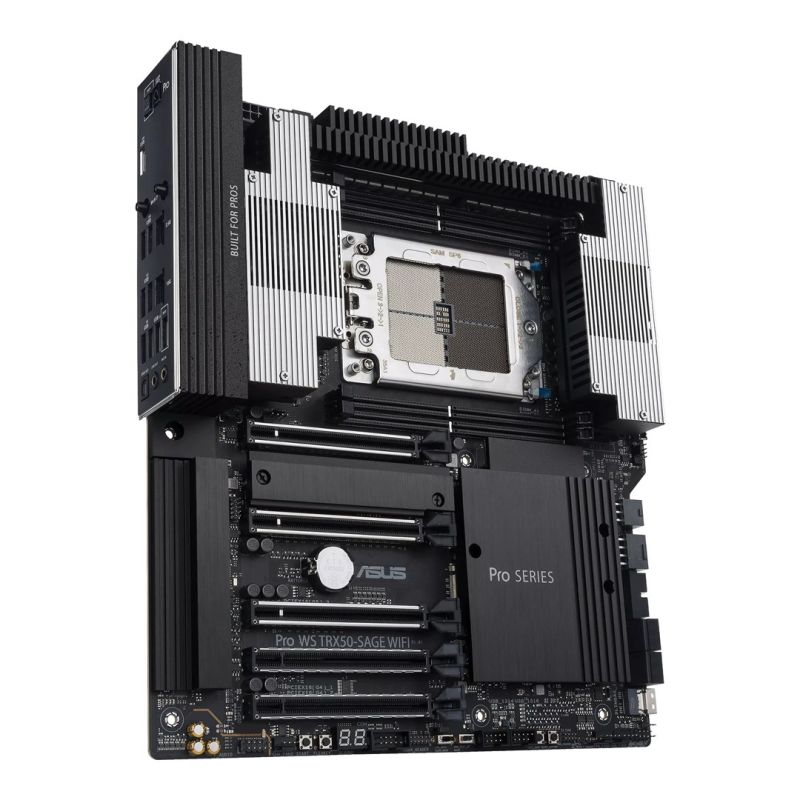

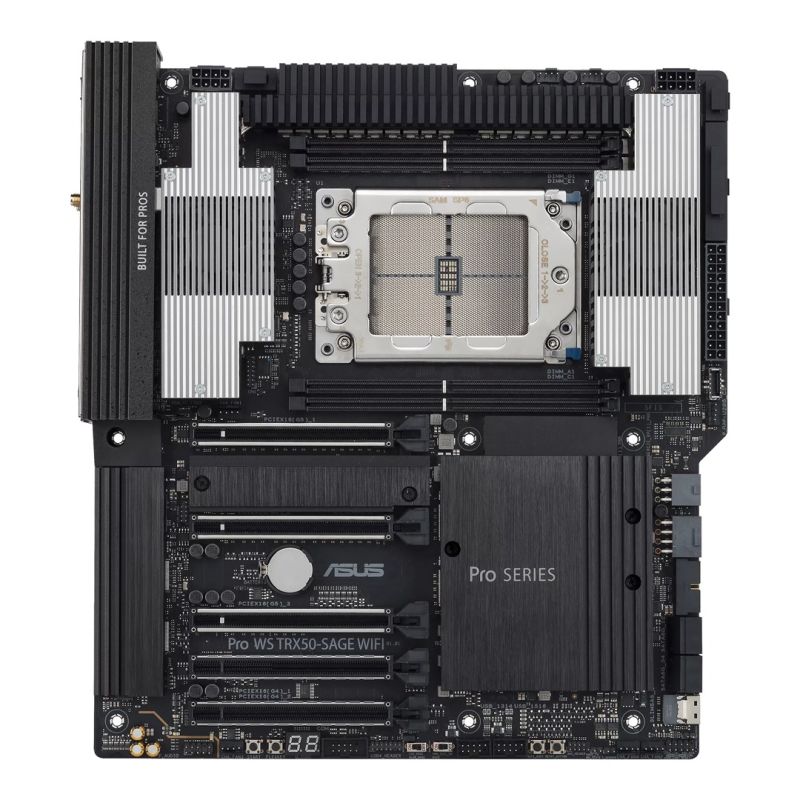

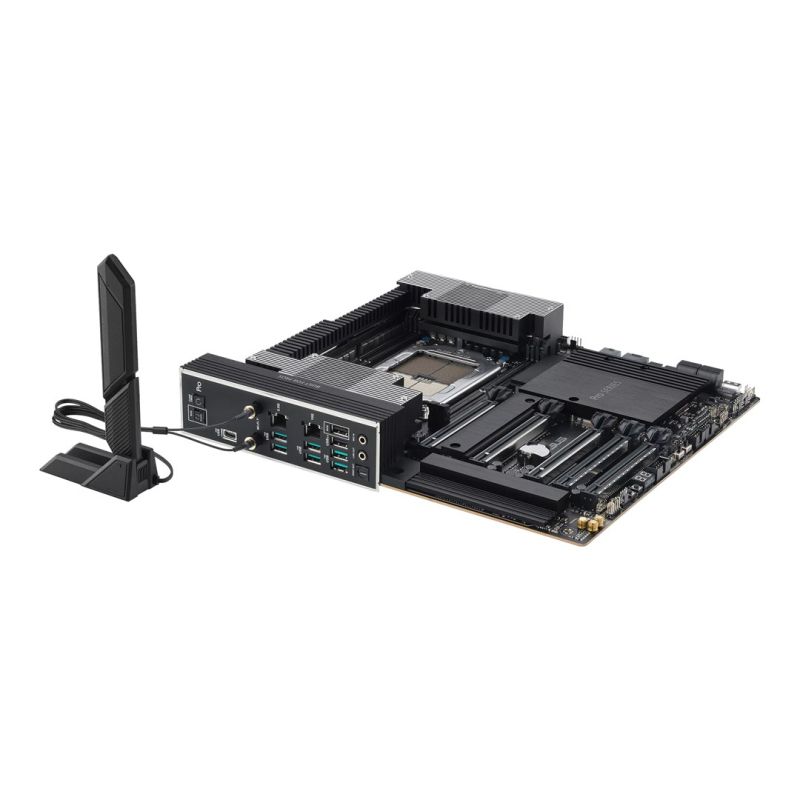

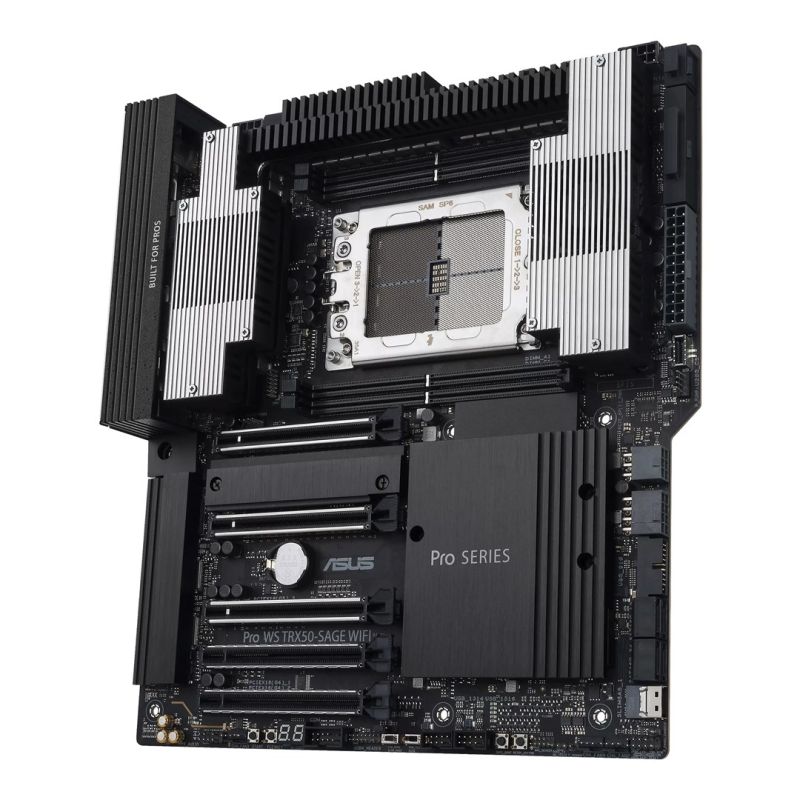

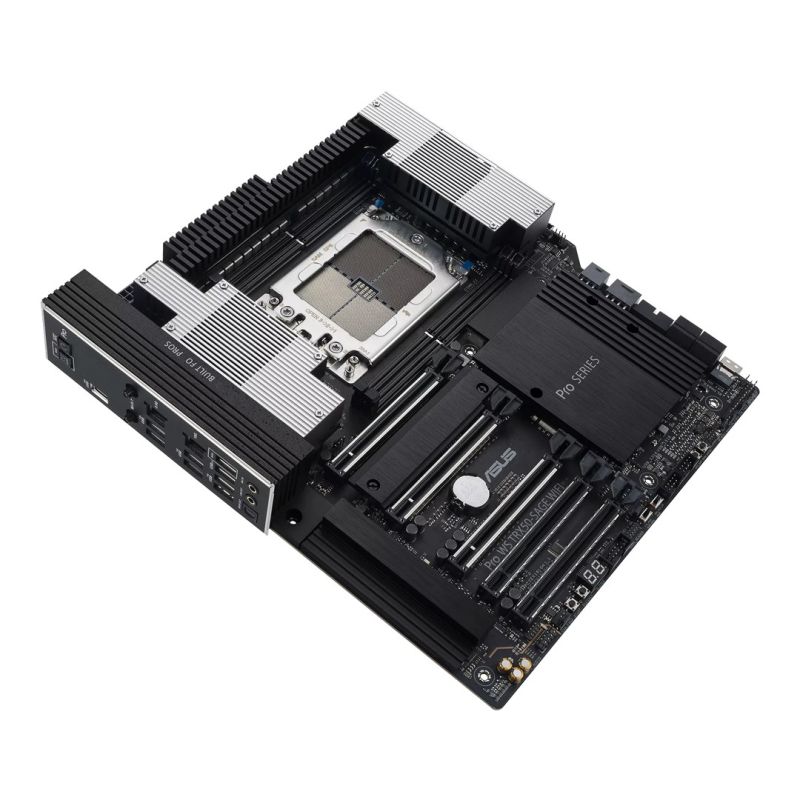

ASUS PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0EAY0 Motherboard
ASUS PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0EAY0 Motherboard
ASUS PRO WS TRX50-SAGE WIFI 90MB1FZ0-M0EAY0 Motherboard
PRICE:
1333,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Processor socket: Socket sTR5
- Processor: AMD Ryzen™ Threadripper™
- Memory
- Number of memory slots: 4
- ECC Correction: Yes
- Memory slot type: DIMM
- Memory Channel Support: Quad Channel
- Supported memory types: DDR5 ECC RDIMM
- Characteristics
- Chipset Board Family: AMD
- Product color: Black
- Audio chip: Realtek ALC1220P
- Motherboard Layout: AMD TRX50
- Motherboard Format: SSI CEB
- Purpose: Station
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Weight and dimensions
- Product depth: 280 mm
- Product width: 305 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- CPU fan connector: Yes
- Number of case fan connectors: 4
- TPM Connector: Yes
- Housing intrusion sensor connector: Yes
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- Integrated SAS ports: 1
- Number of COM sockets: 1
- USB 3.2 Gen 2x2 ports: 1
- Network
- LAN Controller: Intel I226-LM
- Bluetooth: Yes
- Ethernet network interface type
- 10 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.4
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS Button: Yes
- Packaging data
- Weight with packaging: 4.85 kg
- Package depth: 380 mm
- Package height: 100 mm
- Package width: 320 mm
- Package contents
- Cables: PCIe, SATA
- Memory drivers
- Supported drive types: HDD & SSD
- RAID levels
- 0
- 10
- 5
- 1
- RAID Service: Yes
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 7

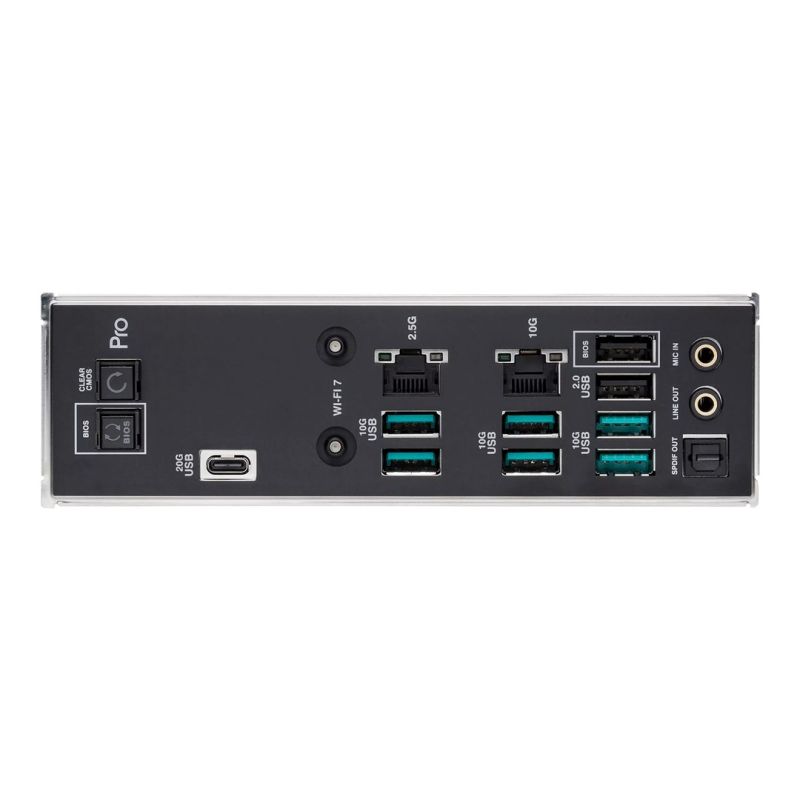

- Rear Panel I/O Ports
- Supported USB type
- USB Type-A
- USB Type-C
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 2.0 ports: 2
- S/PDIF Output Port: Yes
- WiFi-AP Antenna Jack Plug: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 6
- Microphone: Yes
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Supported USB type
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 4.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 3
- Other functions
- Product weight: 2.53 kg
- Safety warning
- Warnings
- Use only in a dry and well-ventilated place.
- Do not open or disassemble the motherboard.
- The motherboard may contain electronic components hazardous to health – avoid direct contact.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
