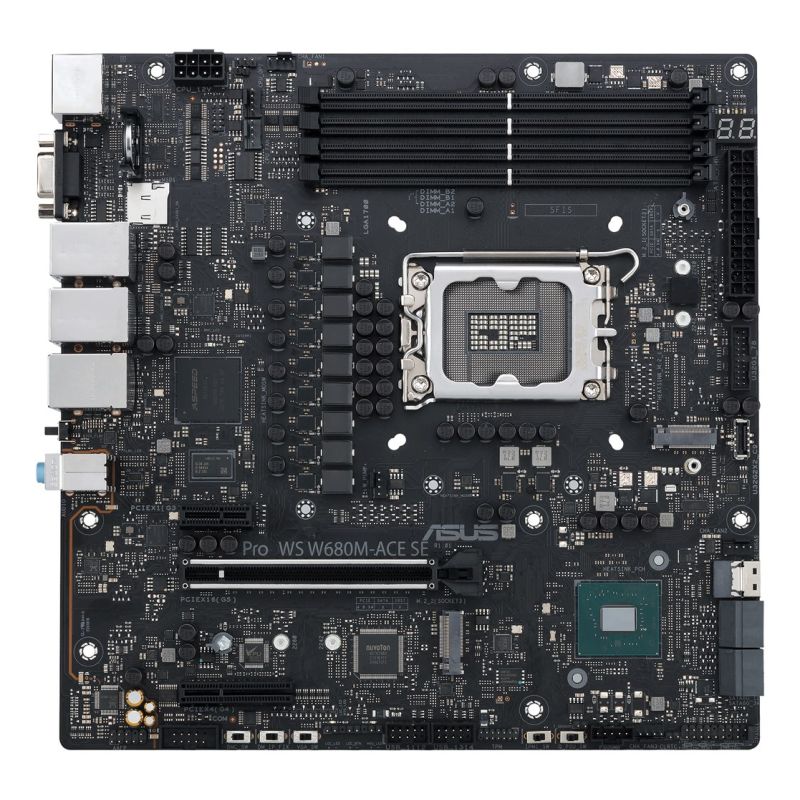

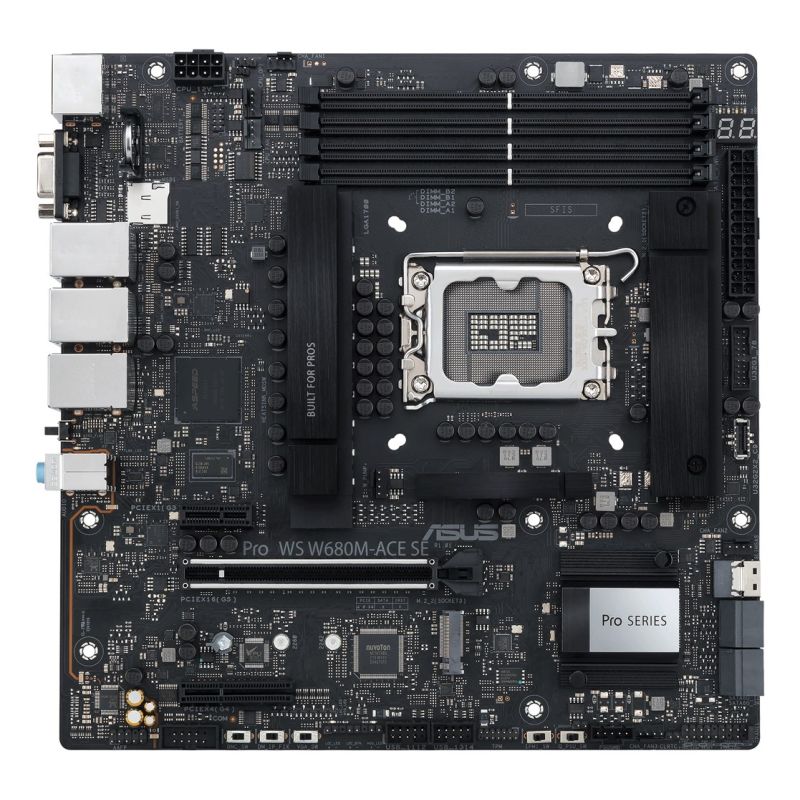

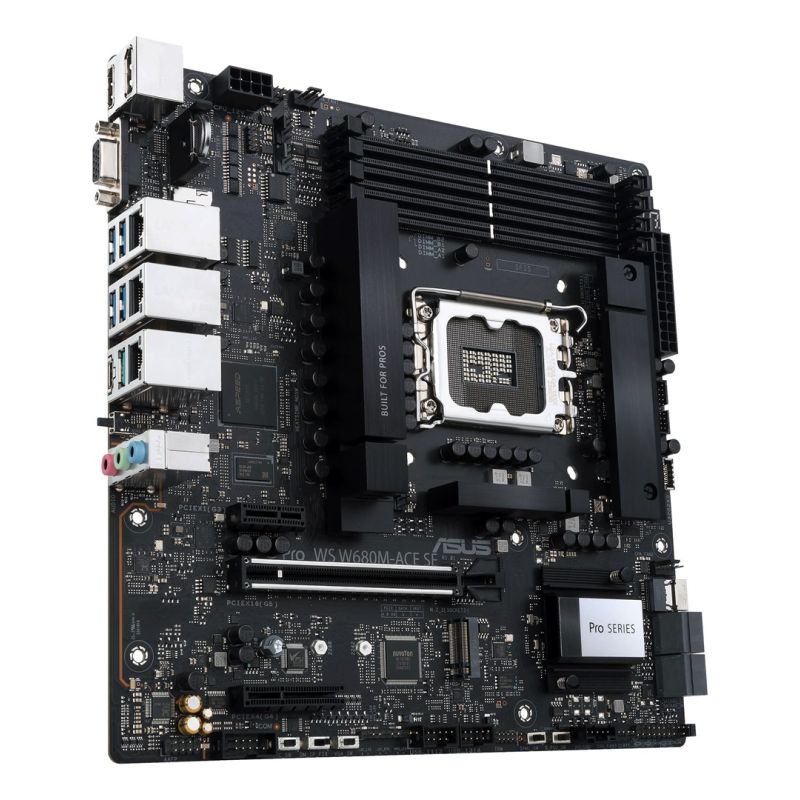

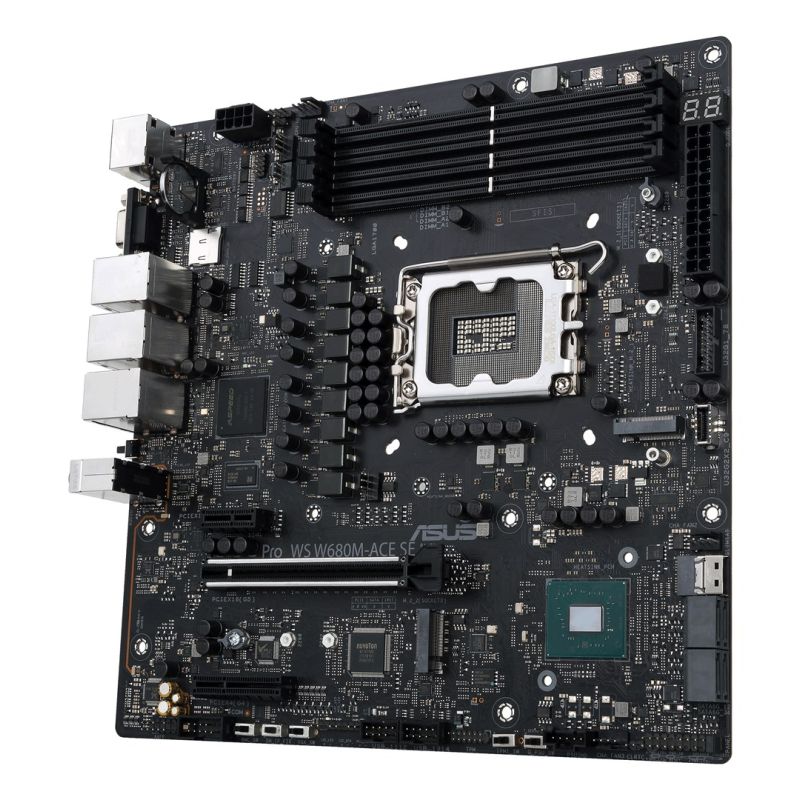

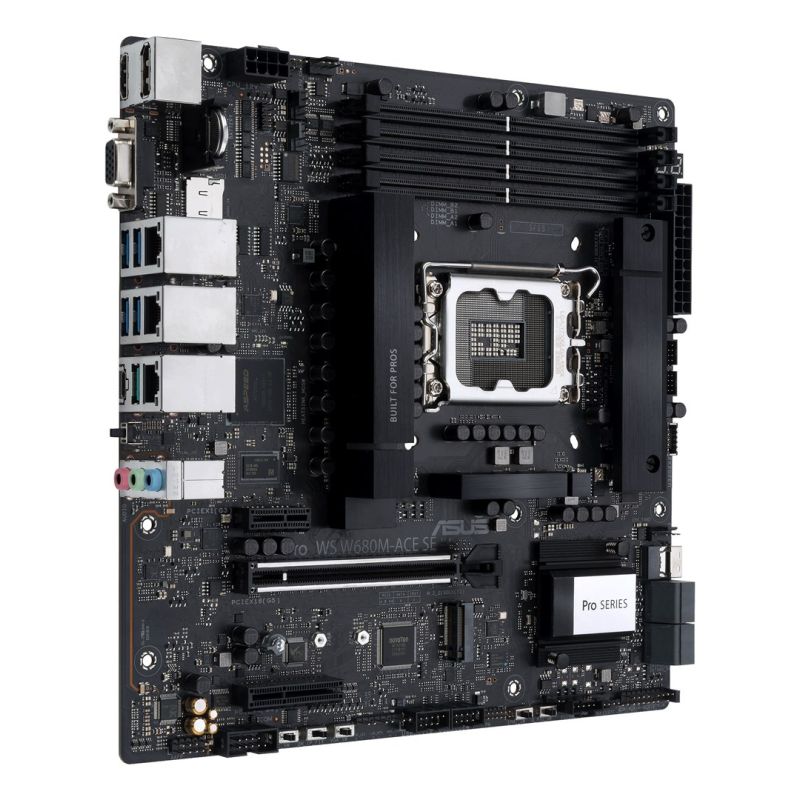

ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 Micro ATX
ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 Micro ATX
ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 Micro ATX
PRICE:
925,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor
- Intel® Core™ i5
- Intel® Core™ i7
- Intel® Core™ i9
- Intel® Core™ i3
- Processor socket: LGA 1700
- Processor manufacturer: Intel
- Supported processor sockets: LGA 1700
- Processor
- Graphics
- Parallel processing support: Not supported
- Memory
- Supported memory types: DDR5-SDRAM
- Maximum memory capacity: 192 GB
- Unbuffered memory: Yes
- Number of memory slots: 4
- Memory channel support: Dual-channel
- Memory slot type: DIMM
- ECC compatibility: Non-ECC
- Features
- Chipset family: Intel
- Power supply type: ATX
- Cooling type: Passive
- Audio output channels: 7.1 channels
- Motherboard chipset: Intel W680
- Motherboard form factor: Micro ATX
- Purpose: PC
- Supported Windows operating systems
- Windows 10
- Windows 11
- Weight and dimensions
- Product depth: 244 mm
- Product width: 244 mm
- Internal I/O
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- TPM connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 connectors: 2
- ATX power connector (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- 12V power connector: Yes
- Audio connector: Yes
- CPU fan connector: Yes
- Chassis intrusion sensor connector: Yes
- Front panel connector: Yes
- Number of chassis fan connectors: 3
- EPS power supply connector (8-pin): Yes
- Number of COM connectors: 1
- Network
- Wired LAN: Yes
- Wi-Fi: No
- Ethernet network interface type
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Packaging data
- Package depth: 275 mm
- Package width: 275 mm
- Package weight: 1.35 kg
- Package height: 67.5 mm
- Packaging content
- Cables: SATA
- User guide: Yes
- Storage controllers
- RAID levels
- 10
- 5
- 0
- 1
- Number of supported storage drive sizes: 10
- Number of supported HDDs: 8
- RAID support: Yes
- Supported hard drive interfaces: M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS
- Supported drive types: HDD & SSD
- RAID levels
- Rear panel I/O ports
- Number of HDMI ports: 1
- Line-in: Yes
- Headphone outputs: 1
- Number of Ethernet LAN ports (RJ-45): 3
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- HDMI version: 2.1
- Number of VGA ports (D-Sub): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of DisplayPort ports: 1
- Number of SAS ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Expansion slots
- Number of M.2 (M) slots: 2
- PCI Express x4 slots (Gen 4.x): 1
- PCI Express x1 slots (Gen 3.x): 1
- PCI Express x16 slots (Gen 5.x): 1
- Other features
- Back-to-BIOS button: Yes
- Product weight: 820 g
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | Asus |
| Department | Electronics |
