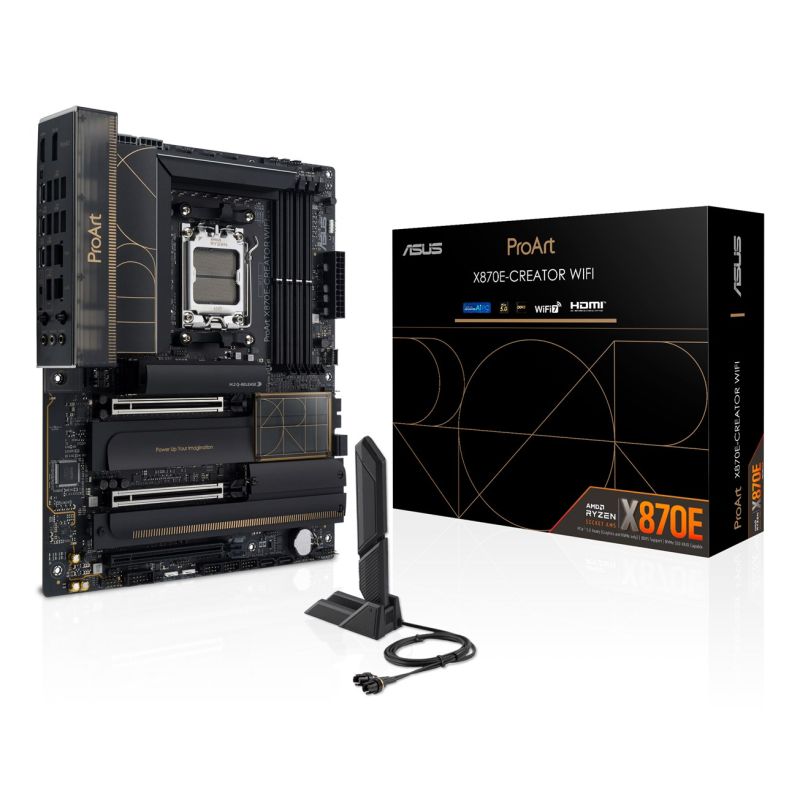

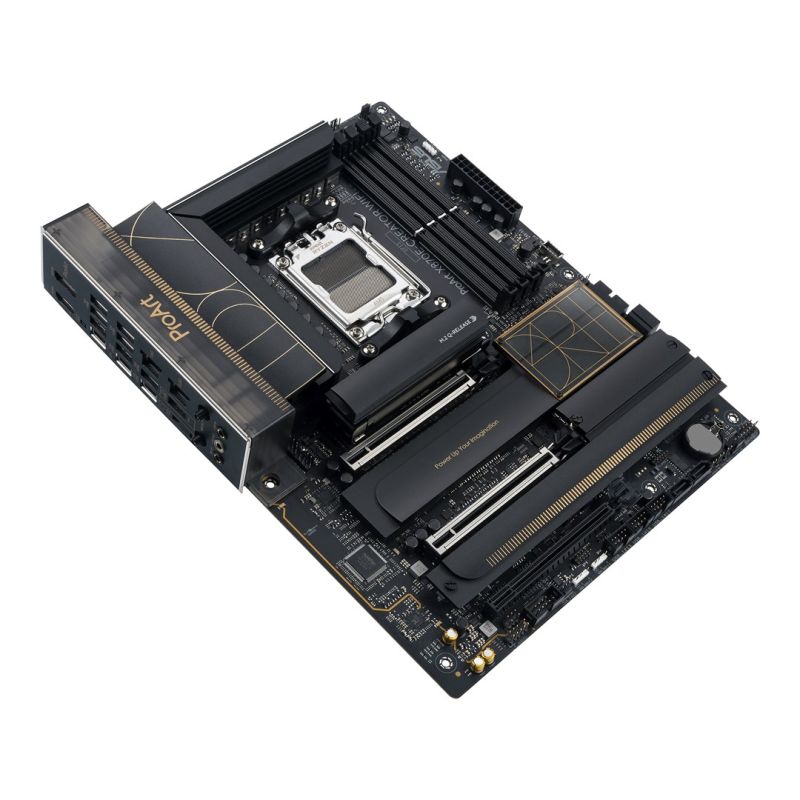

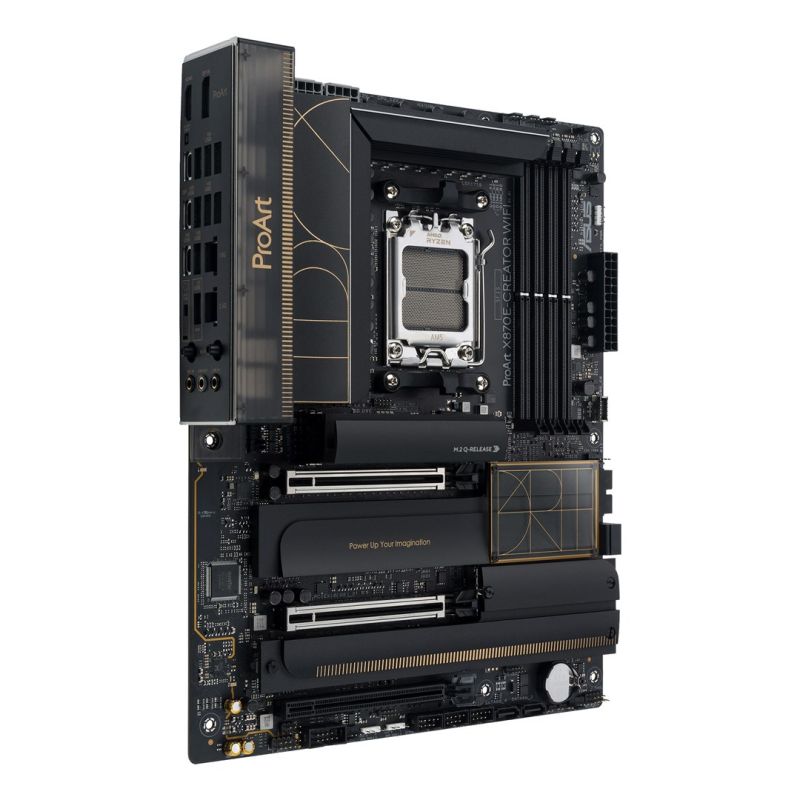

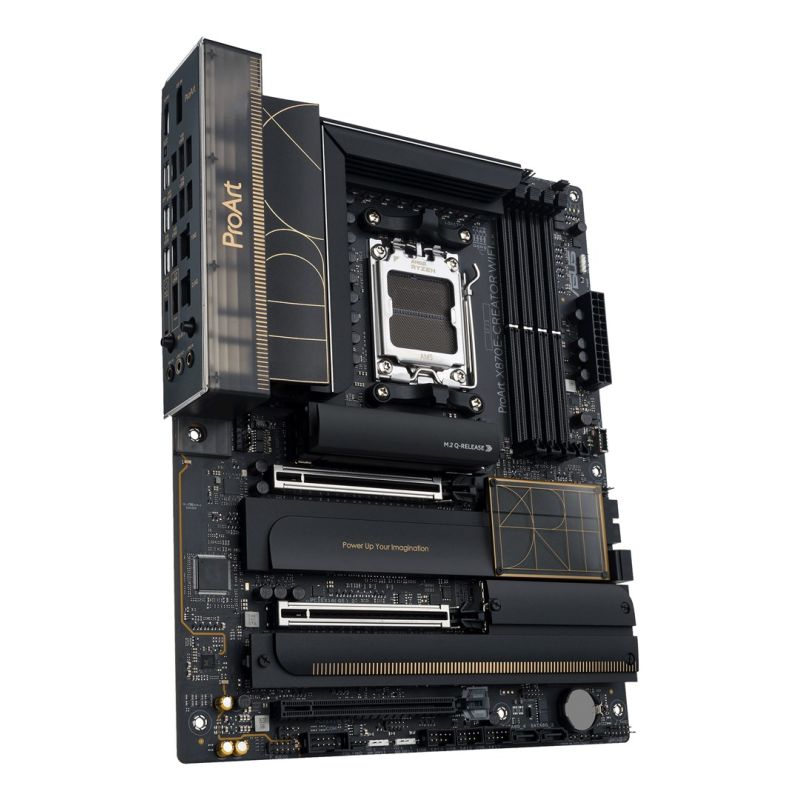

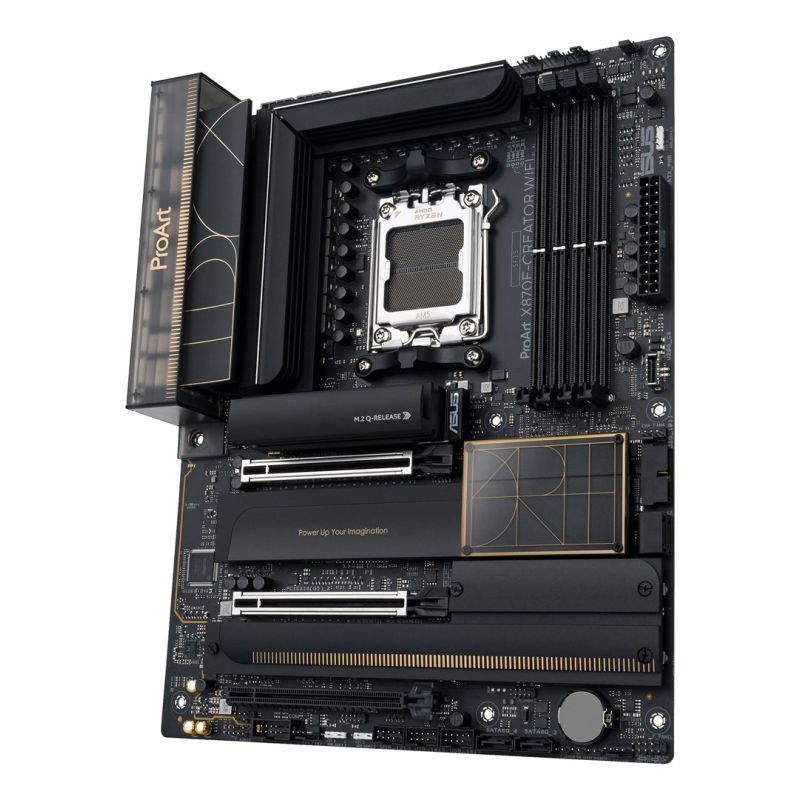

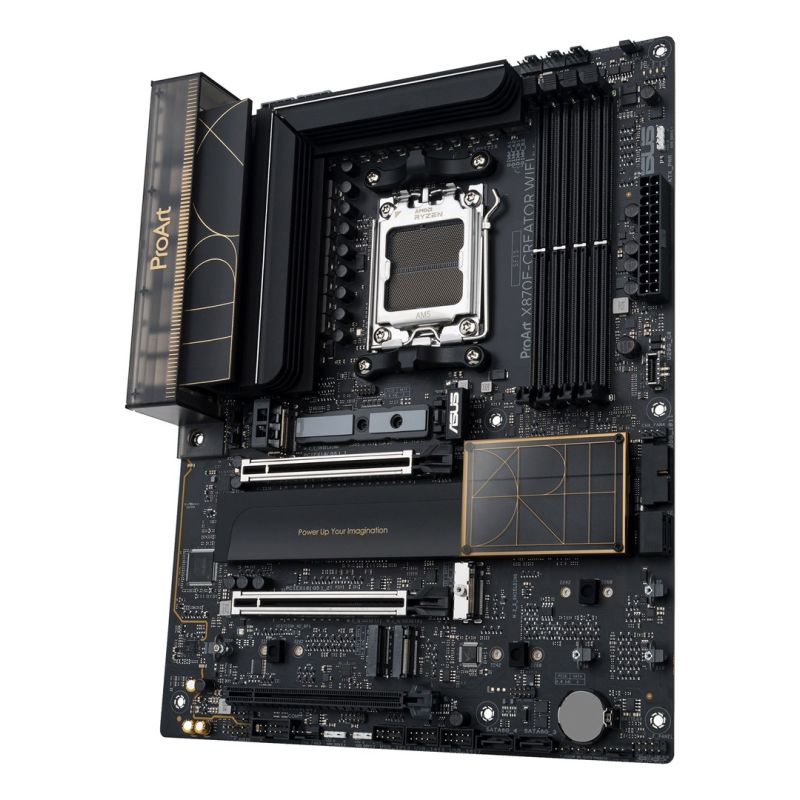

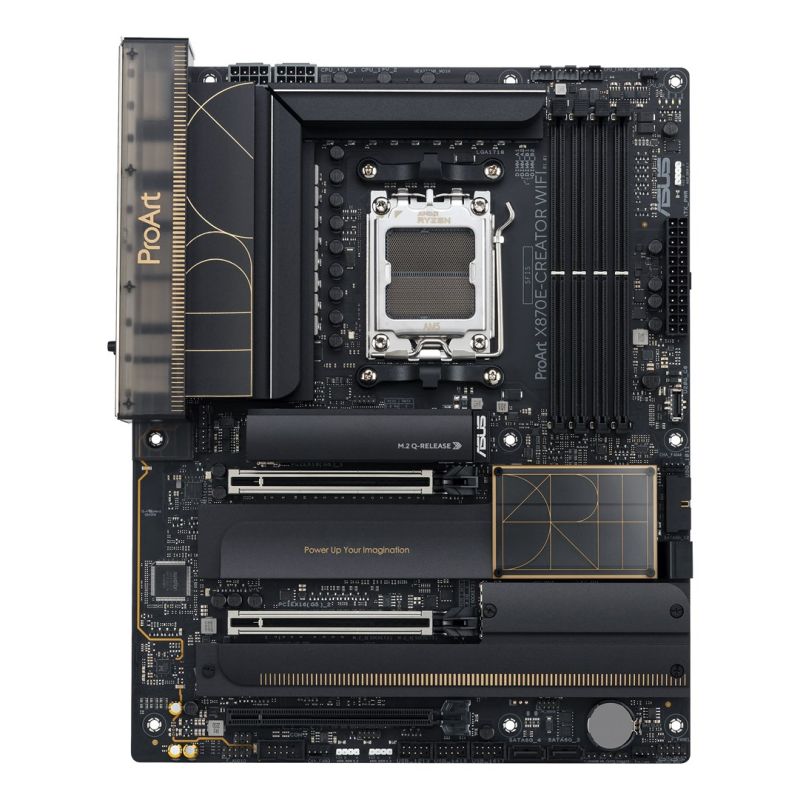

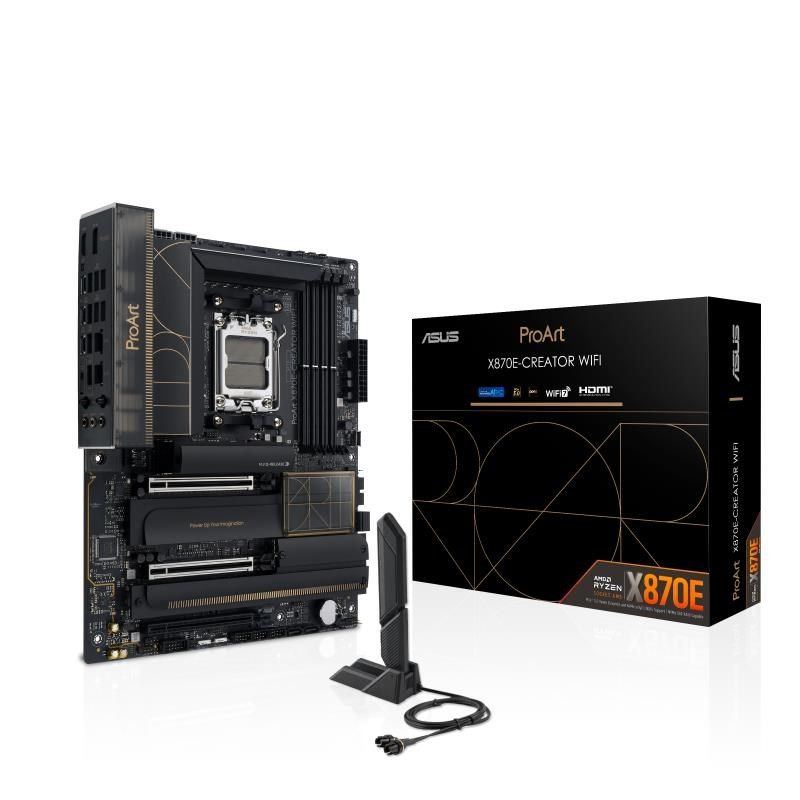

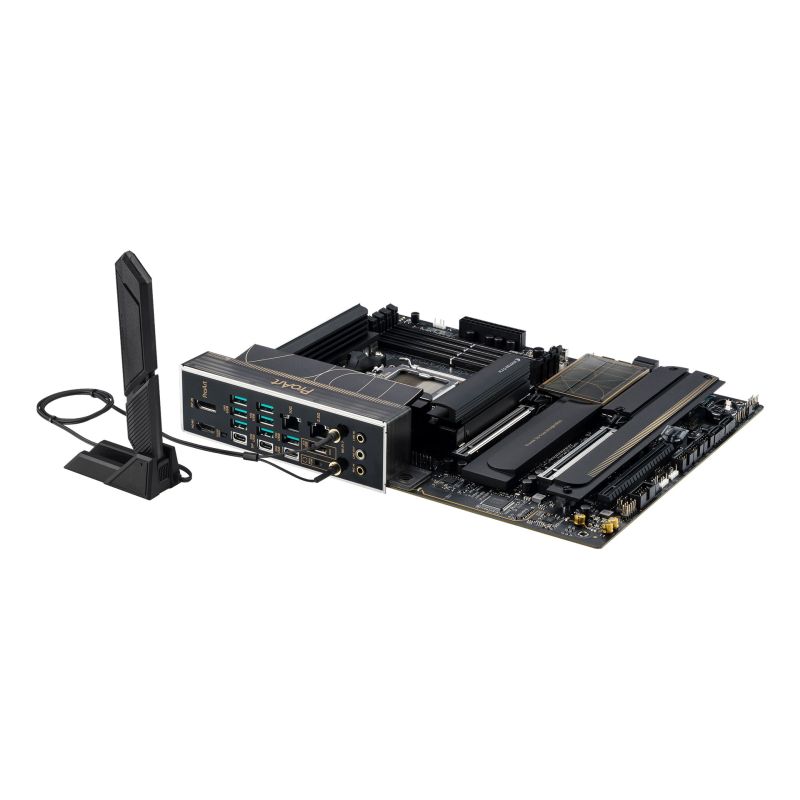

ASUS PROART X870E-CREATOR WIFI Motherboard
ASUS PROART X870E-CREATOR WIFI Motherboard
ASUS PROART X870E-CREATOR WIFI Motherboard
PRICE:
716,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Memory Channel Support: Dual Channel
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Maximum memory capacity: 192 GB
- Unbuffered memory: Yes
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Supported Windows operating systems: Windows 11
- Audio chip: Realtek S1220A
- Motherboard Layout: AMD X870E
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Motherboard format: ATX
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- CPU fan connector: Yes
- Housing intrusion sensor connector: Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- ATX power socket (24-pin): Yes
- 12V power connector: Yes
- Number of case fan connectors: 5
- Number of SATA III connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of USB 2.0 ports: 3
- USB 3.2 Gen 2x2 ports: 1
- Network
- Bluetooth version: 5.4
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Ethernet network interface type
- 10 Gigabit Ethernet
- 2.5 Gigabit Ethernet
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Package contents
- Cables: DisplayPort, SATA
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- RAID levels
- 5
- 10
- 0
- 1
- RAID Service: Yes
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III

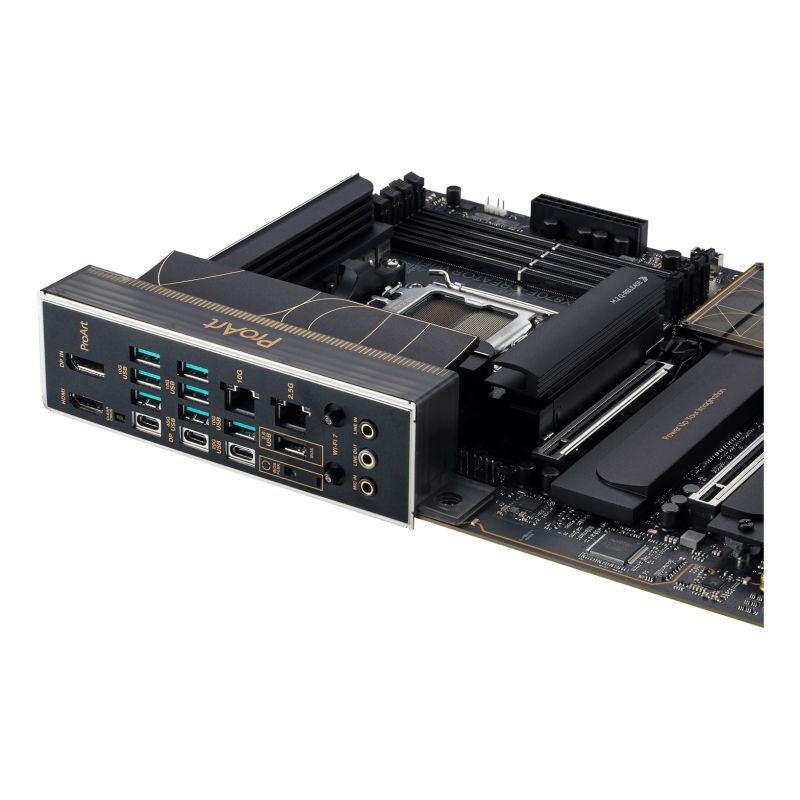

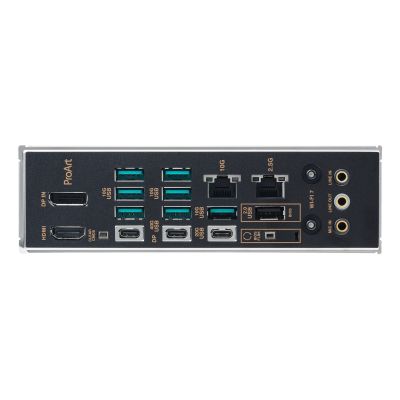

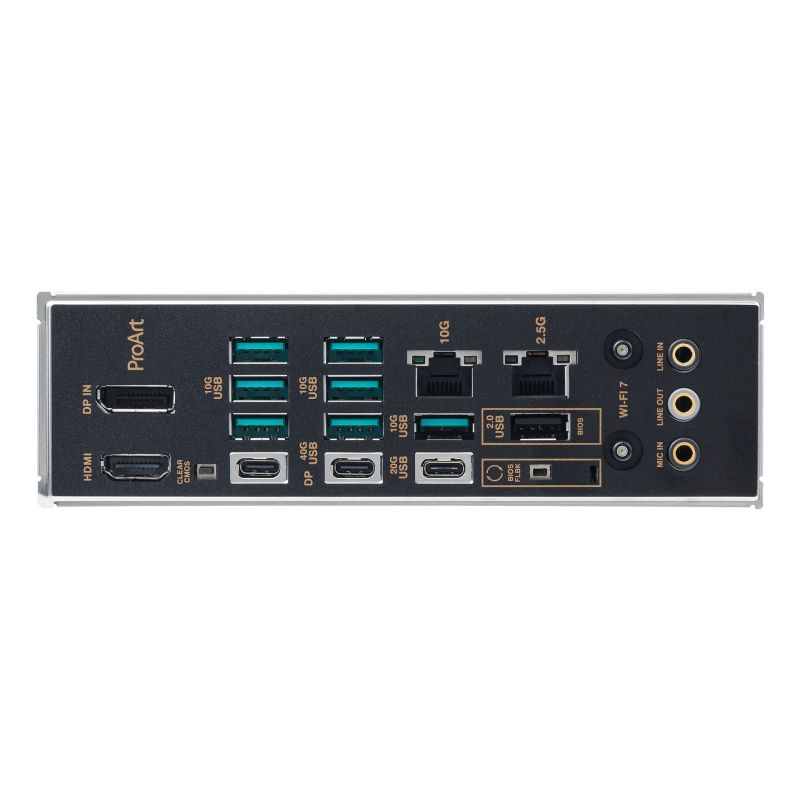

- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 2
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Microphone: Yes
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 7
- WiFi-AP Antenna Jack Plug: 1
- Number of USB 2.0 ports: 1
- Number of USB4 Gen 2x2 ports: 2
- Number of HDMI ports: 1
- DisplayPort Quantity: 1
- Expansion slots
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
