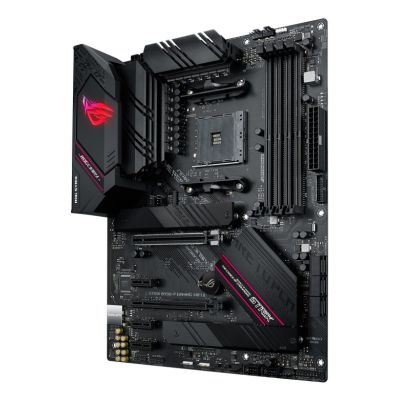

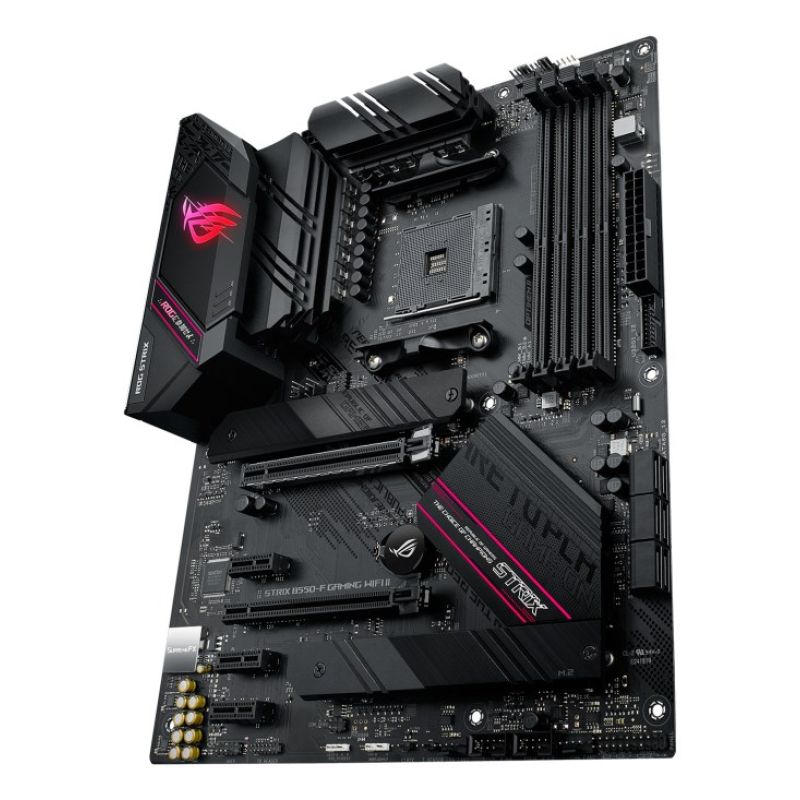

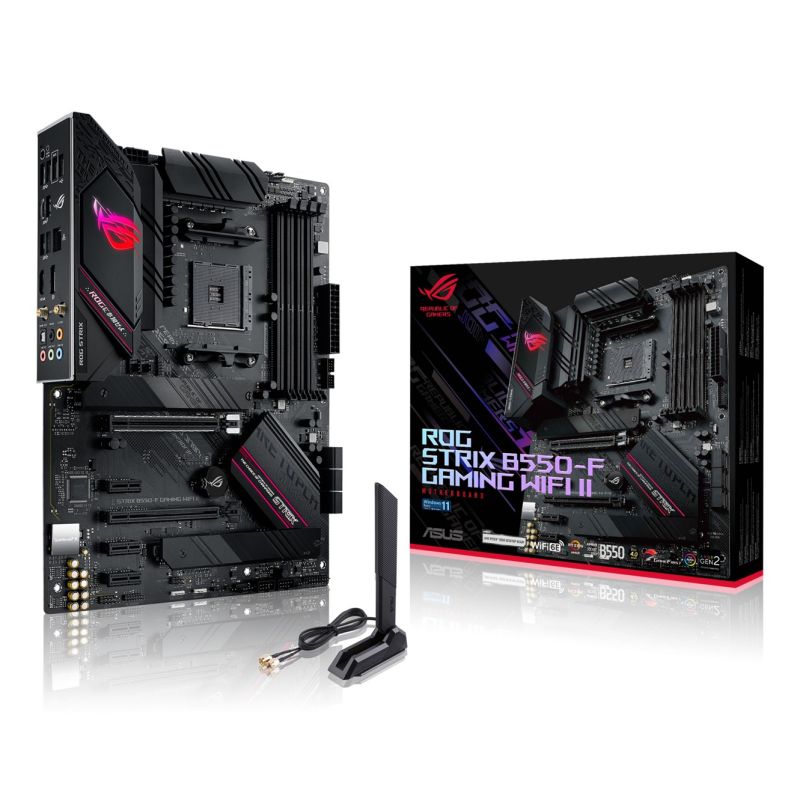

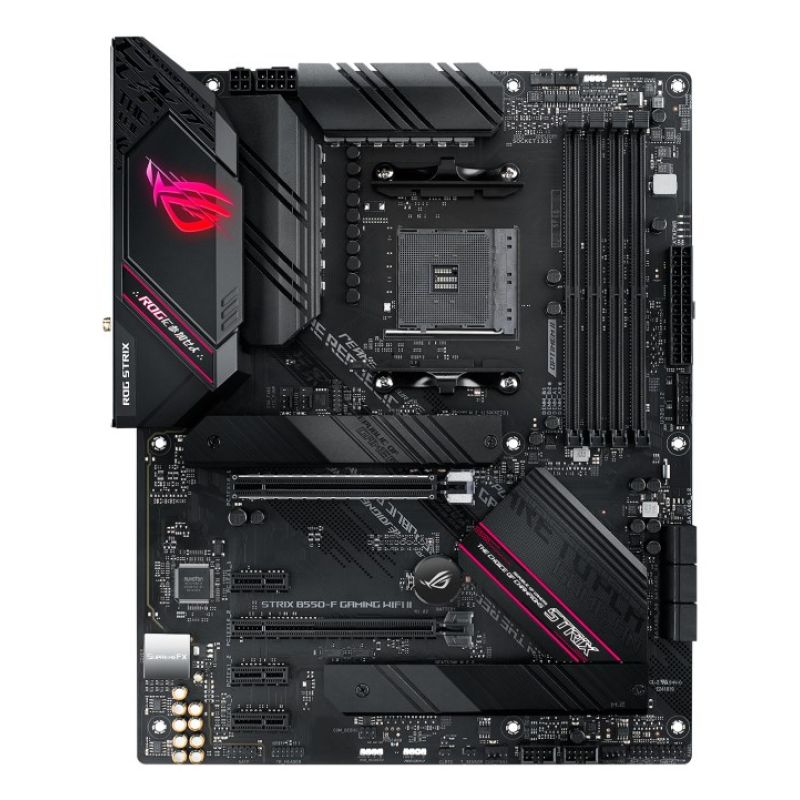

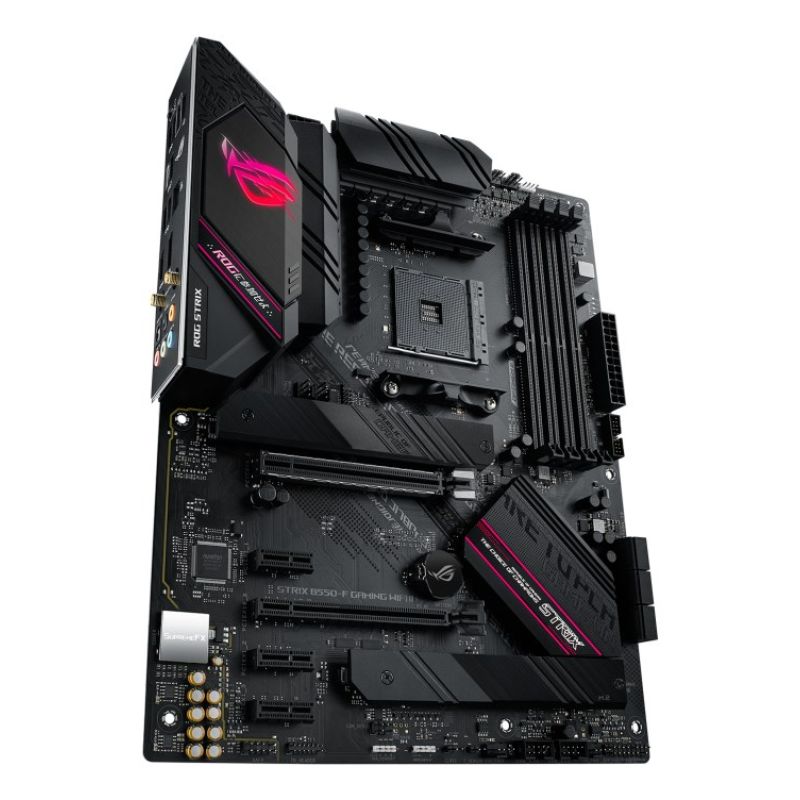

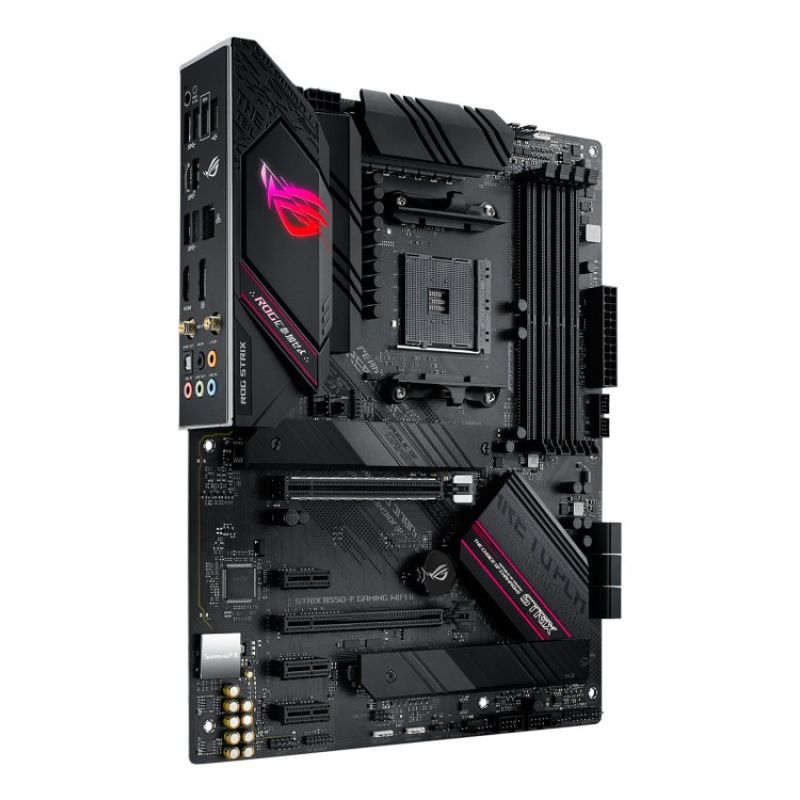

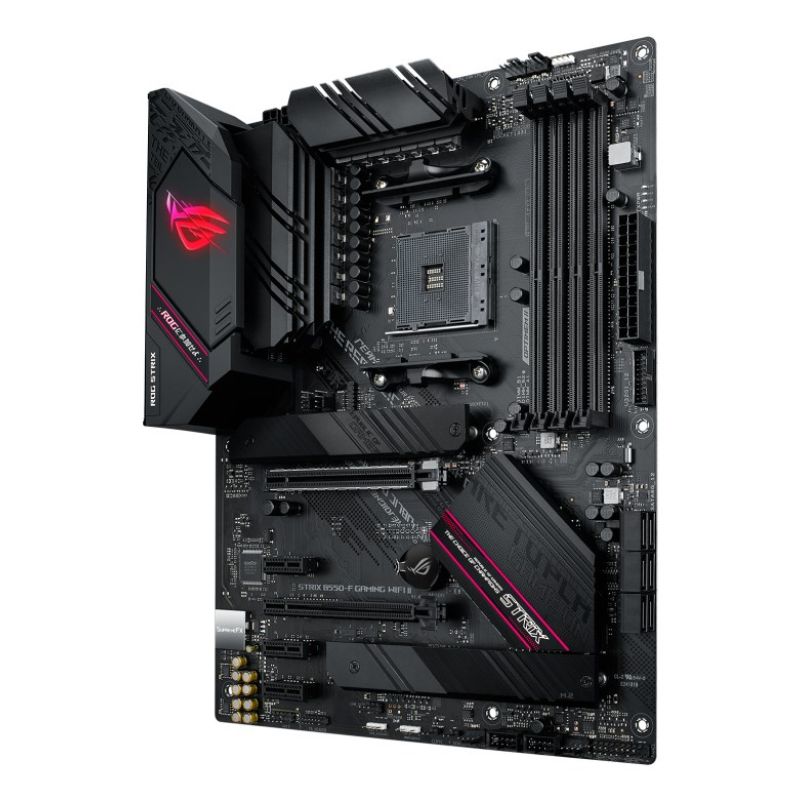

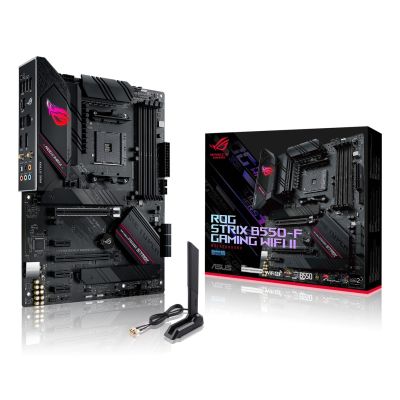

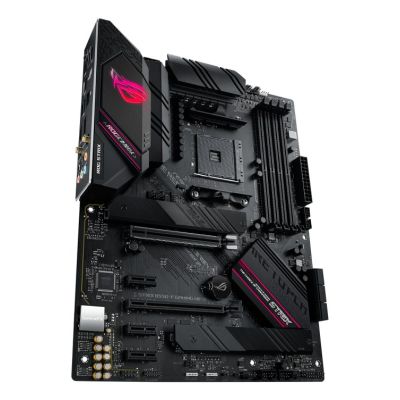

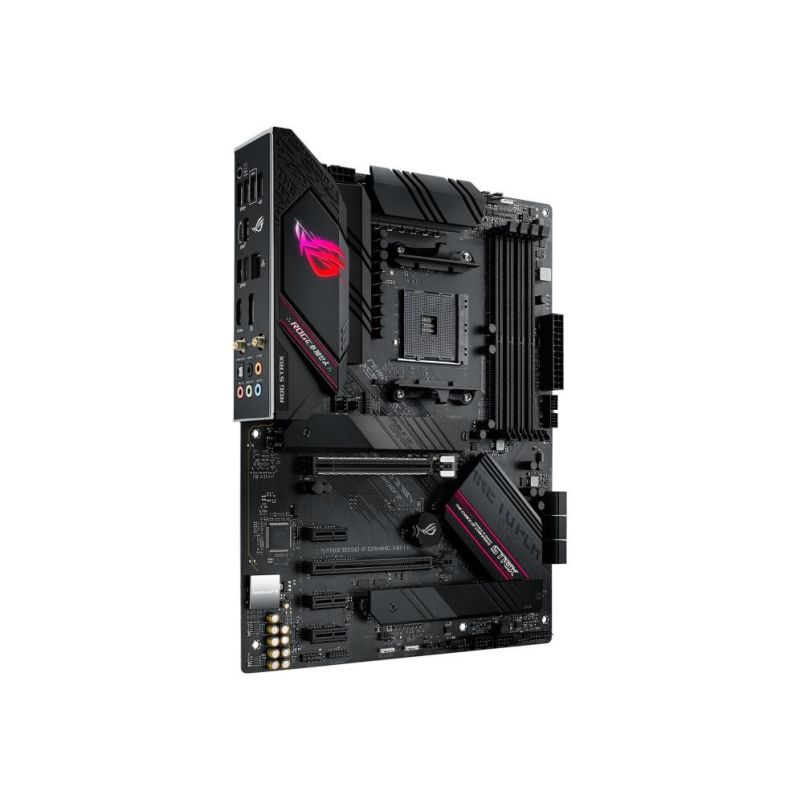

Asus ROG STRIX B550-F GAMING WIFI II motherboard
Asus ROG STRIX B550-F GAMING WIFI II motherboard
Asus ROG STRIX B550-F GAMING WIFI II motherboard
PRICE:
219,99
€
IN A WAREHOUSE
above 10 pcs
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM4
- Processor: AMD Ryzen 3000 Series
- Maximum number of SMP processors: 1
- Processor manufacturer: AMD
- Supported processor sockets: Socket AM4
- Graphics
- Parallel Processing Support: Not Supported
- Built-in graphics card: No
- Memory
- ECC Compatibility: ECC
- Supported memory clock speeds
- 4133 MHz
- 3866 MHz
- 4600 MHz
- 3000 MHz
- 2133 MHz
- 2800 MHz
- 4400 MHz
- 3200 MHz
- 2666 MHz
- 3466 MHz
- 3600 MHz
- 2400 MHz
- 4000 MHz
- Maximum memory capacity: 128 GB
- Memory slot type: DIMM
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Characteristics
- Product color: Black
- Supported Windows operating systems
- Windows 10 Education
- Windows 10 Education x64
- Windows 10 Enterprise x64
- Windows 10
- Windows 10 Home x64
- Windows 10 IoT Core
- Windows 10 Enterprise
- Windows 10 Pro x64
- Windows 10 Home
- Windows 10 Pro
- Windows 10 IoT Enterprise
- Windows 10 x64
- Cooling type: Active
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Power supply type: ATX
- Motherboard Layout: AMD B550
- Motherboard format: ATX
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Product height: 68 mm
- Internal I/O
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 6
- Number of EATX sockets: 1
- EPS power supply connector (8-pin): Yes
- 12V power connector: Yes
- Number of case fan connectors: 3
- Thunderbolt Ends: 1
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- RGB LED: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Network
- Wake-On-LAN: Yes
- Bluetooth: Yes
- LAN Controller: Intel I225-V
- Wi-Fi standards
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- Wired LAN: Yes
- Bluetooth version: 5.2
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- Cables: SATA
- Drivers included: Yes
- Memory drivers
- RAID levels
- 1
- 10
- 0
- Supported hard drive interfaces: M.2, SATA III
- Number of supported HDDs: 6
- Supported drive types: HDD & SSD
- RAID Service: Yes
- RAID levels
- Rear Panel I/O Ports
- DisplayPort version: 1.2
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 2.0 ports: 2
- Microphone: Yes
- Headphone outputs: 1
- HDMI version: 2.1
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x1 (Gen 3.x) slots: 3
- Number of M.2 (M) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 945 g
- Logistics data
- Harmonized System (HS) code: 84733020
- Safety warning
- Warnings
- Avoid direct contact with sensitive electronic components.
- Store away from water and sources of moisture.
- Dispose of in accordance with local regulations regarding electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
