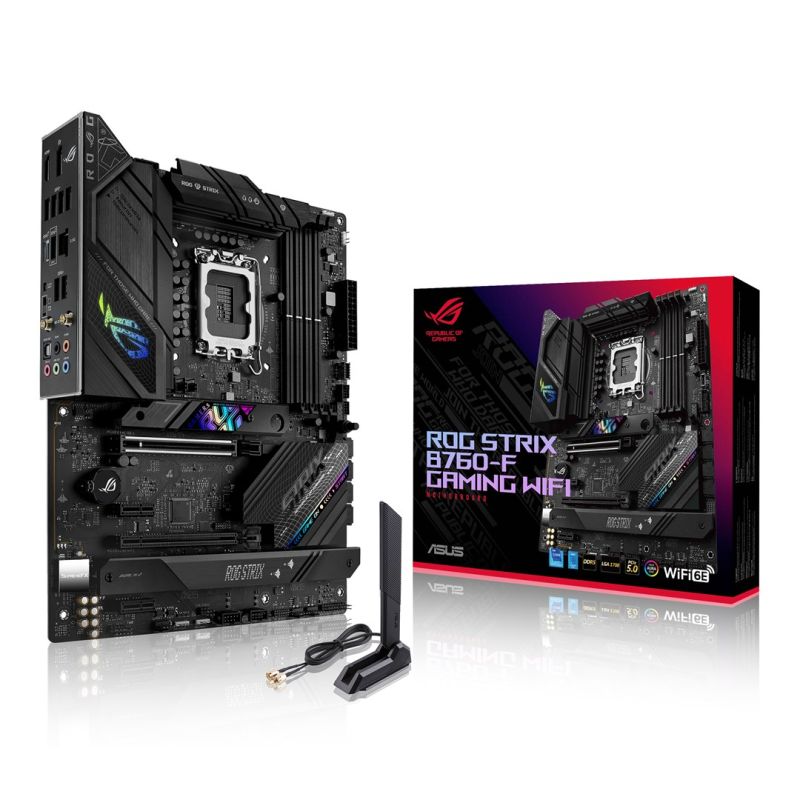

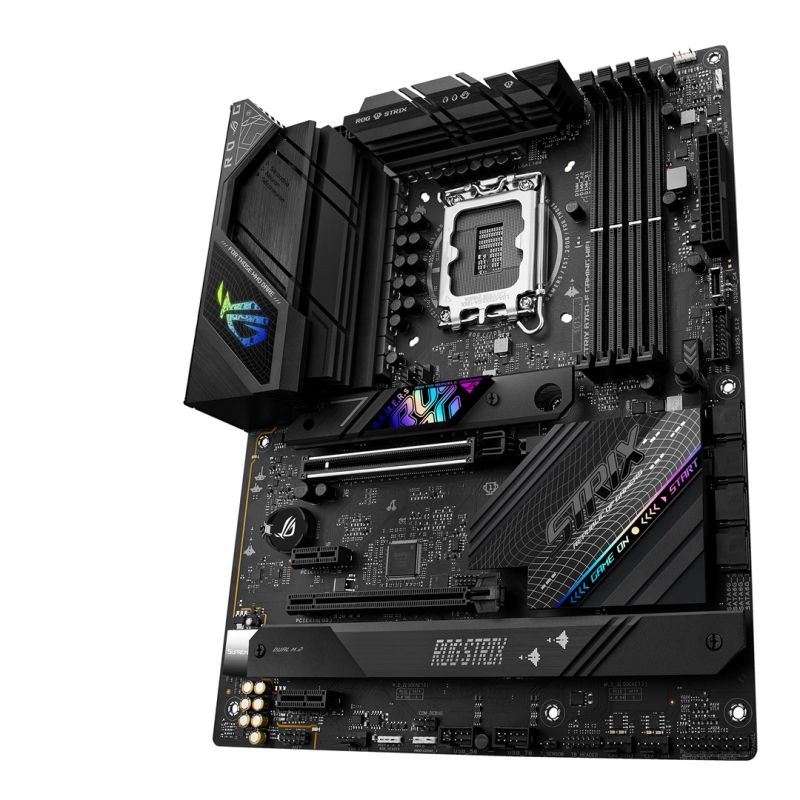

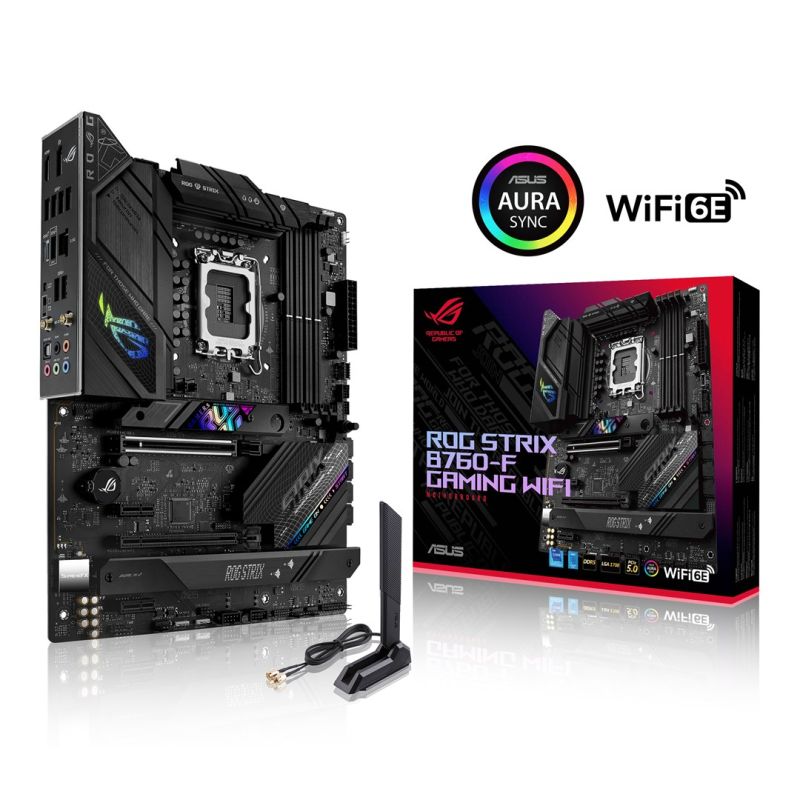

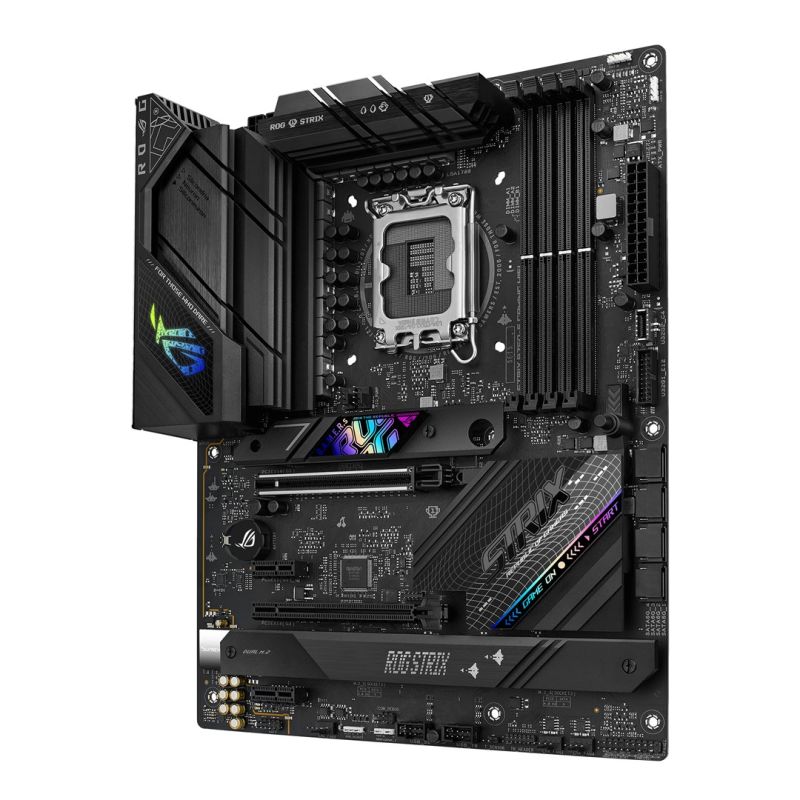

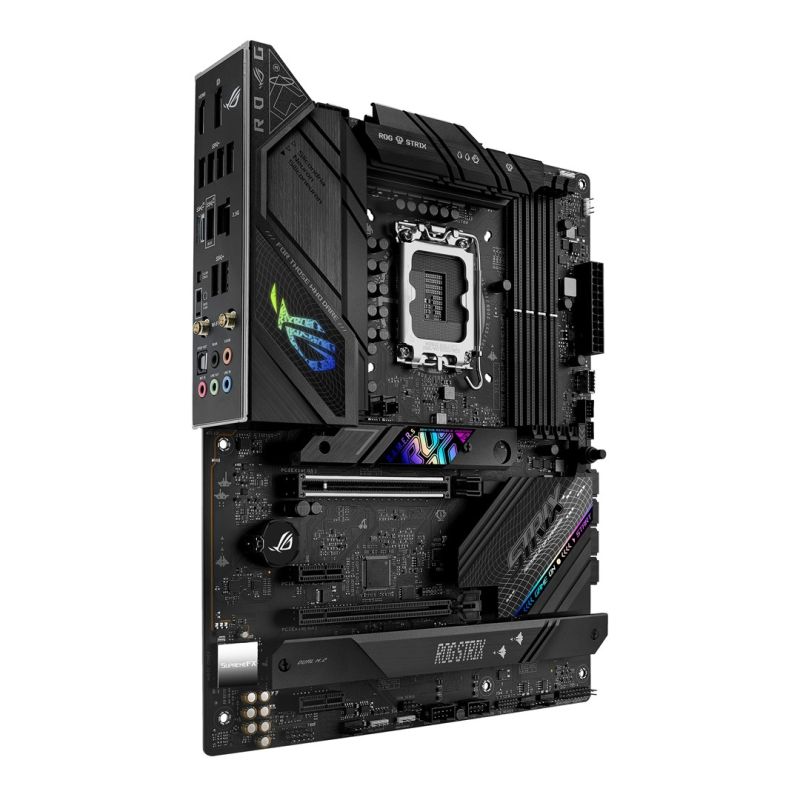

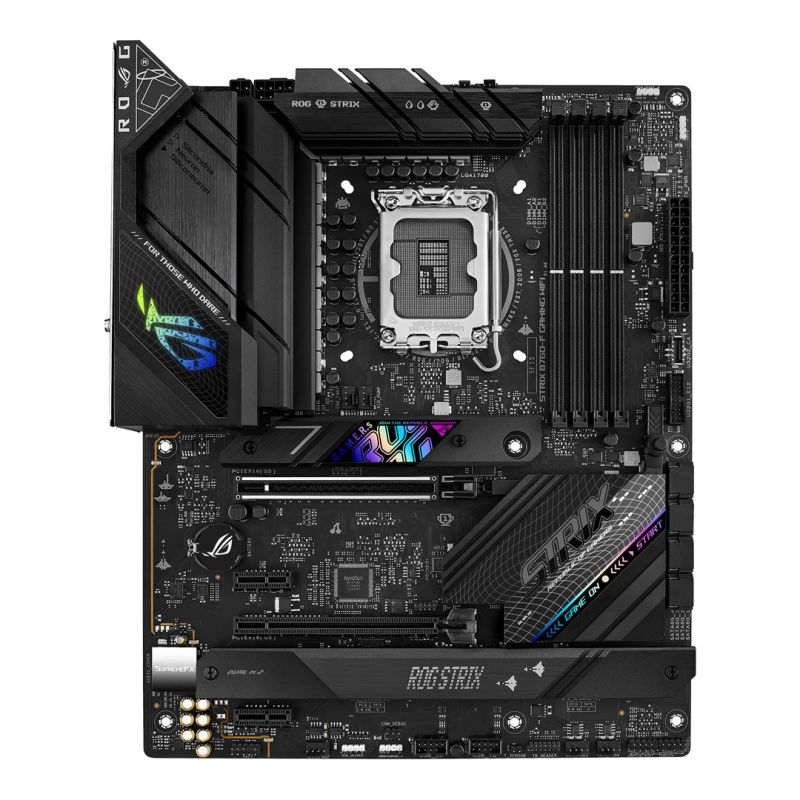

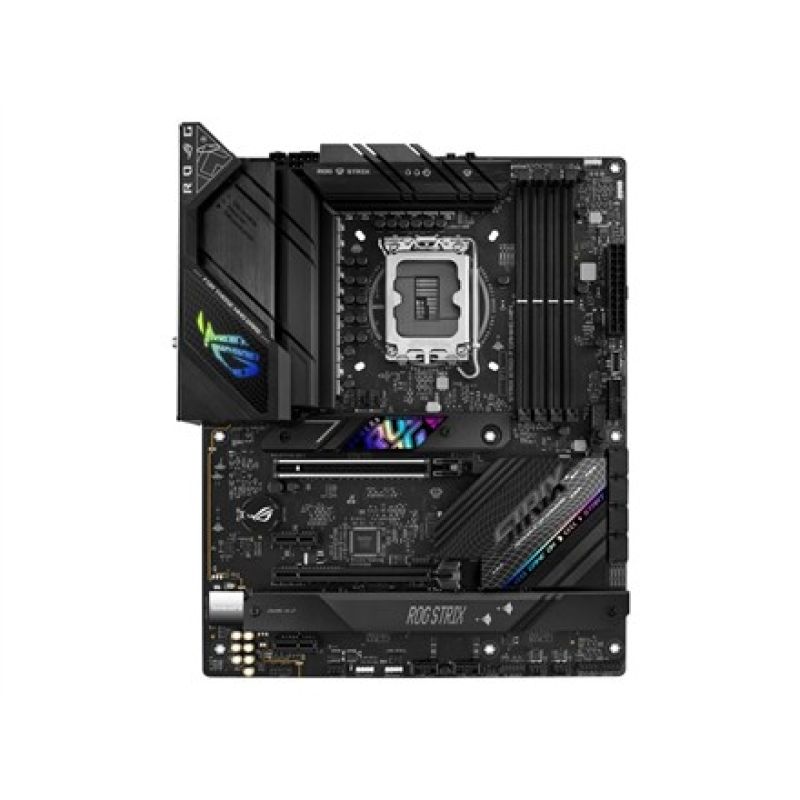

ASUS ROG STRIX B760-F GAMING WIFI Motherboard
ASUS ROG STRIX B760-F GAMING WIFI Motherboard
ASUS ROG STRIX B760-F GAMING WIFI Motherboard
PRICE:
367,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Supported CPU sockets: LGA 1700
- Maximum number of SMP processors: 1
- Processor
- Intel® Core™ i9
- Intel® Core™ i7
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i3
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Supported memory clock speed (max): 7800 MHz
- Supported memory clock speeds
- 5000 MHz
- 5600 MHz
- 6400 MHz
- 4800 MHz
- 7000
- 6000 MHz
- 6200 MHz
- 5200 MHz
- 5800 MHz
- 5400 MHz
- 6600
- 6800
- 7800
- Unbuffered memory: Yes
- Maximum memory capacity: 192 GB
- Characteristics
- Supported Windows operating systems
- Windows 10
- Windows 11
- Chipset Board Family: Intel
- Power supply type: ATX
- Cooling type: Passive
- Audio output channels: 7.1 ch.
- Product color: Black
- Audio chip: Realtek ALC4080
- Motherboard Layout: Intel B760
- Motherboard format: ATX
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- 12V power connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Front panel connector: Yes
- CPU fan connector: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Number of case fan connectors: 4
- RGB LED: Yes
- Housing intrusion sensor connector: Yes
- EPS power supply connector (8-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Number of USB 2.0 ports: 2
- Thunderbolt Ends: 1
- Network
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 6E (802.11ax)
- Wi-Fi 6 (802.11ax)
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Bluetooth version: 5.3
- Bluetooth: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Packaging data
- Package depth: 71 mm
- Package height: 265 mm
- Package width: 280 mm
- Weight with packaging: 1.27 kg
- Package contents
- Cables: SATA
- User Guide: Yes
- Memory drivers
- RAID levels
- 10
- 0
- 1
- 5
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 7
- RAID Service: Yes
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- Rear Panel I/O Ports
- Microphone: Yes
- HDMI version: 2.1
- Headphone outputs: 1
- Line Input: Yes
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 6
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- WiFi-AP Antenna Jack Plug: 2
- DisplayPort version: 1.4
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 3
- PCI Express x1 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 5.x) slots: 1
- Other functions
- Back-to-BIOS button: Yes
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
