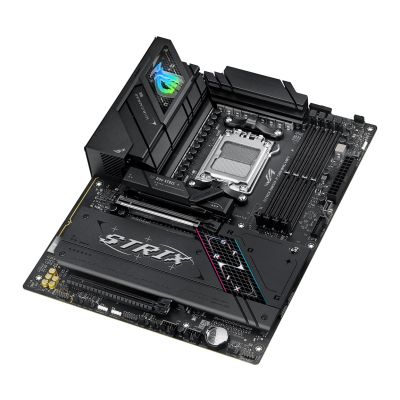

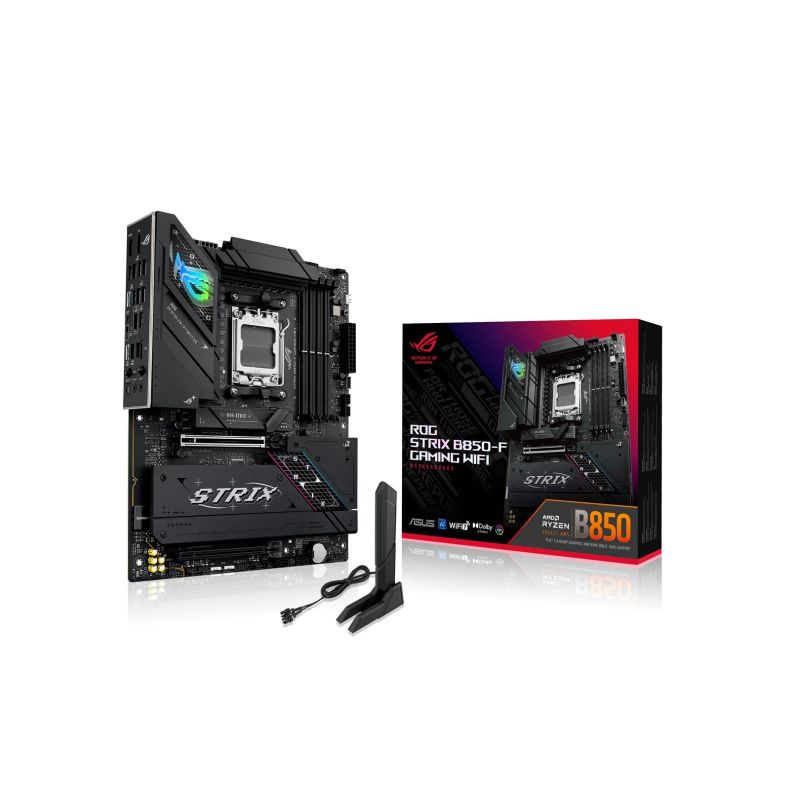

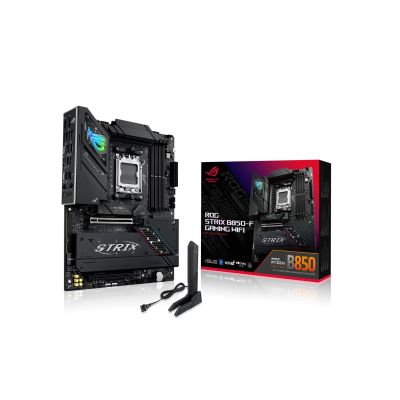

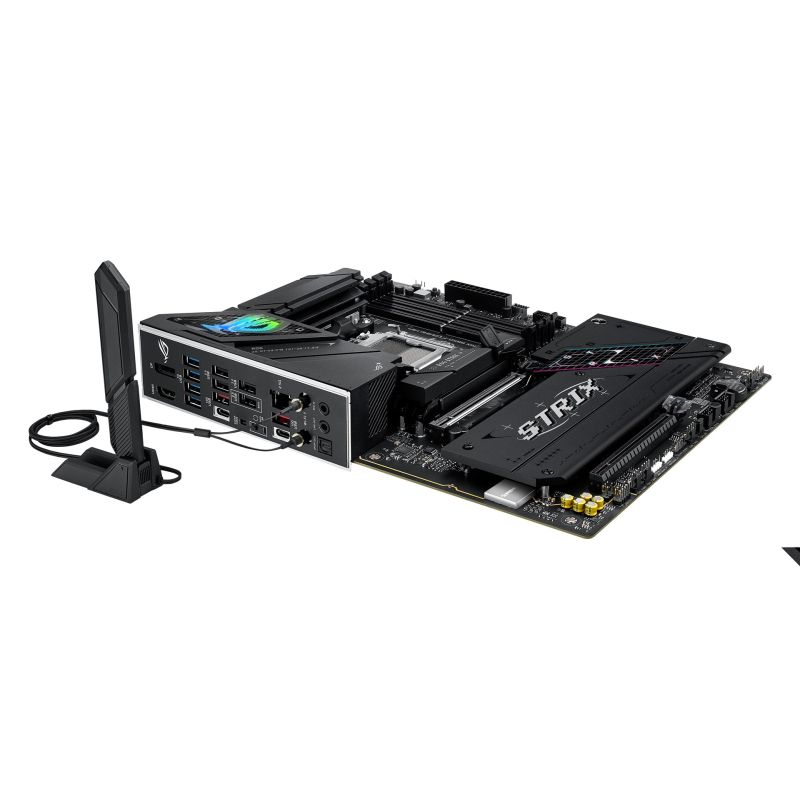

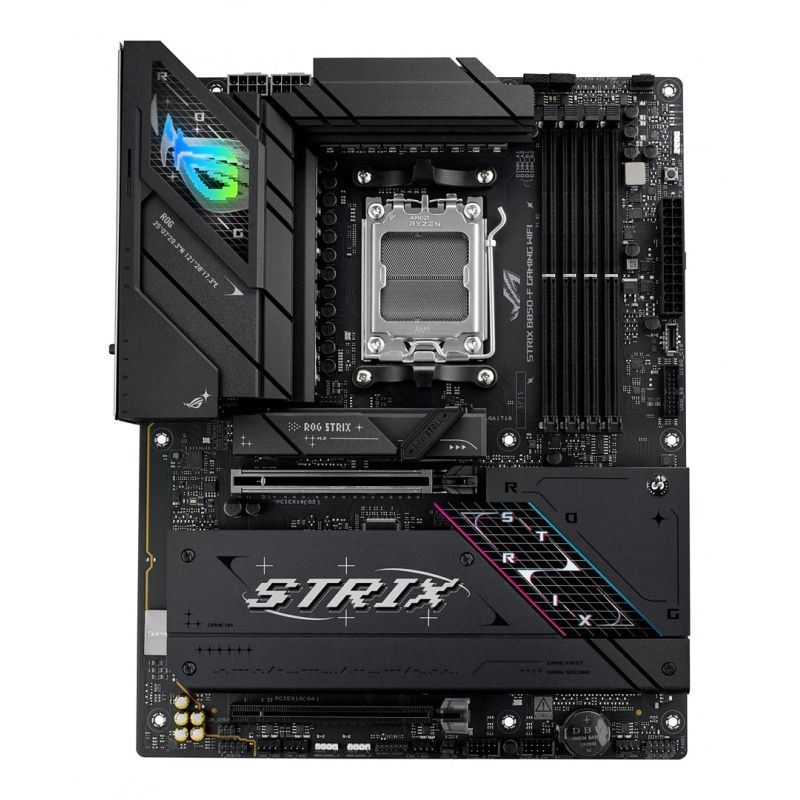

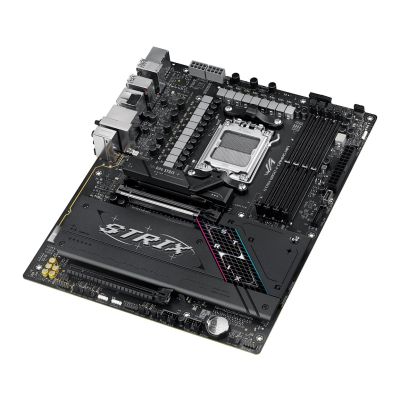

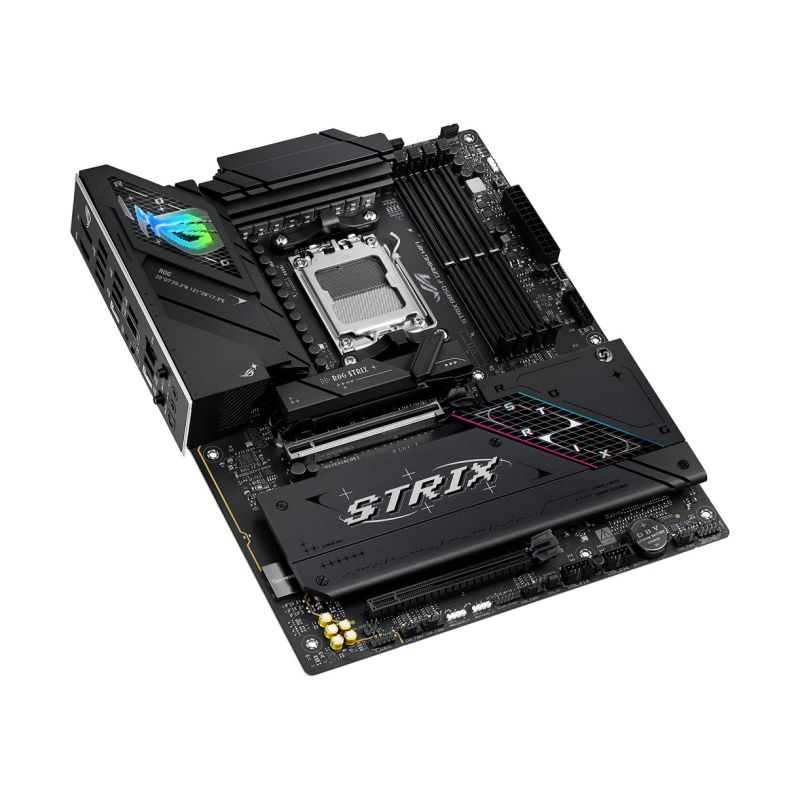

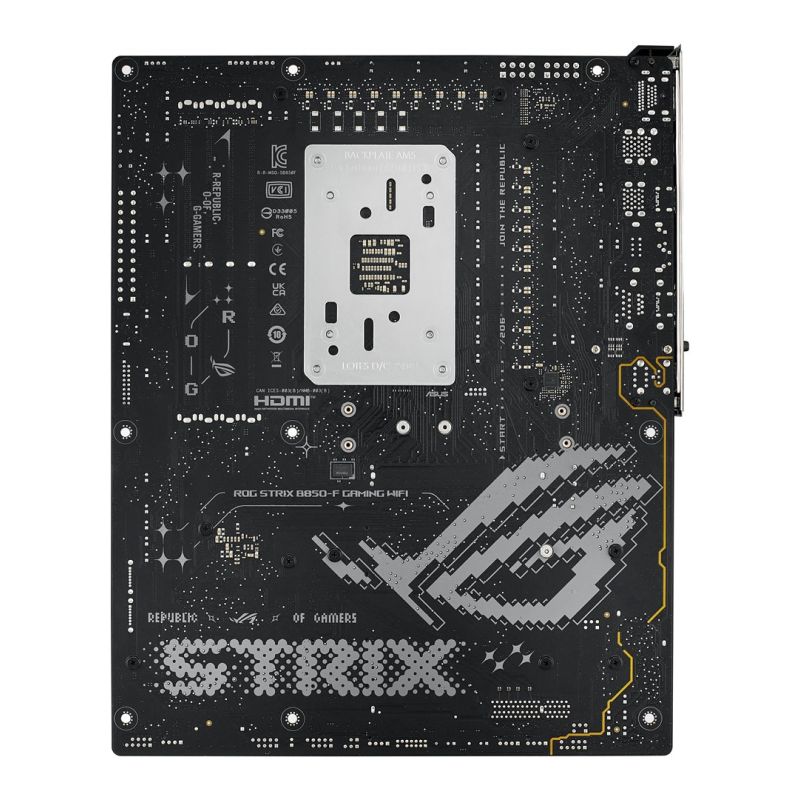

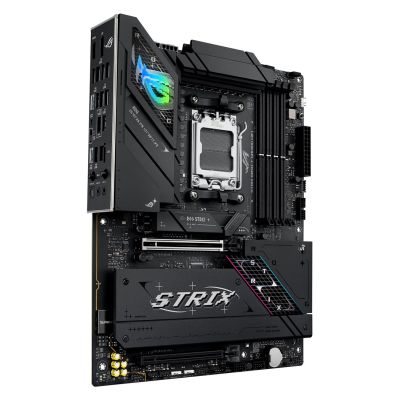

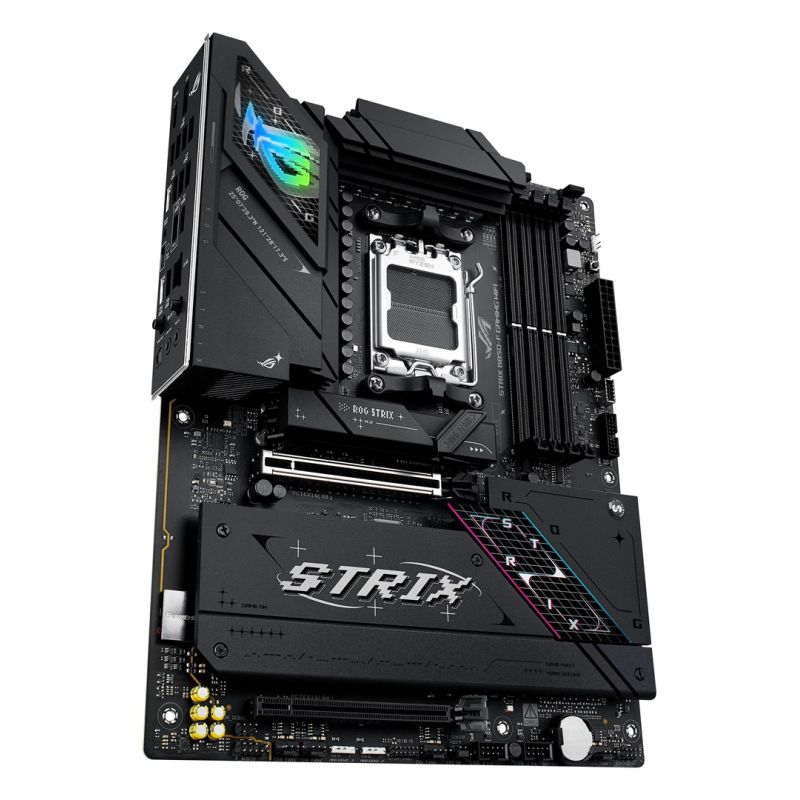

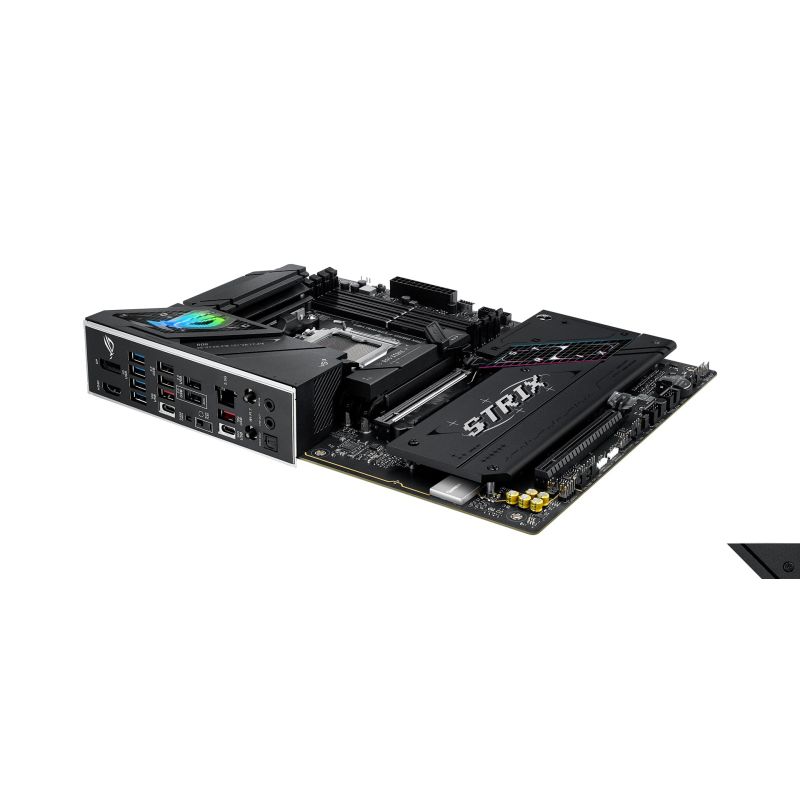

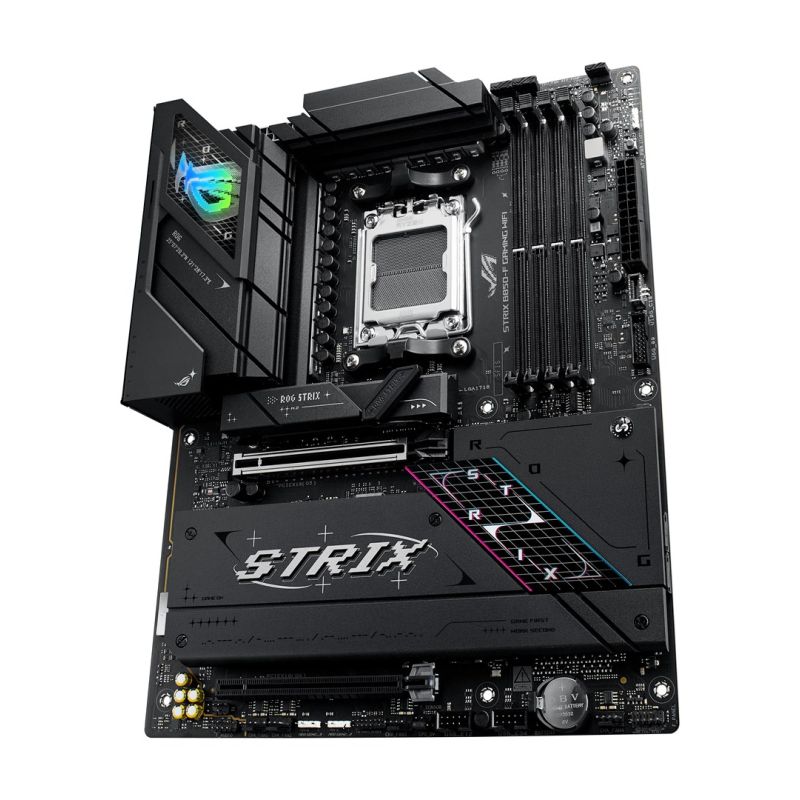

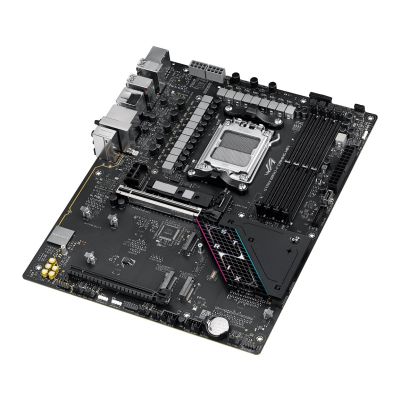

ASUS ROG STRIX B850-F GAMING WIFI Motherboard
ASUS ROG STRIX B850-F GAMING WIFI Motherboard
ASUS ROG STRIX B850-F GAMING WIFI Motherboard
PRICE:
493,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Maximum resolution: 7680 x 4320 px
- Memory
- Unbuffered memory: Yes
- Memory slot type: DIMM
- Supported memory clock speed (max): 8000 MHz
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 192 GB
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC4080
- Motherboard Layout: AMD B850
- Motherboard format: ATX
- Product color: Black
- Supported Windows operating systems: Windows 11
- Chipset Board Family: AMD
- Power supply type: ATX
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- Number of SATA III connectors: 2
- Number of case fan connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Number of temperature sensor headers: 1
- Thunderbolt Ends: 1
- EPS power supply connector (8-pin): Yes
- Number of CPU fan connectors: 2
- Number of water pump connections: 1
- RGB LED: Yes
- ATX power socket (24-pin): Yes
- Number of RGB LED connectors: 3
- Number of EPS power connectors (8-pin): 2
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth: Yes
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Packaging data
- Package depth: 273 mm
- Weight with packaging: 2.06 kg
- Package height: 68 mm
- Package width: 353 mm

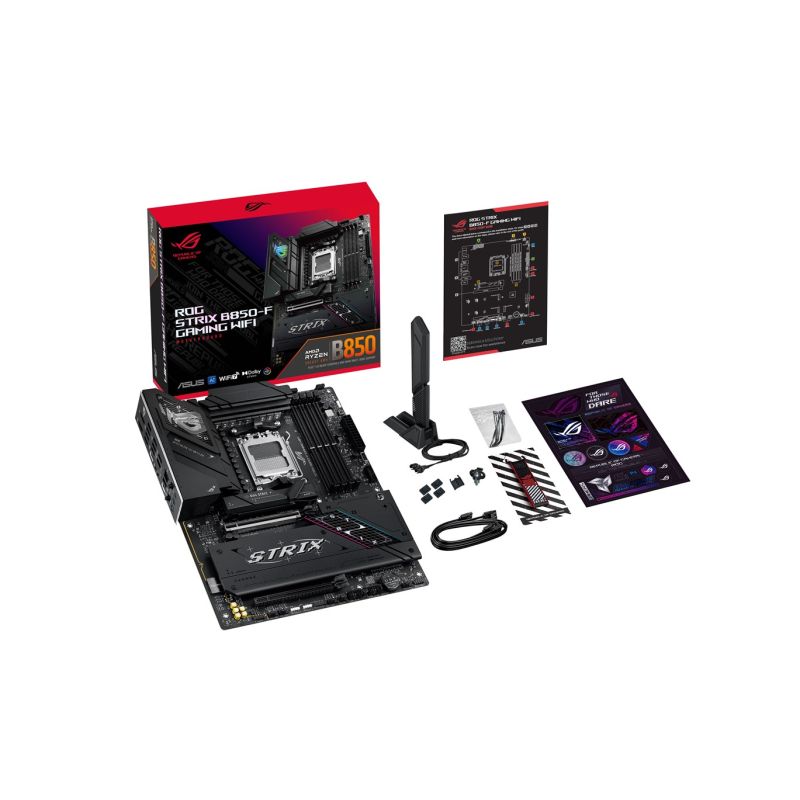

- Package contents
- Cables: SATA
- Antenna Included: Yes
- Memory drivers
- Number of supported storage drive sizes: 6
- RAID levels
- 0
- 1
- 5
- 10
- Supported drive types: HDD & SSD
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes
- Number of supported HDDs: 2

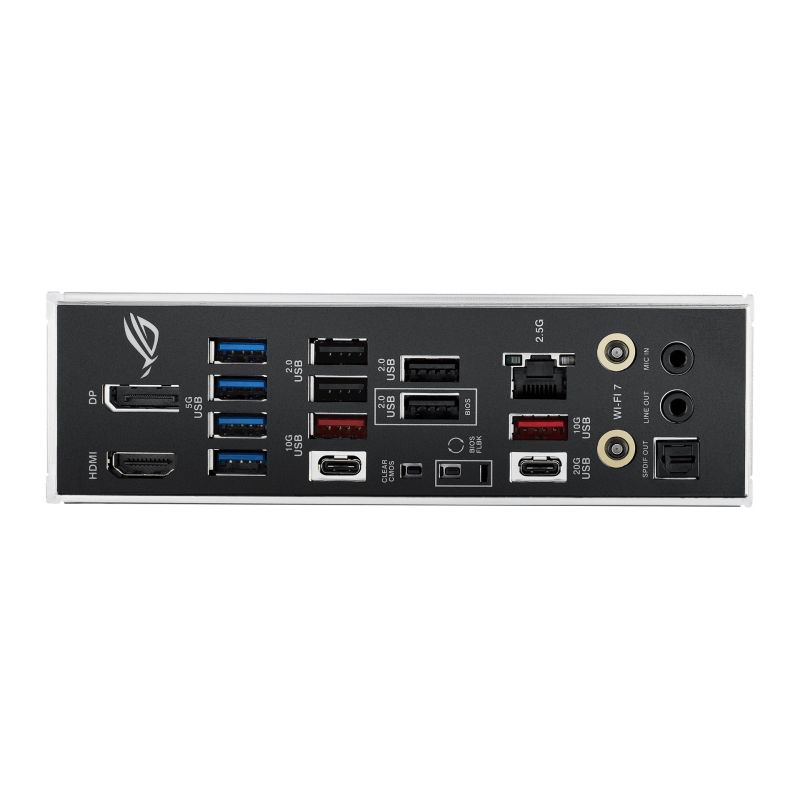

- Rear Panel I/O Ports
- Number of USB 2.0 ports: 4
- Line Input: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- DisplayPort Quantity: 1
- Headphone outputs: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- S/PDIF Output Port: Yes
- Number of Ethernet LAN ports (RJ-45): 1
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Digital audio input: 1
- WiFi-AP Antenna Jack Plug: 2
- DisplayPort version: 1.4
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- 4. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 2280
- 2. M.2 highest generation PCI Express: 5.0
- 4. Largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- Number of M.2 (M) slots: 4
- 2nd largest M.2 key size: 22110
- Other functions
- Product weight: 1.63 kg
- Quick Installation Guide: Yes
- Safety warning
- Warnings
- Do not disassemble to avoid damage to internal components and voiding the warranty.
- Avoid contact with liquids to prevent electronic damage.
- Dispose of in accordance with local regulations for electronic waste.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
