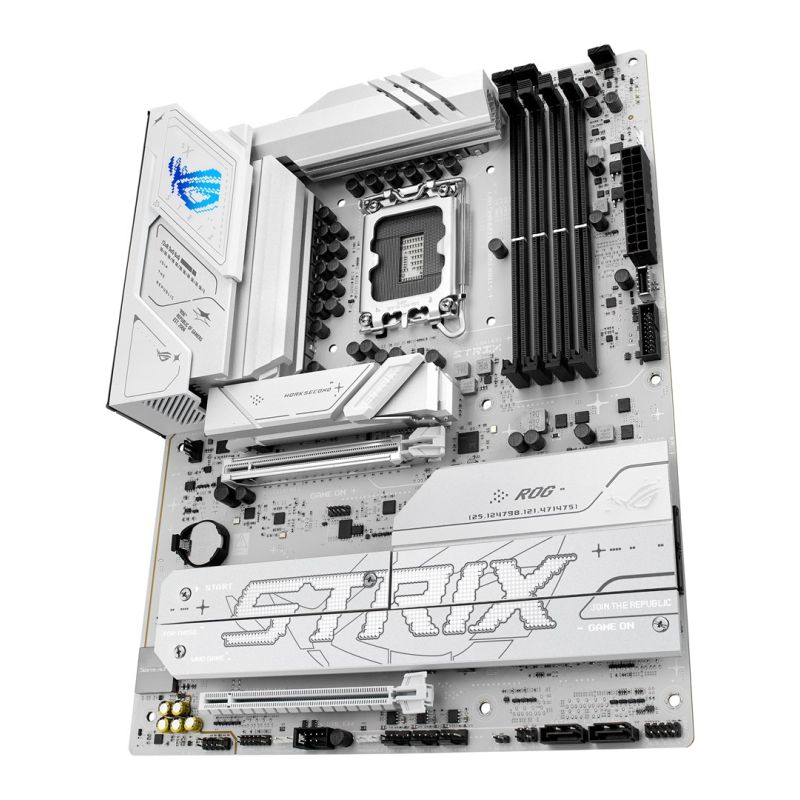

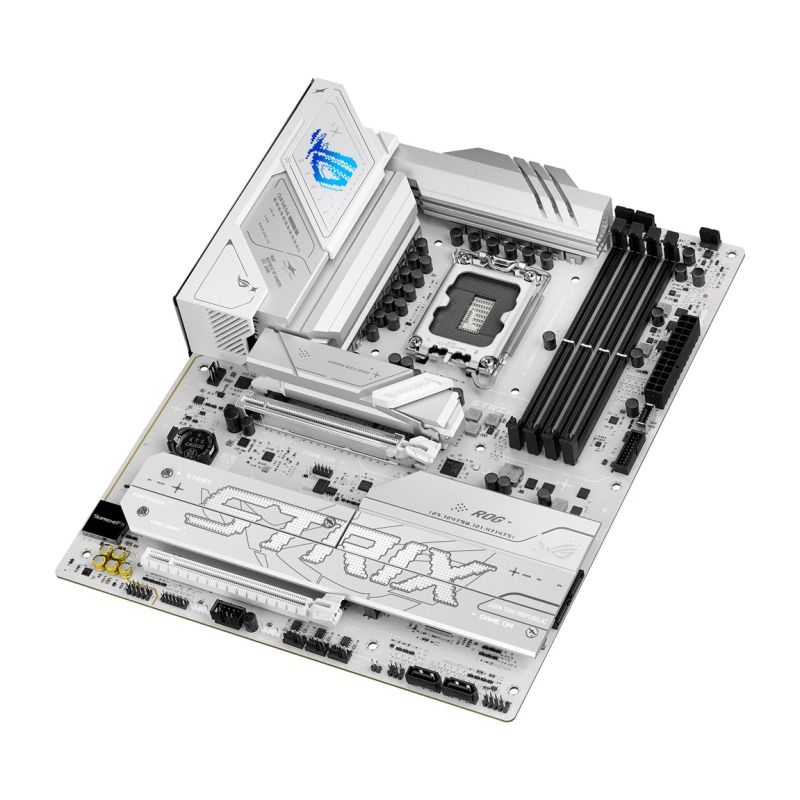

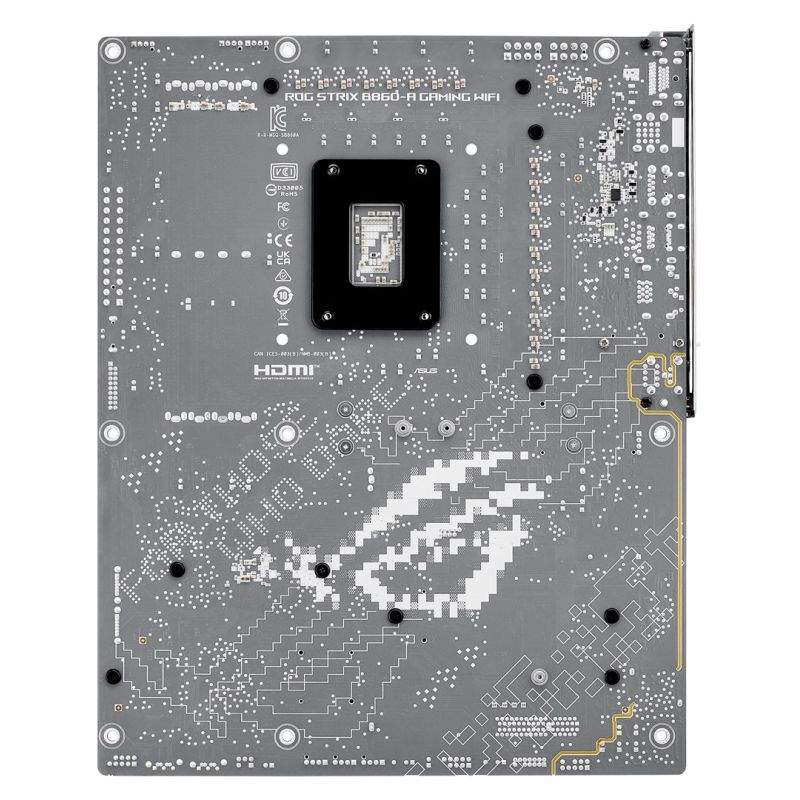

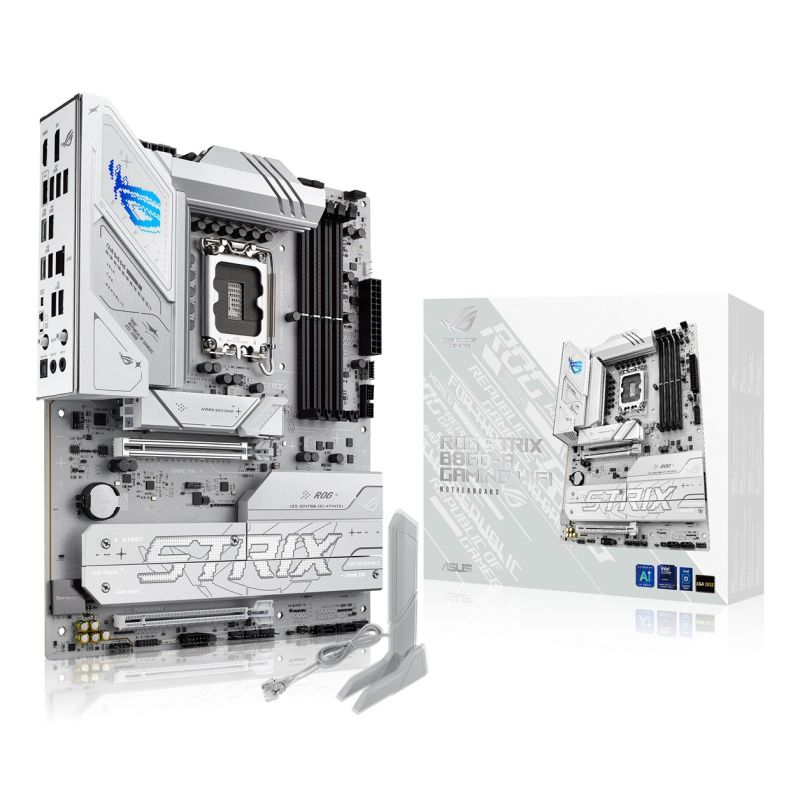

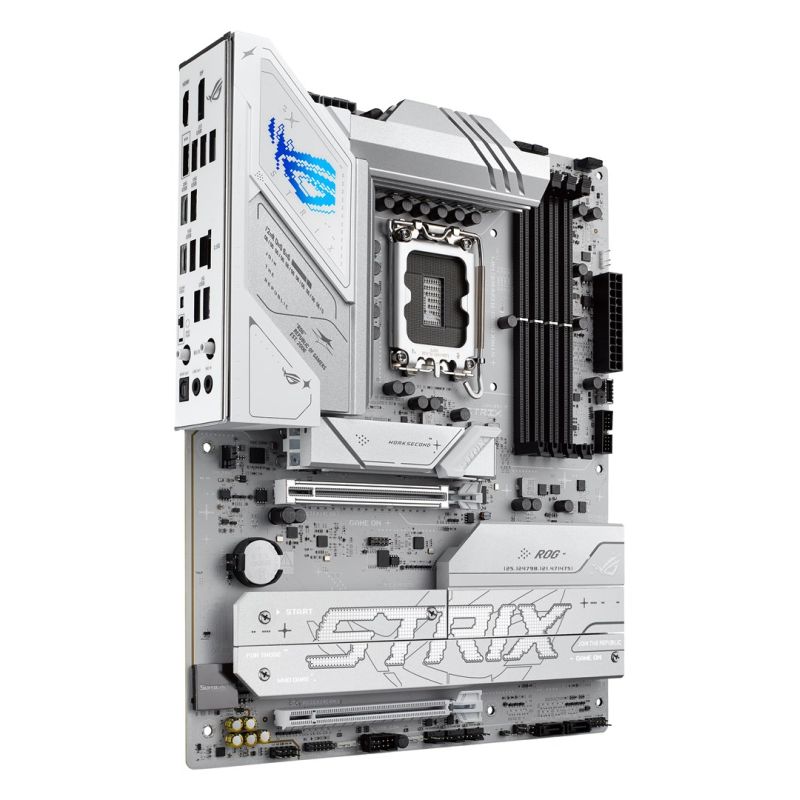

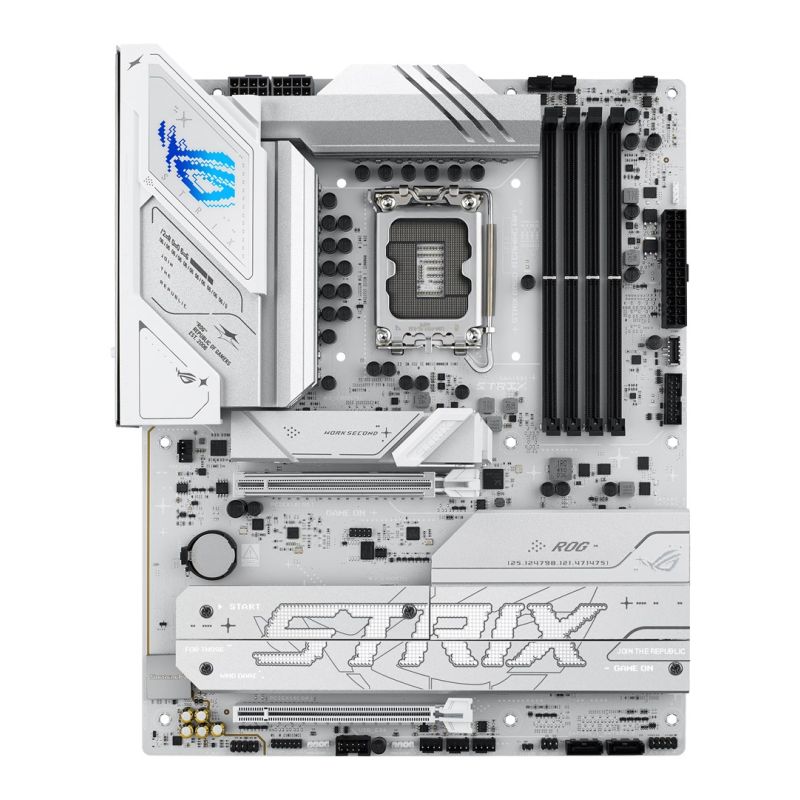

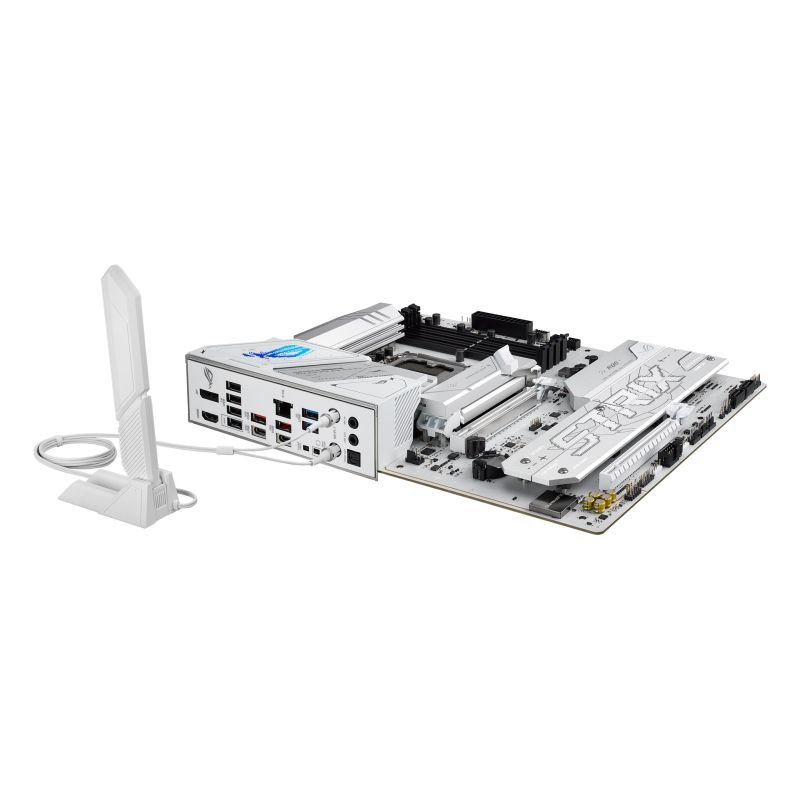

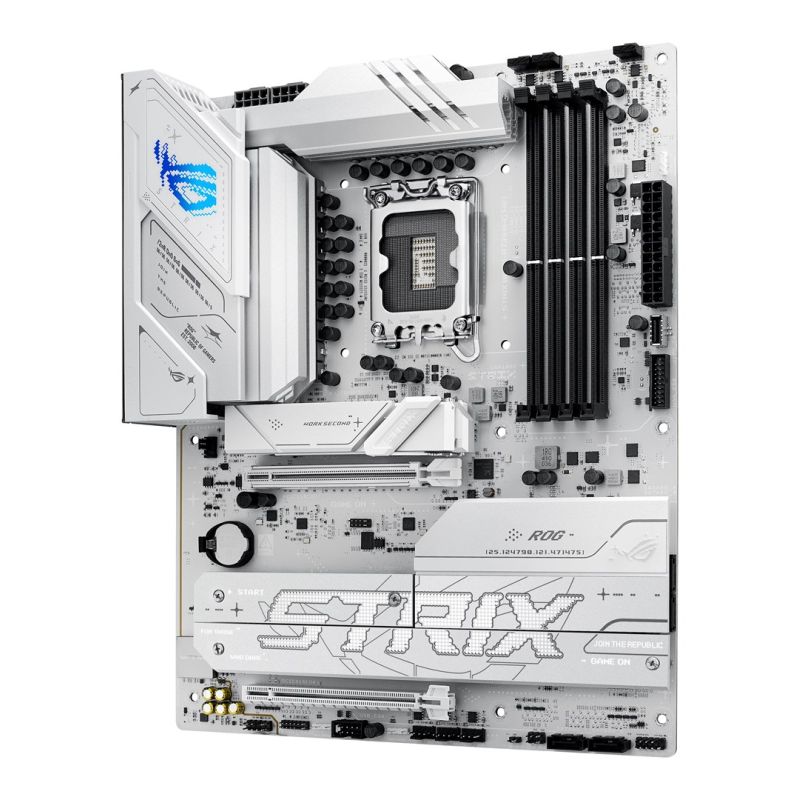

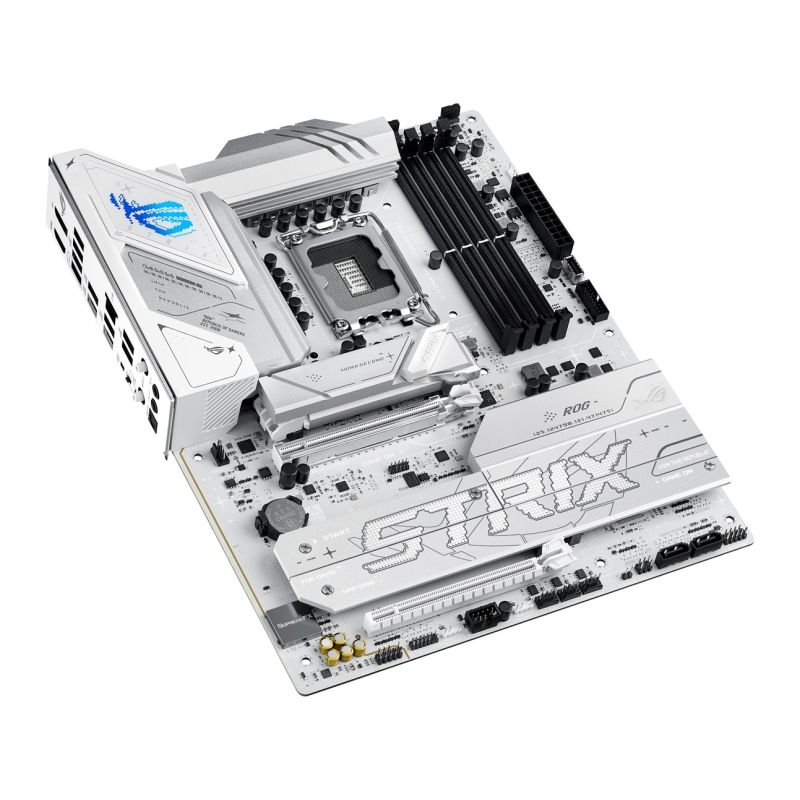

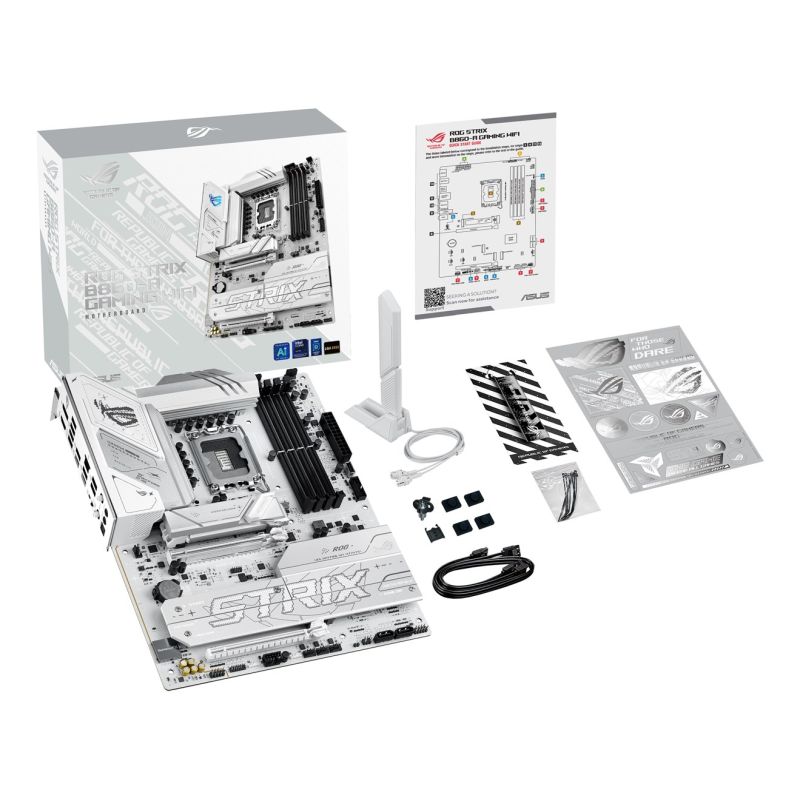

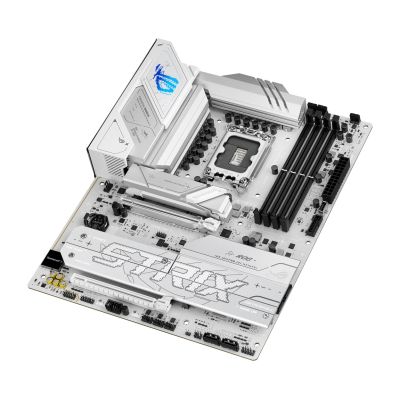

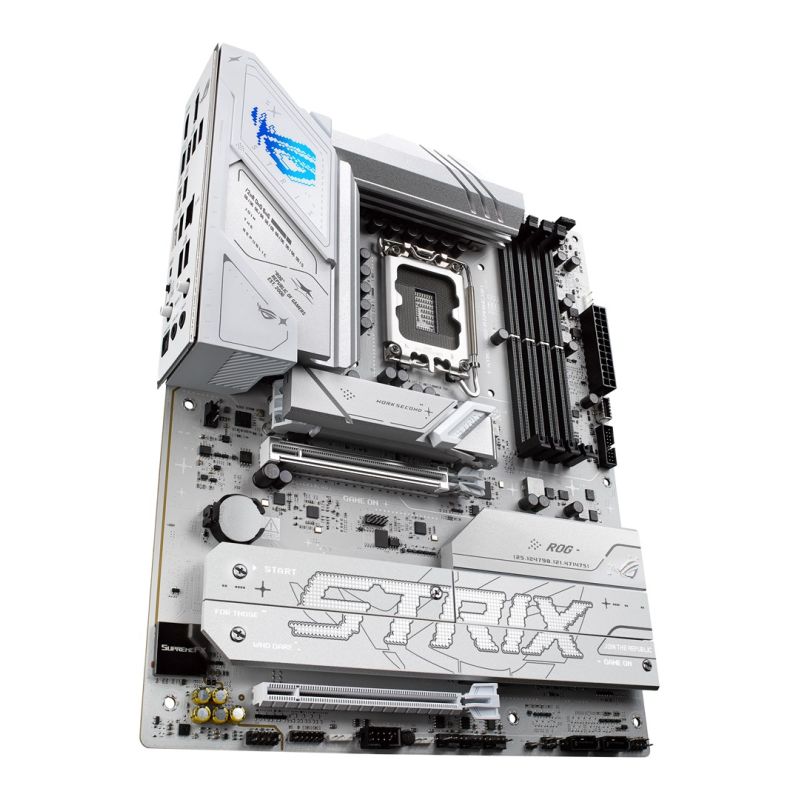

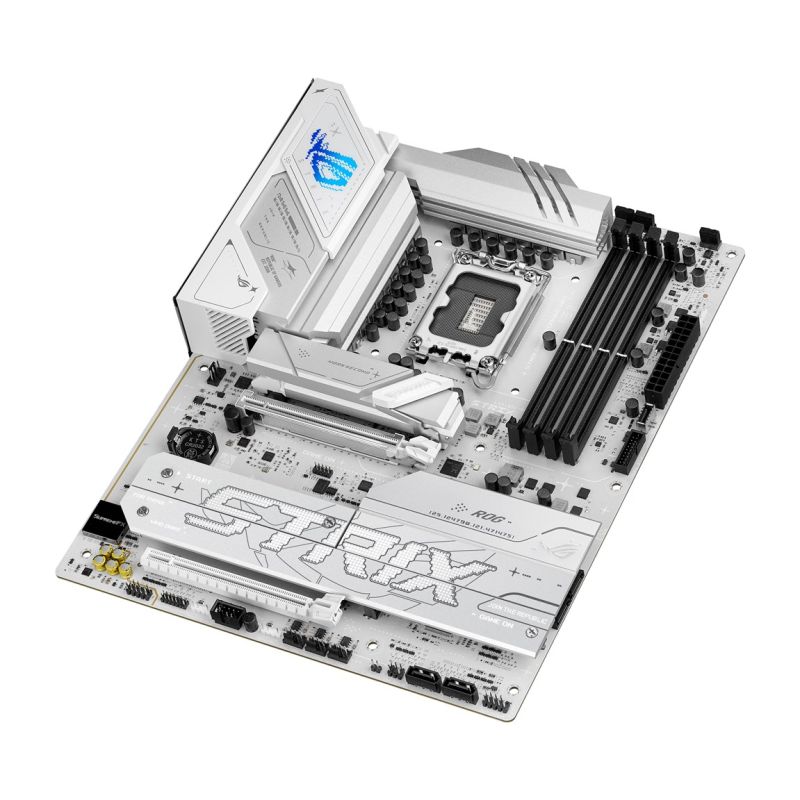

ASUS ROG STRIX B860-A GAMING WIFI Motherboard
ASUS ROG STRIX B860-A GAMING WIFI Motherboard
ASUS ROG STRIX B860-A GAMING WIFI Motherboard
PRICE:
466,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor: Intel Core Ultra (Series 2)
- Processor socket: LGA 1851 (Socket V1)
- Processor manufacturer: Intel
- Graphics
- Parallel Processing Support: Not Supported
- Memory
- Memory slot type: DIMM
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Supported memory clock speed (max): 8600 MHz
- ECC Compatibility: Non-ECC
- Maximum memory capacity: 256 GB
- Unbuffered memory: Yes
- Characteristics
- Audio output channels: 7.1 ch.
- Audio chip: Realtek ALC1220P
- Product color: White
- Chipset Board Family: Intel
- Motherboard Layout: Intel B860
- Motherboard format: ATX
- Supported Windows operating systems: Windows 11
- Weight and dimensions
- Product depth: 244 mm
- Product height: 50 mm
- Product width: 305 mm
- Internal I/O
- 12V power connector: Yes
- Number of CPU fan connectors: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- EPS power supply connector (8-pin): Yes
- Number of case fan connectors: 4
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- CPU fan connector: Yes
- Number of USB 2.0 ports: 1
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Thunderbolt Ends: 1
- Network
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth: Yes
- Wi-Fi: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Button: Yes
- Packaging data
- Package width: 355 mm
- Package height: 70 mm
- Package depth: 273 mm
- Weight with packaging: 1.68 kg
- Memory drivers
- Number of supported HDDs: 4
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD
- RAID levels
- 10
- 1
- 5
- 0
- Supported hard drive interfaces: M.2, SATA III
- RAID Service: Yes

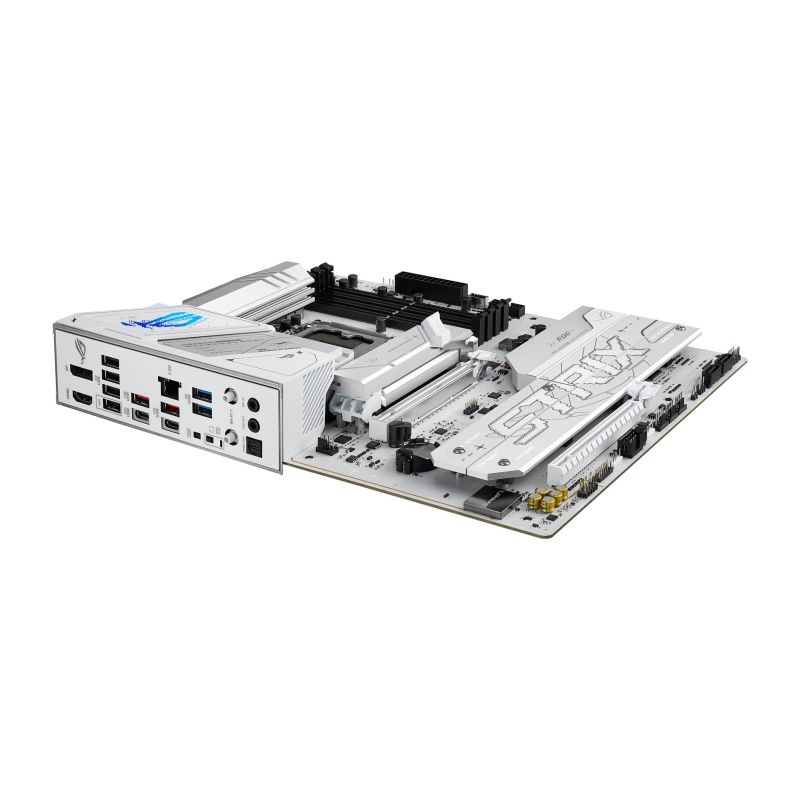

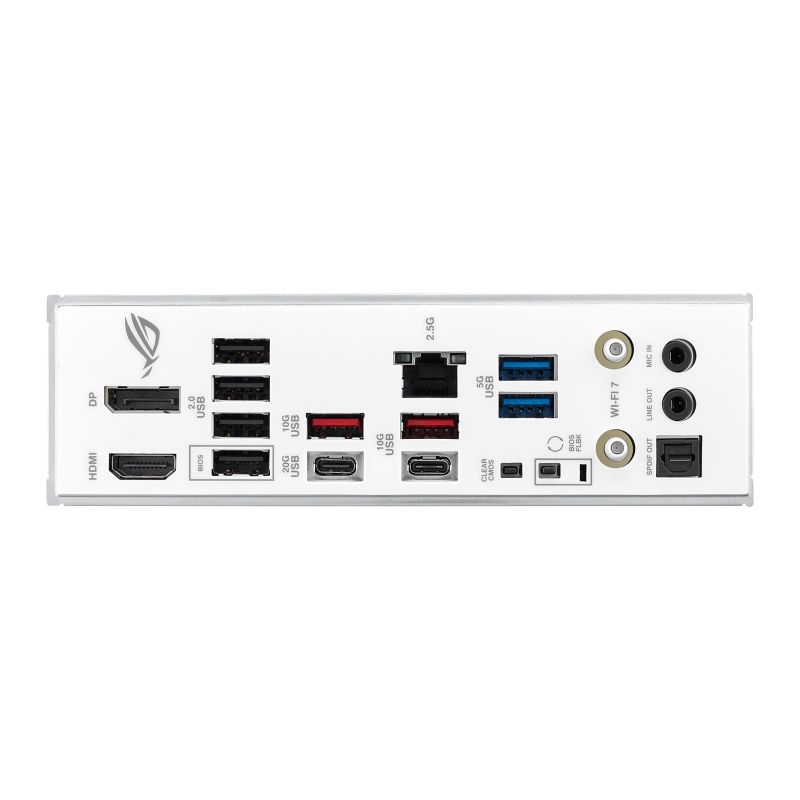

- Rear Panel I/O Ports
- Number of USB4 Gen 2x2 ports: 1
- Number of USB 2.0 ports: 4
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Microphone: Yes
- S/PDIF Output Port: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 2
- Expansion slots
- PCI Express x16 (Gen 4.x) slots: 1
- Other functions
- Product weight: 1.4 kg
- Safety warning
- Warnings
- If you experience any problems with installation, please contact a qualified service center.
- When disposing of this product, please follow local regulations for electronics recycling.
- Do not open or modify the motherboard to prevent damage.
- Warnings
| Name | Details |
|---|---|
| Producer | Asus |
