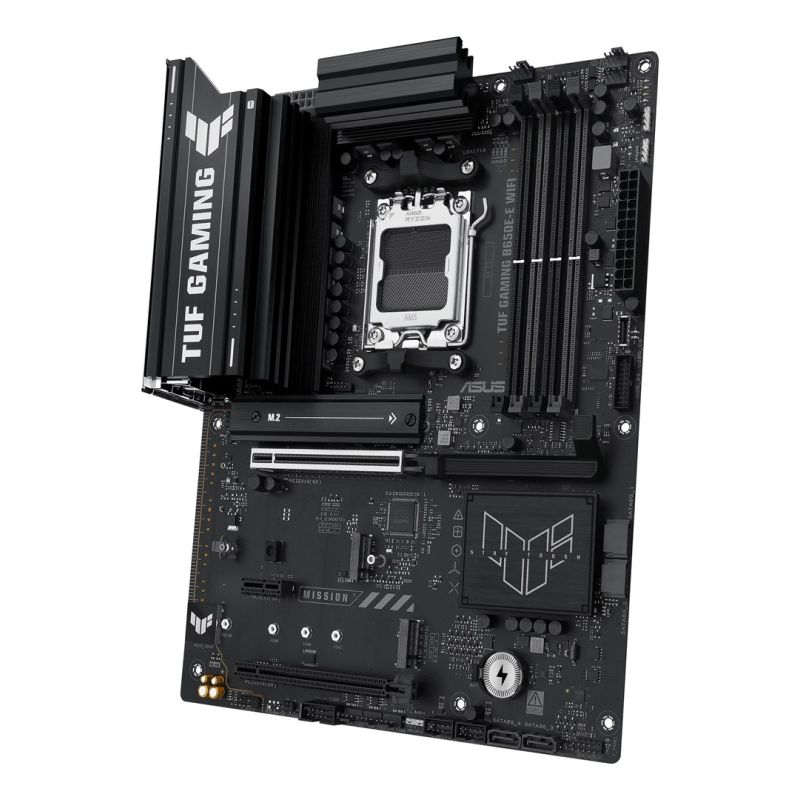

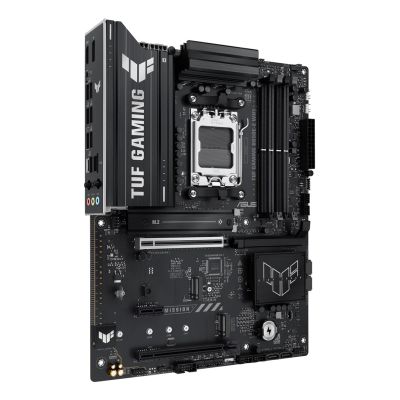

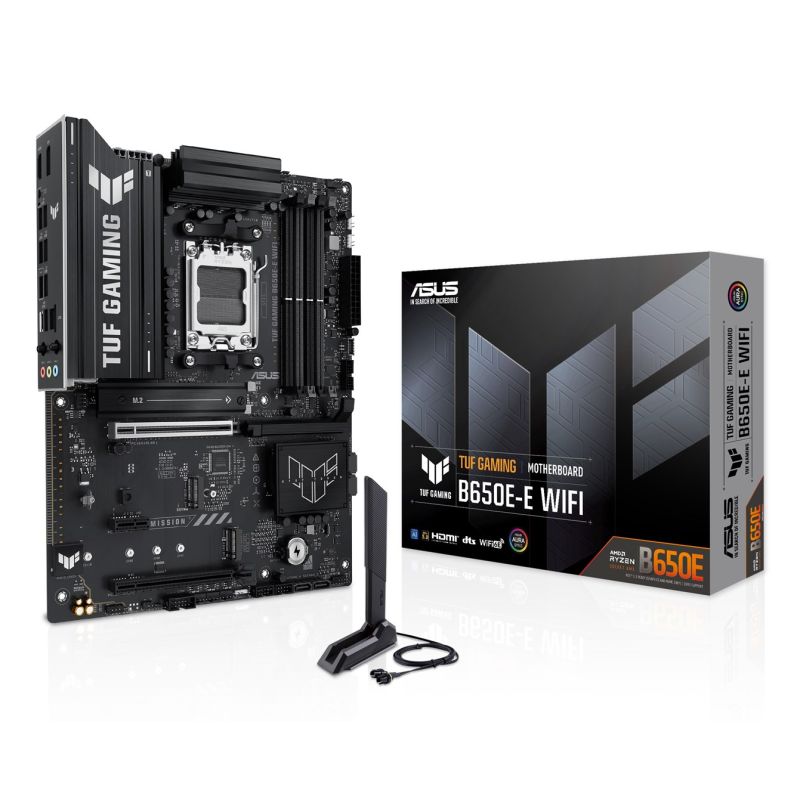

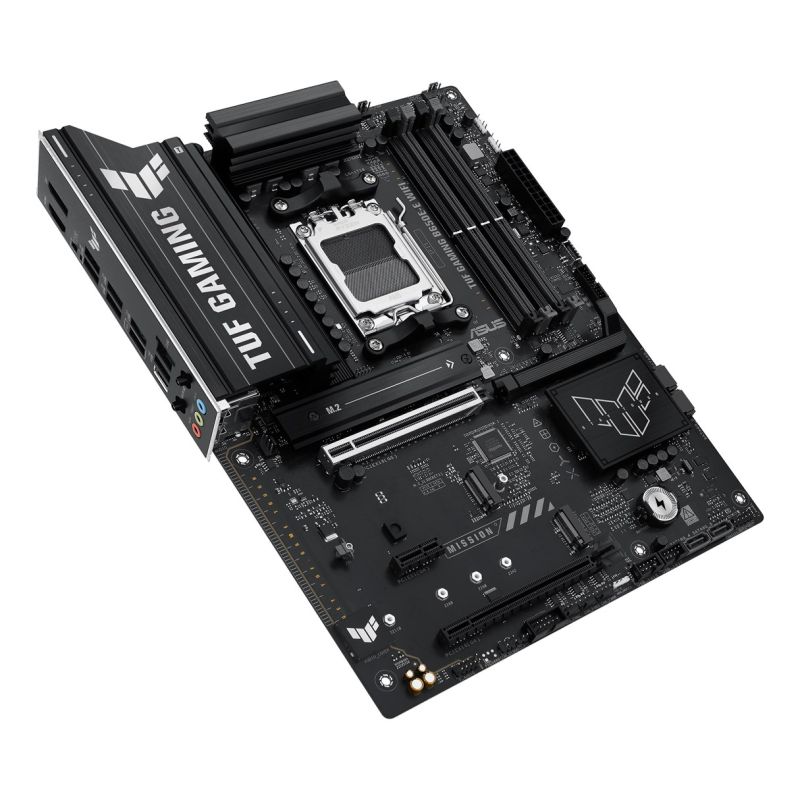

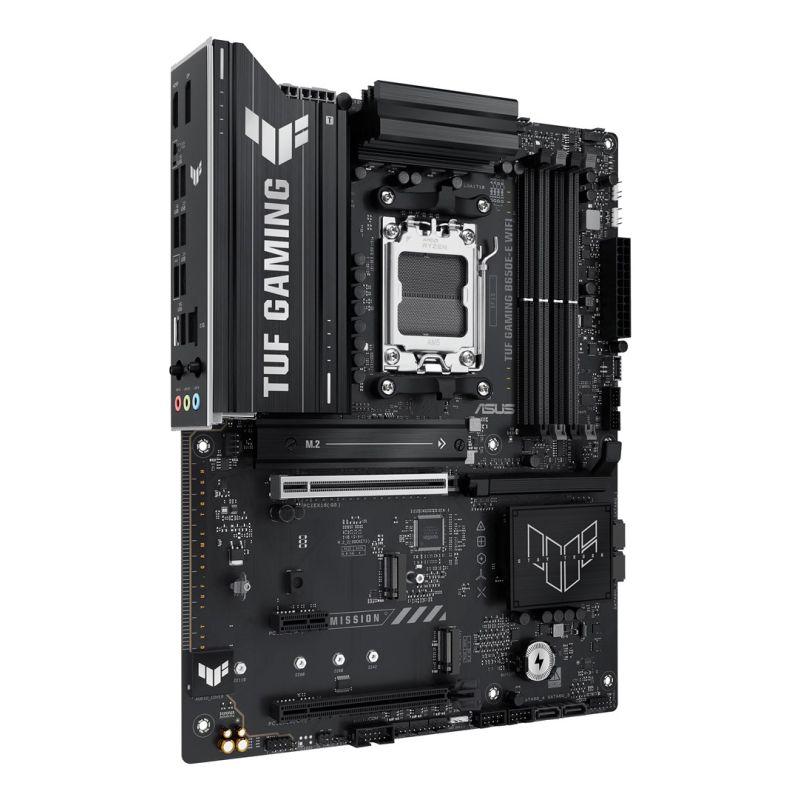

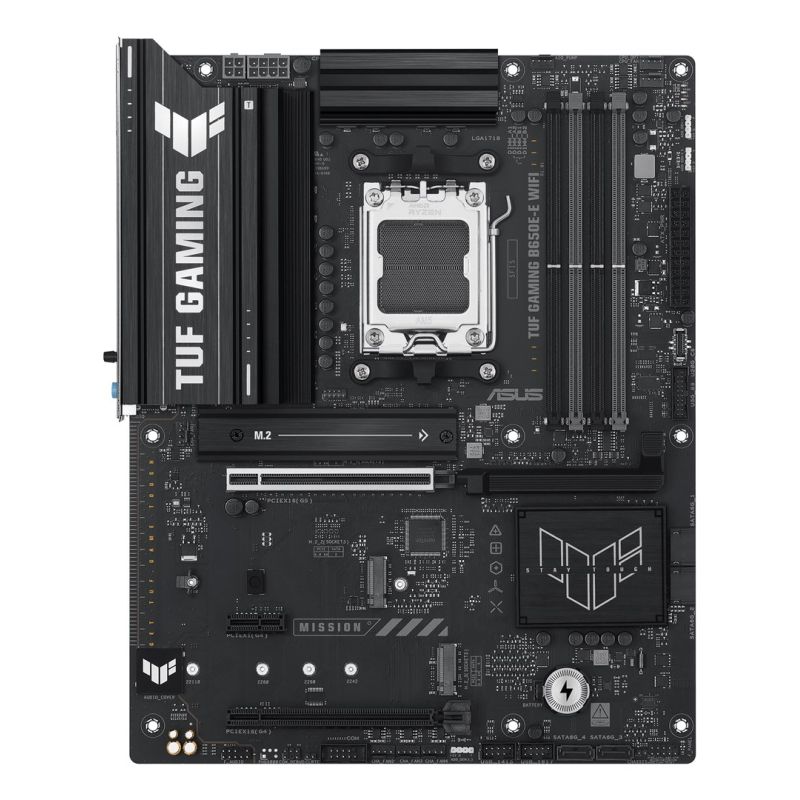

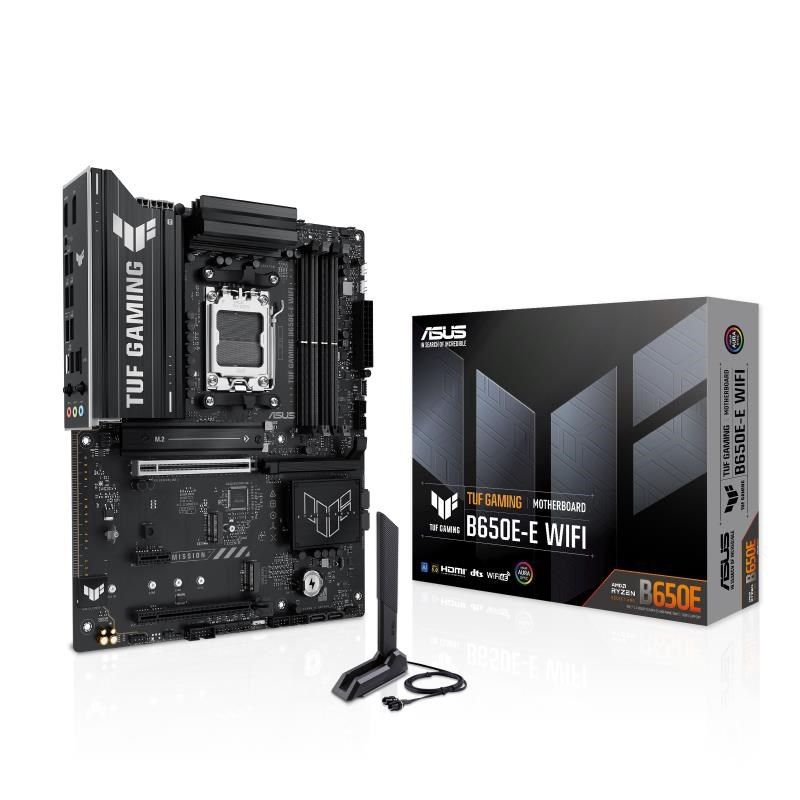

Asus TUF GAMING B650E-E WIFI Motherboard
Asus TUF GAMING B650E-E WIFI Motherboard
Asus TUF GAMING B650E-E WIFI Motherboard
PRICE:
222,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor socket: Socket AM5
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- ECC Compatibility: ECC or Non-ECC
- Supported memory types: DDR5-SDRAM
- Memory slot type: DIMM
- Number of memory slots: 4
- Maximum memory capacity: 256 GB
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Characteristics
- Supported Windows operating systems
- Windows 11
- Windows 10 x64
- Chipset Board Family: AMD
- Product color: Black
- Audio output channels: 7.1 ch.
- Cooling type: Passive
- Motherboard format: ATX
- Motherboard Layout: AMD B650
- Supported Windows operating systems
- Weight and dimensions
- Product depth: 244 mm
- Product width: 305 mm
- Internal I/O
- Number of RGB LED connectors: 3
- 12V power connector: Yes
- RGB LED: Yes
- Number of COM sockets: 1
- Housing intrusion sensor connector: Yes
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 4
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- Front panel connector: Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- S/PDIF jack: Yes
- Peripheral (Molex) Power Connectors (4-pin): 1
- Network
- Wired LAN: Yes
- Bluetooth version: 5.3
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Wi-Fi standards
- Wi-Fi 6E (802.11ax)
- 802.11g
- 802.11a
- 802.11n
- 802.11b
- Wi-Fi 5 (802.11ac)
- BIOS
- BIOS Type: UEFI AMI

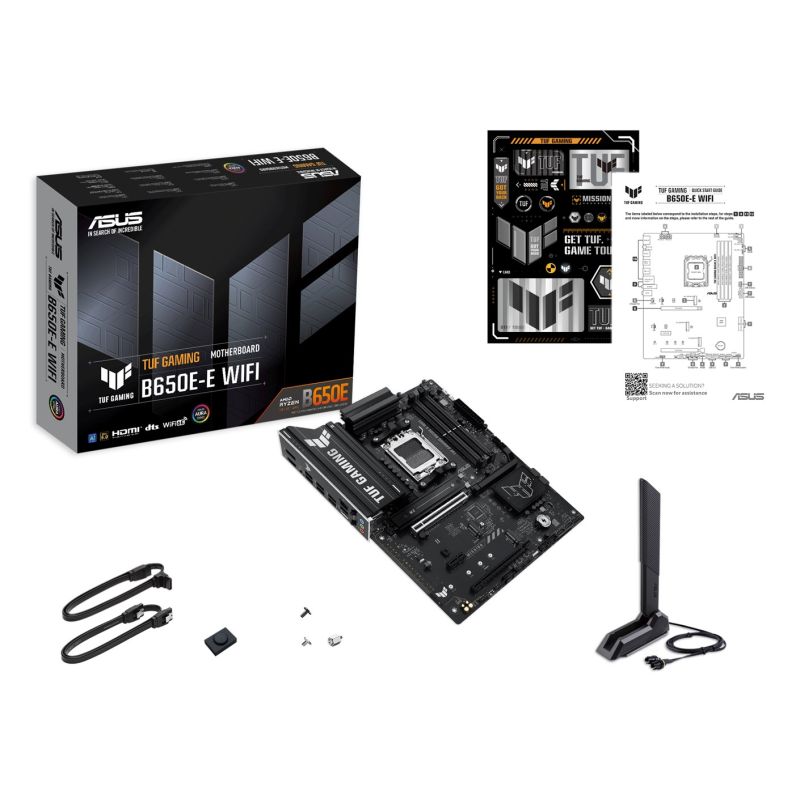

- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 1
- 10
- 0
- RAID Service: Yes

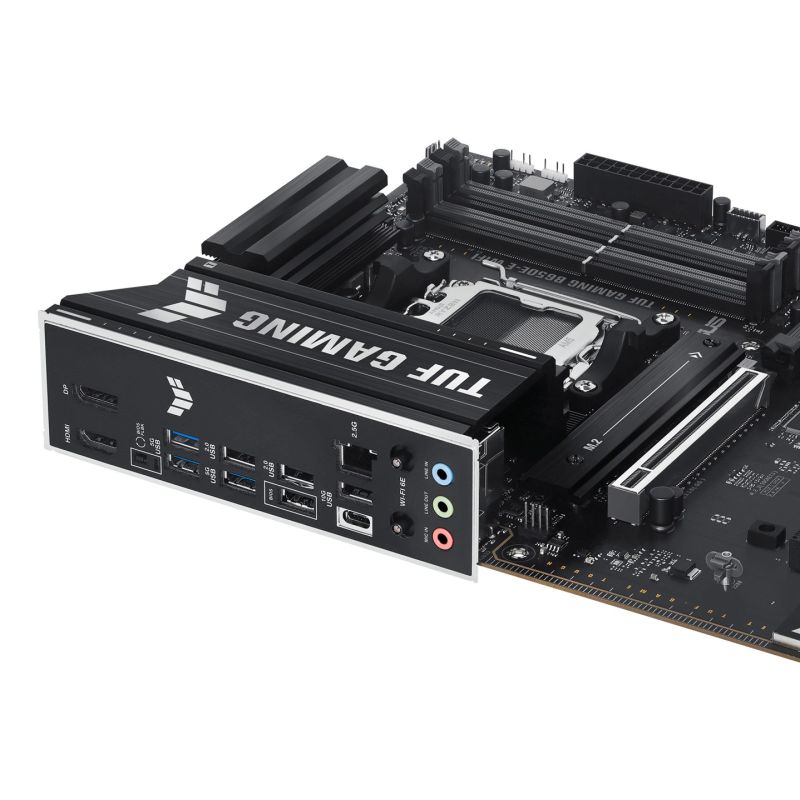

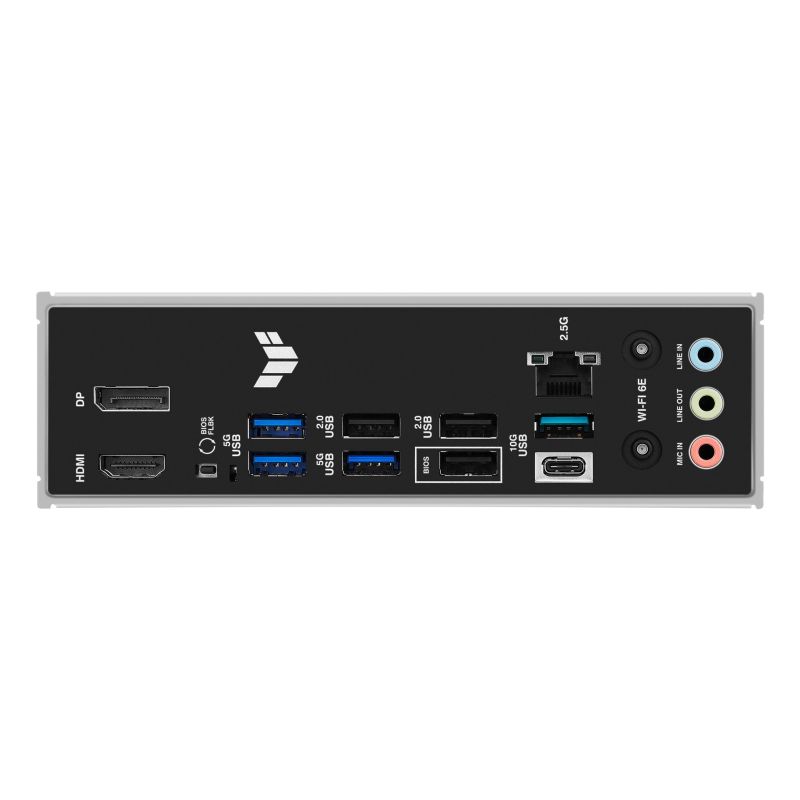

- Rear Panel I/O Ports
- Number of audio jacks: 5
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 2.0 ports: 3
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Expansion slots
- 2. M.2 highest generation PCI Express: 4.0
- 2nd largest M.2 key size: 2280
- 3. largest M.2 key size: 22110
- PCI Express x16 (Gen 4.x) slots: 1
- 3. M.2 highest generation PCI Express: 4.0
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x1 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 3
| Name | Details |
|---|---|
| Producer | Asus |
