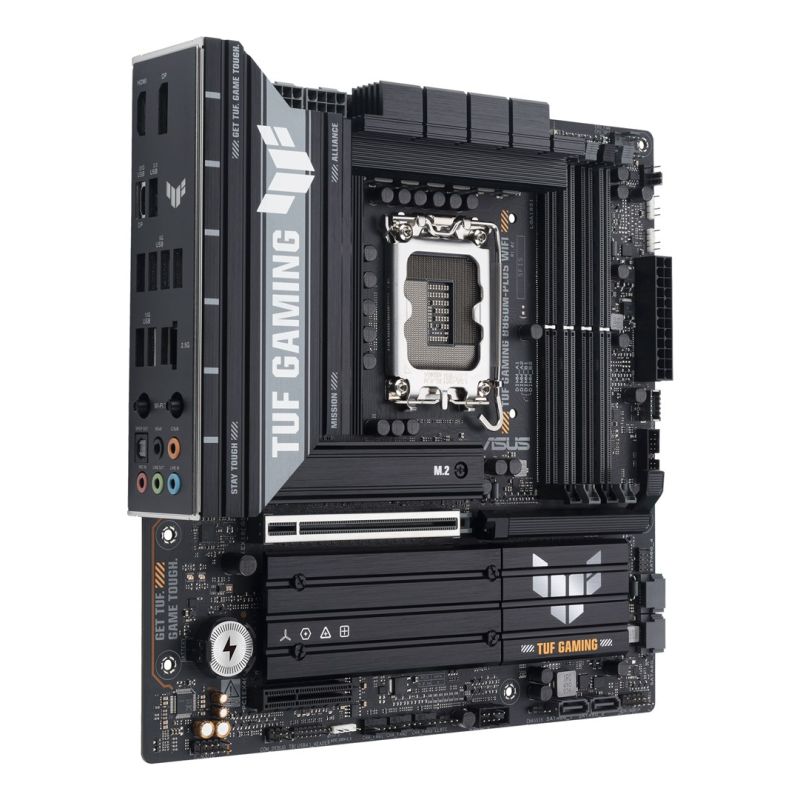

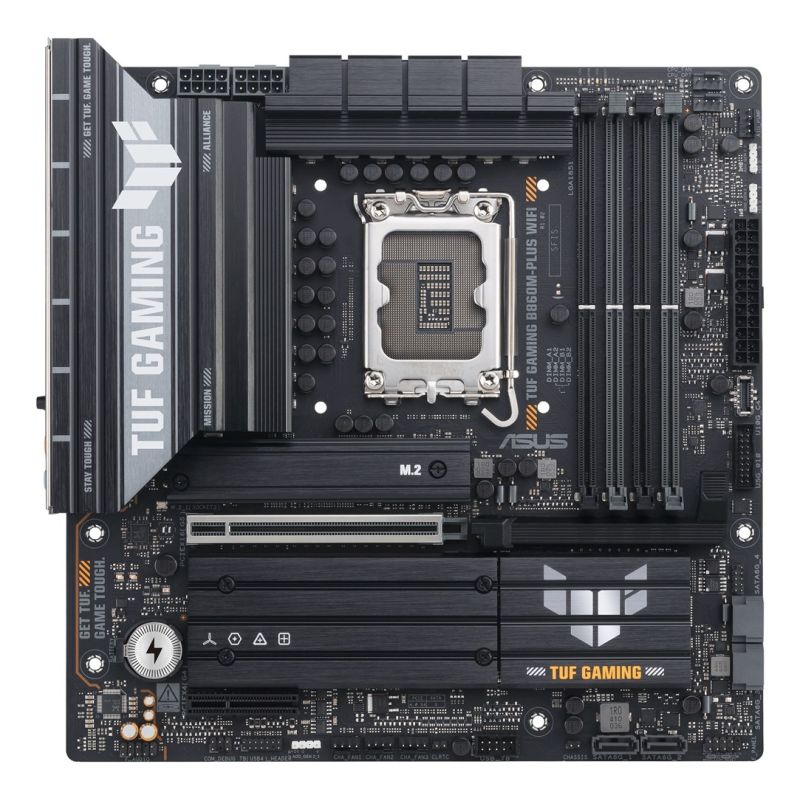

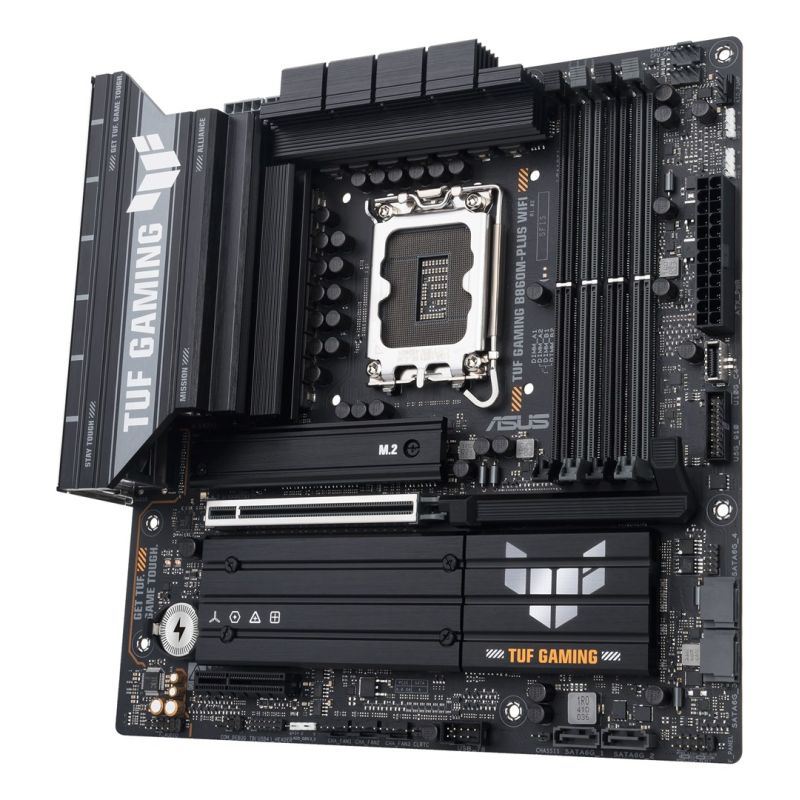

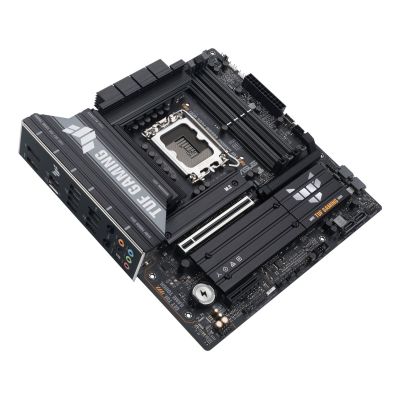

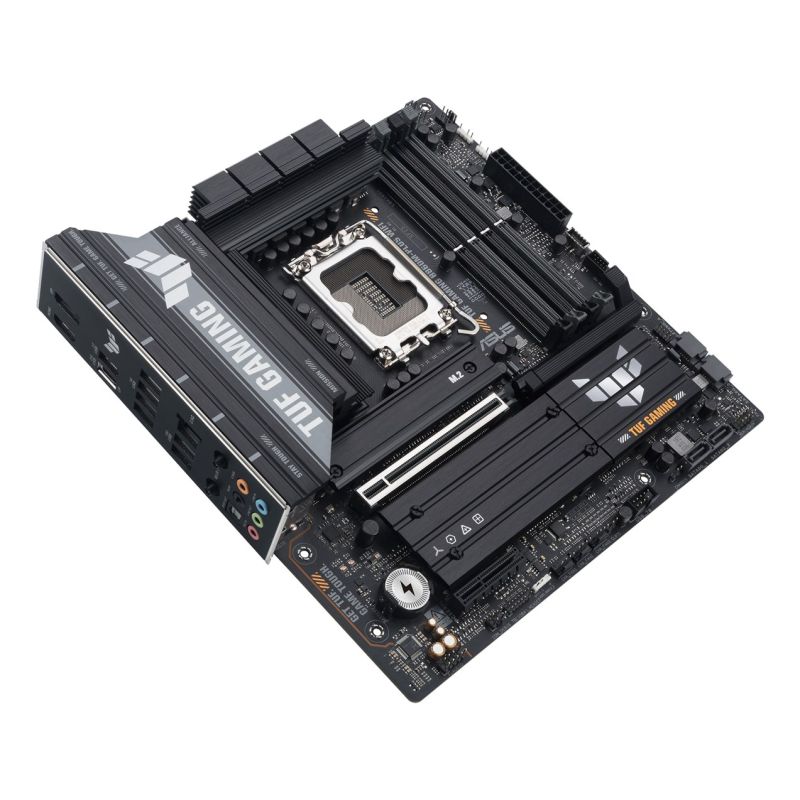

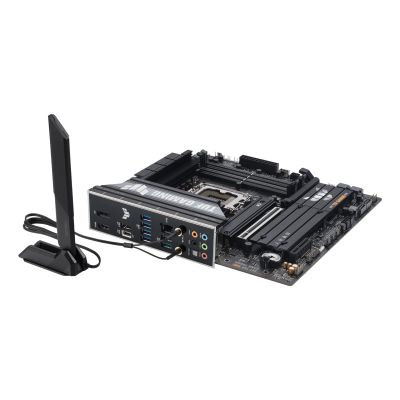

ASUS TUF GAMING B860M-PLUS WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS TUF GAMING B860M-PLUS WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
ASUS TUF GAMING B860M-PLUS WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
PRICE:
382,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Supported CPU sockets: LGA 1851
- Processor: Intel Core Ultra (Series 2)
- Graphics
- Parallel Processing Support: Not Supported
- Built-in graphics card: No
- Memory
- Maximum memory capacity: 256 GB
- Memory slot type: DIMM
- Memory Channel Support: Dual Channel
- ECC Compatibility: Non-ECC
- Unbuffered memory: Yes
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Characteristics
- Product color: Black
- Chipset Board Family: Intel
- Audio output channels: 7.1 ch.
- Motherboard Layout: Intel B860
- Motherboard format: Micro ATX
- Supported Windows operating systems: Windows 11
- Intended use: PC
- Weight and dimensions
- Product width: 244 mm
- Product depth: 244 mm
- Internal I/O
- Thunderbolt Ends: 1
- CPU fan connector: Yes
- 12V power connector: Yes
- Number of USB 2.0 ports: 1
- Front panel connector: Yes
- Number of SATA III connectors: 4
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- Housing intrusion sensor connector: Yes
- Front panel audio connector: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- ATX power socket (24-pin): Yes
- Number of case fan connectors: 3
- Network
- Bluetooth: Yes
- Wired LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth version: 5.4
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- BIOS
- BIOS Type: UEFI AMI
- BIOS memory size: 256 Mbit
- Packaging data
- Package depth: 275 mm
- Weight with packaging: 1.65 kg
- Package height: 67.5 mm
- Package width: 275 mm
- Package contents

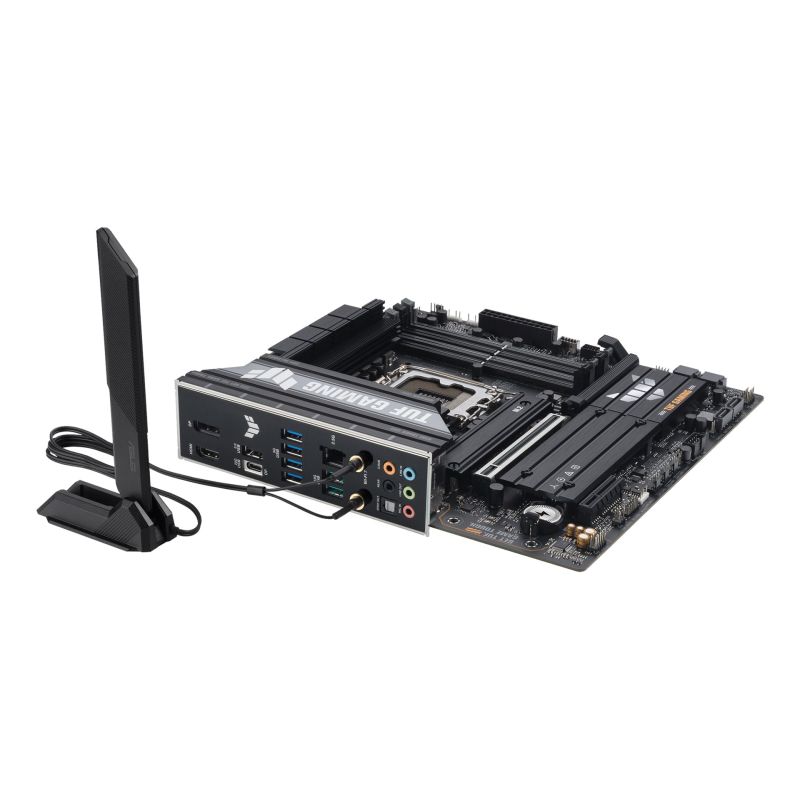

- Antenna Included: Yes
- Screws Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- 5
- 10
- 0
- 1
- RAID Service: Yes
- Number of supported storage drive sizes: 7

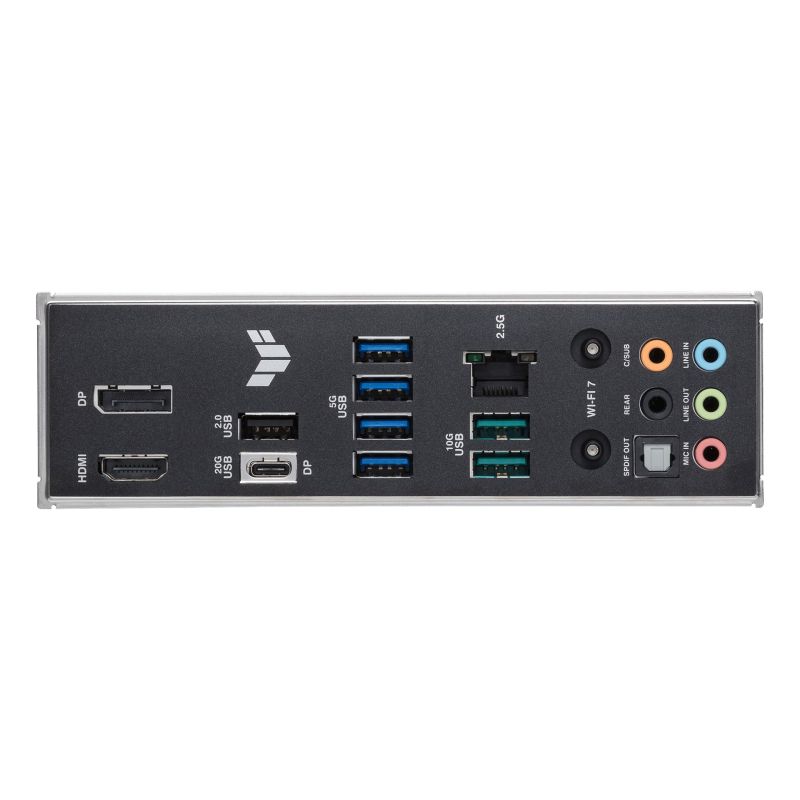

- Rear Panel I/O Ports
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- Number of USB 2.0 ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- WiFi-AP Antenna Jack Plug: 1
- Number of HDMI ports: 1
- S/PDIF Output Port: Yes
- Expansion slots
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
- 2. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 2280
- 2nd largest M.2 key size: 2280
- 1. largest M.2 key size: 2280
- 1. M.2 highest generation PCI Express: 5.0
- 3. M.2 highest generation PCI Express: 4.0
- Number of M.2 (M) slots: 3
| Name | Details |
|---|---|
| Producer | Asus |
