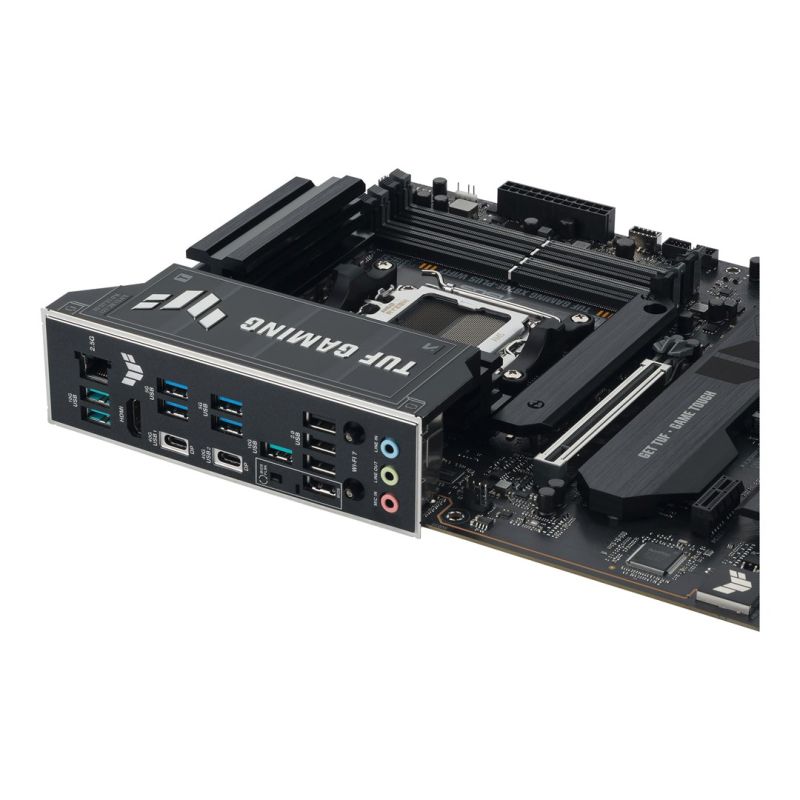

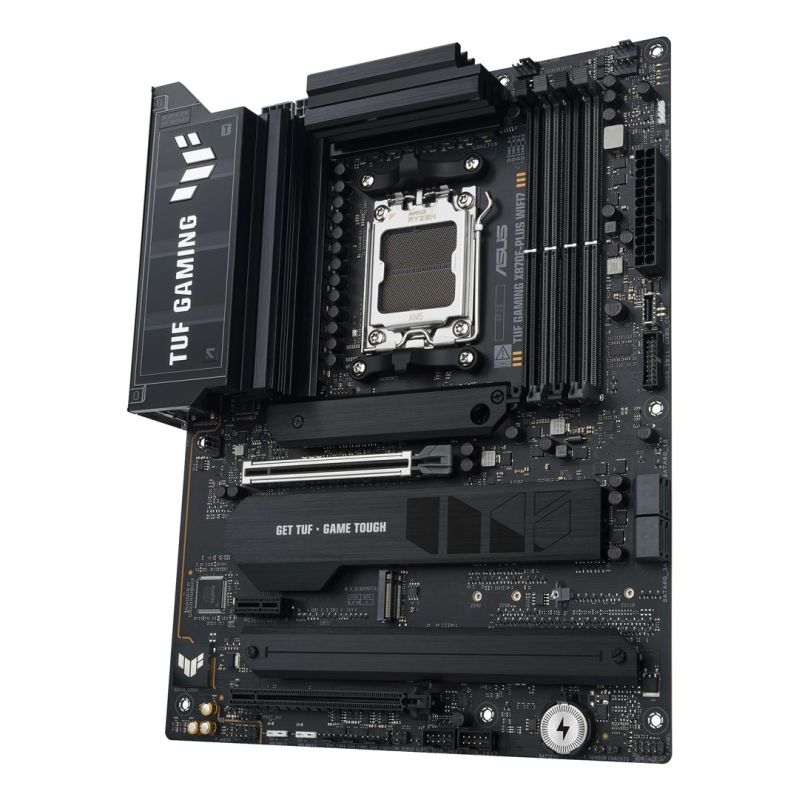

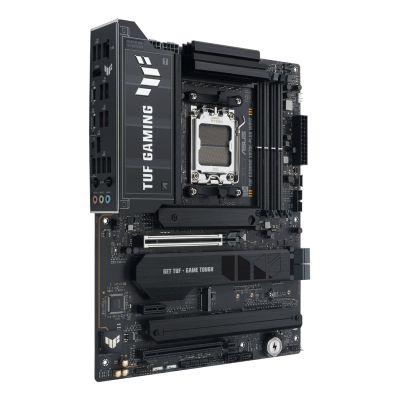

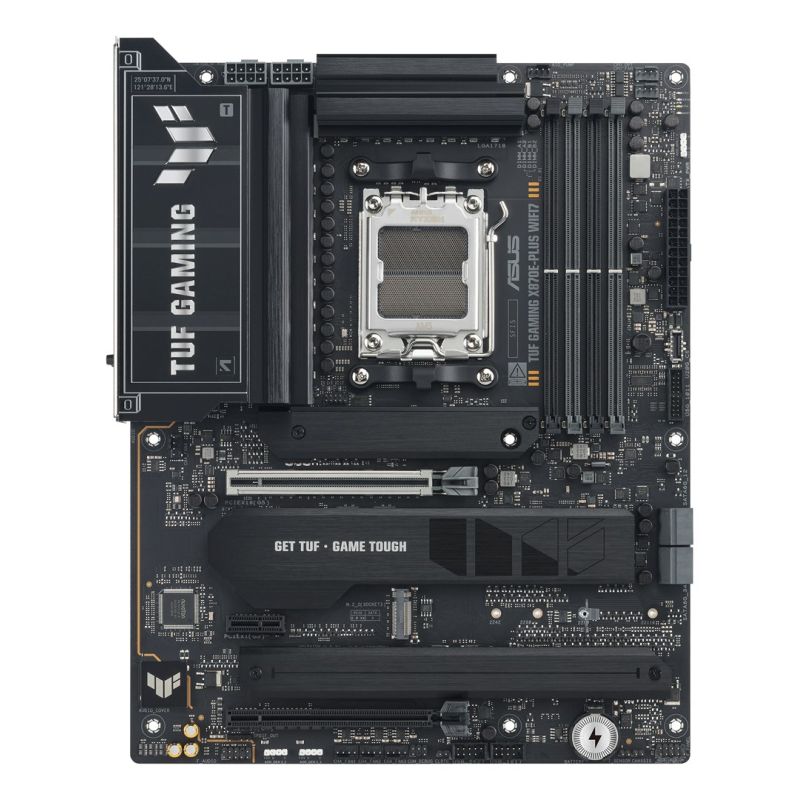

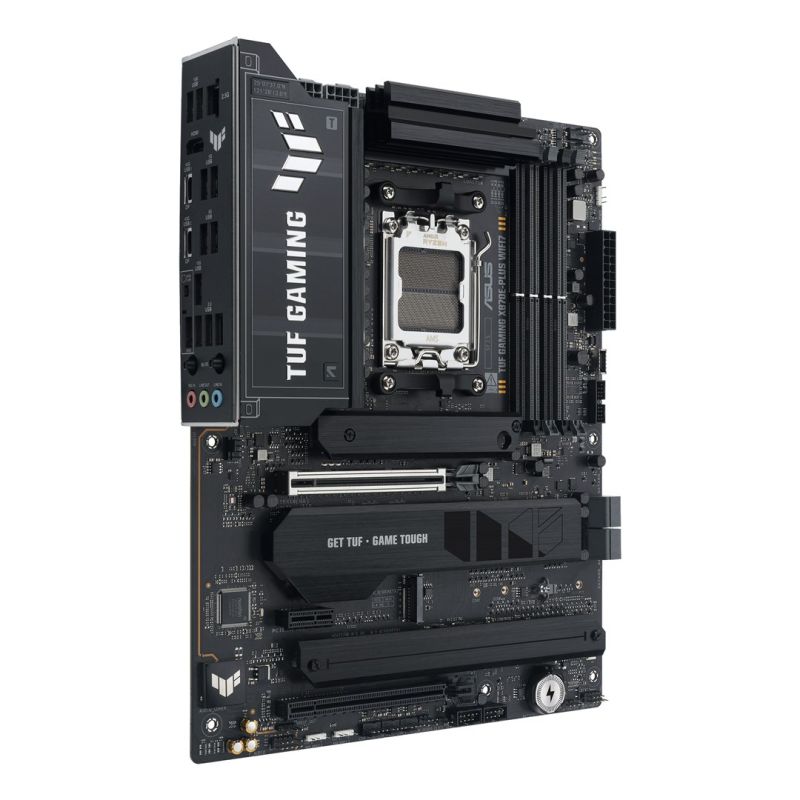

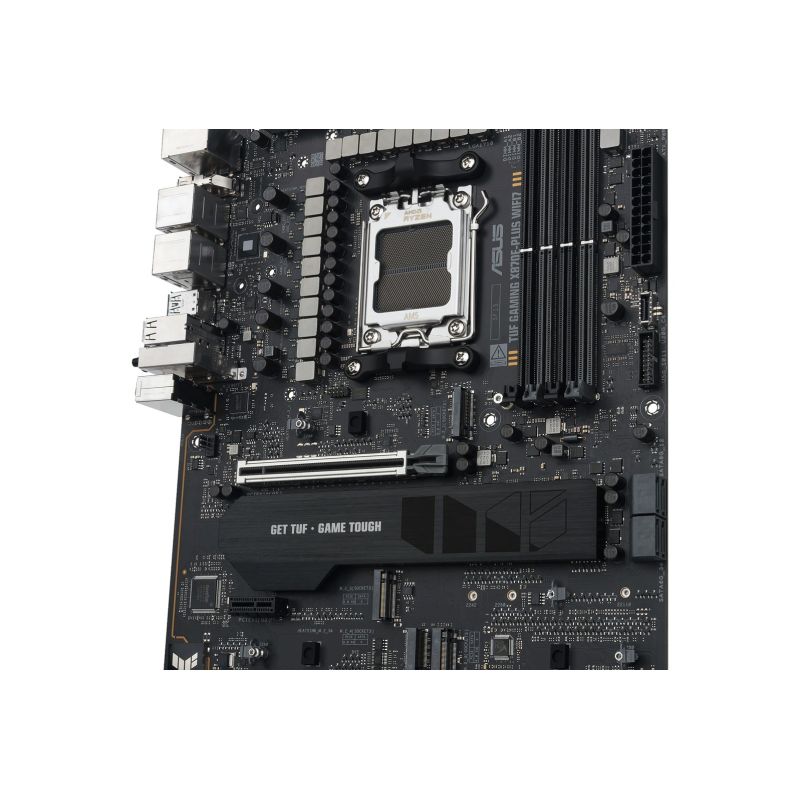

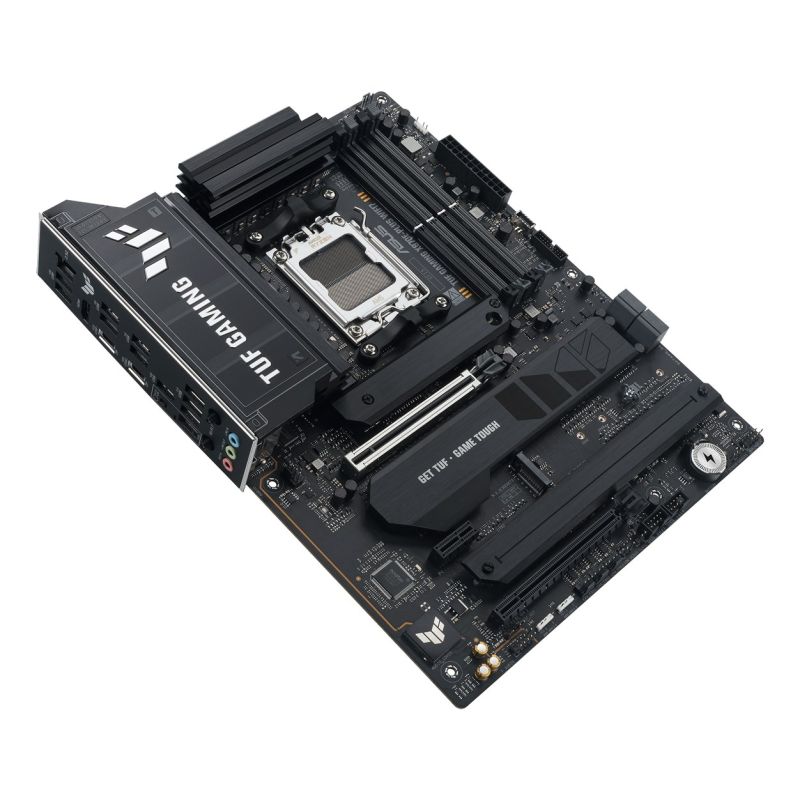

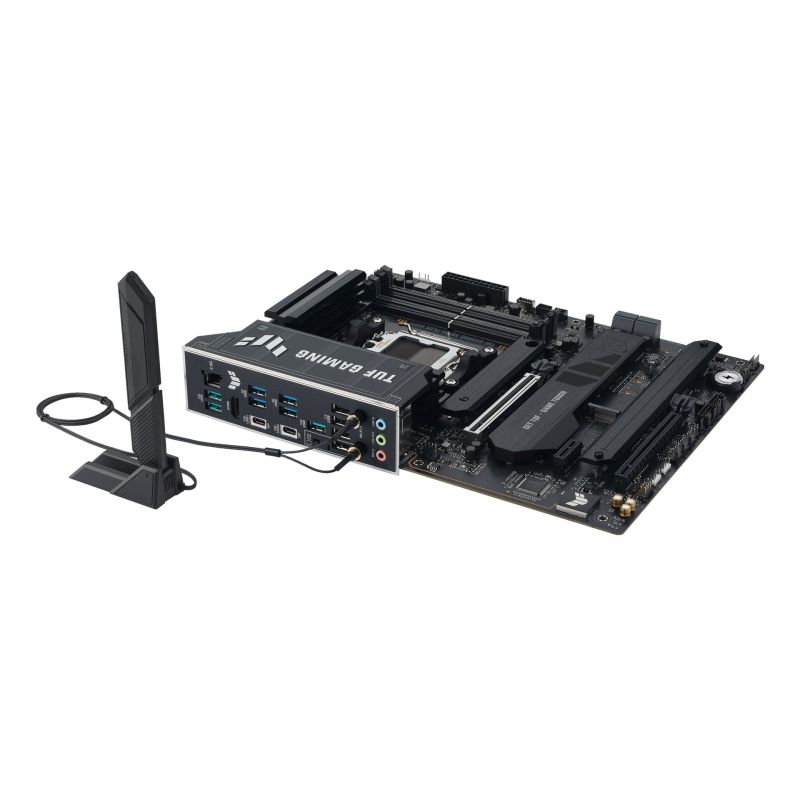

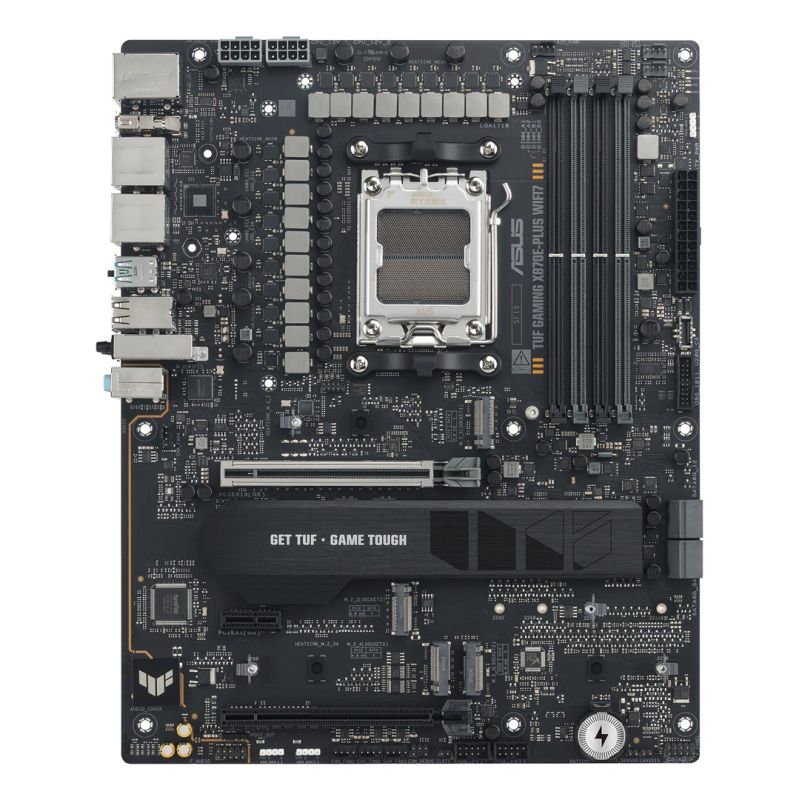

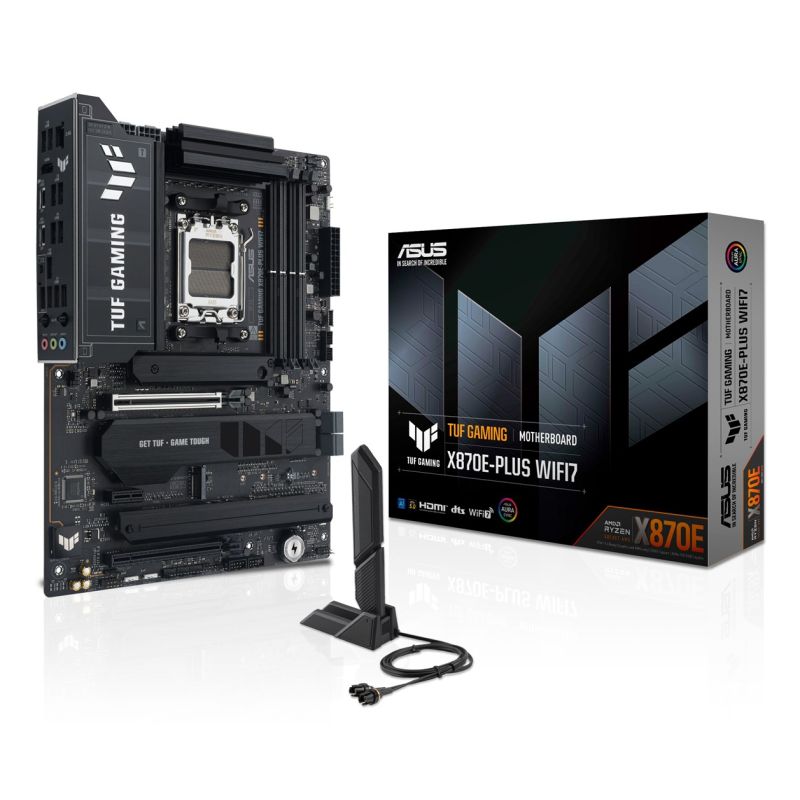

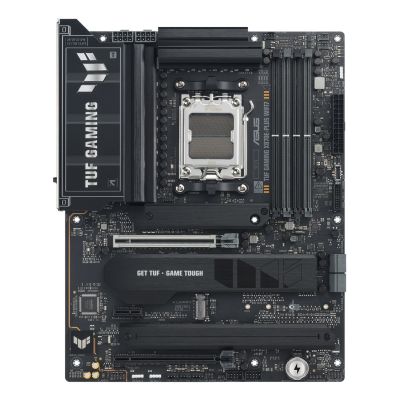

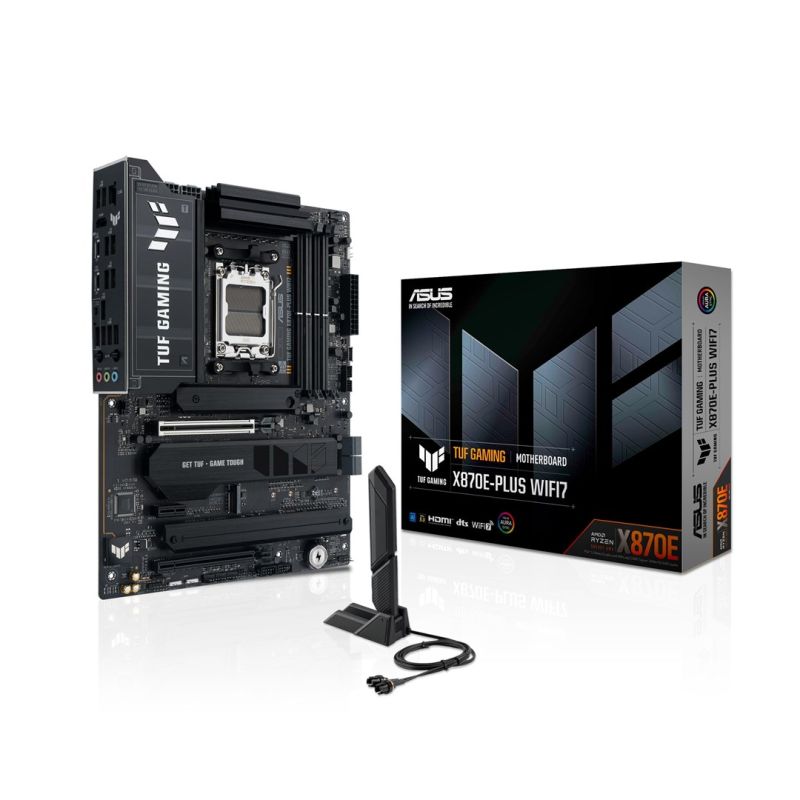

ASUS TUF GAMING X870E-PLUS WIFI Motherboard
ASUS TUF GAMING X870E-PLUS WIFI Motherboard
ASUS TUF GAMING X870E-PLUS WIFI Motherboard
PRICE:
439,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Processor manufacturer: AMD
- Supported CPU sockets: Socket AM5
- Processor
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Built-in graphics card: No
- Memory
- Memory slot type: DIMM
- ECC Compatibility: ECC or Non-ECC
- Number of memory slots: 4
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 8000 MHz
- Memory Channel Support: Dual Channel
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Characteristics
- Motherboard Layout: AMD X870E
- Cooling type: Passive
- Supported Windows operating systems: Windows 11
- Power supply type: ATX
- Motherboard format: ATX
- Audio output channels: 7.1 ch.
- Chipset Board Family: AMD
- Product color: Gray
- Weight and dimensions
- Product height: 48 mm
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- Number of water pump connections: 1
- Number of CPU fan connectors: 1
- Number of temperature sensor headers: 1
- Number of RGB LED connectors: 3
- 12V power connector: Yes
- Number of EPS power connectors (8-pin): 2
- RGB LED: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- CPU fan connector: Yes
- EPS power supply connector (8-pin): Yes
- ATX power socket (24-pin): Yes
- Number of SATA III connectors: 4
- Number of USB 2.0 ports: 2
- Front panel connector: Yes
- Number of case fan connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Front panel audio connector: Yes
- Network
- Ethernet interface type: 2.5 Gigabit Ethernet
- Bluetooth version: 5.4
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Packaging data
- Package depth: 273 mm
- Package height: 68 mm
- Weight with packaging: 2.08 kg
- Package width: 353 mm

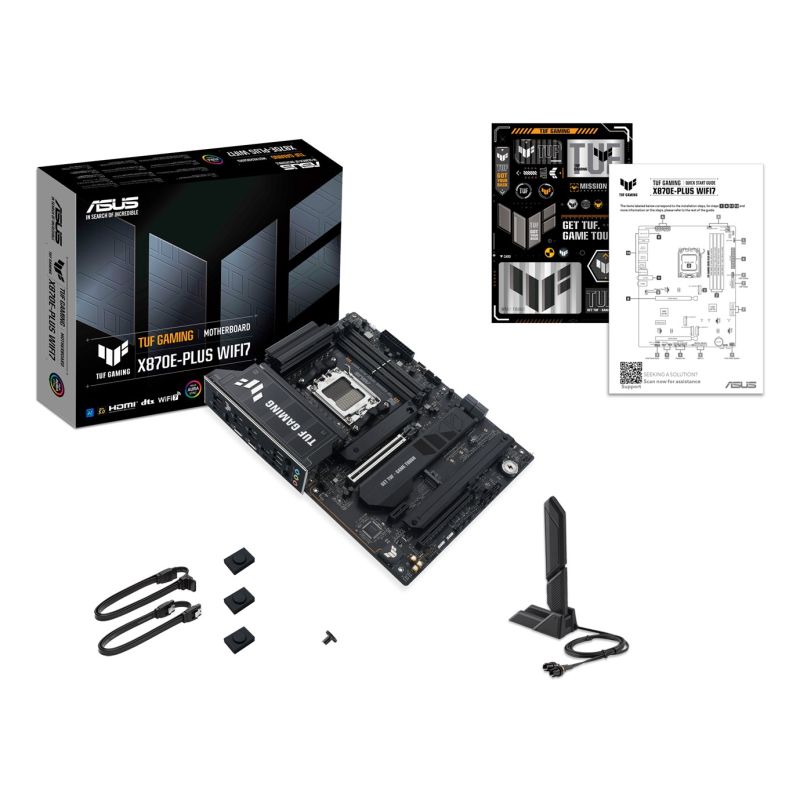

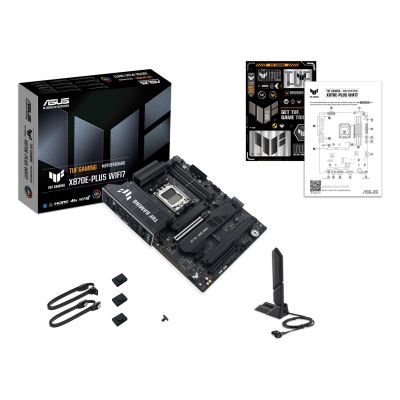

- Package contents
- Screws Included: Yes
- Antenna Included: Yes
- Cables: SATA
- Memory drivers
- Number of supported HDDs: 4
- RAID levels
- 5
- 1
- 0
- 10
- RAID Service: Yes
- Supported hard drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
- Number of supported storage drive sizes: 8
- Supported drive types: HDD & SSD

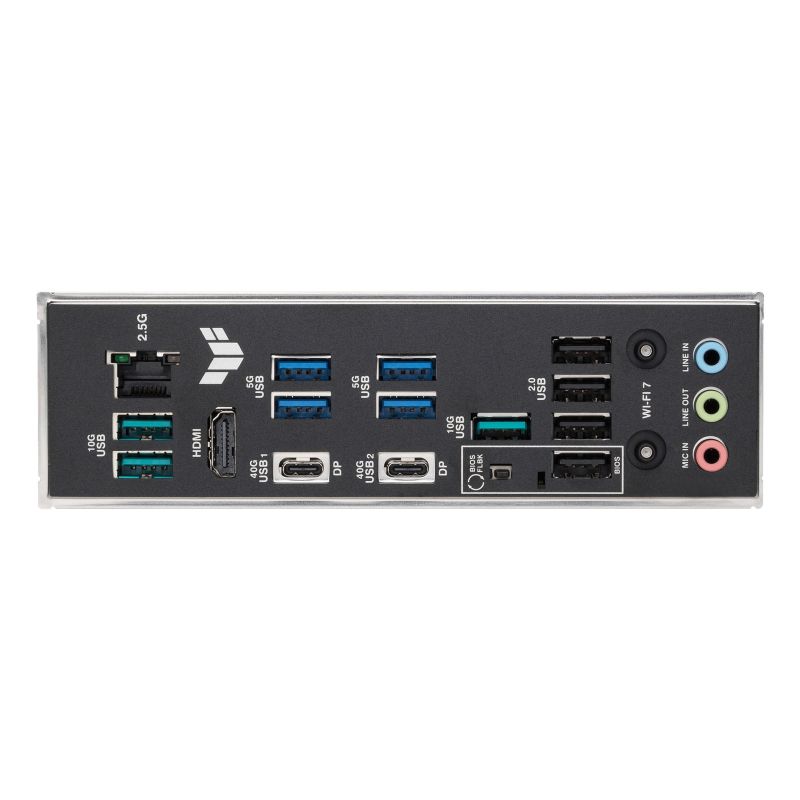

- Rear Panel I/O Ports
- Line Input: Yes
- WiFi-AP Antenna Jack Plug: 2
- Number of USB4 Gen 3x2 ports: 2
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 3
- Number of HDMI ports: 1
- Number of Ethernet LAN ports (RJ-45): 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- Microphone: Yes
- Number of USB 2.0 ports: 4
- Headphone outputs: 1
- Expansion slots
- 2nd largest M.2 key size: 22110
- 2. M.2 highest generation PCI Express: 5.0
- 1. M.2 highest generation PCI Express: 5.0
- 1. largest M.2 key size: 2280
- 4. largest M.2 key size: 2280
- 3. M.2 highest generation PCI Express: 4.0
- 3. largest M.2 key size: 2280
- PCI Express x16 (Gen 4.x) slots: 1
- 4. M.2 highest generation PCI Express: 4.0
- PCI Express x1 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 4
- Other functions
- Quick Installation Guide: Yes
- Product weight: 1.56 kg
| Name | Details |
|---|---|
| Producer | Asus |
