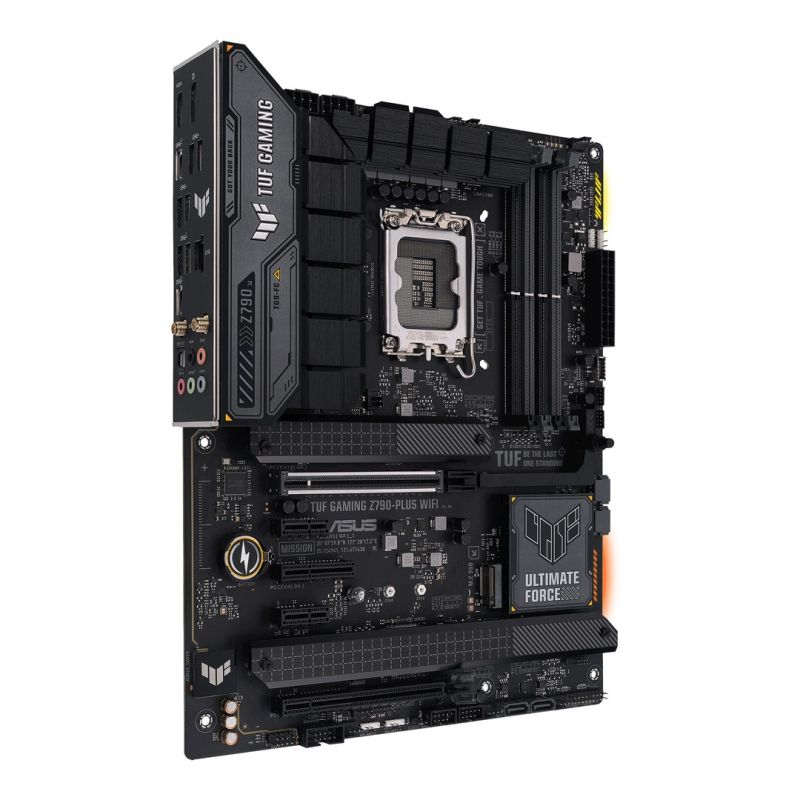

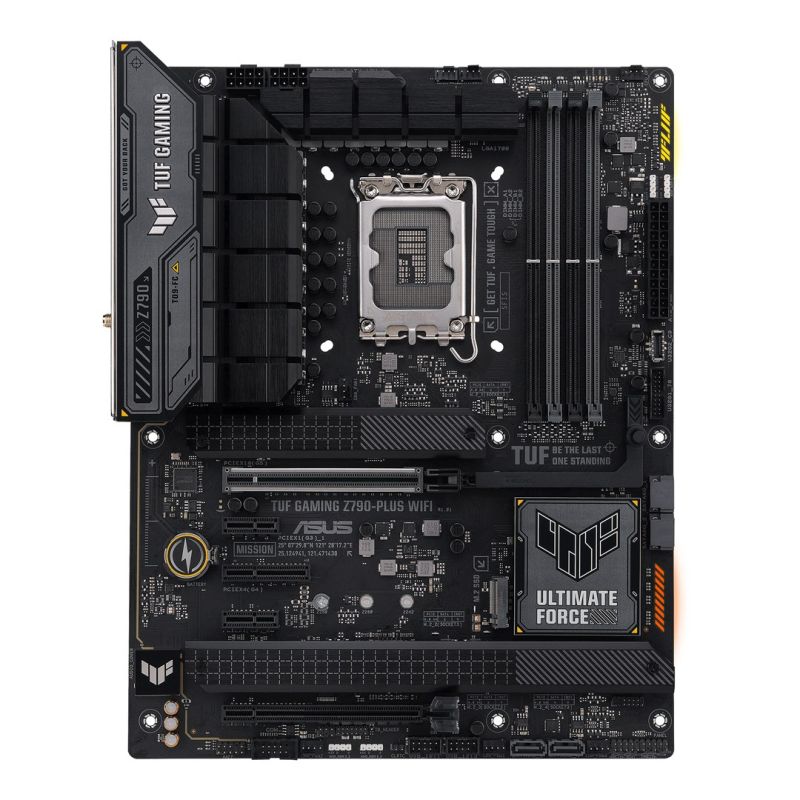

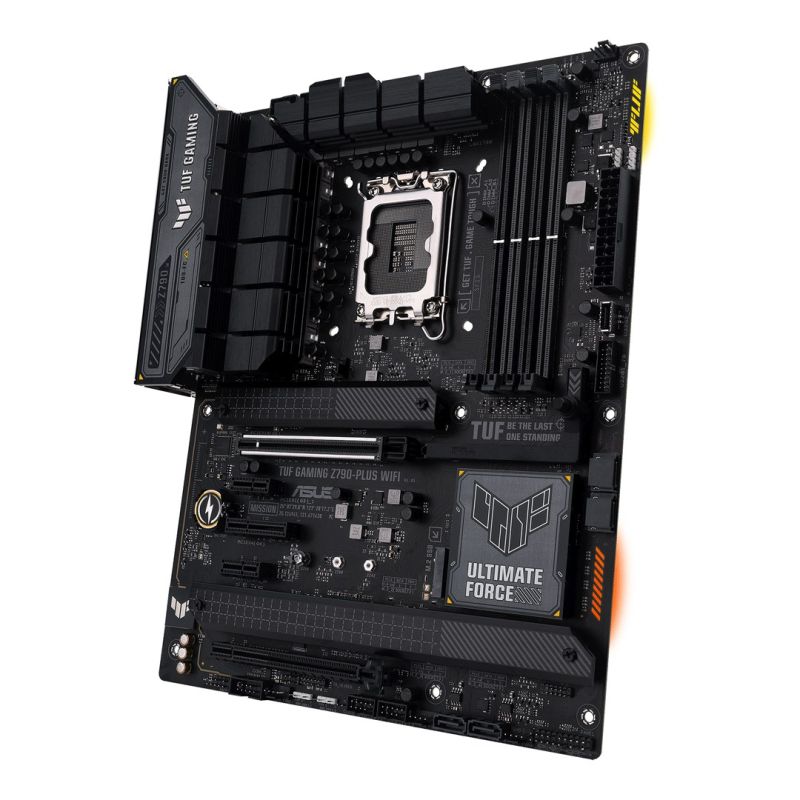

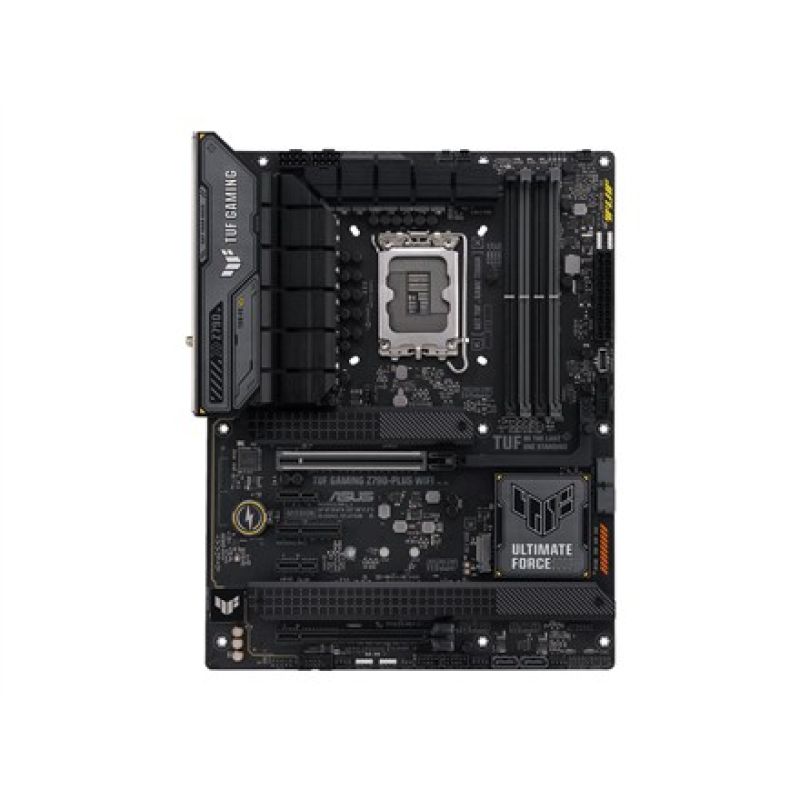

ASUS TUF GAMING Z790-PLUS WIFI Motherboard
ASUS TUF GAMING Z790-PLUS WIFI Motherboard
ASUS TUF GAMING Z790-PLUS WIFI Motherboard
PRICE:
516,99
€
IN A WAREHOUSE
9 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: LGA 1700
- Processor manufacturer: Intel
- Processor
- Intel® Core™ i9
- Intel® Core™ i3
- Intel® Core™ i5
- Intel® Celeron®
- Intel® Core™ i7
- Intel® Pentium® Gold
- Processor socket: LGA 1700
- Graphics
- Built-in graphics card: No
- Parallel Processing Support: Not Supported
- Memory
- Supported memory clock speeds
- 7200
- 5400 MHz
- 5600 MHz
- 6400 MHz
- 5800 MHz
- 6200 MHz
- 5200 MHz
- 5000 MHz
- 6000 MHz
- 6600
- 6800
- 4800 MHz
- 7000
- Unbuffered memory: Yes
- Memory Channel Support: Dual Channel
- Maximum memory capacity: 128 GB
- Memory slot type: DIMM
- ECC Compatibility: Non-ECC
- Supported memory types: DDR5-SDRAM
- Supported memory clock speed (max): 7200 MHz
- Number of memory slots: 4
- Supported memory clock speeds
- Characteristics
- Power supply type: ATX
- Supported Windows operating systems
- Windows 10
- Windows 11
- Audio output channels: 7.1 ch.
- Chipset Board Family: Intel
- Motherboard Layout: Intel Z790
- Product color: Black
- Audio chip: Realtek S1220A
- Motherboard format: ATX
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- EPS power supply connector (8-pin): Yes
- Front panel audio connector: Yes
- Number of COM sockets: 1
- CPU fan connector: Yes
- Number of USB 2.0 ports: 2
- Number of case fan connectors: 4
- Number of SATA III connectors: 4
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Thunderbolt Ends: 1
- USB 3.2 Gen 2 (3.1 Gen 2) ports: 1
- 12V power connector: Yes
- RGB LED: Yes
- Network
- Bluetooth: Yes
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 4 (802.11n)
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Wired LAN: Yes
- Bluetooth version: 5.3
- BIOS
- BIOS Type: UEFI AMI
- Package contents
- User Guide: Yes
- Cables: SATA
- Memory drivers
- RAID levels
- 10
- 1
- 5
- 0
- RAID Service: Yes
- Supported hard drive interfaces: M.2, SATA III
- Supported drive types: HDD & SSD
- RAID levels
- Rear Panel I/O Ports
- Number of Ethernet LAN ports (RJ-45): 1
- Number of HDMI ports: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports: 1
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 4
- DisplayPort Quantity: 1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 2
- DisplayPort version: 1.4
- S/PDIF Output Port: Yes
- HDMI version: 2.1
- Line Input: Yes
- Microphone: Yes
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 1
- Number of USB 3.2 Gen 2x2 Type-C ports: 1
- Expansion slots
- PCI Express x1 (Gen 3.x) slots: 2
- Number of M.2 (M) slots: 4
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x4 slots (Gen 4.x): 1
- Safety warning
- Warnings
- Do not throw the motherboard into the regular trash; the product requires special disposal.
- Avoid direct contact with electronics to prevent electrostatic damage.
- Before starting any maintenance or assembly, disconnect the product from the power source.
- Warnings
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Computers and accessories |
| Product Type | Motherboards |
| Producer | Asus |
