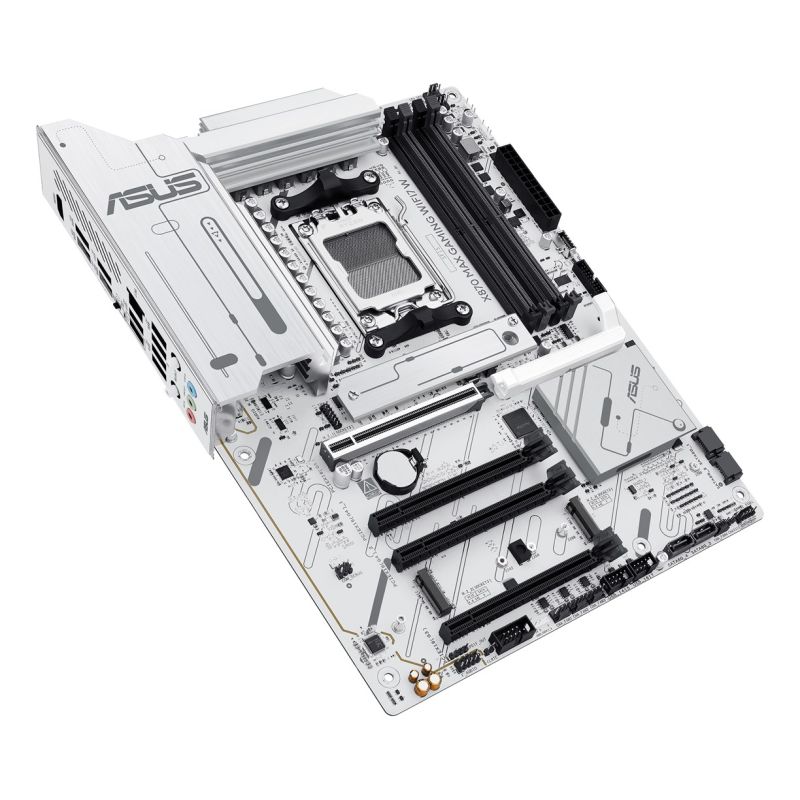

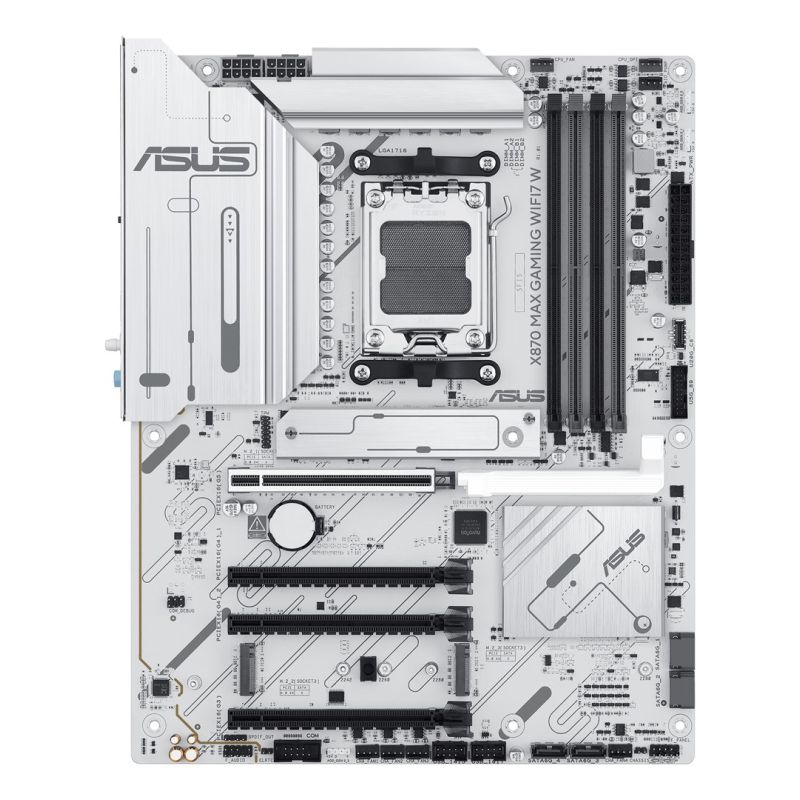

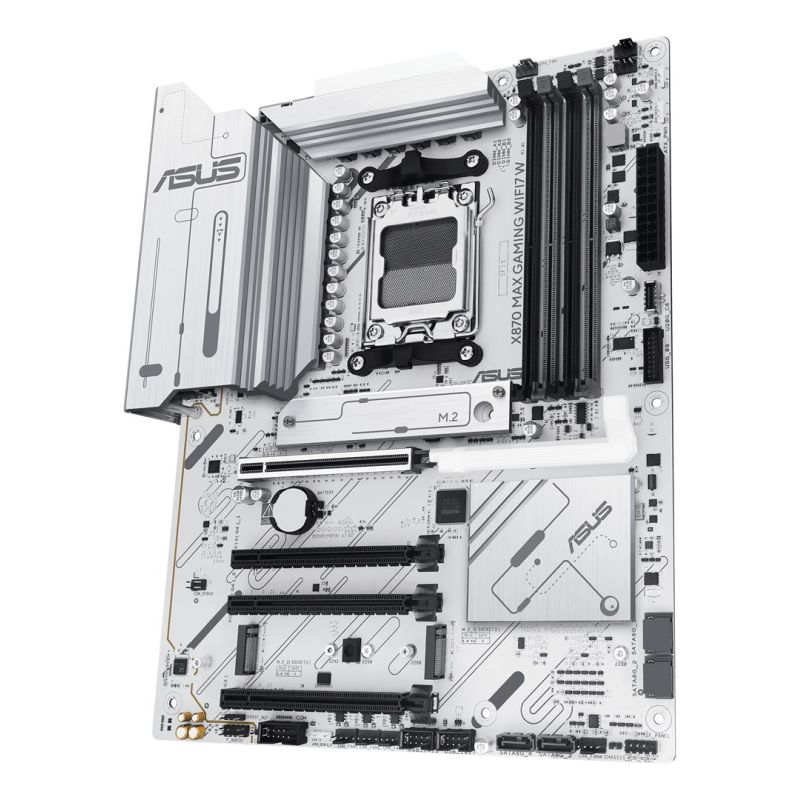

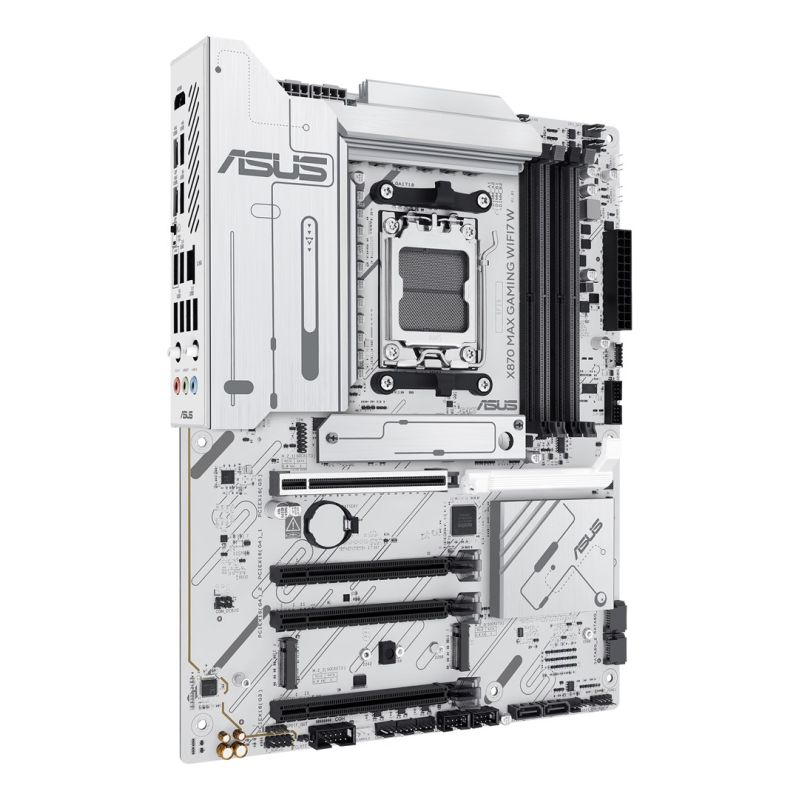

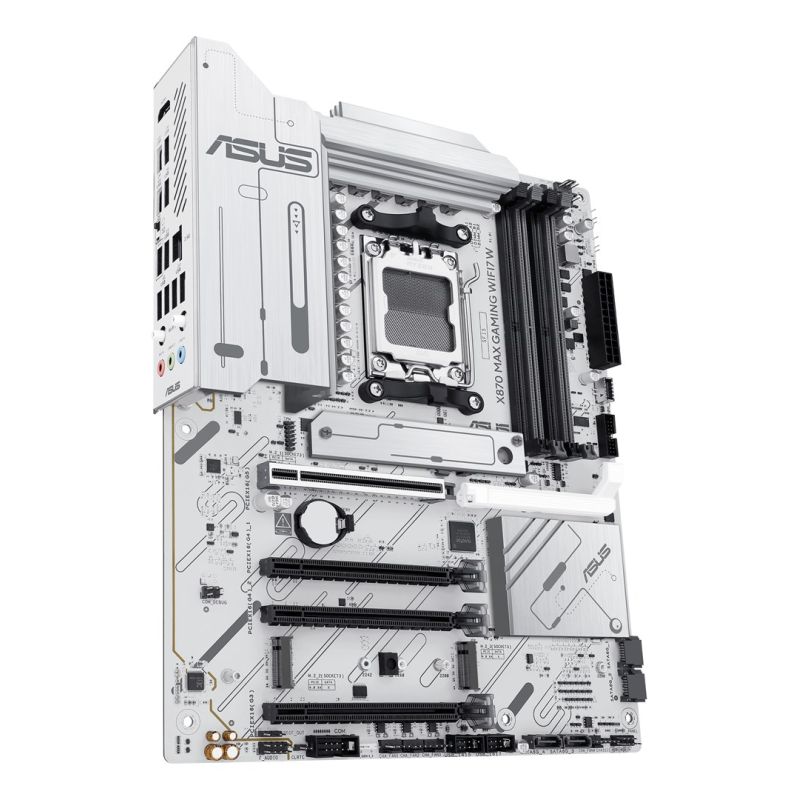

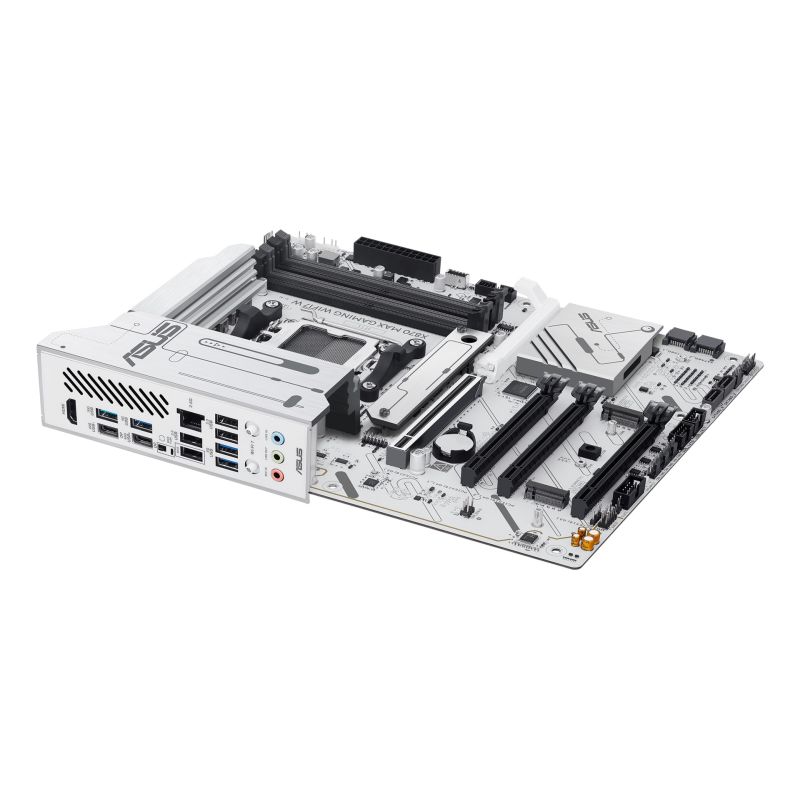

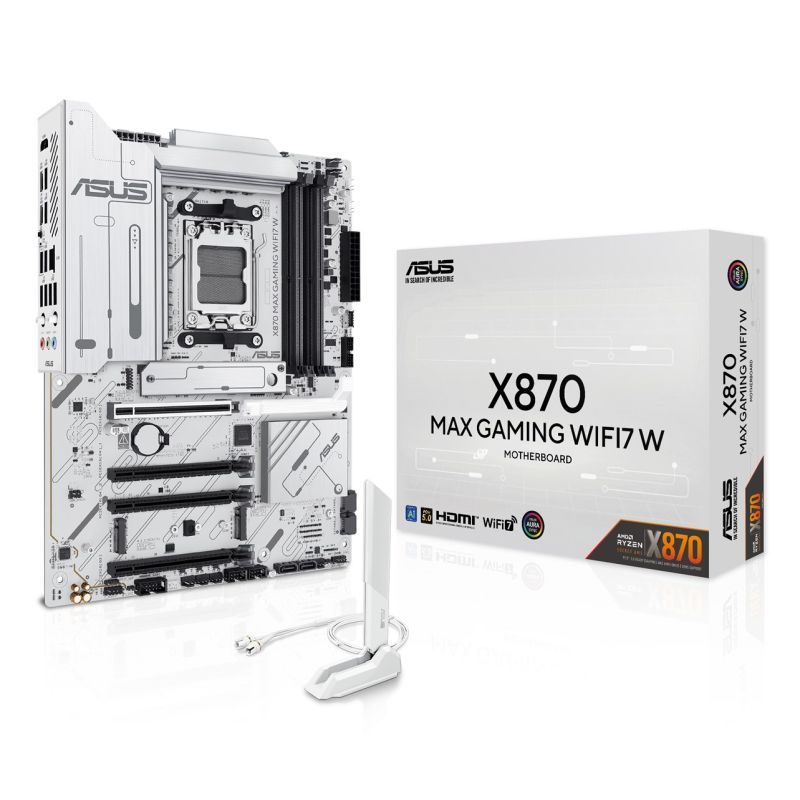

ASUS X870 MAX GAMING WIFI7 White Motherboard
ASUS X870 MAX GAMING WIFI7 White Motherboard
ASUS X870 MAX GAMING WIFI7 White Motherboard
PRICE:
392,99
€
IN A WAREHOUSE
4 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Processor
- Supported CPU sockets: Socket AM5
- Processor manufacturer: AMD
- Processor
- AMD Ryzen 7000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 9000 Series
- Processor socket: Socket AM5
- Graphics
- Parallel Processing Support: Not Supported
- Maximum resolution: 3840 x 2160 px
- Memory
- Unbuffered memory: Yes
- Maximum memory capacity: 256 GB
- Memory slot type: DIMM
- Supported memory clock speed (max): 8000 MHz
- Memory Channel Support: Dual Channel
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- ECC Compatibility: ECC or Non-ECC
- Characteristics
- Chipset Board Family: AMD
- Audio output channels: 7.1 ch.
- Motherboard Layout: AMD X870
- Motherboard format: ATX
- Product color: White
- Supported Windows operating systems: Windows 11
- Weight and dimensions
- Product width: 305 mm
- Product depth: 244 mm
- Internal I/O
- Number of water pump connections: 1
- Number of CPU fan connectors: 2
- Number of RGB LED connectors: 3
- Number of EPS power connectors (8-pin): 2
- Number of USB 2.0 ports: 2
- CPU fan connector: Yes
- S/PDIF jack: Yes
- ATX power socket (24-pin): Yes
- USB 3.2 Gen 1 (3.1 Gen 1) ports: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Number of case fan connectors: 4
- Housing intrusion sensor connector: Yes
- EPS power supply connector (8-pin): Yes
- Number of COM sockets: 1
- 12V power connector: Yes
- TPM Connector: Yes
- RGB LED: Yes
- USB 3.2 Gen 2x2 ports: 1
- Network
- Bluetooth: Yes
- Wake-On-LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Basic Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi: Yes
- Bluetooth version: 5.4
- Wired LAN: Yes
- BIOS
- BIOS Type: UEFI AMI
- Clear CMOS Jumper: Yes
- Package contents
- Cables: SATA
- Screws Included: Yes

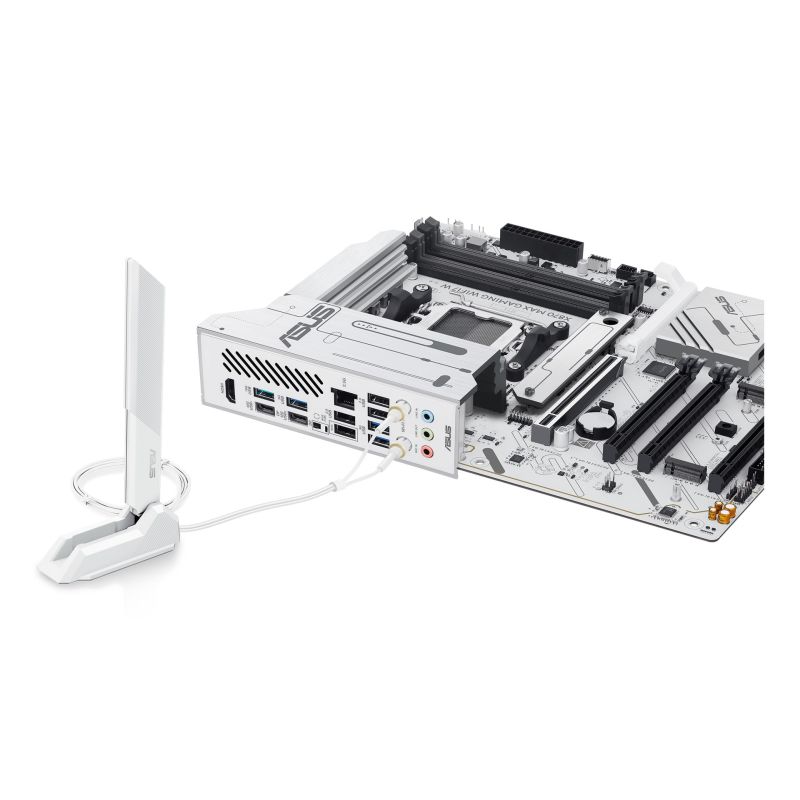

- Antenna Included: Yes
- Memory drivers
- RAID Service: Yes
- Supported hard drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III
- RAID levels
- 10
- 0
- 5
- 1
- Supported drive types: HDD & SSD
- Number of supported storage drive sizes: 7

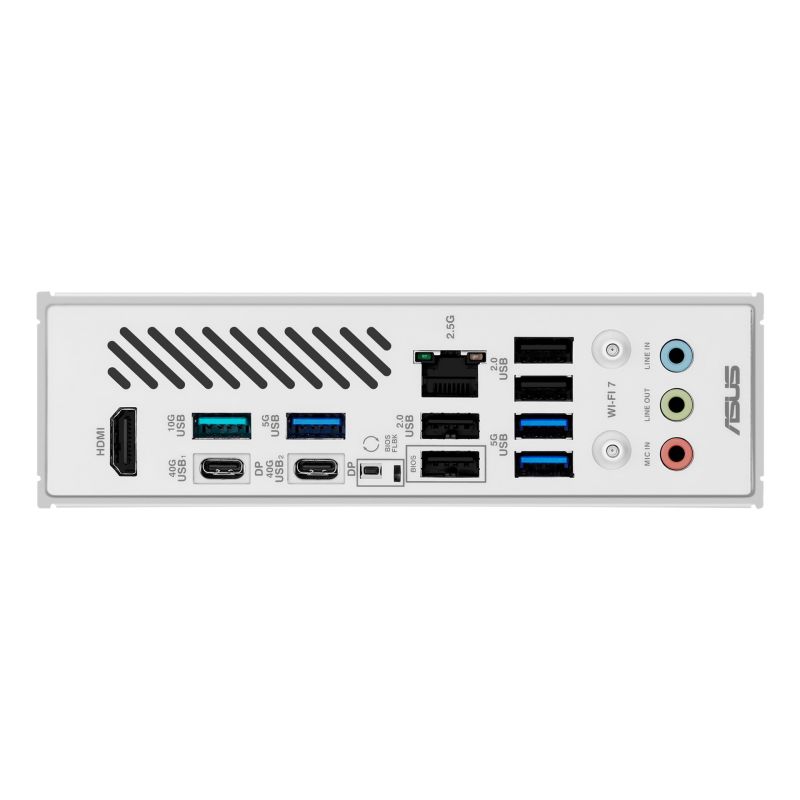

- Rear Panel I/O Ports
- Supported USB type
- USB Type-C
- USB Type-A
- Number of USB 2.0 ports: 4
- Number of Ethernet LAN ports (RJ-45): 1
- WiFi-AP Antenna Jack Plug: 2
- Headphone outputs: 3
- HDMI version: 2.1
- Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports: 1
- Number of USB4 Gen 3x2 ports: 2
- Microphone: Yes
- Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports: 3
- Number of HDMI ports: 1
- Supported USB type
- Expansion slots
- Number of M.2 (M) slots: 3
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 2
| Name | Details |
|---|---|
| Producer | Asus |
