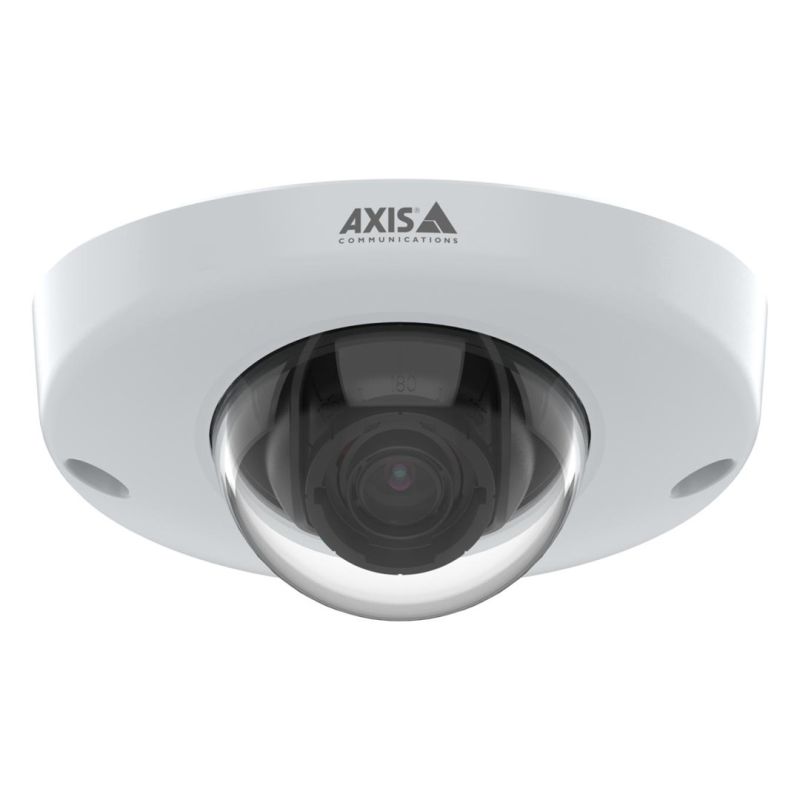

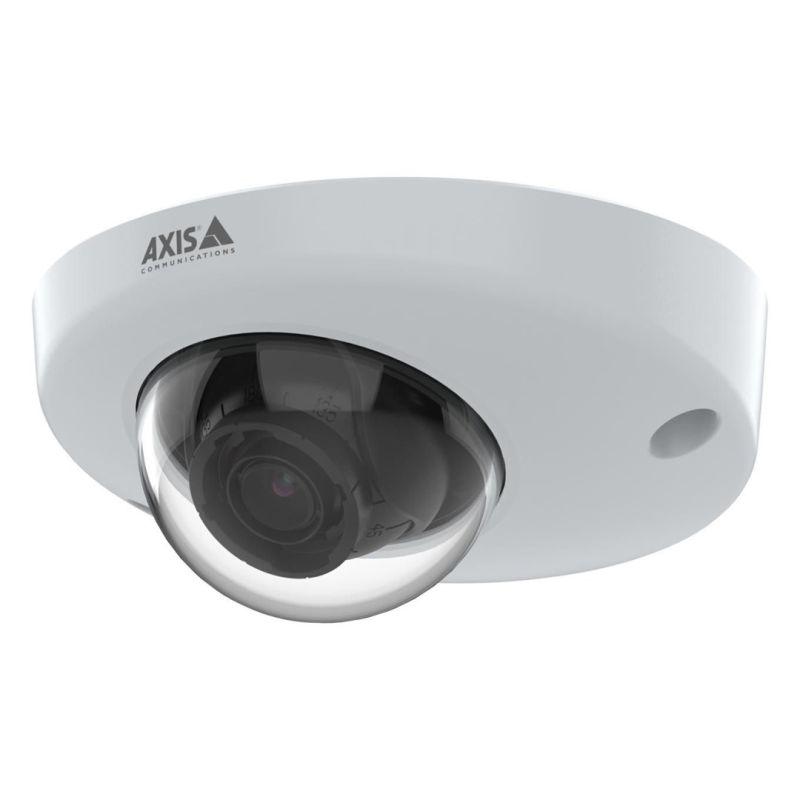

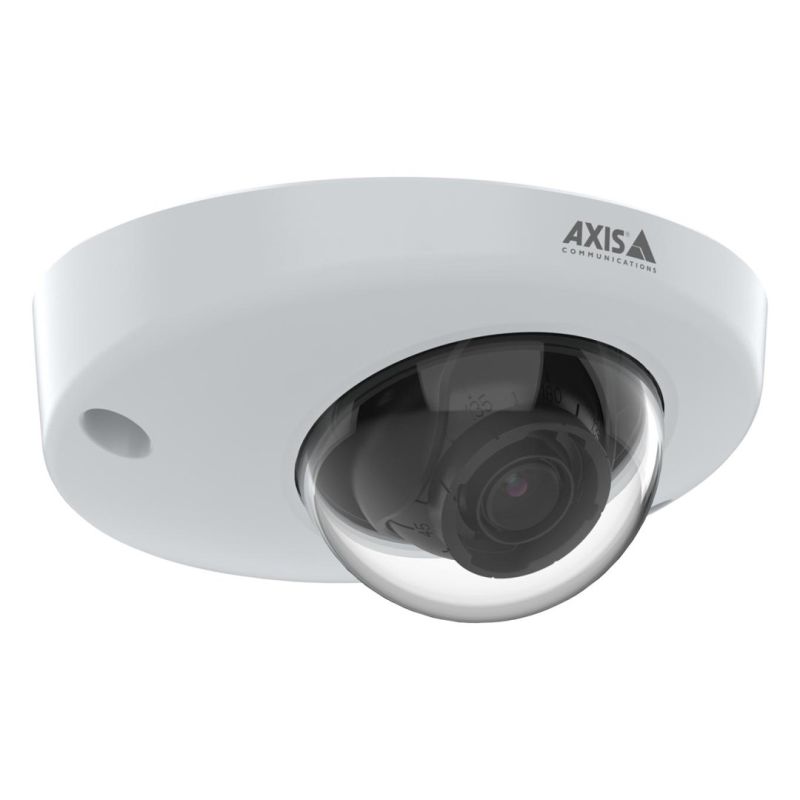

Axis 02670-001 - IP surveillance camera - Indoor - Wired - Digital PTZ
Axis 02670-001 - IP surveillance camera - Indoor - Wired - Digital PTZ
Sign up and unlock up to 10% off!
- Design
- Mounting type: Wall
- Housing material
- Aluminum
- Polycarbonate (PC)
- IK code: IK10
- IP protection class: IP66, IP67
- Product color: White
- Layout: Dome
- Power
- Power consumption (PoE): 2.2 W
- Power supply type: PoE
- Power consumption (max): 3.8 W
- Weight and dimensions
- Product height: 50 mm
- Diameter: 11 cm
- Product weight: 241 g
- Security
- Video motion detection: Yes
- IP Filtering: Yes
- Password protection: Yes
- Digest Authentication: Yes
- HTTS Inscription: Yes
- Active intrusion alarm: Yes
- Network Attached Storage (NAS): Yes
- Pixel counter: Yes
- Working conditions
- Relative humidity range: 10 - 100%
- Temperature range (operation): -30 - 55 °C
- Temperature range (storage): -40 - 65 °C
- Network
- Ethernet interface type: Gigabit Ethernet
- Wired LAN: Yes
- Wi-Fi: No
- Quality of Service (QoS) Support: Yes
- Bluetooth: No
- Communication standards
- IEEE 802.1x
- IEEE 802.3af
- IEEE 802.3at
- Efficiency
- Built-in processor: Yes
- PTZ: Yes
- Intended use: Internal
- Language support
- Polish
- Simplified Chinese
- Czech
- Finnish
- Swedish
- Korean
- Italian
- German
- English
- Dutch
- French
- Spanish
- Japanese
- Vietnamese
- Portuguese
- Chinese traditional
- Turkish
- Russian
- Thai
- PTZ modes: Digital PTZ
- Wide Dynamic Range (WDR): Yes
- Number of languages: 19
- Connection method: Wired
- Model: IP Security Camera
- Package contents
- Number of cameras: 1
- User Manual: Yes
- Data carrier
- Supported memory cards
- MicroSDXC
- MicroSDHC
- MicroSD
- Flash memory size: 512 MB
- Internal memory capacity: 1 GB
- Built-in HDD: No
- Integrated card reader: Yes
- Supported memory cards
- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Camera pixel size: 2.8 µm
- Rotation angle: 175°
- Sliding range: -30 - 30°
- Min. Illumination: 0.04 lx
- Lens viewing angle, horizontal: 88°
- Camera Tilt Control: Yes
- Camera Pan Control: Yes
- Vertical lens viewing angle: 47°
- Tilt angle range: 15 - 90°
- Photosensitive matrix
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 2.9 mm (1 / 2.9")
- Night mode
- Night mode: No
- Video
- Video transmission: Yes
- Noise reduction: Yes
- Privacy Mask: Yes
- Compression formats
- M-JPEG
- H.265
- H.264
- Noise reduction technology: 2D noise reduction, 3D noise reduction
- Total megapixels: 2 MP
- Frame rate: 30 fps
- Video recording: Yes
- Maximum resolution: 1920 x 1080 px
- Lens system
- Zoom capability: Yes
- Lens diameter: 3.6 mm
- Maximum aperture: 2
