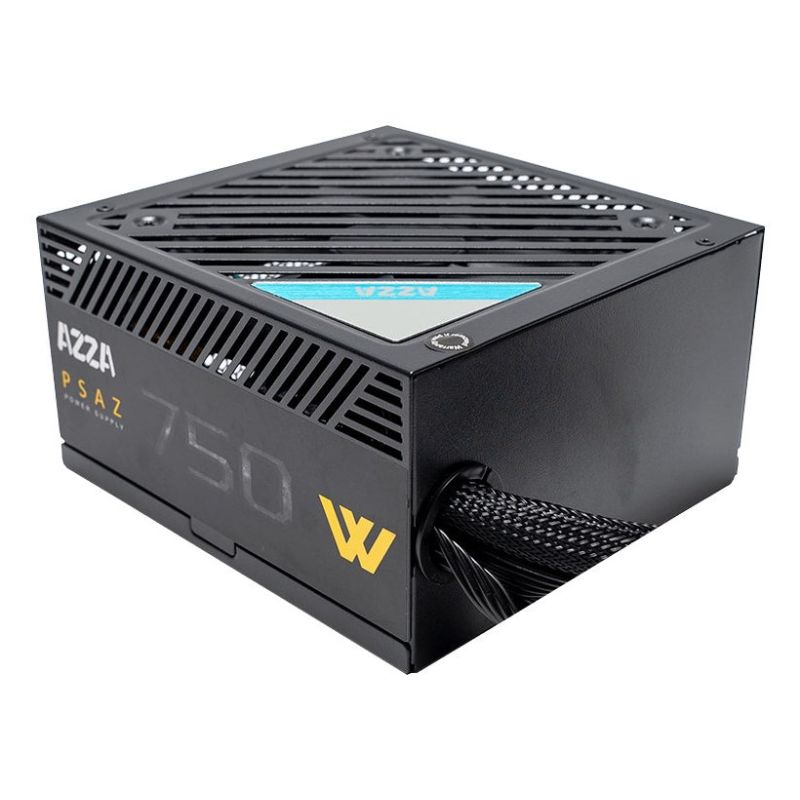

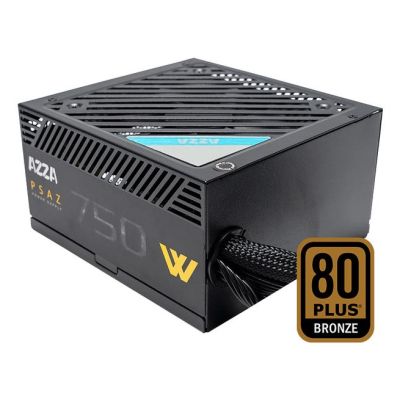

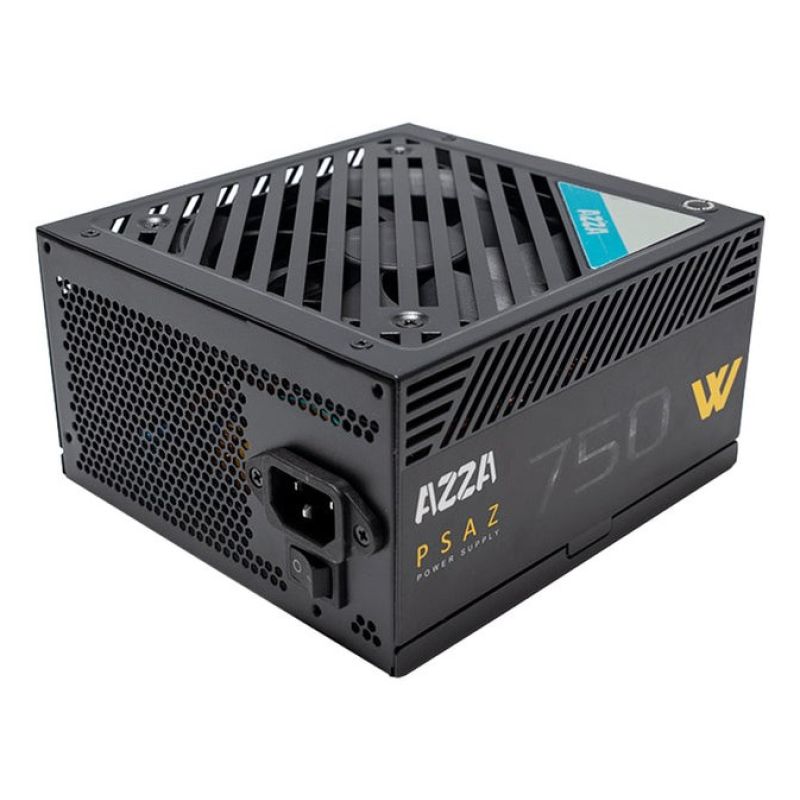

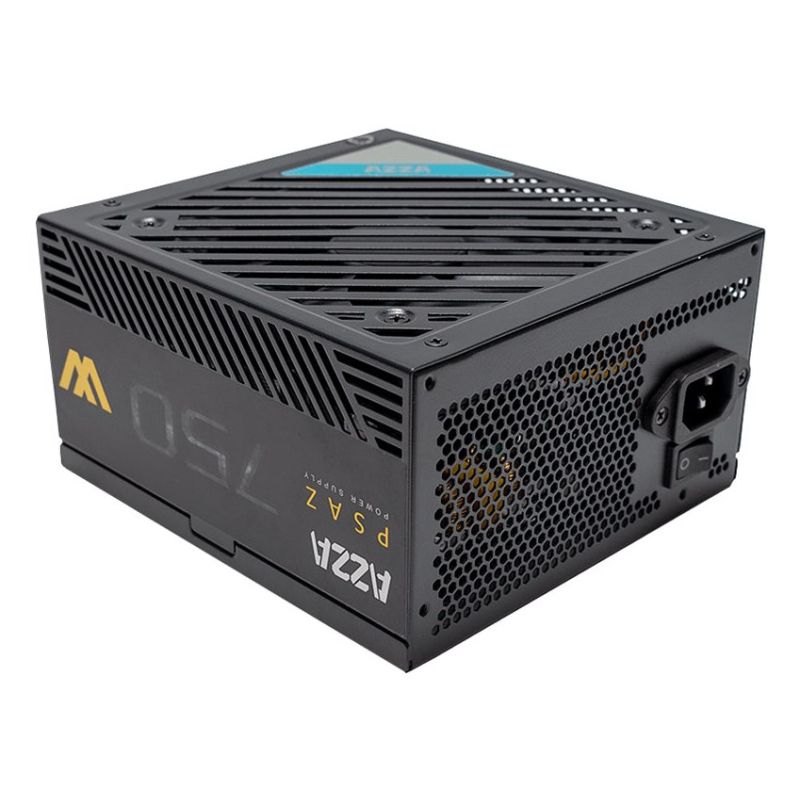

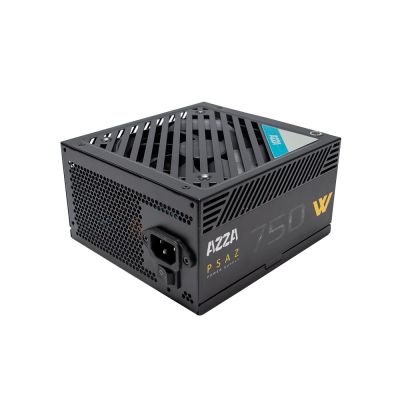

Azza PSAZ-750W 20+4 pin ATX power supply module ATX Black
Azza PSAZ-750W 20+4 pin ATX power supply module ATX Black
Azza PSAZ-750W 20+4 pin ATX power supply module ATX Black
PRICE:
97,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 100 EUR!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Technical details
- Does not contain
- Mercury
- Lead
- Cadmium
- Does not contain
- Design
- Backlight: No
- Number of fans: 1 fan
- Product color: Black
- Fan bowl diameter: 12 cm
- Built-in switch: Yes
- Power
- Efficiency: 86%
- Input current: 10 A
- PFC (Power Factor Correction) Type: Active
- AC input voltage: 100 - 240 V
- Total power (-12V): 3.6 W
- Total power: 750 W
- AC input frequency: 50/60 Hz
- Total power (+5V): 100 W
- Total power (+12V): 750 W
- Power protection features
- Overload protection
- Low voltage protection
- Short circuit
- Overheating protection
- Protection against overvoltage
- Overcurrent
- Total power (+3.3V): 100 W
- Maximum output current (+3.3V): 15 A
- Maximum output current (+5V): 15A
- Good Signal Power Delay Range: 100 - 150 ms
- Maximum output current (-12V): 0.3A
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (+12V): 62.5A
- Total power (+5 Vsb): 15 W
- Hold time: 16 ms
- Weight and dimensions
- Product depth: 165 mm
- Product width: 150 mm
- Product height: 86 mm
- Efficiency
- MTBF (Mean Time Between Failures): 100000 h
- 80 PLUS Certificate: 80 PLUS Bronze
- Bearing Technology: Sleeve
- Power supply type (PSU): ATX
- ATX version: 2.0
- Intended use: PC
- Packaging data

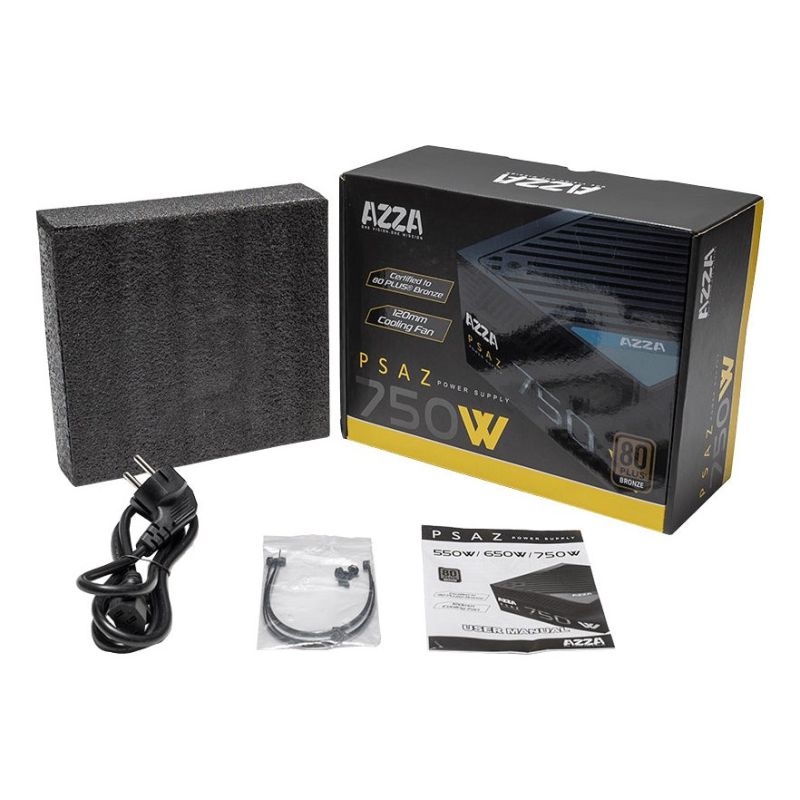

- Packaging type: Box
- Certificates
- Certificates of conformity
- RoHS
- RCM
- Federal Communications Commission (FCC)
- Certificates of conformity
- Ports and interfaces
- PCI Express power connectors (12+4 pin): 1
- Number of SATA power cables: 2
- Wiring Type: Non-Modular
- PCI Express power connectors (6+2 pin): 2
- Peripheral (Molex) Power Connectors (4-pin): 2
- Number of SATA power connectors: 6
- Motherboard cable length: 55 cm
- EPS power connector (4+4 pin): Yes
- Motherboard power connector: 20+4 pin ATX
- ATX power supply connector (20+4 pin): Yes
